Cooler Master MasterBox Q500L Cabinet

MASTERBOX Q500L
CHOOSE YOUR STYLE

Highly Compact Standard ATX
Orientation & A Movable I/O Panel
Versatile PSU Bracket
Fully Perforated Chassis
Magnetic Dust Filters

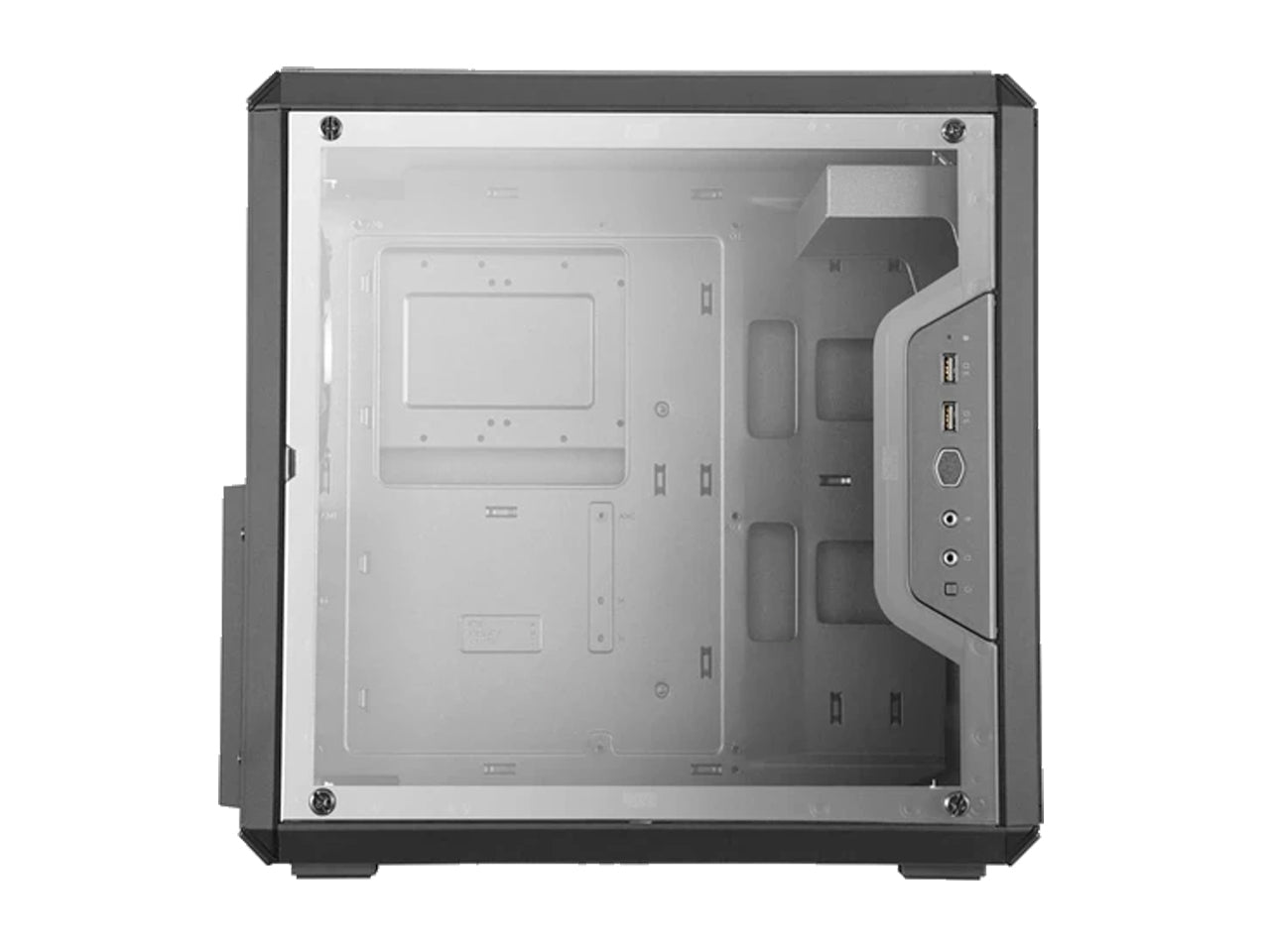

Edge-to-Edge Transparent Side Panel
Clean Routing Space

SKU:MCB-Q500L-KANN-S00

MASTERBOX Q500L
CHOOSE YOUR STYLE

Highly Compact Standard ATX
Orientation & A Movable I/O Panel
Versatile PSU Bracket
Fully Perforated Chassis
Magnetic Dust Filters
Edge-to-Edge Transparent Side Panel
Clean Routing Space

Product Name	MasterBox Q500L
Product Number	MCB-Q500L-KANN-S00
Available Color	Black
Materials	Steel, Plastic
Dimensions (LxWxH)	386(L) x 230(W) x 381(H) mm
Motherboard Support	ATX, Micro ATX, Mini ITX
Expansion Slots	7
5.25" Drive Bays	0
2.5" / 3.5" DRIVE BAYS (COMBO)	2 (each bay supports: 1 HDD or 2 SSDs)
I/O PANEL	2x USB 3.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
Pre-installed Fan(s) - Rear	120mm x 1
Fan Support - Front	120/140mm x 2
Fan Support - Top	120/140mm x 2
Fan Support - Rear	120mm x 1
Fan Support - Bottom	120mm x 2
Radiator Support - Front	120mm x 1 / 240mm x 1
RADIATOR SUPPORT - TOP	120 / 240mm (35mm max motherboard component height)
Radiator Support - Rear	120mm x 1
Clearances - CPU Cooler	160mm / 6.29"
Clearances - PSU	180mm/7.08"
Clearances - GFX	360mm
Cable Routing - Behind MB Tray	28mm
Dust Filters	Bottom
Power Supply Support	Top Front Mount, ATX PS2
