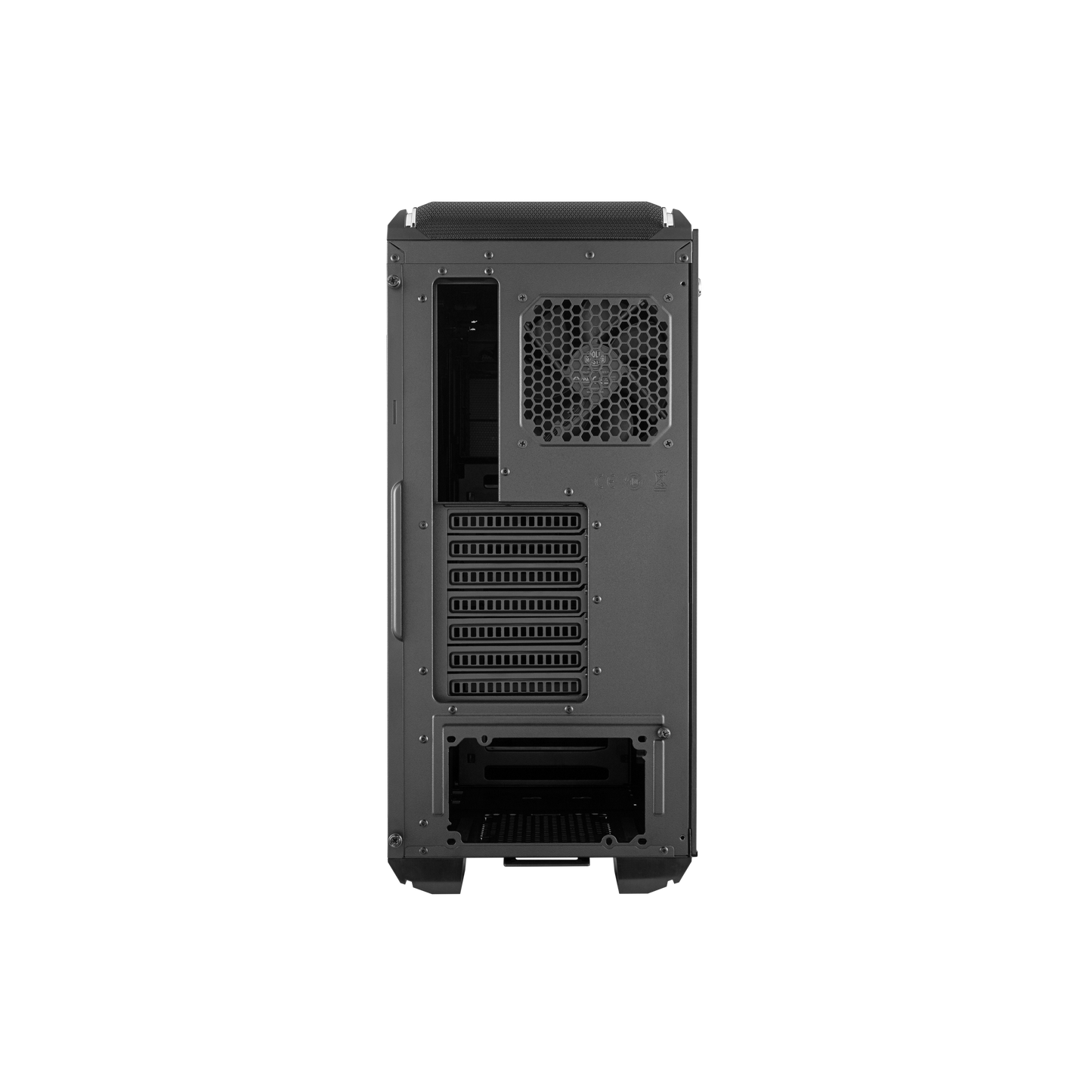

Cooler Master MASTERBOX CM694 Cabinet
Cooler Master MASTERBOX CM694 Cabinet
Description
Description
- Curved Mesh
- Modular Drive Cages
- Graphics Card Stabilizer
- Rich Connectivity (I/O Panel)
Model |
CM694-KN5N-S00 (Steel) |
Series | MasterBox Series |
Materials | Steel, polymer, mesh front bezel |
Size | Mid Tower |
AVAILABLE COLOR(S) | Black |
Dimensions (W x H x D) |
Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions) |
MOTHERBOARD SUPPORT | Mini ITX, Micro ATX, ATX, E-ATX |
Net Weight | 8.2 kg / 18.1 lbs |
M/B Type | Mini-ITX, microATX, ATX |
5.25" Drive Bays | 2 |
2.5" / 3.5" DRIVE BAYS (COMBO) |
6 (3x drive cages) |
2.5" Drive Bays | 8 (2 + 6 combo) |
I/O Panel | 2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic) |
Expansion Slots | 7 |
PRE-INSTALLED FANS - FRONT | 2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector) |
PRE-INSTALLED FANS - REAR | 1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector) |
FAN SUPPORT - FRONT | 3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD) |
FAN SUPPORT - TOP | 3x 120mm, 2x 140mm |
FAN SUPPORT - REAR | 1x 120mm |
RADIATOR SUPPORT - FRONT | 120mm*, 140mm*, 240mm*, 280mm**, 360mm** (*remove 2 out of 3 drive cages) (**remove 2 out of 3 drive cages & ODD cage) |
RADIATOR SUPPORT - TOP | 120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility) |
RADIATOR SUPPORT - REAR | 120mm |
CLEARANCE - GFX |
410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage) |
CLEARANCE - PSU |
276mm, 160mm (drive cage rear position) |
Power Supply Type | Bottom mount, ATX PS2 |
DUST FILTERS | Top, Front, Bottom |
CABLE ROUTING | 27-29mm |
