Biostar TB360-BTC PRO Ver. 6.x Mining Motherboard
We Have the Most Professional Design for You
TB360-BTC PRO has 12 x PCI-E 3.0 slots that allow for USB riser cables to be plugged directly into it, and the neat layout of PCI-E slots can prevent overcurrent and short-circuit damage making mining more smoothly.
Making Dual PSUs Possible
There are two 24Pin power supply connectors on the TB360-BTC PRO for you over all power. It also supports two power supplies in the same time and no need to set up jumpers.
Blockchain Grade Protection
PC systems can be damaged or destroyed by electrical surges. TB360-BTC PRO offers SUPER LAN Surge Protection which limits surge voltages reaching protected crypto mining rig to safe levels.
Fast, faster, the fastest
BIOSTAR TB360-BTC PRO uses Intel B360 chipset to support native PCI-E up to 12 slots. Every slot has a dedicated channel which means you can enjoy an unimpeded mining experience.
Other crypto mining motherboards use Intel H110 chipset only supporting 6 native PCI-E slots, and the other extra PCI-E slots are supported by PCI-E x1 extension chip which limits the bandwidth and causes some mining performance issues such as low stability, low compatibility, low speed of bandwidth… it is much more than you think.
Saving Up to 1 Computer
TB360-BTC PRO supports up to 12 graphics cards not only saving more money but also high-performance. To compare with 6-GPU motherboard, TB360-BTC PRO can help you save a set of CPU, motherboard, SSD, memory card, and other PC peripherals. Bringing you the best cost saving solution is still our original intention.
|CPU SUPPORT||9th Gen Intel® Core™ i9 LGA 1151 Processor
9th Gen Intel® Core™ i7 LGA 1151 Processor
9th Gen Intel® Core™ i5 LGA 1151 Processor
9th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
8th *Generation Intel® Core™ Processor Family only support 300-Series.
|MEMORY||Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
|INTEGRATED VIDEO||By CPU model
|STORAGE||4 x SATA III Connectors (6GB/s)
1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD
|LAN||Realtek RTL8111H - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
|AUDIO CODEC||Realtek ALC887 8-Channel HD Audio
|USB||6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header)
|EXPANSION SLOT||1 x PCI-E 3.0 x16 Slot
11 x PCI-E 3.0 x1 Slots
*Maximum VGA cards mining support are depending on VGA Driver or mining software.

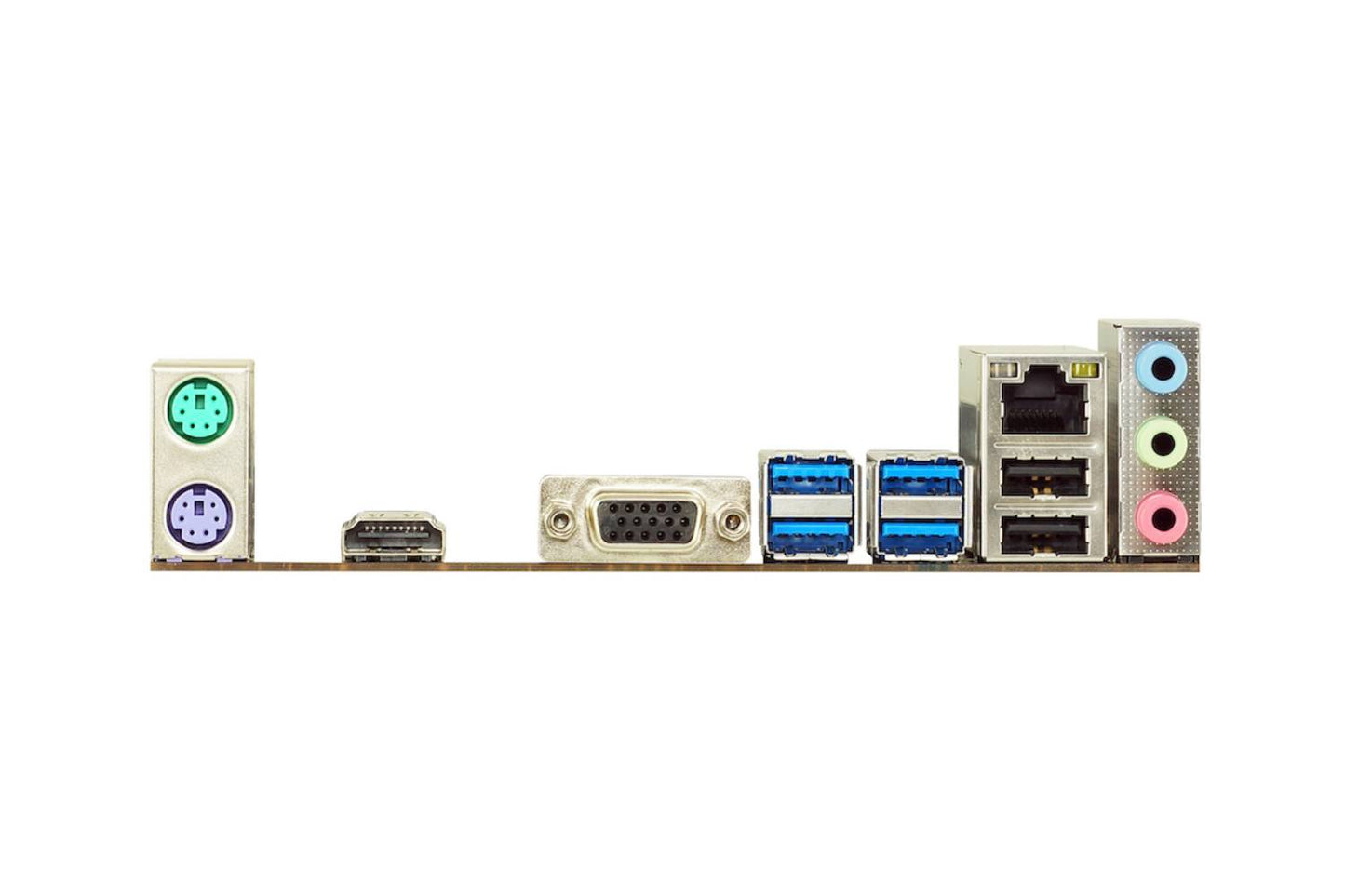

|REAR I/O||1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Ports
2 x USB 2.0 Ports
1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4
1 x VGA Port ,resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks
|INTERNAL I/O||1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
4 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
2 x System Fan Connector
1 x 8-Pin Power Connector
2 x 6-Pin PCIe Power Connector
2 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
|H/W MONITORING||CPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
|DIMENSION||ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L )
|OS SUPPORT||Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
|ACCESSORIES||2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
|FEATURES||PCI-E Slot Detection BIOS Boot Screen|
