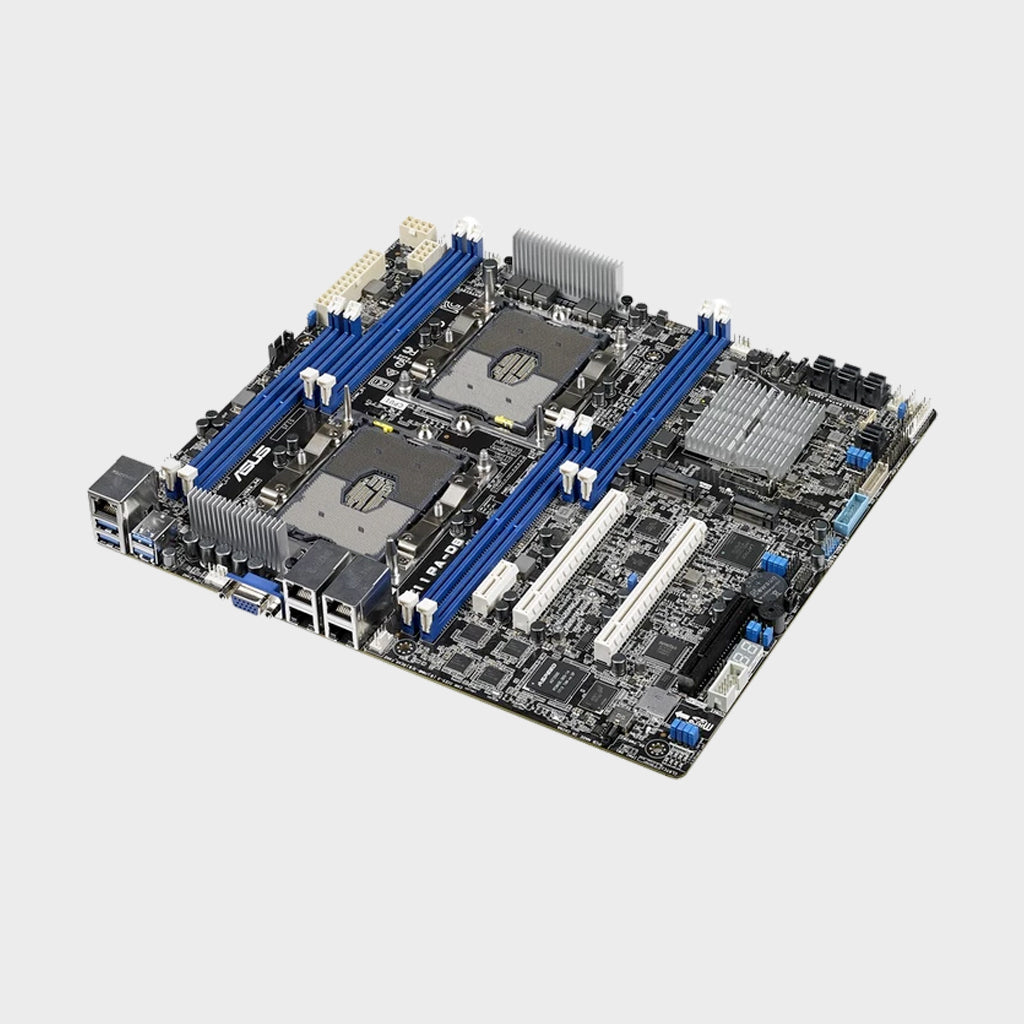

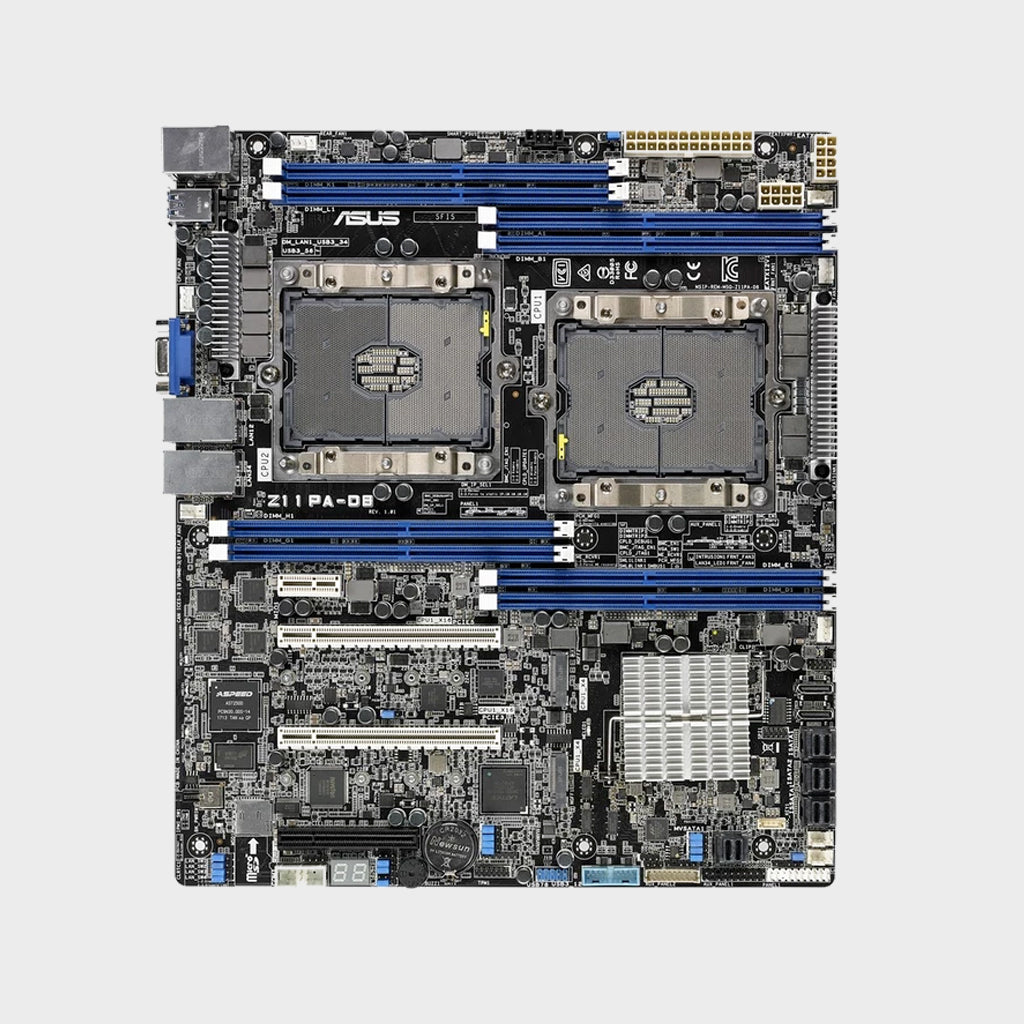

Asus Z11PA D8 Intel® Xeon® server motherboard with 8 DIMM slots

Powerful performance with the latest 2^nd Gen Intel Xeon Scalable processors and ECC memory
Increased performance or data redundancy with dual M.2 SSDs in RAID mode
High-speed storage interface support with dual OCuLink for NVMe
Connect up to 16 SATA 6Gb/s storage devices
Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC)
More flexible storage capability with SD card support
Quick initialization guidance for faster BIOS tracking enhancement

SKU:Z11PA D8

Powerful performance with the latest 2^nd Gen Intel Xeon Scalable processors and ECC memory
Increased performance or data redundancy with dual M.2 SSDs in RAID mode
High-speed storage interface support with dual OCuLink for NVMe
Connect up to 16 SATA 6Gb/s storage devices
Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC)
More flexible storage capability with SD card support
Quick initialization guidance for faster BIOS tracking enhancement

Processor / System Bus	2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (165W)
Chipset	Intel® Lewisburg PCH C621
Memory	Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 256GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 1024GB LR-DIMM 3DS Memory Type : 2933/2666/2400 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS
Expansion Slots	Total Slot : 3 Slot Location 1 : PCI-E x8 Slot Location 3 : PCI-E x16 Slot Location 5 : PCI-E x16 Slot Location 6 : MIO Slot for Audio card
Form Factor	CEB (12"x10.5", 305mm x 267mm)
ASUS Features	ASUS Fan Speed control technology ASUS Control Center
Storage	SATA Controller : Intel® C621 12 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) 4 SATA3 6Gb/s port by 1miniSAS connector (Marvell 88SE9230) Intel^®VROC (For Linux/Windows) (Support Software RAID ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking	4 x Intel® I210AT + 1 x Mgmt LAN
Graphic	Aspeed AST2500 with 64MB VRAM

On Board I/O	1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 8 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x Serial Port Header 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242 1 x VROC Key Header 1 x Q-Code/Port 80 LED
Back I/O Ports	4 x USB 3.0 ports 1 x VGA port 4 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Rear Switch/LED: 1 x Power switch 1 x Message LED 1 x HDD LED 1 x Location LED 1 x BMC LED 1 x P5V LED
Management Solution	ACC(ASUS Control Center) Onboard ASMB9-iKVM for KVM-over-Internet
Environment	Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% (Non condensing)
