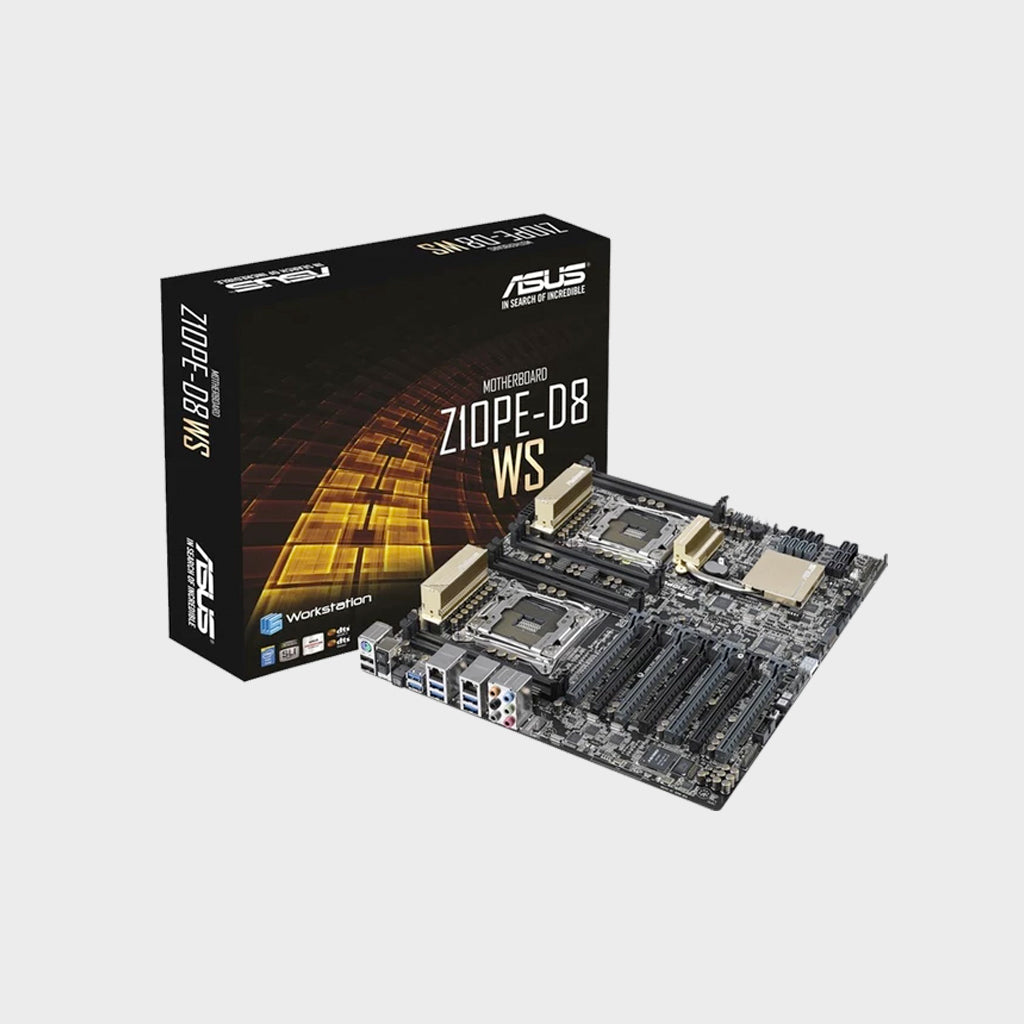

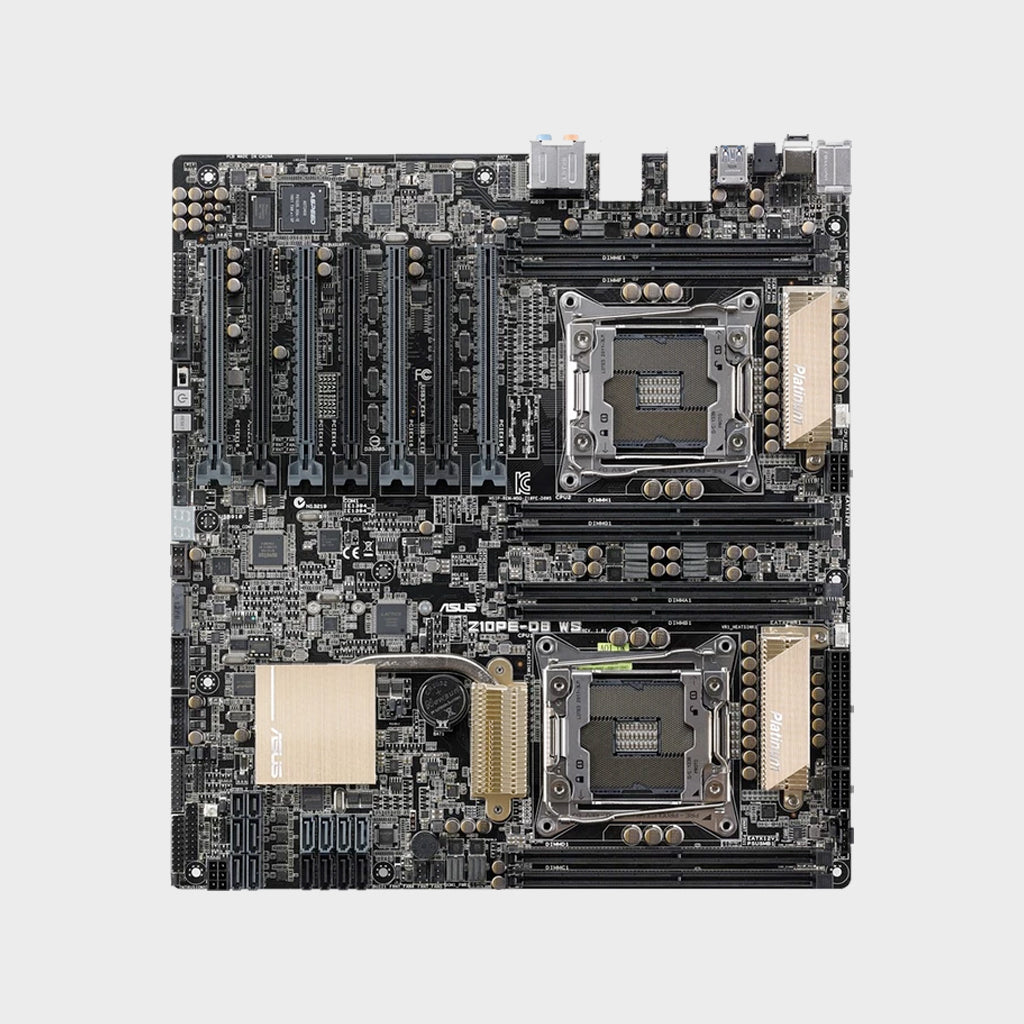

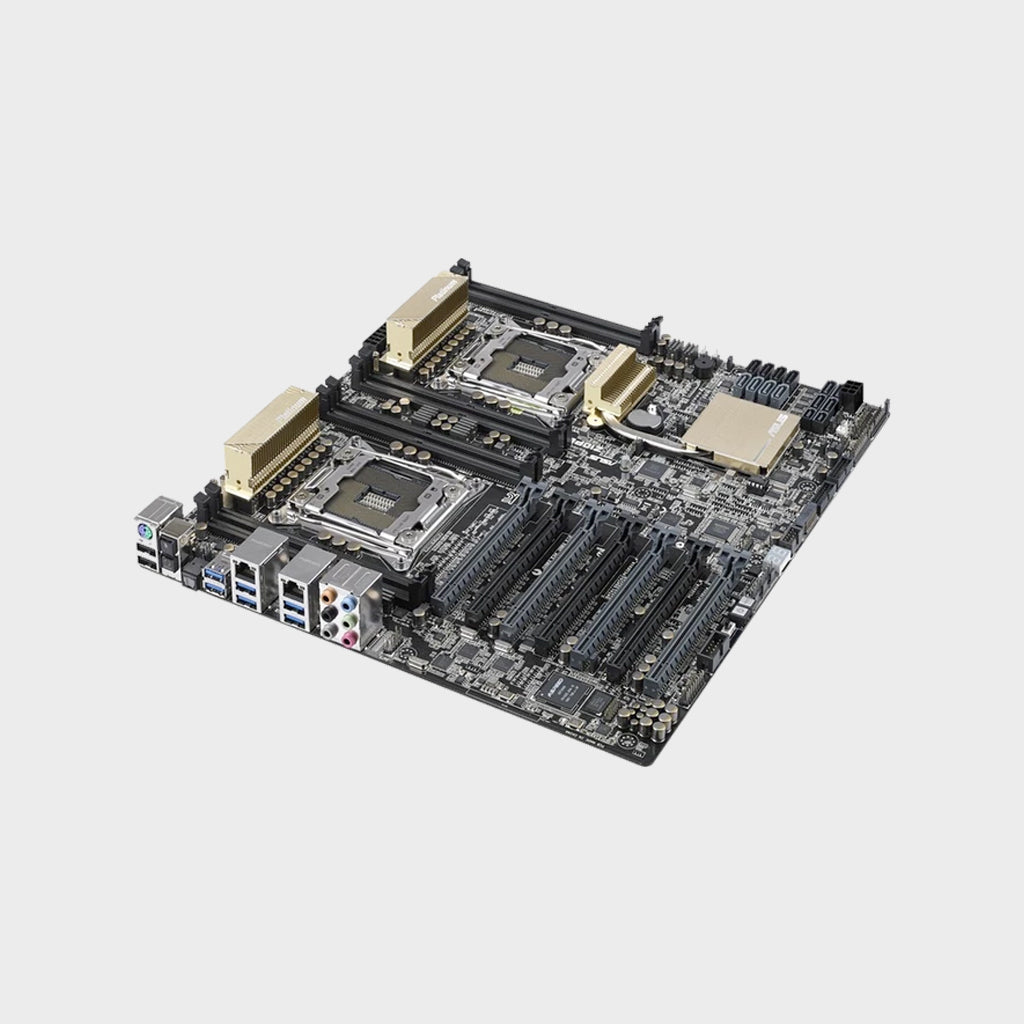

ASUS Z10PE-D8 WS WORKSTATION MOTHERBOARD
ASUS Z10PE-D8 WS WORKSTATION MOTHERBOARD
- Quad Strength Graphic Power – 4-Way PCI-E Gen3 x16 link supporting NVidia GeForce SLI and AMD CrossFireX on demand
- Supreme Power Solution – Premium components deliver industry-leading power efficiency
- Unique BIOS for Dual CPU O.C. –Boost CPU’s overclocking performance up to 10%
- Superb storage flexibility– onboard M.2 x4 and support for ASUS PIKE II cards
- Easy maintenance–ASUS Q-Code Logger, an easy-maintenance button and Dr. Power LED displays unusual power statuses
Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors
Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family
Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family
|Chipset||Intel® C612 PCH|
8 x DIMM, Max. 512GB, DDR4 1866*/2400/2133/1600/1333 MHz RDIMM, LR-DIMM Memory
Quad Channel Memory Architecture
ASpeed AST2400 32MB
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *2
2 x PCIe 3.0/2.0 x16 (dual x16) *2
1 x PCIe 3.0/2.0 x16 (dual x8) *2
Intel® C612 chipset :
4 x SATA 6Gb/s port(s), gray, *3,
4 x SATA 6Gb/s port(s), black, *3,
1 x SATA Express port, gray, *4
1 x M.2 Socket 3, *5
Support Raid 0, 1, 5, 10
ASMedia® SATA Express controller :
1 x SATA Express port, gray, , Compatible with 2 x SATA 6.0 Gb/s ports
|LAN||Intel® I210-AT, 2 x Gigabit LAN Controller(s)|
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Absolute Pitch 192khz/24bit true BD lossless sound
Intel® C612 chipset :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, )
Intel® C612 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 1 controller :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
7 x PCIe x 16 slot(s)
ASUS Dr. Power
12K hours Capacitors
ProCool Power Connector
USB BIOS Flashback™
ASUS PIKE SAS upgrade kit(Optional)
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 2 Phase DRAM Power Design
ASUS Exclusive Features :
- Front Panel USB 3.0 Support
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-Slot
- ASUS Q-DIMM
|Back I/O Ports||
1 x PS/2 keyboard/mouse combo port(s)
2 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
2 x USB 2.0 *6
1 x Optical S/PDIF out
1 x USB BIOS Flashback® Button(s)
1 x Q-Code Logger button
1 x 8-channel Audio I/O
|Internal I/O Ports||
1 x AAFP connector
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3
1 x TPM connector(s)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
2 x CPU Fan connector(s) (2 x 4 -pin)
7 x Chassis Fan connector(s) (7 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x RAID key header(s)
1 x VGA connector(s)
1 x AUX panel header(s)
1 x SMBus header(s)
1 x System panel(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Dr.Power switch(es)
1 x Serial Port header
1 x ASMB8-iKVM connector
1 x 6-pin EATX 12V_3 Power connector
1 x COM port cable(s)
12 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x 2-port USB 2.0 module(s)
1 x VGA bracket(s)
1 x ASWM Enterprise SDVD
|BIOS||128 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 2.6.1, ACPI 3.0, ASUS EZ Flash Utility, ASUS CrashFree Technology|
|Manageability||WfM 2.0, DMI 2.0, WOL by PME, PXE|
EEB Form Factor
12 inch x 13 inch ( 30.5 cm x 33.02 cm )
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Windows® Server 2012 R2
Windows® Server 2012
Windows® Server 2008 Enterprise R2 SP1 64-bit
Windows® 7 32/64-bit
Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
