About this product
- Dual Intel® Socket 2011-3/ Intel C612 PCH chipset
- Streamlined-airflow design with 16 DIMM slots
- Supreme Power Solution – Premium components deliver industry-leading power efficiency
- Unique BIOS for Dual CPU O.C. –Boost CPU’s overclocking performance up to 10%
- Complete remote server management with IPMI 2.0-compliant ASMB8-iKVM module and ASWM Enterprise
| CPU |
Build in Intel® Socket 2011-3: Square type (80x80mm; The maximum length of the heatsink screw thread is 3.7mm.) Processors Intel® Socket 2011-v3 for Intel® Xeon® processor E5-2600 v4 product family Intel® Socket 2011-v3 for Intel® Xeon® processor E5-1600 v4 product family |
| Chipset | Intel® C612 PCH |
| Memory |
16 x DIMM, Max. 1024GB, DDR4 2133/2400/1866/1600 MHz RDIMM, LR-DIMM Memory *1 * Please refer to ASUS AVL for the latest update. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Quad Channel Memory Architecture |
| Graphic |
VGA port*2 - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz ASpeed AST2400 32MB |
| Multi-GPU Support |
Supports AMD Quad-GPU CrossFireX™ Technology Supports NVIDIA® 3-Way SLI™ Technology |
| Expansion Slots |
2 x PCIe 3.0/2.0 x16 (x8 mode) *3 4 x PCIe 3.0/2.0 x16 (x16 mode) *3 |
| Storage |
Intel® C612 chipset : 1 x M.2 Socket 3, black, *5, Support Raid 10, 0, 1, 5 10 x SATA 6Gb/s port(s), *4, gray, |
| LAN |
Intel® I210-AT, 2 x Gigabit LAN Controller(s) 1 x Management LAN |
| Audio |
104 dB SNR recording input (Line-in) - High quality 112 dB and (Line-out at rear) SNR stereo playback output Audio Feature : - DTS Connect - BD Audio Layer Content Protection - DTS Ultra PC II - Optical S/PDIF out port(s) at back panel - Absolute Pitch 192khz/24bit true BD lossless sound 8-Channel High Definition Audio CODEC Realtek® ALC1150 - Supports : Front Panel Jack-retasking, Jack-detection, Multi-streaming |
| USB Ports |
Intel® C612 chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) Intel® C612 chipset : 6 x USB 2.0/1.1 port(s) (2 at mid-board, 4 at back panel, ) |
| Workstation Feature |
ASUS Dr. Power ASUS PIKE SAS upgrade kit(Optional) ProCool Power Connector ASMB8-iKVM Remote Management Tool ASWM Enterprise 12K hours Capacitors 6 x PCIe x 16 slot(s) USB BIOS Flashback Q-Code Logger |
| Special Features |
ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Digital Power Design : - Industry leading Digital 7 Phase Power Design - Industry leading Digital 2 Phase DRAM Power Design ASUS Q-Design : - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-Shield - ASUS Q-Code ASUS Exclusive Features : - Front Panel USB 3.0 Support |

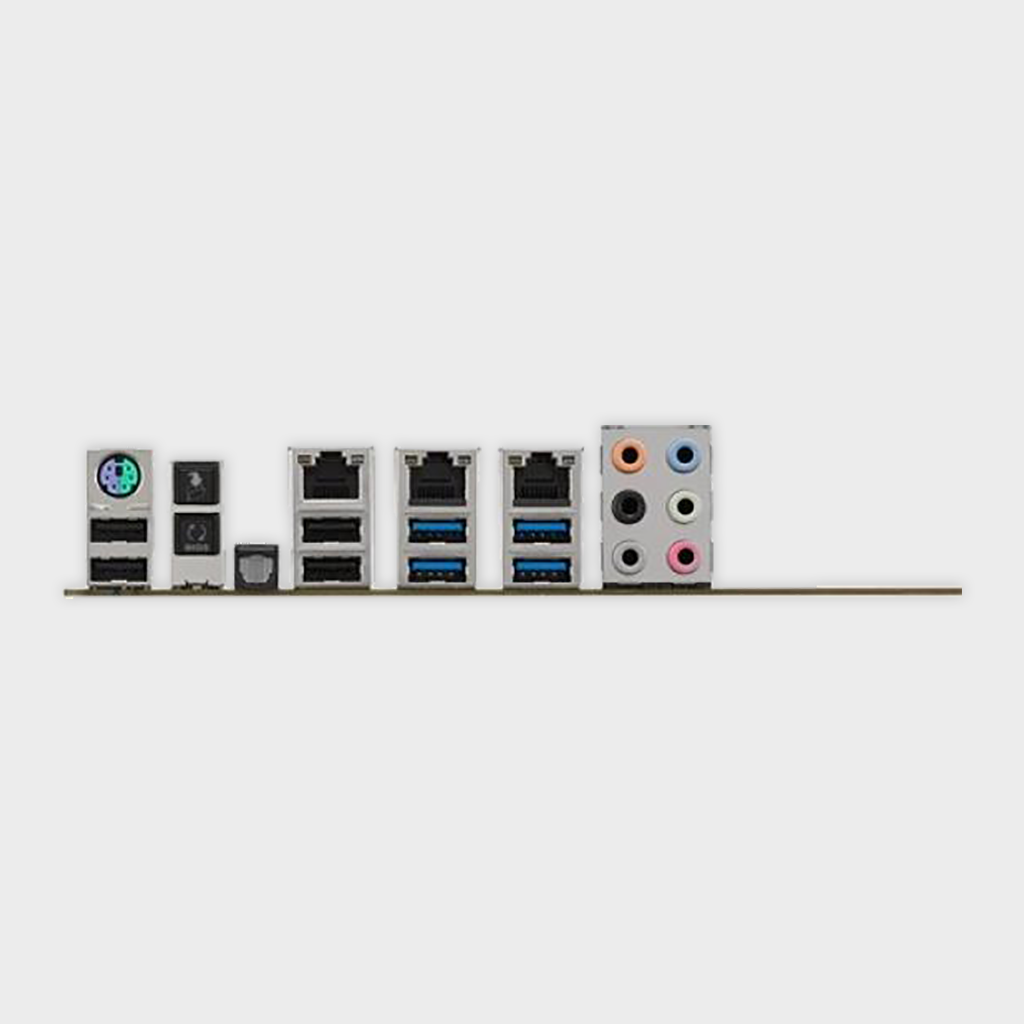

| Back I/O Ports |
1 x Q-Code Logger button 1 x Optical S/PDIF out 2 x LAN (RJ45) port(s) 1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O 1 x PS/2 keyboard/mouse combo port(s) 4 x USB 2.0 *6 1 x Management LAN 4 x USB 3.1 Gen 1 (blue) |
| Internal I/O Ports | 31 x VGA connector(s) 2 x CPU Fan connector(s) (2 x 4 -pin) 1 x ASMB8-iKVM connector 7 x Chassis Fan connector(s) (7 x 4 -pin) 2 x Serial Port header 1 x Chassis Intrusion connector(s)*6 1 x RAID key header(s) 1 x Dr.Power switch(es) 1 x COM port(s) connector(s) 1 x Reset button(s) 1 x M.2 Socket 3 1 x Clear CMOS button(s) 1 x Power-on button(s) 1 x S/PDIF out header(s) 1 x AUX panel header(s) 1 x TPM connector(s) 2 x 8-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 10 x SATA 6Gb/s connector(s) 2 x System panel(s) (Q-Connector) 1 x SMBus header(s) 1 x AAFP connector 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) |
| Accessories |
I/O Shield 1 x SLI bridge(s) 1 x 2-port USB 2.0 module(s) 1 x 3-Way SLI bridge(s) 1 x Supporting DVD 10 x SATA 6Gb/s cable(s) 1 x COM port cable(s) 1 x ASMB8 Support DVD 1 x ASWM Enterprise SDVD 1 x VGA bracket(s) |
| BIOS | 128 Mb Flash ROM, UEFI BIOS, PnP, WfM2.0, SMBIOS 2.6.1, ACPI 3.0, ASUS EZ Flash Utility, ASUS CrashFree Technology |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Form Factor |
12 cm x 13 cm ( 30.5 cm x 33.02 cm ) EEB Form Factor |
| Environment |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Operating System |
Windows® Server 2008 Enterprise SP2 64-bit Windows® 7 32/64-bit Windows® 8.1 64-bit Windows® 8 64-bit Windows® Server 2012 R2 Windows® Server 2012 |
