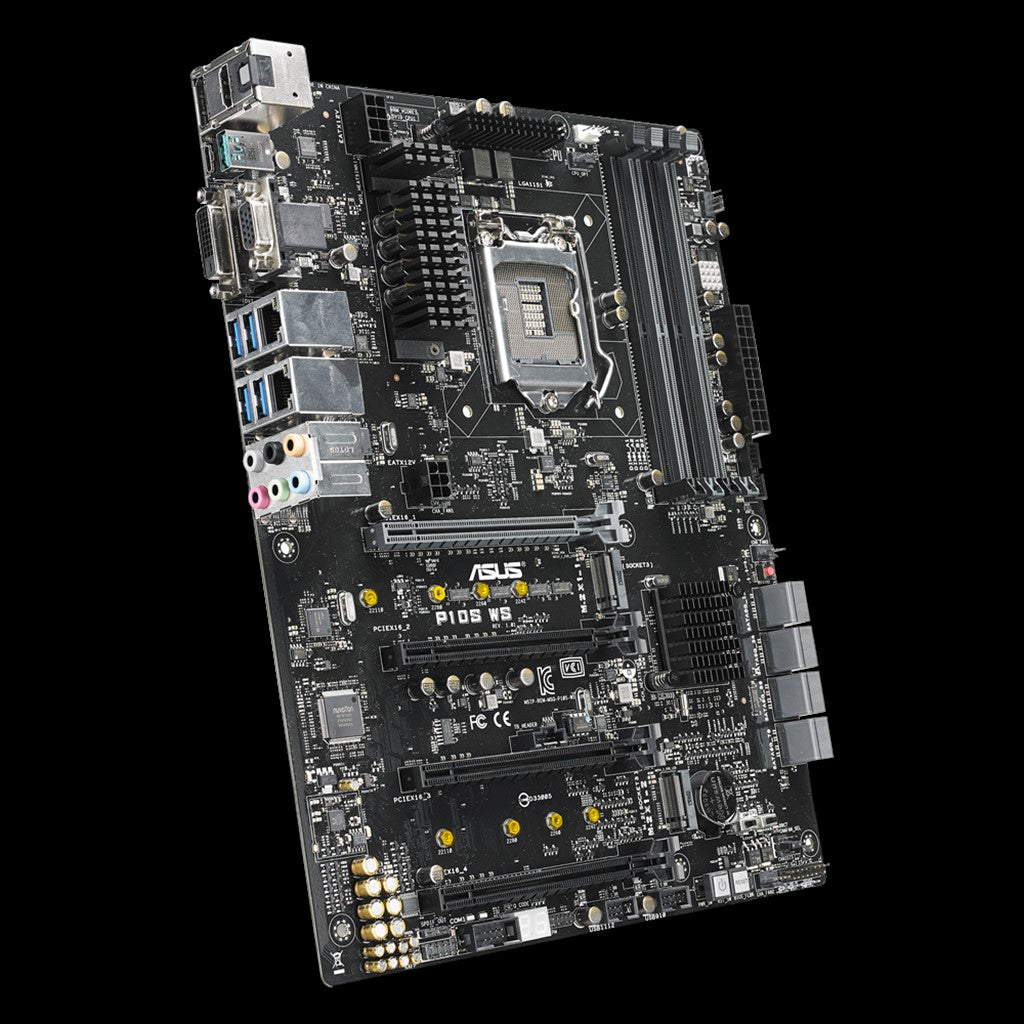

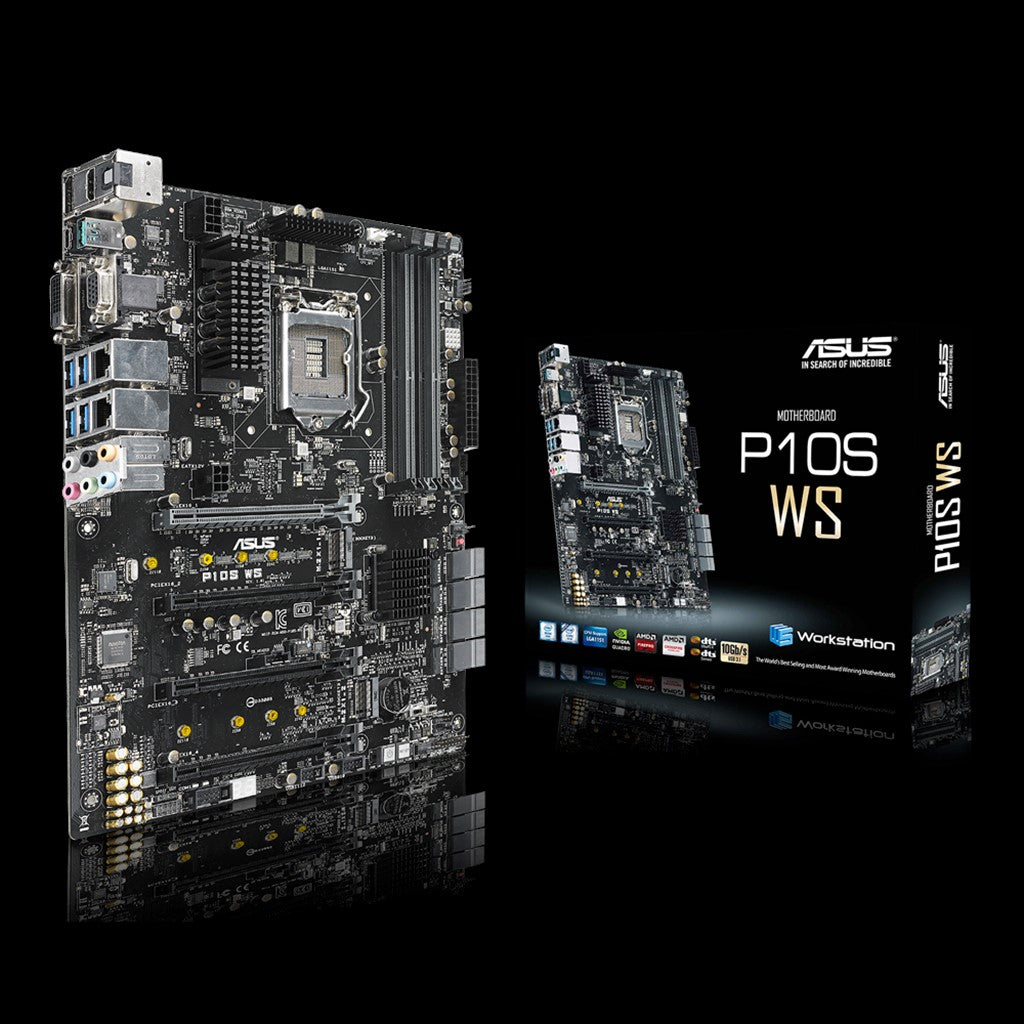

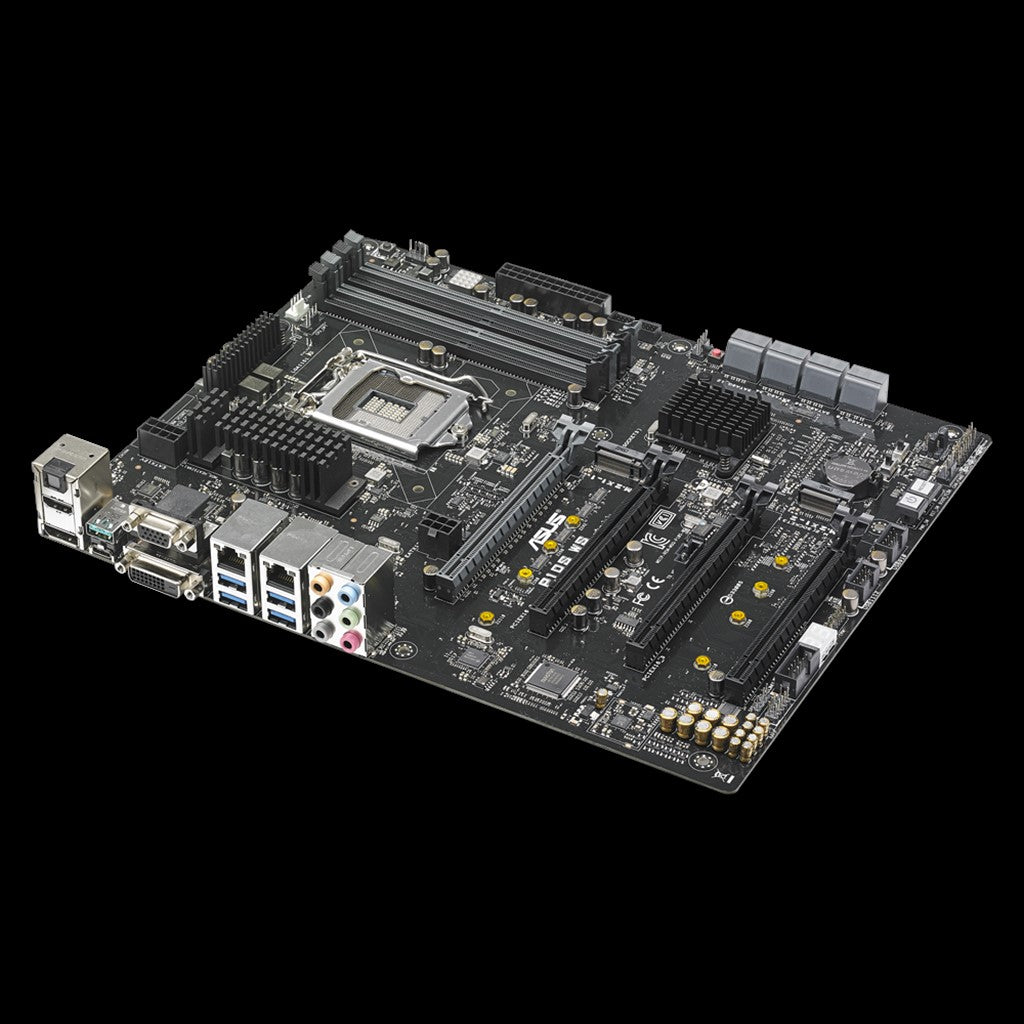

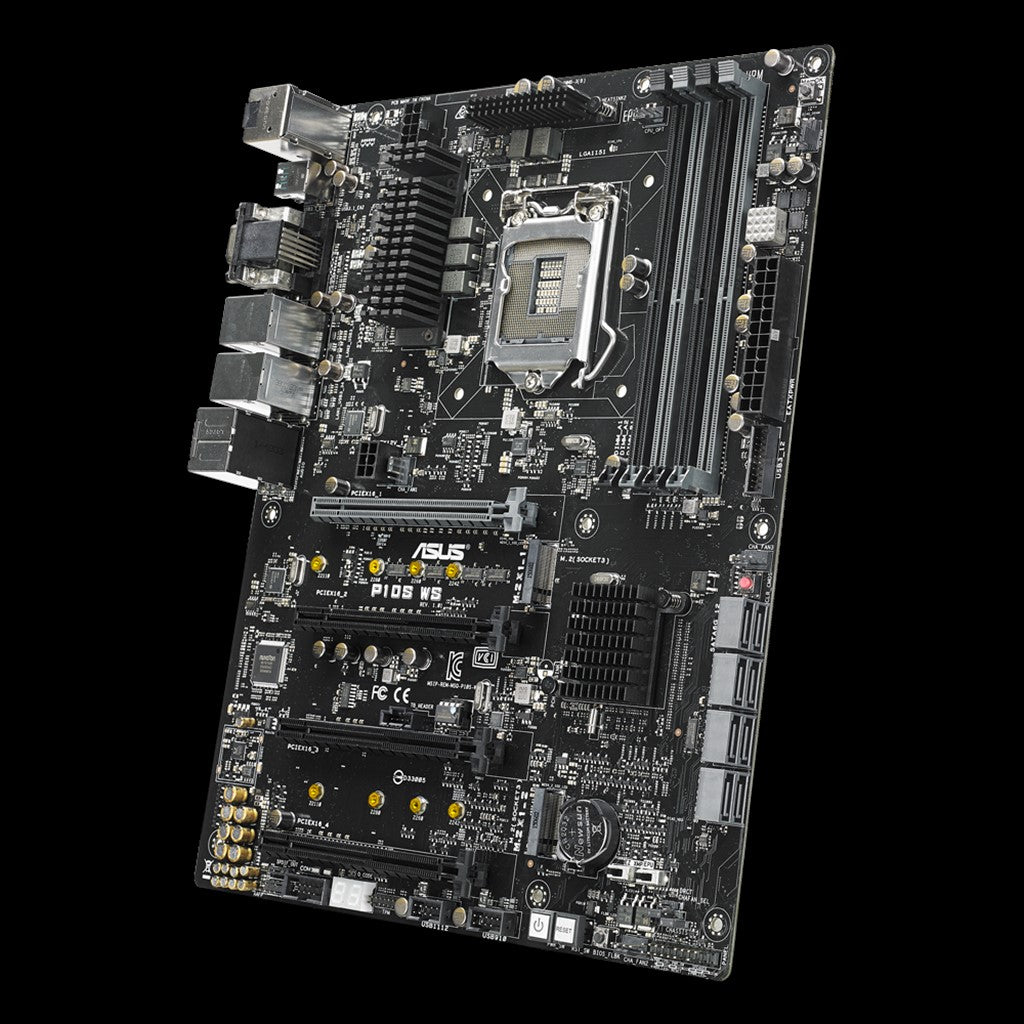

Asus WS P10S Workstation Motherboard

Regular price ₹ 18,521.00
Regular price ₹ 21,000.00 Sale price ₹ 18,521.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Optimized integrated graphic power supported latest API
  • Quad PCIE3.0 x16 slots for flexible extended add-on cards
  • Drive three independent displays simultaneously with HDMI, DisplayPort, DVI-D, VGA ports
  • Performance increasing and data redundancy with Dual M.2 by SATA mode
  • The latest 10Gb/s USB 3.1 on board for high transfer speed
CPU Build in Intel® Socket 1151 Core™ i5/Core™ i7/Core™ i3/for Xeon® E3-1200 v5 and 6th generation CoreTM, Pentium® and Celeron® Processors
Supports Intel® Turbo Boost Technology
Supports Intel® 14 nm CPU
Chipset Build in Intel® C236
Memory Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
4 x DIMM, Max. 64GB, DDR4 2133 MHz Un-buffered, ECC, Non-ECC Memory
Graphic VGA port
Multi-VGA output support : HDMI/DisplayPort /DVI-D ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports HDMI with max. resolution 4096 x 2160 @ 60 Hz / 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™, HD Graphics
Integrated Graphics Processor
Multi-GPU Support Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots 1 x PCIe 3.0/2.0 x16 (x8 mode) *1
1 x PCIe 3.0/2.0 x16 (x16/x8)
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
Storage Support Raid 10, 5, 1, 0
2 x M.2 Socket 3*3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
Intel® C236 Chipset :
Intel® Rapid Storage Technology Enterprise supports
8 x SATA 6Gb/s port(s),
LAN Intel® I210, 2 x Gigabit LAN Controller(s)
Support Teaming Technology
Audio - Supports : Multi-streaming, Jack-detection, Front Panel MIC Jack-retasking
Realtek® ALC1150 8-Channel High Definition Audio CODEC
Separate layer for left and right track, ensuring both sound deliver equal quality
Audio Feature :
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- DTS Connect
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Optical S/PDIF out port(s) at back panel
- Top notch audio sensation delivers according to the audio configuration
- DTS Studio Sound
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
(Line-in) and 112 dB SNR stereo playback output SNR recording input - High quality (Line-out at rear) 104 dB
USB Ports Built-in Controller :
2 x USB 3.1 port(s) (Type-A + USB Type-CTM, 2 at back panel, )
Built-in Controller :
4 x USB 2.0 port(s) (Type-A, 4 at mid-board)
Built-in Controller : *4
6 x USB 3.0 port(s) (4 at back panel, , Type-A)
Back I/O Ports 2 x LAN (RJ45) port(s)
1 x HDMI
1 x Optical S/PDIF out
1 x DisplayPort
1 x USB 3.1 Gen 2 Type-A
1 x DVI-D
1 x 8-channel Audio I/O
1 x USB 3.1 Gen 2 USB Type-CTM
1 x VGA
4 x USB 3.1 Gen 1
Internal I/O Ports 1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x EPU switch(es)
1 x DRCT header(s)
1 x MemOK! button(s)
2 x M.2 Socket 3
8 x SATA 6Gb/s connector(s)
1 x AAFP connector
1 x Clear CMOS button(s)
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x System panel(s) (Q-Connector)
1 x CPU fan with PWM control
1 x COM port(s) connector(s)
1 x 24-pin EATX Power connector(s)
1 x USB BIOS Flashback button(s)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x Power-on button(s)
1 x 14-1 pin TPM connector
Form Factor 12 cm x 9.6 cm ( 30.5 cm x 24.4 cm )
ATX Form Factor
Operating System Support Windows® 8.1
Windows® Server 2008 R2
Windows® 7 SP1
Windows® 10
Windows® Server 2012 R2
Special Features ASUS EZ DIY :
- ASUS EZ Flash
- ASUS CrashFree BIOS 3
ASUS Digital Power Design :
- Industry leading Digital 1 Phase DRAM Power Design
(3 -phase for CPU, 2 -phase for iGPU)
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
ASUS EPU :
- EPU
BIOS 16 MB Flash ROM, EFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0a, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
Manageability WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
