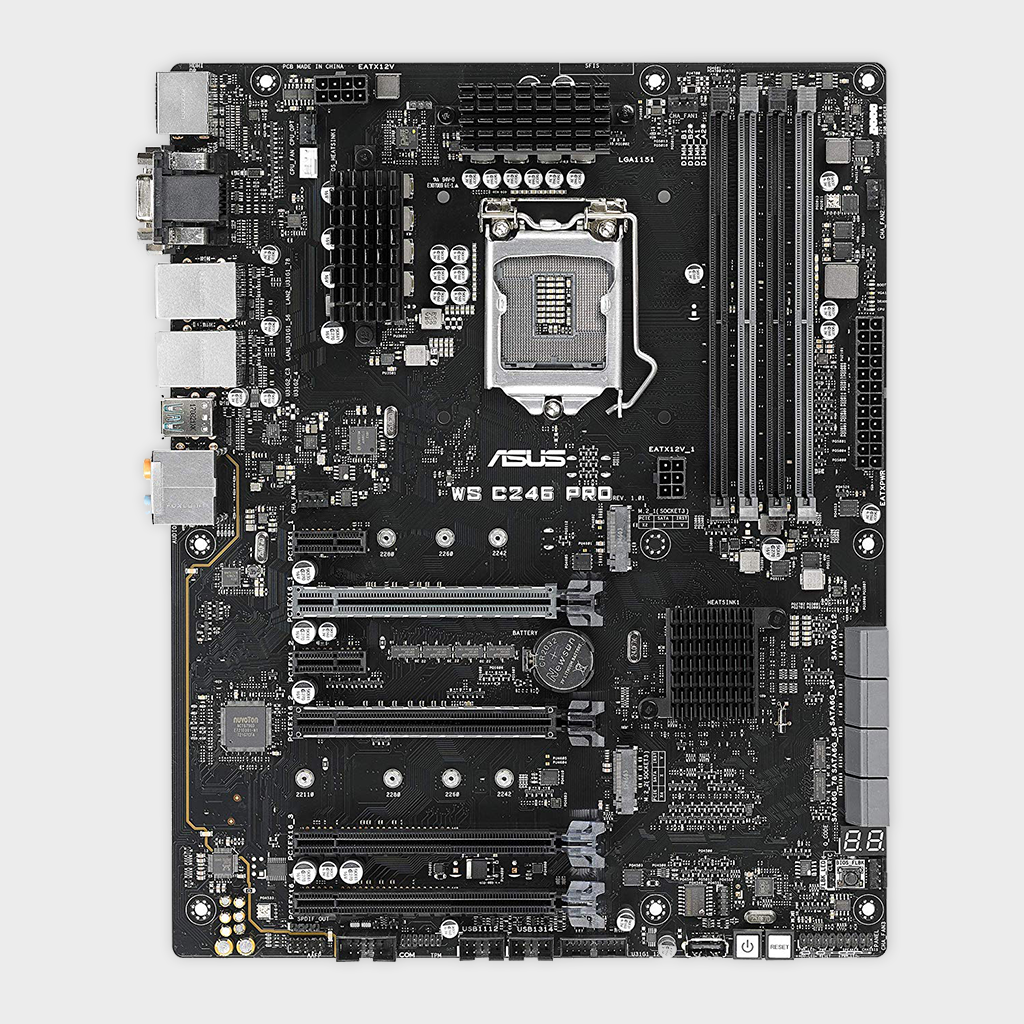

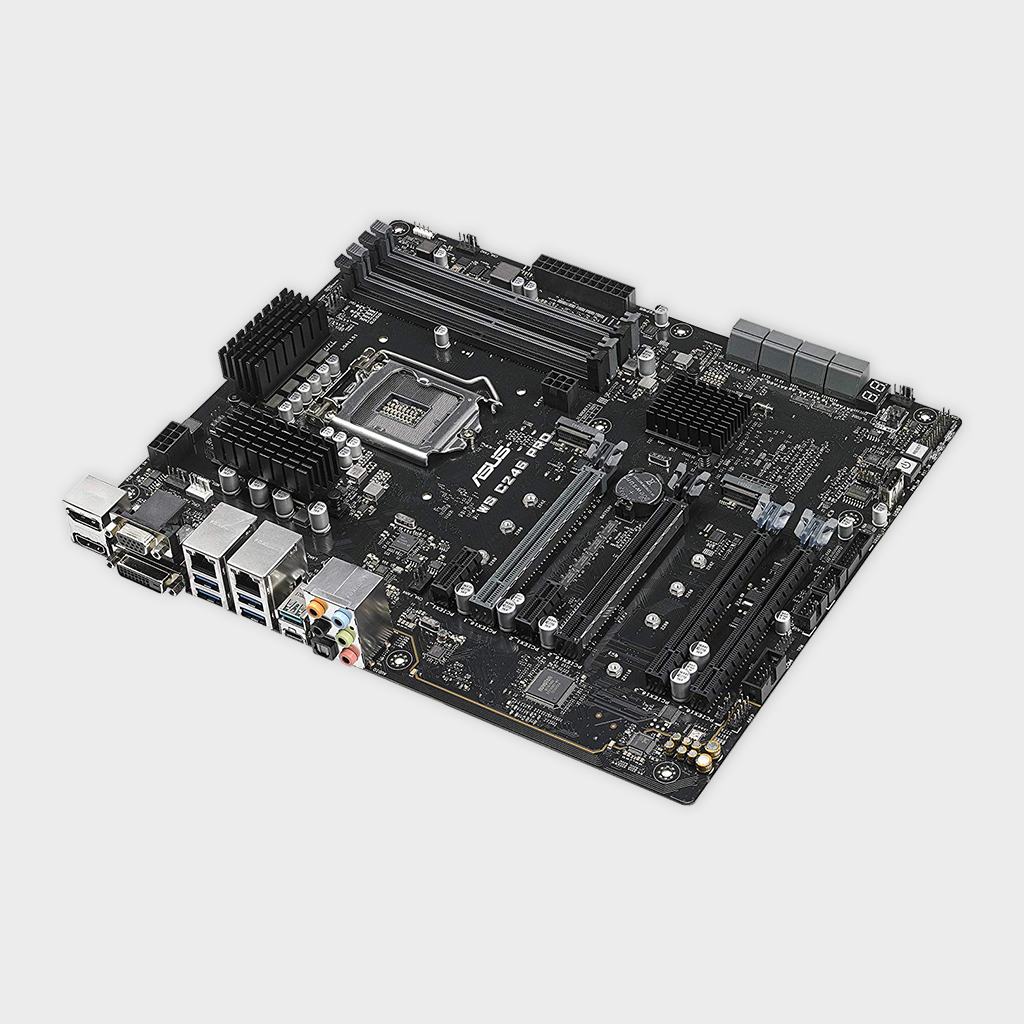

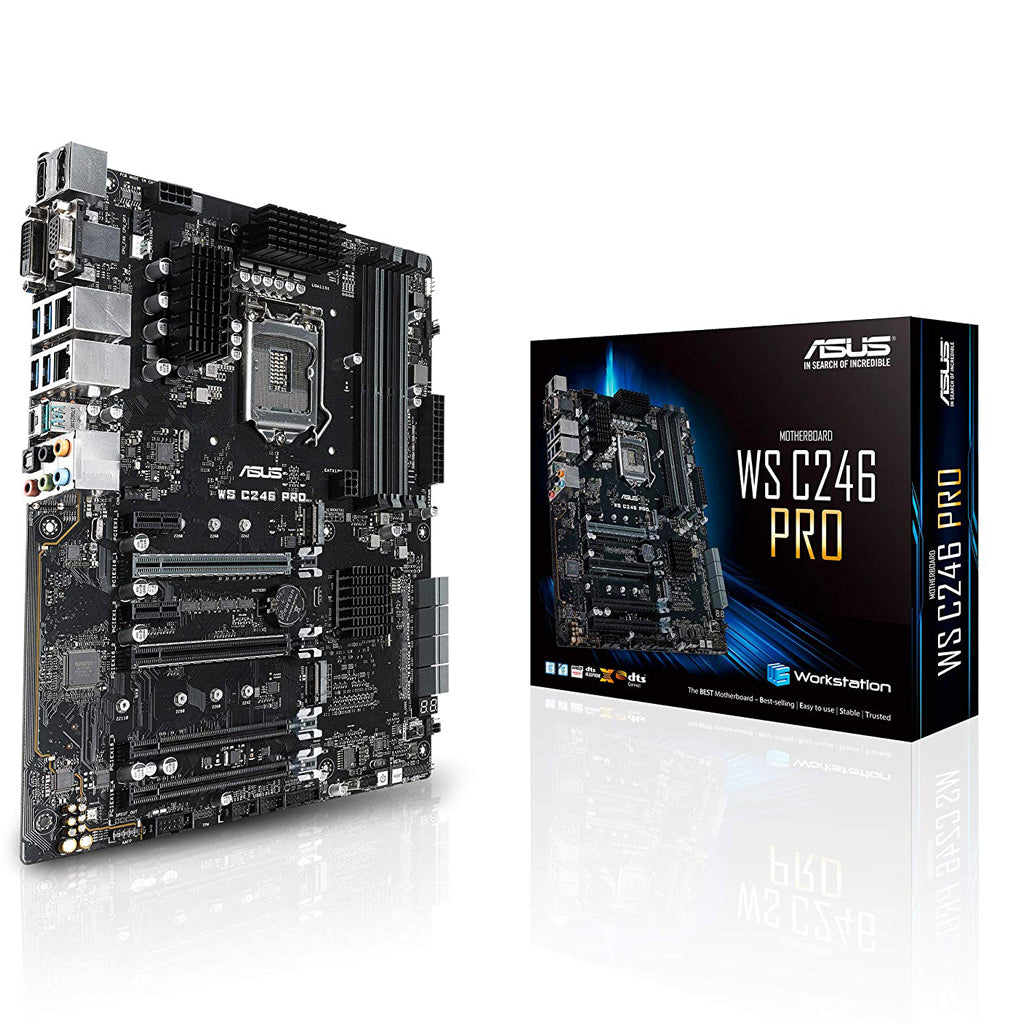

ASUS WS C246 PRO Workstation Motherboard

ASUS WS C246 PRO Workstation Motherboard

No reviews
Regular price ₹ 19,699.00
Regular price ₹ 24,825.00 Sale price ₹ 19,699.00
Sale Sold out

Description

  • Four PCIe 3.0 x16 slots for flexible expandability with graphics, RAID and LAN add-on cards
  • Powerful performance with Intel®Xeon®E processor and ECC memory
  • Supports up to three independent displays simultaneously via HDMI, DisplayPort, DVI-D and VGA
  • Next-gen transfer speeds with up to 32Gbps M.2 and 10Gbps USB 3.1 Type-A and Type-C
  • Dual Intel® Gigabit LAN with teaming support
  • SafeSlot PCIe x16 to protect your graphics card investment
  • ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
Processor / System Bus 1 x Socket LGA1151
Intel® Xeon® processor E-2100 family
The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
Intel® Core™ i9/i7/i5/i3 processors
Intel® Xeon® E Processors
E-2100/E-2200
Core Logic Intel® C246 Chipset
Memory Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
Dual Channel DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
32GB, 16GB, 8GB
Networking 1 x Intel® I210AT
1 x i219-LM
Expansion Slots Total Slot : 6
Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 + X8 Link)
Slot Location 3 : PCI-E x16 (Gen3 X8 Link)
Slot Location 4 : PCI-E x1 (Gen2 X1 Link)
Slot Location 5 : PCI-E x16 (Gen3 X4 Link)
Slot Location 6 : PCI-E x4 (Gen1 X4 Link)
Storage SATA Controller :
Intel® C246 Chipset
8 x SATA3 6Gb/s ports

SAS Controller :
Management Solution WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
On Board I/O 2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector)
1 x COM port
1 x USB BIOS Flashback Button
1 x S/PDIF Out (Optical)
1 x COM port
Back I/O Ports 2 x USB 3.1 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.0 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports (5+1 Audio jacks)
Form Factor ATX (12"x9.6", 305mm x 244mm)
Accessories Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
8 x SATA 6G cables
1 x Com port cable
1 x User manual
1 x Quick start guide
2 x M.2 screw

Bulk Pack (10-in-1)
1 x Support CD
10 x I/O shield
80 x SATA 6G cables
10 x Com port cable
1 x User manual
1 x Quick start guide
20 x M.2 screw
Monitoring CPU Temperature
Fan RPM
