ASUS

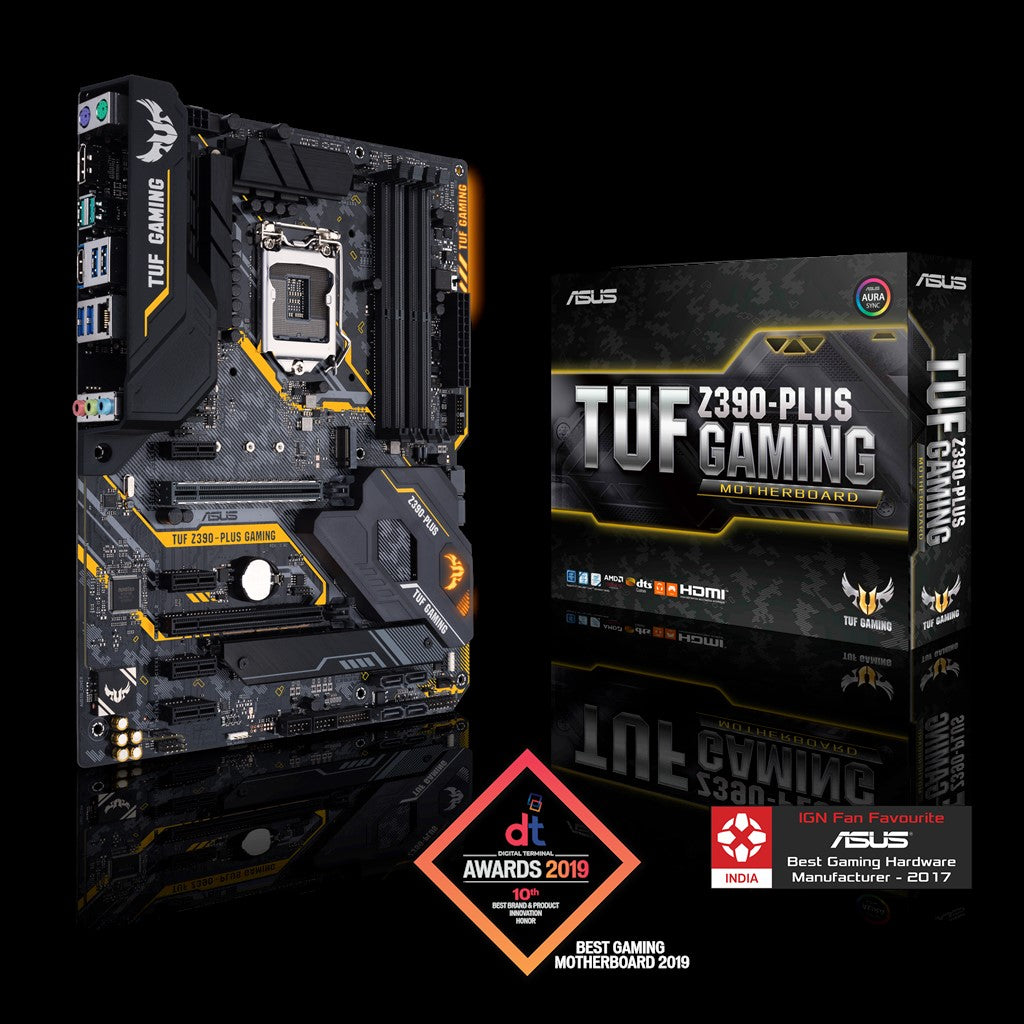

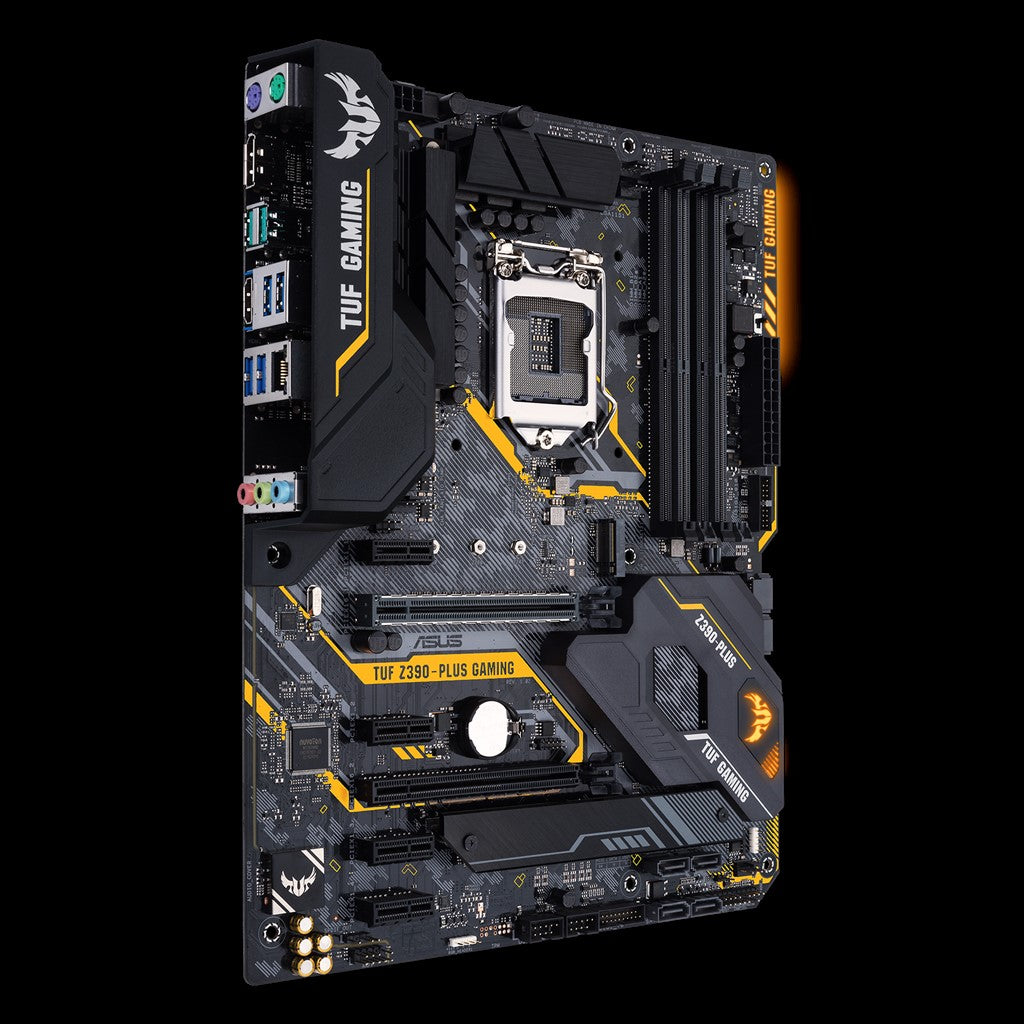

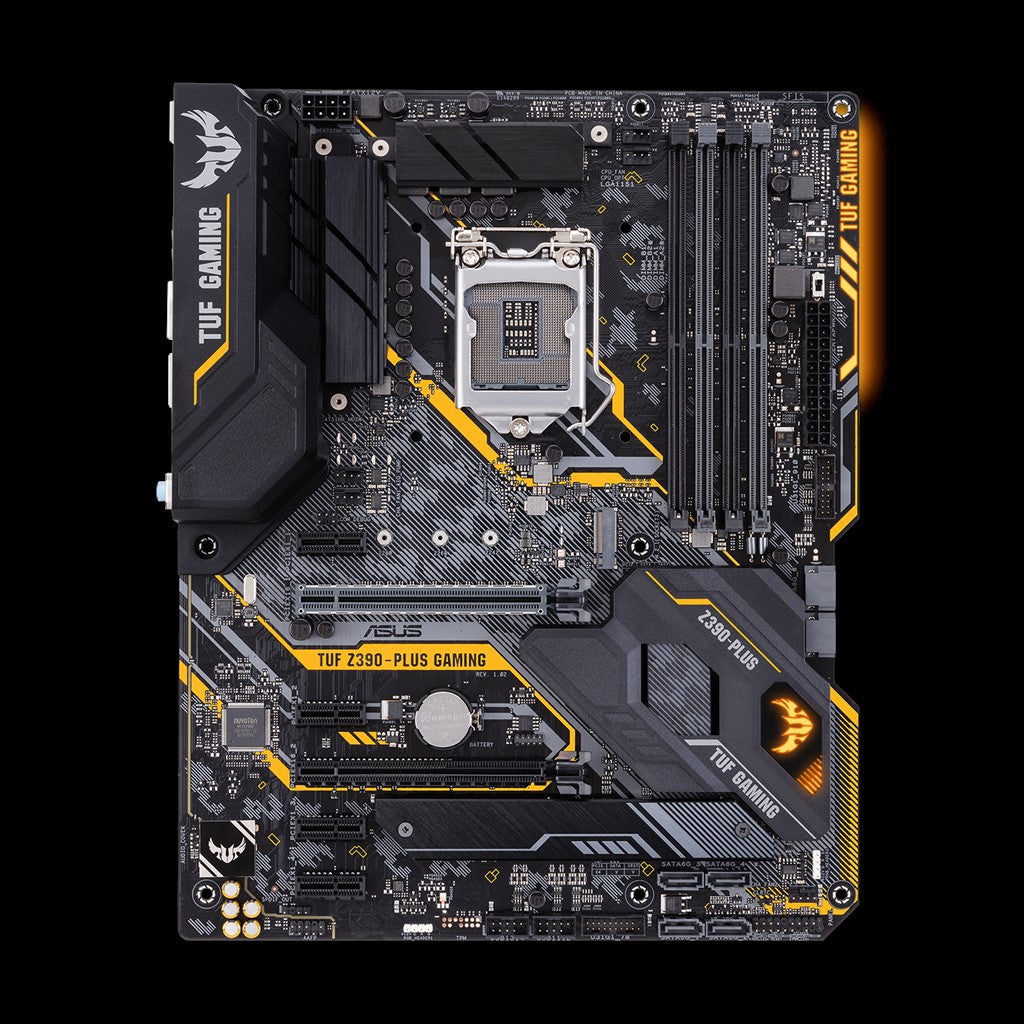

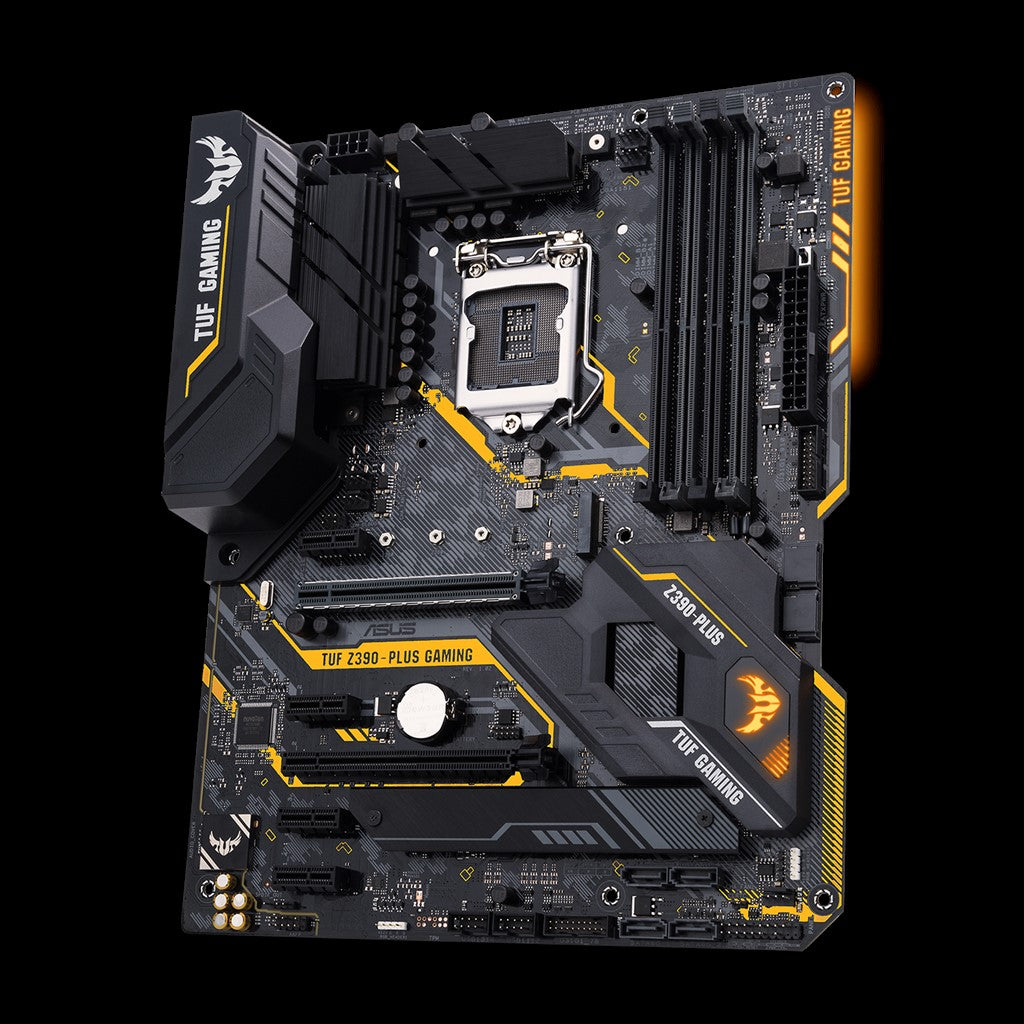

ASUS TUF Z390-PLUS GAMING Motherboard

ASUS TUF Z390-PLUS GAMING Motherboard

SKU: TUF-Z390-PLUS-GAMING

ratings

Regular price ₹ 17,048.00
Regular price ₹ 20,600.00 Sale price ₹ 17,048.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Specifications

  • TUF Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
  • Military-grade TUF Components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
  • OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability
  • Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
  • GPU Temperature Sensing & Fan Xpert 4: Ensures every fan achieves the best balance of cooling performance and acoustics
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
    CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 3.0
    * The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.
    Chipset Intel® Z390
    Memory

    4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/

    3866(O.C.)/3733(O.C.)/3600(O.C.)/

    3466(O.C.)/3400(O.C.)/3333(O.C.)

    /3300(O.C.)/3200(O.C.)/3000(O.C.)/

    2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * The maximum memory frequency supported varies by processor.

    Graphic Integrated Graphics Processor- Intel® UHD Graphics support
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
    Multi-GPU Support Supports AMD CrossFireX™ Technology
    Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
    4 x PCIe 3.0/2.0 x1 *1
    *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
    Storage Intel® Z390 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
    6 x SATA 6Gb/s port(s), gray, *3
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
    Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
    PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card*4
    LAN Intel® I219V, featuring Turbo LAN
    TUF LANGuard
    Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
    Audio Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
    USB Ports Intel® Z390 Chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
    Intel® Z390 Chipset :
    8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board)
    Intel® Z390 Chipset :
    4 x USB 2.0/1.1 port(s) (4 at mid-board)
    Special Features Fan Xpert4
    - Advanced fan and liquid controls for ultimate cooling and quietness
    ASUS TUF PROTECTION
    - ASUS DIGI + VRM: 8+1 Phase digital power design
    - ASUS SafeSlot: Protect your graphics card Investment
    - ASUS ESD Guard: Enhanced ESD protection
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    ASUS Optimem II:
    - Optimem (Improved DDR4 stability)
    ASUS EPU :
    - EPU
    TUF ENGINE! Power Design :
    - TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Turbo LAN
    - PC Cleaner
    - File Transfer
    - ASUS C.P.R.(CPU Parameter Recall)
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
    - ASUS Fan Xpert 4
    ASUS EZ DIY :
    - ASUS O.C. Tuner
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
    MemOK! II
    - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
    Q-Installer
    - Auto download driver and software. Friendly for first PC builder.
    Back I/O Ports 1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 2 Type-A,
    4 x USB 3.1 Gen 1 Type-A
    3 x 8-channel Audio I/O
    Internal I/O Ports 2 x Aura RGB Strip Header(s)
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 1-port connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (4 -pin)
    1 x CPU OPT Fan connector(s) (4 -pin)
    2 x Chassis Fan connector(s) (4 -pin)
    1 x AIO_PUMP connector ()
    1 x S/PDIF out header(s)
    1 x 8-pin EATX 12 V Power connector
    1 x 24-pin EATX Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x MemOK! II switch(es)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    Accessories User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x TUF Gaming Sticker
    1 x TUF Certification card(s)
    1 x SCD (by region)
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
    Support Disc Drivers
    ASUS Utilities
    ASUS EZ Update
    Anti-virus software (OEM version)
    Operating System Windows® 10 64-bit
    Form Factor ATX Form Factor
    30.5 cm x 24.4 cm (12.0 x 9.6 )
    Management Solution WOL by PME, PXE
    Warranty 3 Years
