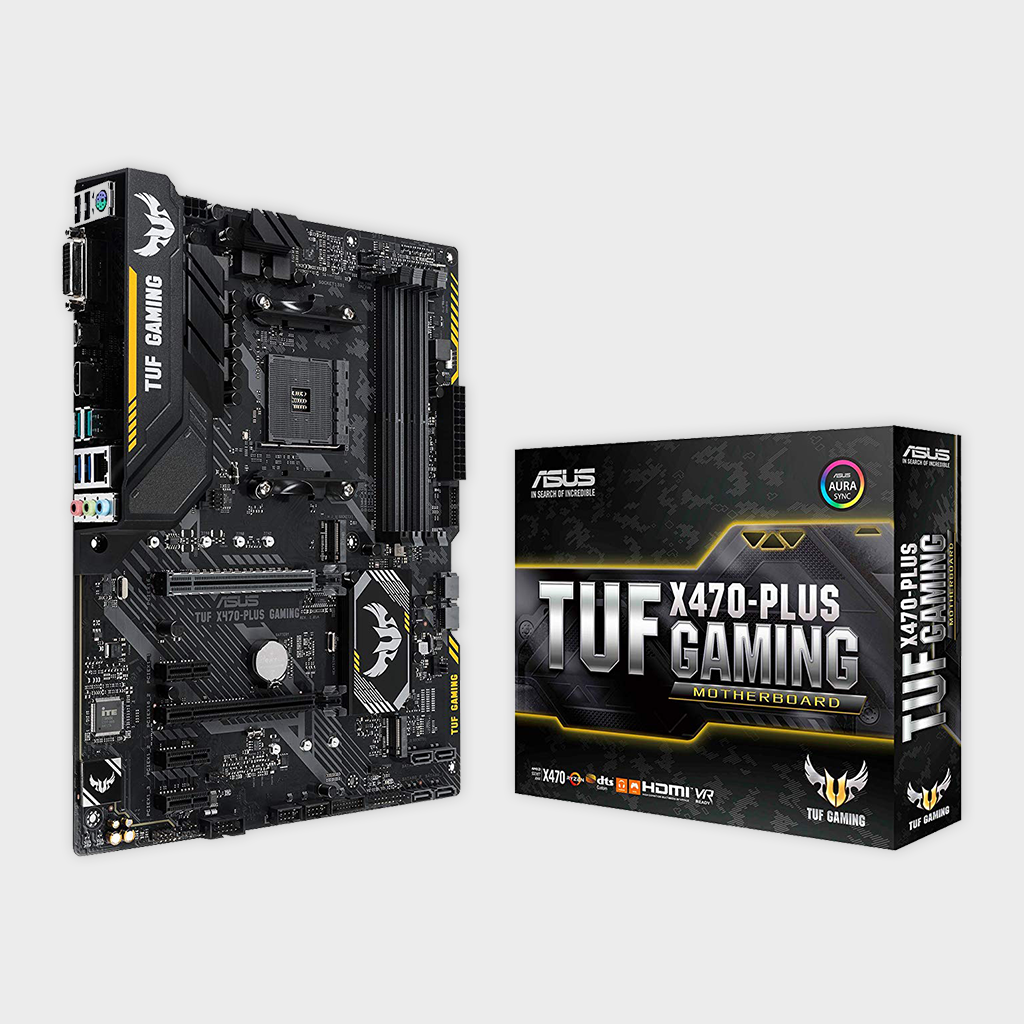

ASUS TUF X470-PLUS GAMING AMD RYZEN 2 MOTHERBOARD
ASUS TUF X470-PLUS GAMING AMD RYZEN 2 MOTHERBOARD
Description
Description
- AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, USB 3.1 Gen2 and gigabit LAN

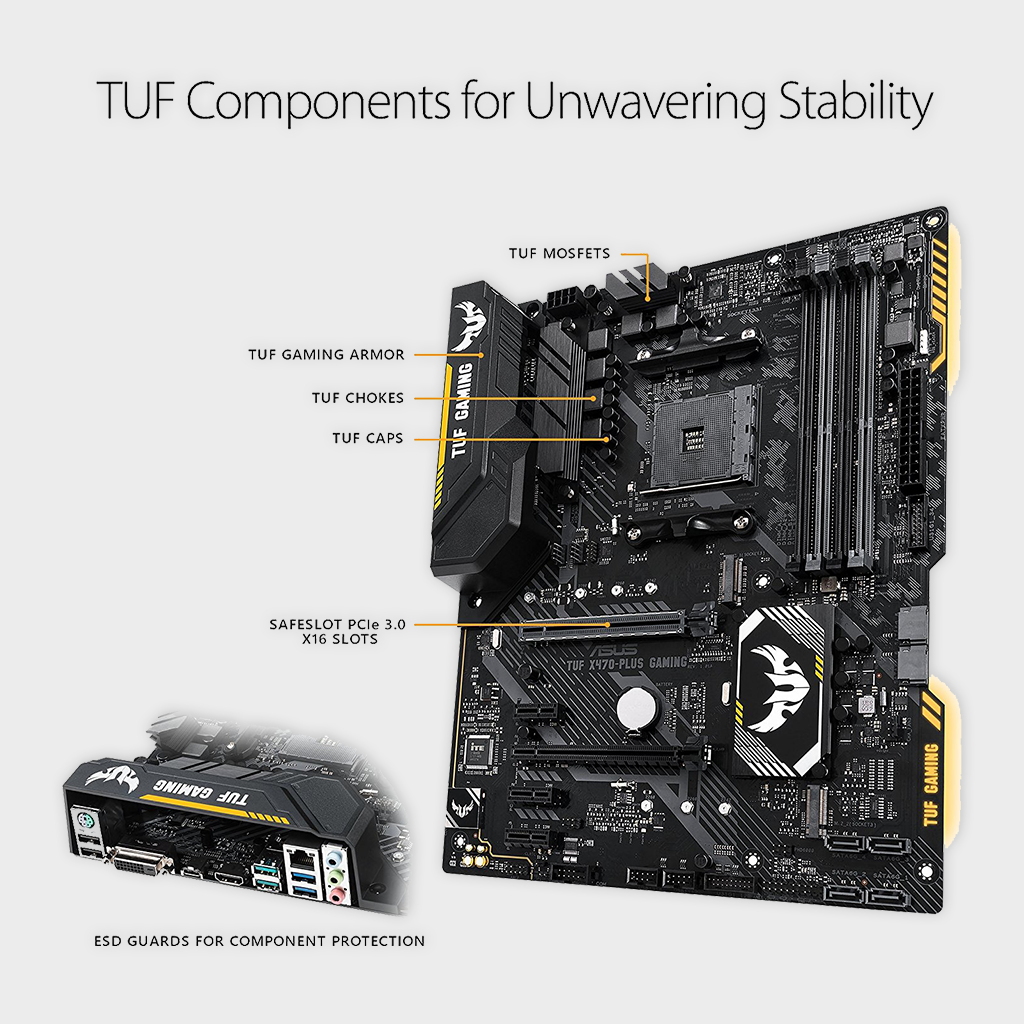

- Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability
- Gamer’s Guardian with SafeSlot and Fan Xpert 4 Core provides hardware-level safeguards for maximum performance with dynamic system cooling
- Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header
CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores |
Chipset | AMD X470 |
Memory | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC model) support varies by CPU. |
Graphic | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively) |
Multi-GPU Support | Supports AMD CrossFireX™ Technology |
Expansion Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X470 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 |
Storage | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD X470 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 6 x SATA 3Gb/s port(s) Support Raid 0, 1, 10 |
LAN | Realtek® RTL8111H | TUF LANGuard |
Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
USB Ports | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD X470 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) AMD X470 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X470 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
Special Features | ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 1 (blue) USB Type-CTM, 2 x USB 2.0 2 x USB 3.1 Gen 1 (blue) 3 x Audio jack(s) |

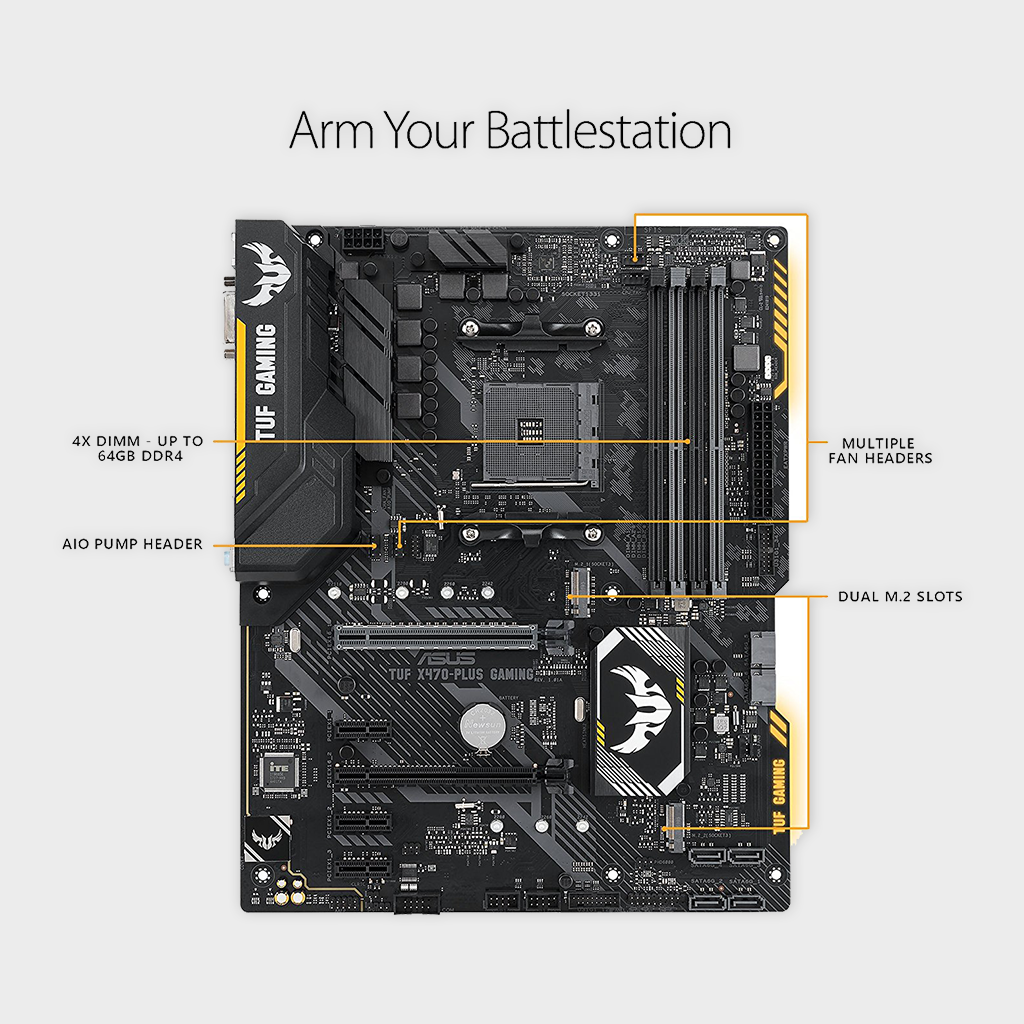

Internal I/O Ports | 1 x RGB Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
Accessories | User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search |
Manageability | DMI 3.0, WOL by PME, PXE |
Operating System | Windows® 10 64-bit |
Form Factor | ATX Form Factor 30.5 cm x 24.4 cm (12.0 x 9.6 ) |
Warranty | 3 Years |
