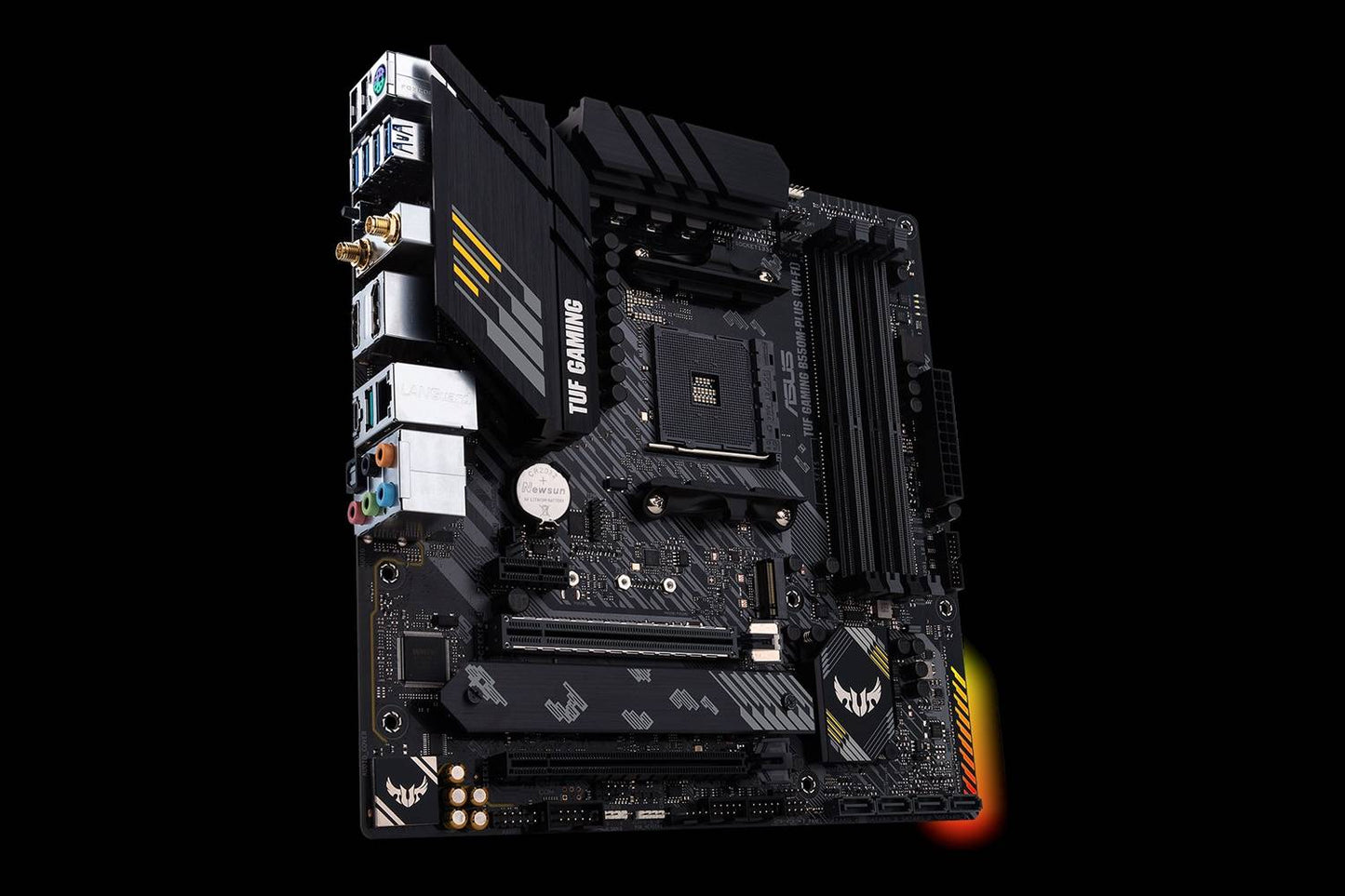

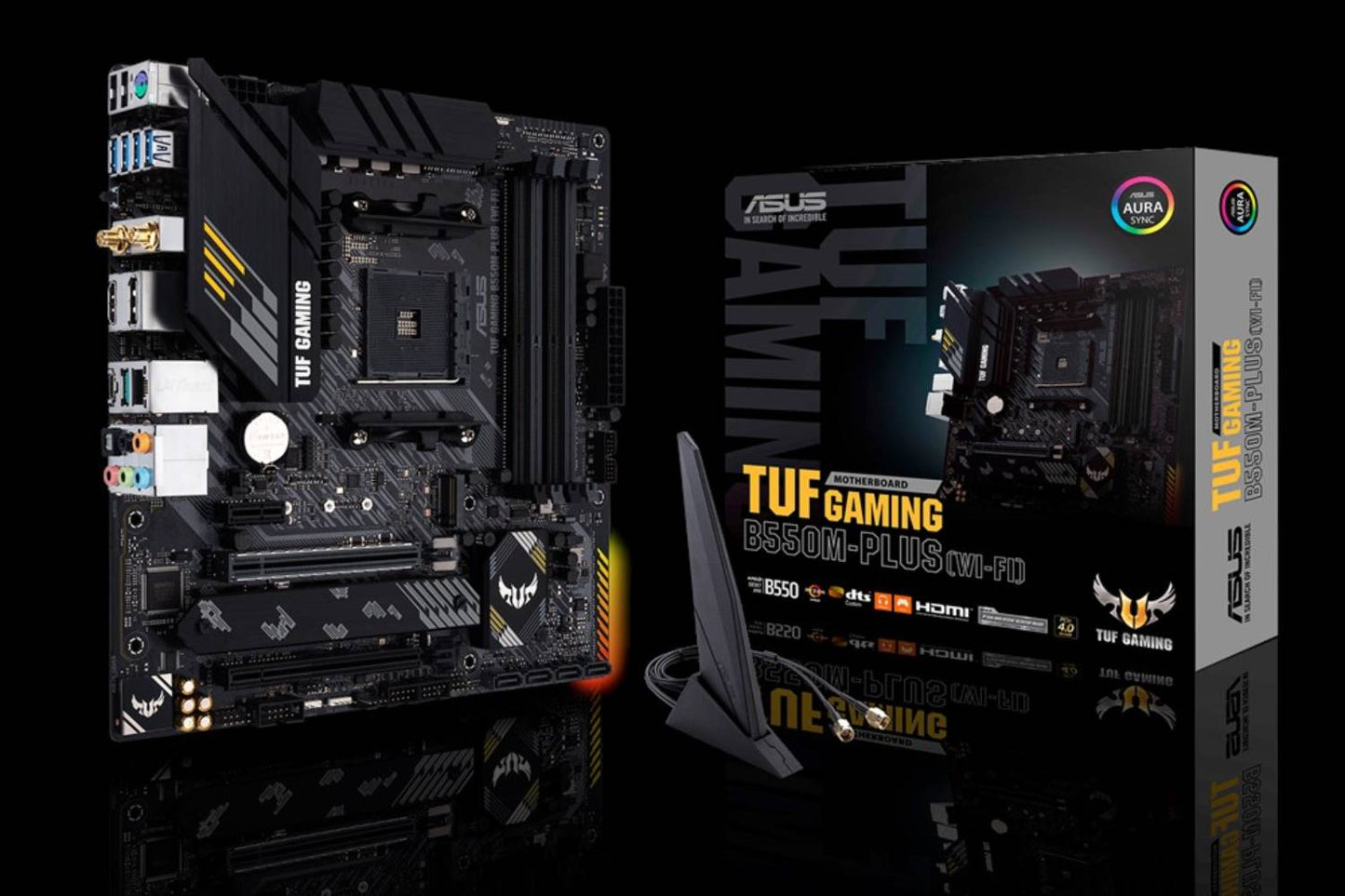

Asus TUF Gaming B550M-Plus (WI-FI) Motherboard

Asus TUF Gaming B550M-Plus (WI-FI) Motherboard

₹ 18,400.00
₹ 18,400.00
Sale Sold out
Tax included.

Description

AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Intel® WiFi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support

  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
  • Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
  • Made for online gaming: Intel® WiFi 6, 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
  • AI noise-cancelling microphone: Provides crystal-clear in-game voice communication
  • CPU
    Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD B550
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
    3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    1 x DisplayPort 1.2
    1 x HDMI 2.1(4K@60HZ)
    *Graphics specifications may vary between CPU types.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    1 x PCIe 4.0 x16 (x16 mode)
    3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
    1 x PCIe 3.0 x16 (x16 mode)
    AMD B550 Chipset
    1 x PCIe 3.0 x16 (x4 mode) *1
    1 x PCIe 3.0 x1 *1
    * Support PCIe bifurcation for RAID on CPU function.
  • Storage
    Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
    3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
    AMD B550 Chipset :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek RTL8125B 2.5Gb Ethernet
    TUF LANGuard
  • Wireless Data Network
    Intel® Wi-Fi 6 AX200
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports up to 2.4Gbps max data rate
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Supports PCIe interface
  • Bluetooth
    Bluetooth v5.1*
    *BT 5.1 function will be ready in Windows 10 build 19041 or later.
  • Audio
    Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Optical S/PDIF out port(s) at back panel
    - Audio cover
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
  • USB Ports
    Rear USB Port ( Total 8 )
    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - AI Noise Cancelling Microphone
    AI Suite 3
    - Performance And Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert 2+
    - EZ update
    TUF GAMING CPU-Z
    AI Charger
    ASUS Turbo LAN
    DAEMON Tools
    DTS Custom for GAMING Headsets
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode

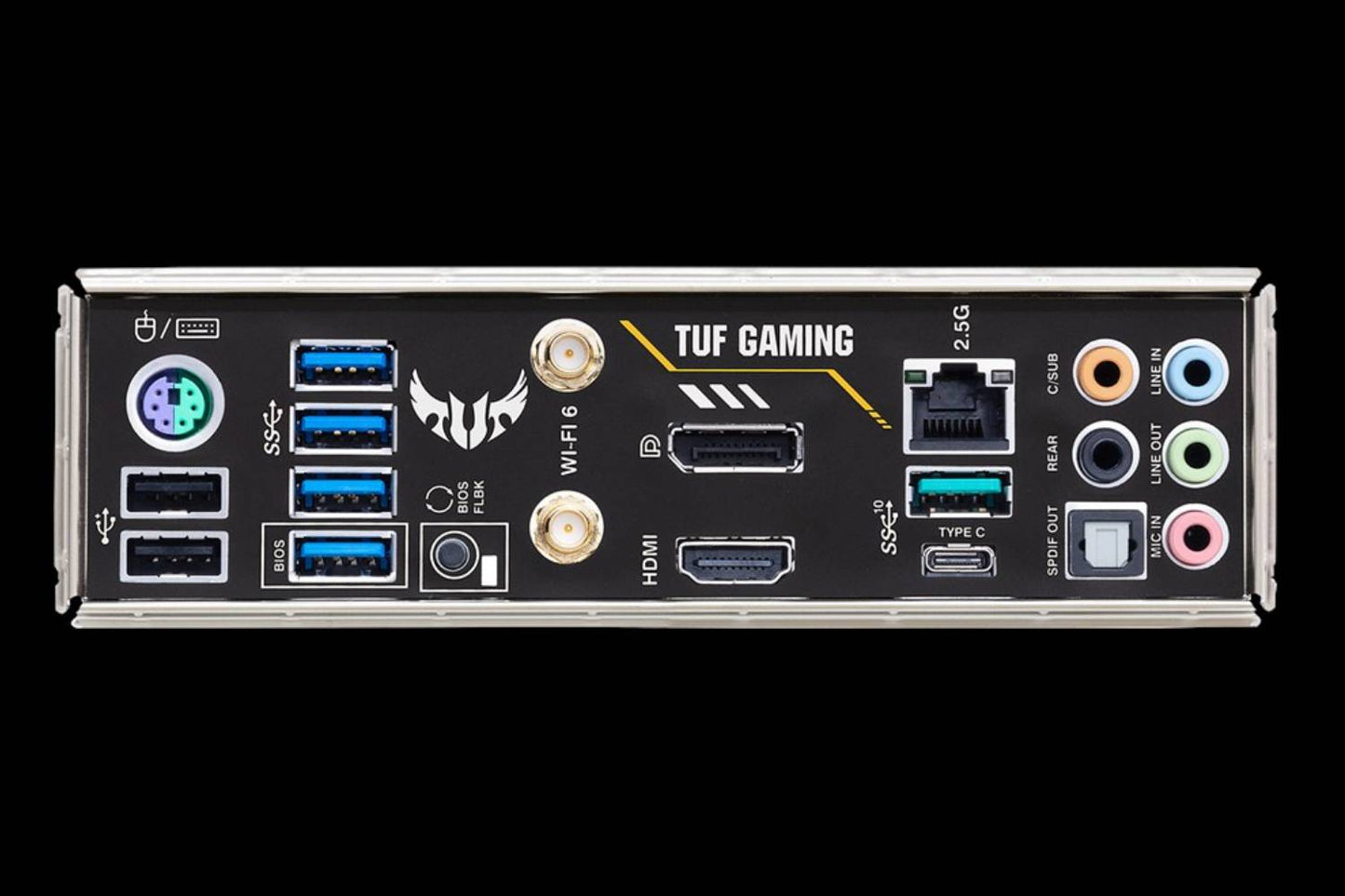

  • Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (2.5G) port(s)
    2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
    2 x USB 2.0
    4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x BIOS FlashBack™ Button(s)
    1 x ASUS Wi-Fi Module
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    2 x Aura RGB Strip Headers
    1 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
    1 x SPI TPM header
    4 x SATA 6Gb/s connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
    1 x Speaker connector

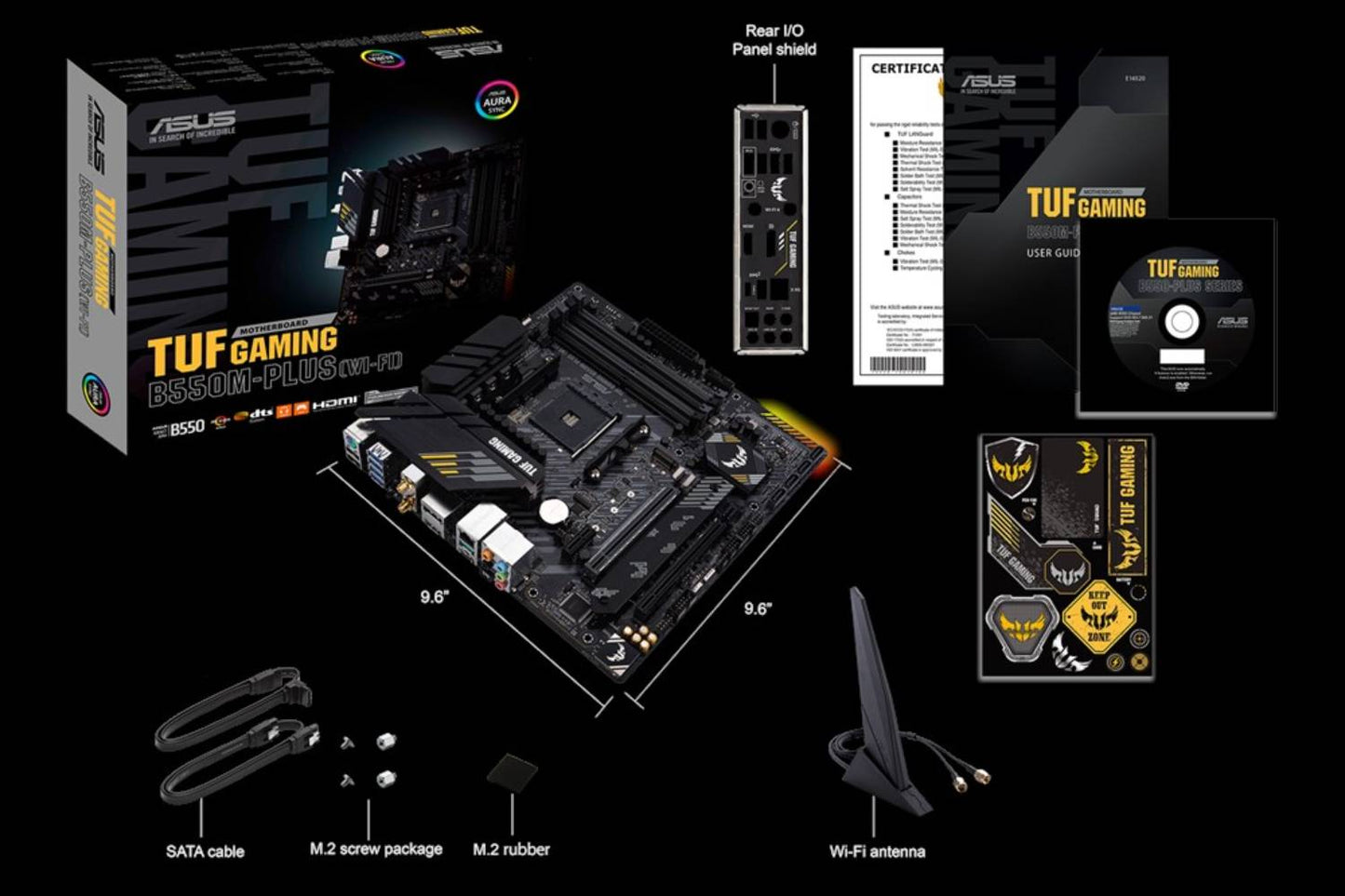

  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x TUF Gaming Sticker
    1 x TUF Certification card(s)
    1 x Wi-Fi moving antenna
    1 x M.2 SSD screw package(s)
    1 x M.2 Rubber Package(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • Note
    *1 PCIEX16_2 will run x2 mode when PCIEX1 is used.
