ASUS- TUF B360-PLUS GAMING (300 SERIES) MOTHERBOARD-ASUS-computerspace
ASUS- TUF B360-PLUS GAMING (300 SERIES) MOTHERBOARD-ASUS-computerspace
ASUS- TUF B360-PLUS GAMING (300 SERIES) MOTHERBOARD-ASUS-computerspace
22% OFF
Sale price ₹ 13,700.00 Regular price ₹ 10,635.00
In Stock
EMI available on credit card.
Cardless EMI Available by Zest Money with all order over 3000.00, ZestMoney: 0% Interest available Cardless EMI Available by Zest Money.
ASUS

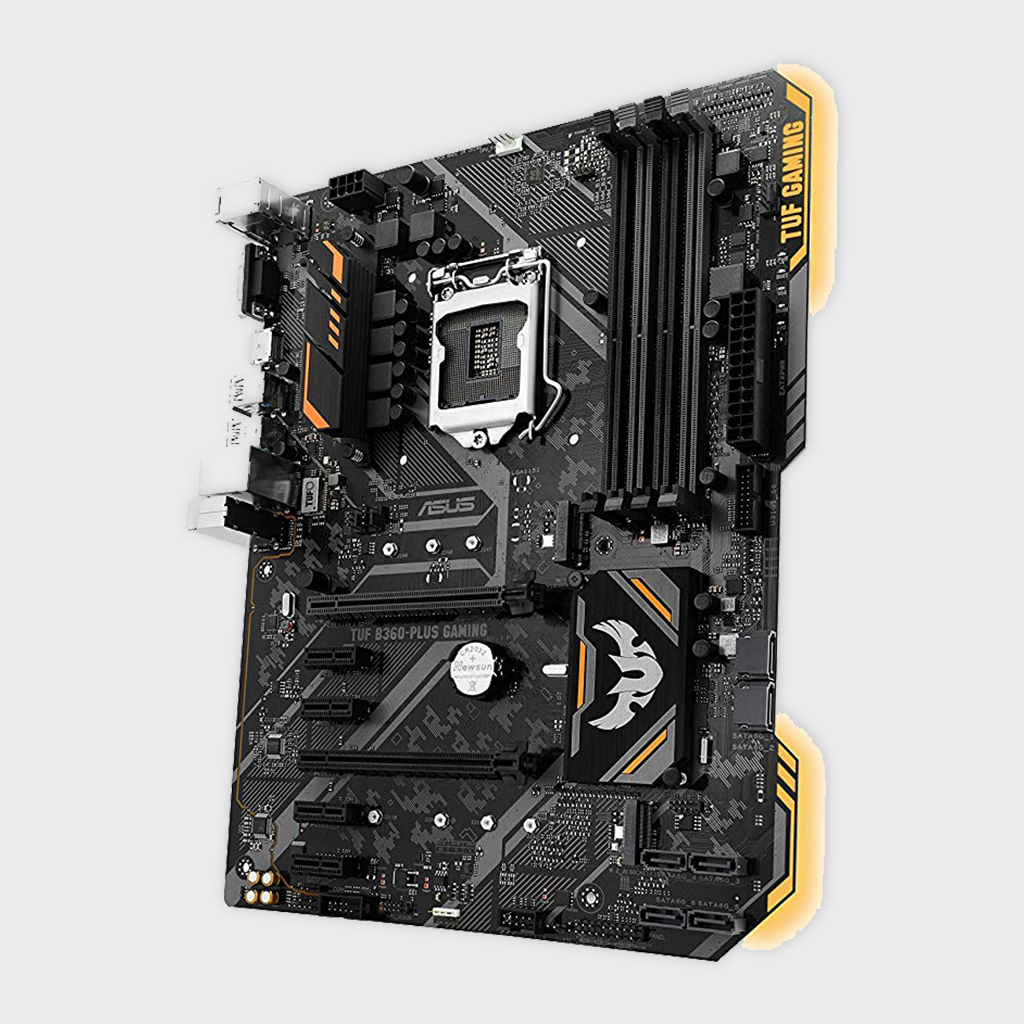

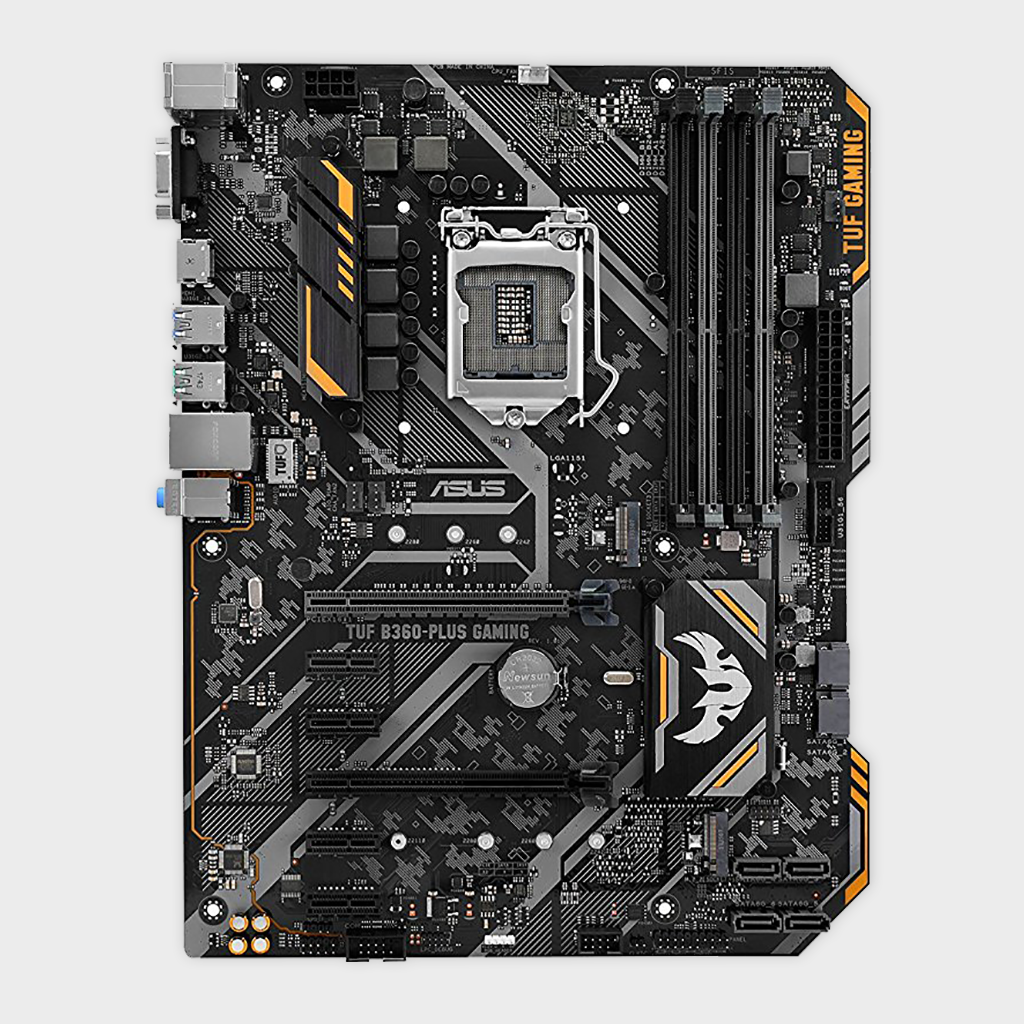

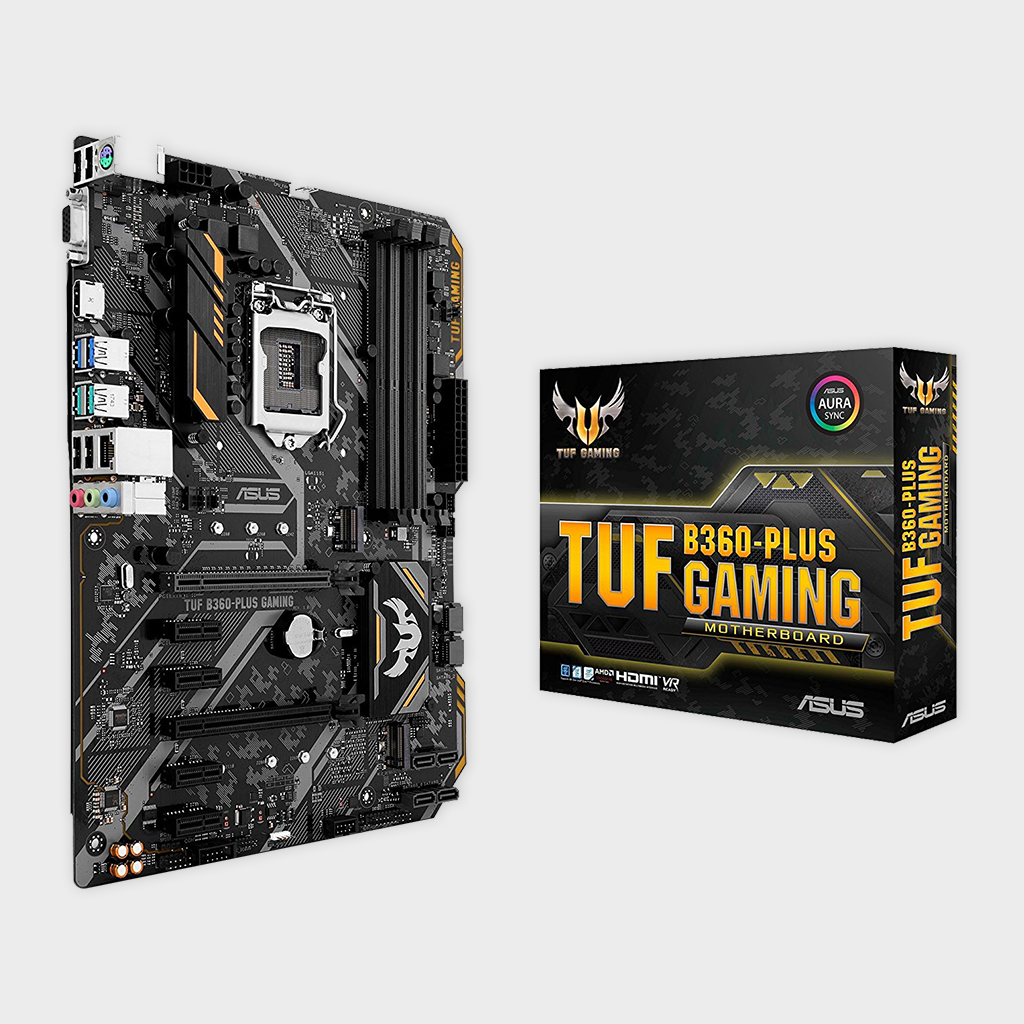

ASUS- TUF B360-PLUS GAMING (300 SERIES) MOTHERBOARD

  • GPU Temperature Sensing & Fan Xpert 2+: Ensures every fan achieves the best balance of cooling performance and acoustics
  • TUF Protection: SafeSlot Core, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
  • Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

SKU:TUF-B360-PLUS-GAMING

  • GPU Temperature Sensing & Fan Xpert 2+: Ensures every fan achieves the best balance of cooling performance and acoustics
  • TUF Protection: SafeSlot Core, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
  • Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

CPU

Intel® Socket 1151 for 8th Generation Core™ Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® B360

Memory

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *1

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/D-Sub ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (x2 mode)

4 x PCIe 3.0/2.0 x1

Storage

Intel® B360 Chipset :

1 x M.2 Socket 3*2, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 2 mode)

6 x SATA 6Gb/s port(s), gray

Intel® Optane™ Memory Ready

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s)

TUF LANGuard

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports

Intel® B360 Chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, )

Intel® B360 Chipset :

4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)

Intel® B360 Chipset :

6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

Special Features

ASUS TUF PROTECTION

- ASUS ESD Guard: Enhanced ESD protection

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS DIGI + VRM: 4+2+1 Phase digital power design

ASUS EPU :

- EPU

TUF ENGINE! Power Design :

- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert 2+

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

CPU Installation Tool

- Three-step simplicity and safety

ASUS Q-Design :

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (teal blue)Type-A,

2 x USB 3.1 Gen 1 Type-A,

4 x USB 2.0

3 x Audio jack(s)

Internal I/O Ports

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 2 mode)

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x AIO_PUMP connector

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x CPU installation tool

1 x Supporting DVD

1 x TUF Gaming Sticker

1 x TUF Certification card(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc

Drivers

ASUS Utilities

ASUS EZ Update

Anti-virus software (OEM version)

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty

3 Years
