ASUS TUF-B350M-PLUS-GAMING AMD MOTHERBOARD

CPU

AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Supports CPU up to 8 cores

Chipset

AMD B350

Memory

AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1
AMD 7th Generation A-series/Athlon™ Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
(Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Graphic

Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Expansion Slots

AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B350 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
1 x PCIe 2.0 x1

Storage

AMD B350 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
2 x SATA 6Gb/s port(s), gray,
AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*4

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

USB Ports

AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD B350 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue)
AMD B350 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B350 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Special Features

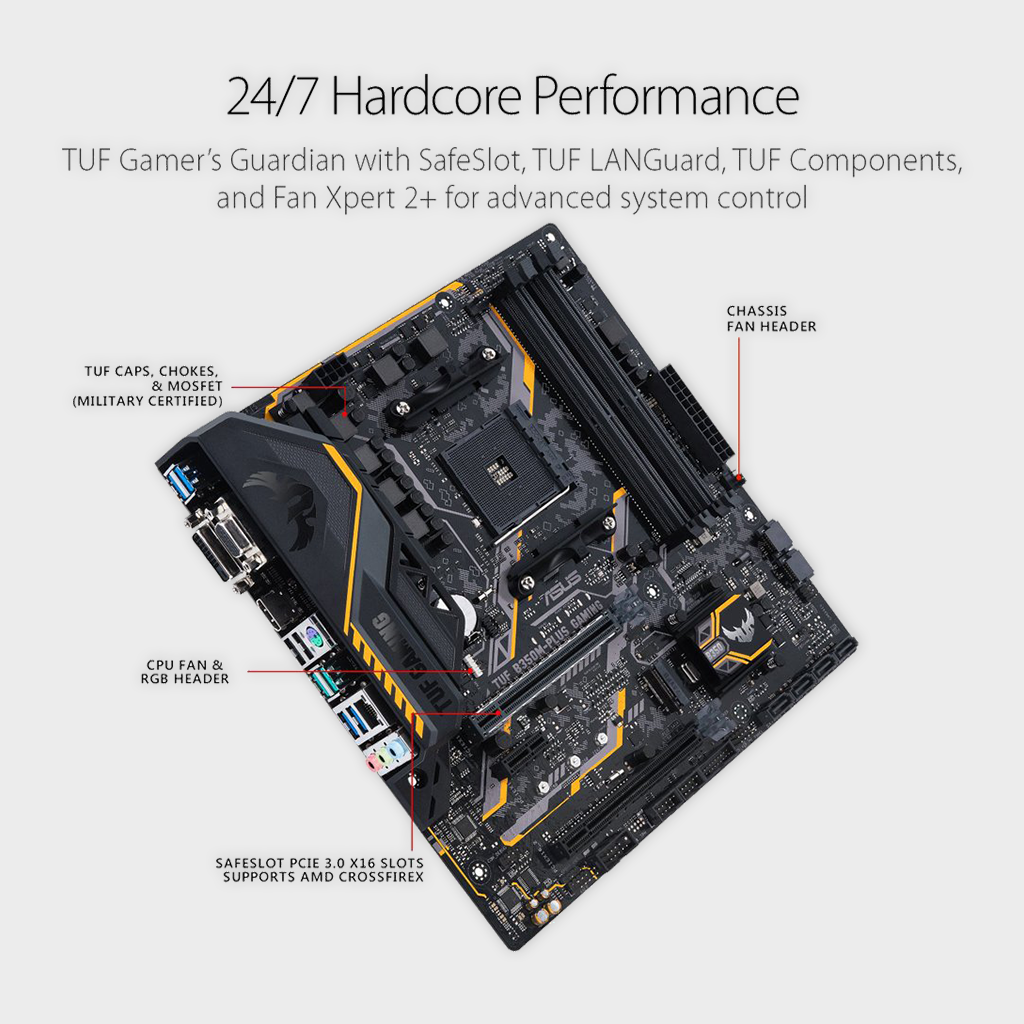

ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Operating System Support

Windows® 10 , 64bit

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

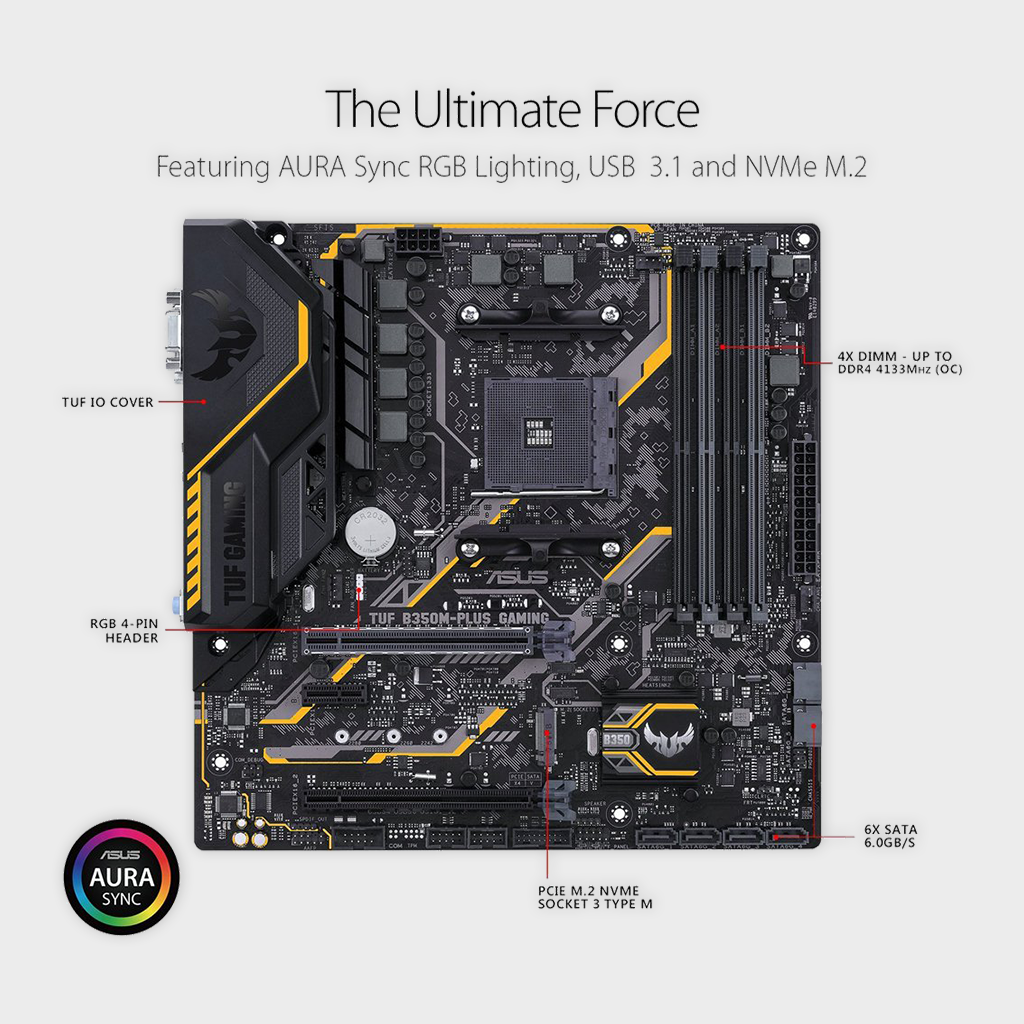

Internal I/O Ports

1 x Fan RGB header
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

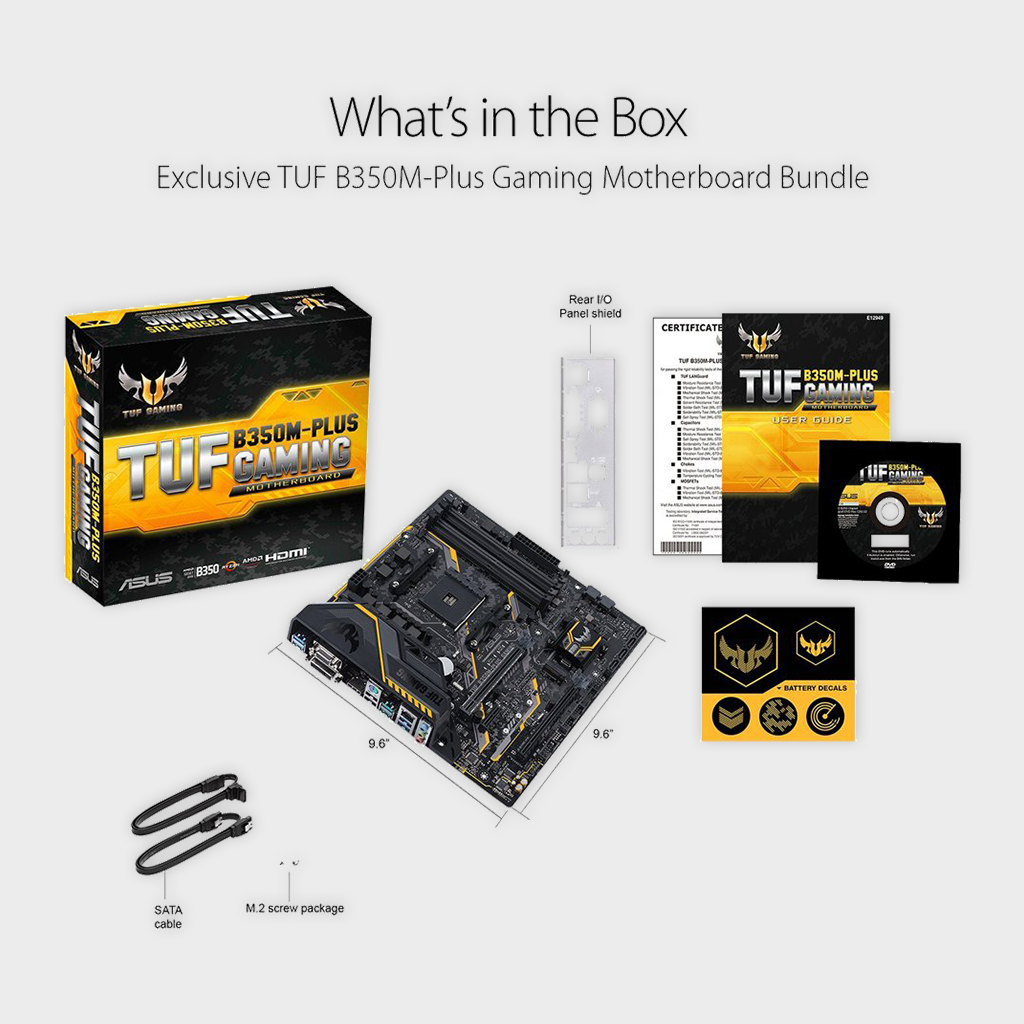

Accessories

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0,SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Operating System

Windows® 10 64-bit

Form Factor

Micro ATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Warranty

3 Years
