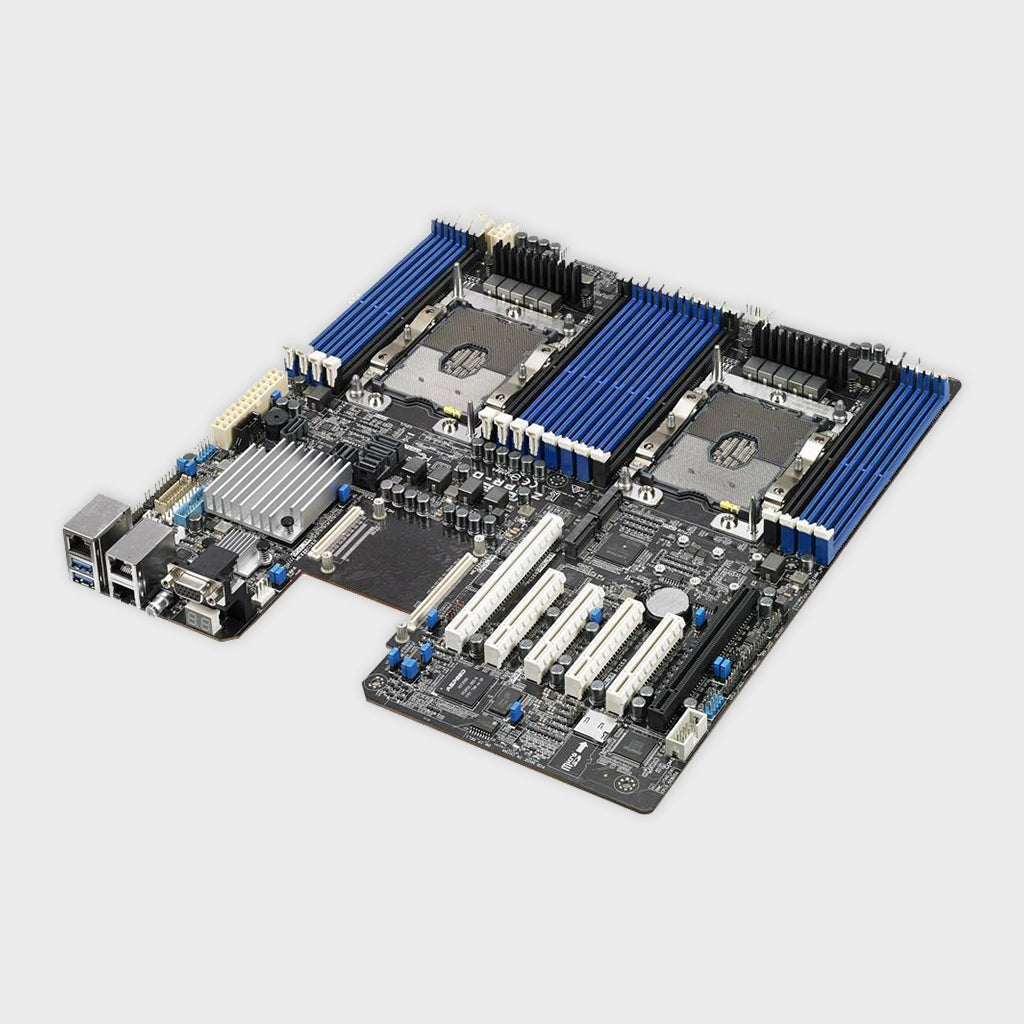

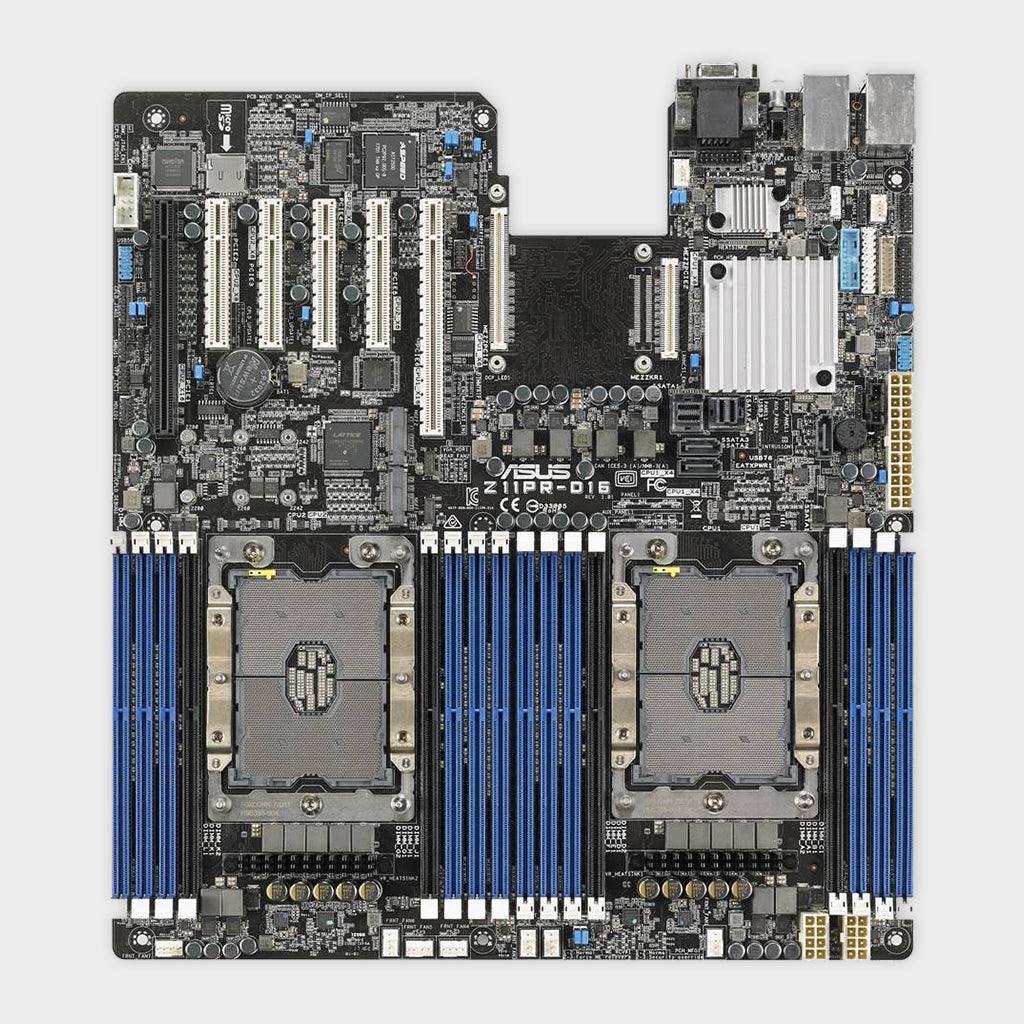

Asus Server 2 x Socket P (LGA 3647) Z11PR-D16 Motherboard
Asus Server 2 x Socket P (LGA 3647) Z11PR-D16 Motherboard
Processor / System Bus
2 x Socket P (LGA 3647)
Intel® Xeon® Scalable Processors Family (150W)
*Refer to support page for more information
UPI (10.4 GT/s)
Intel® Lewisburg PCH C621
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS
Memory Type :
DDR4 2666/2400 RDIMM
DDR4 2666/2400 LRDIMM
DDR4 2666/2400 LR-DIMM 3DS
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Slot Location 1 : PCI-E x16 (Gen3 X16 Link)
Slot Location 2 : PCI-E x8 (Gen3 X8 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x8 (Gen3 X8 Link)
Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Additional Slot 1 : OCP 2.0 module support (X16 Gen3 Link)
EEB (12"x13", 305mm x 330mm)
ASUS Fan Speed control technology
ASUS Control Center
Rack Optimized (Dedicated for Rack)
SATA Controller :
11 x SATA3 6Gb/s ports (8 by 2 mini-SAS Connector)
2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCI-E Gen3 x4 link)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID )
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Aspeed AST2500 with 64MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
2 x USB 2.0 pin header , Up to 4 Devices
9 x Fan Header , 4pin
1 x SMBus
2 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x VROC Key Header
1 x Micro SD Card Slot
2 x M.2 Connector , NGFF Type : 2280/2260/2242

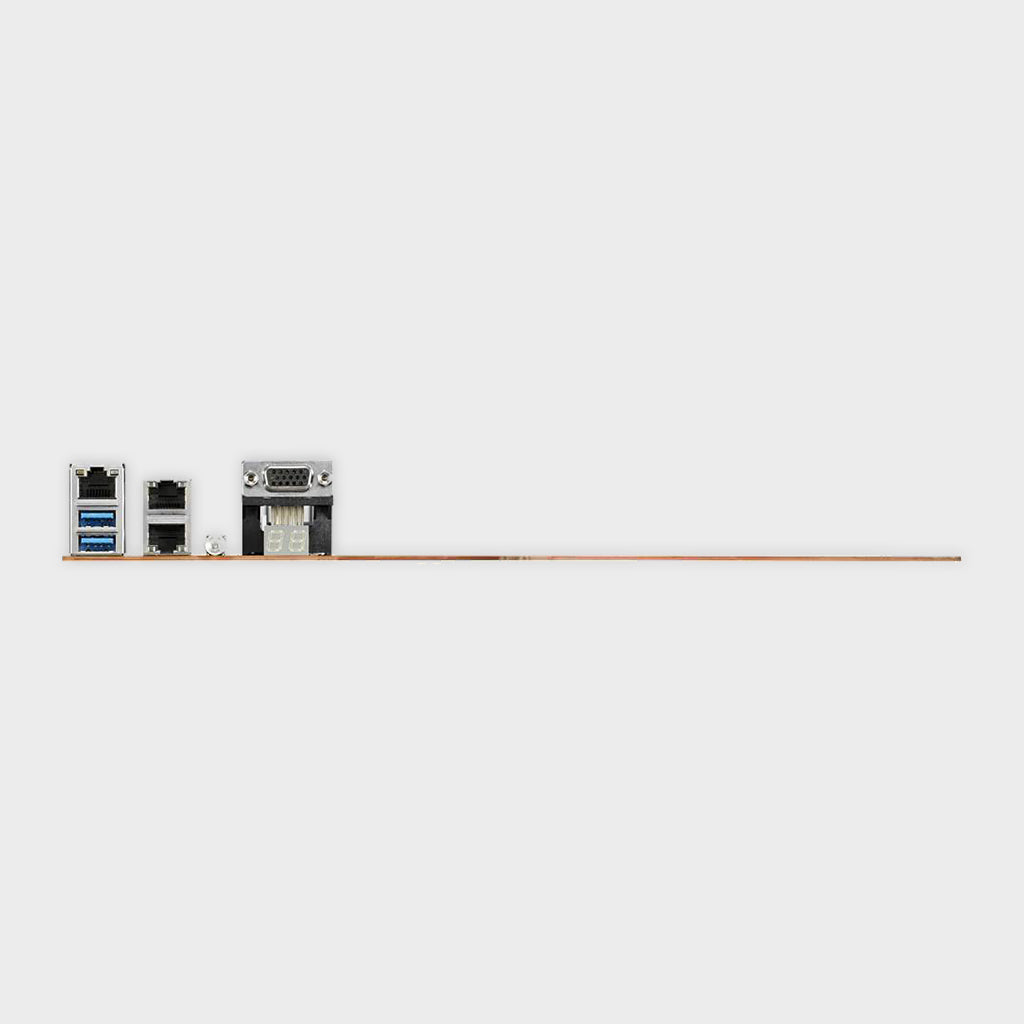

Back I/O Ports
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port
1 x Power switch
1 x Q-Code/Port 80 LED
1 x Message LED
1 x HDD LED
1 x Location LED
ASUS Control Center (Classic)
ASMB9-iKVM for KVM-over-Internet
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Gift Box (1-in-1)
Net Weight : 1.4 KG
Gross Weight : 2.425 KG
Bulk Pack (10-in-1)
Net Weight : 14 KG
Gross Weight : 19.05 KG
1 x SATA 6Gb/s cable
1 x Supporting DVD
2 x LGA3647 carrier
