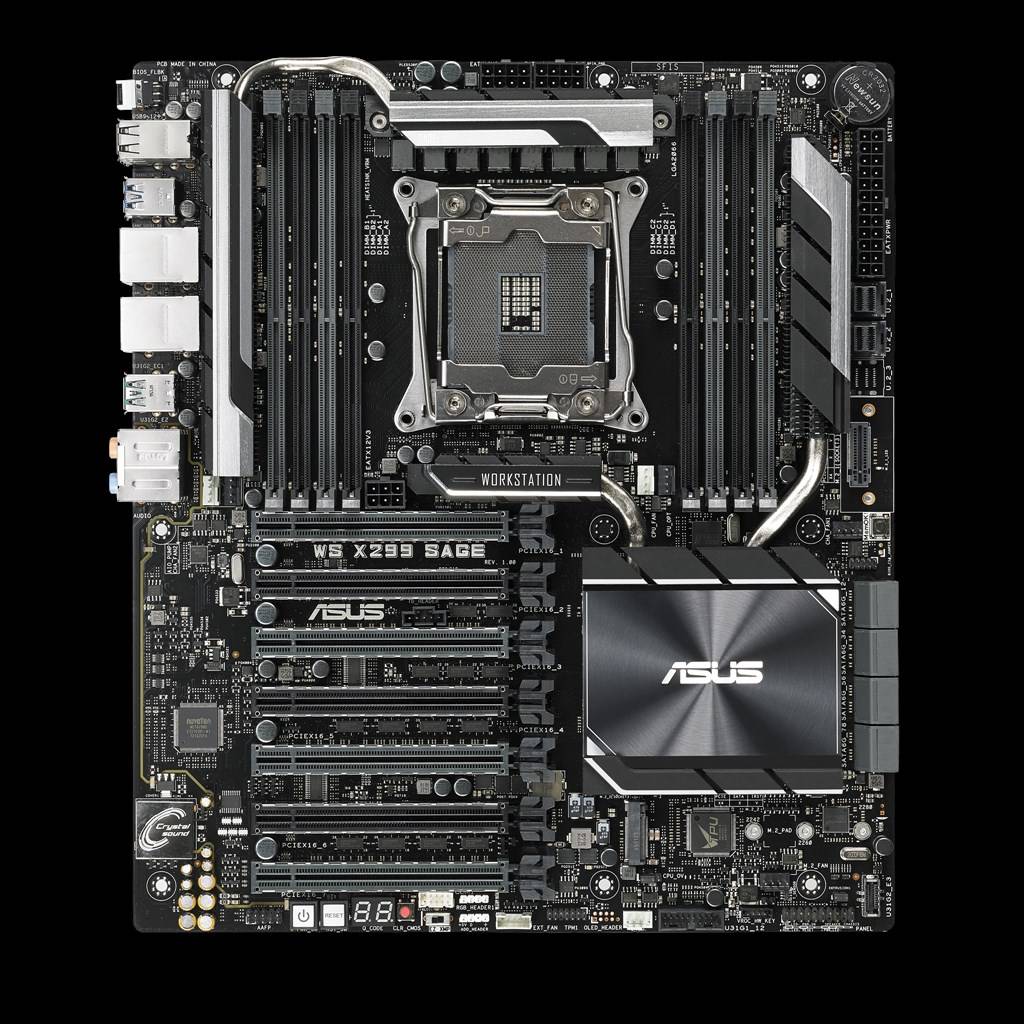

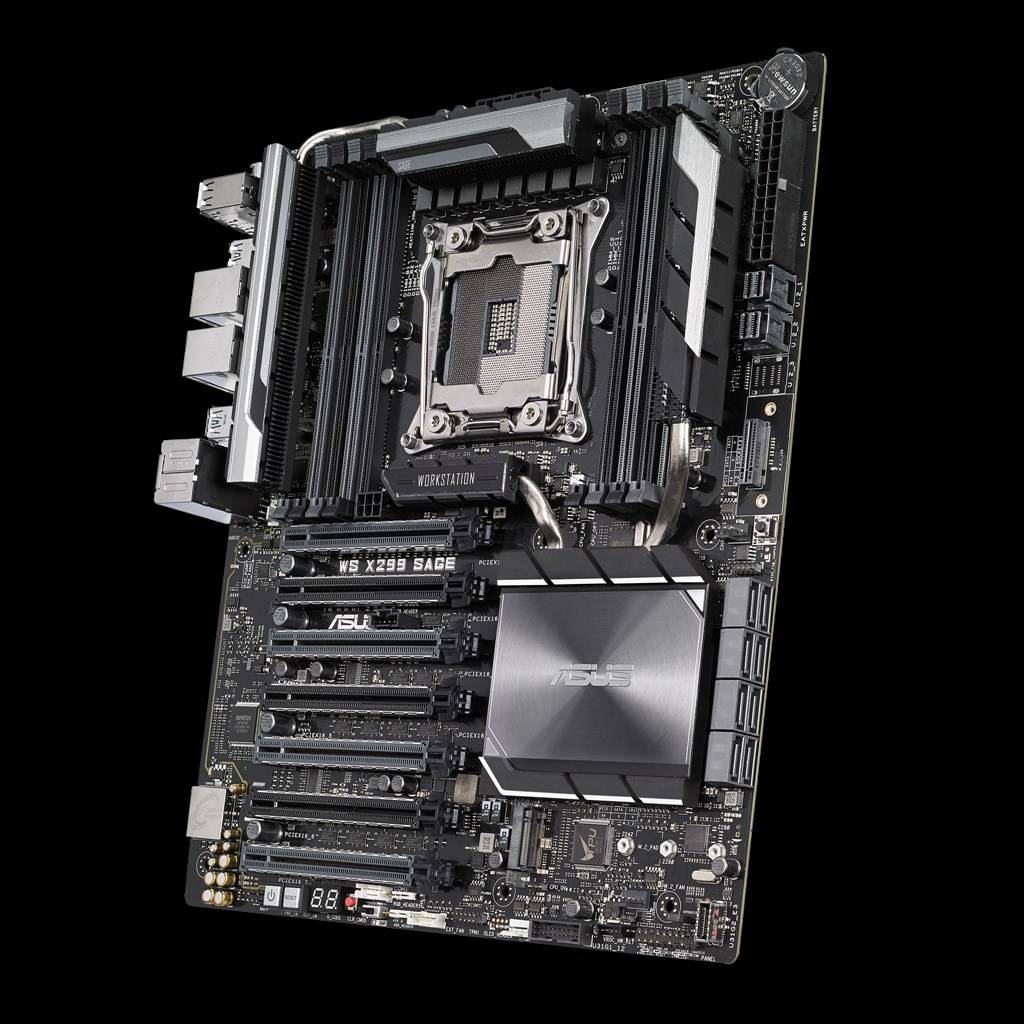

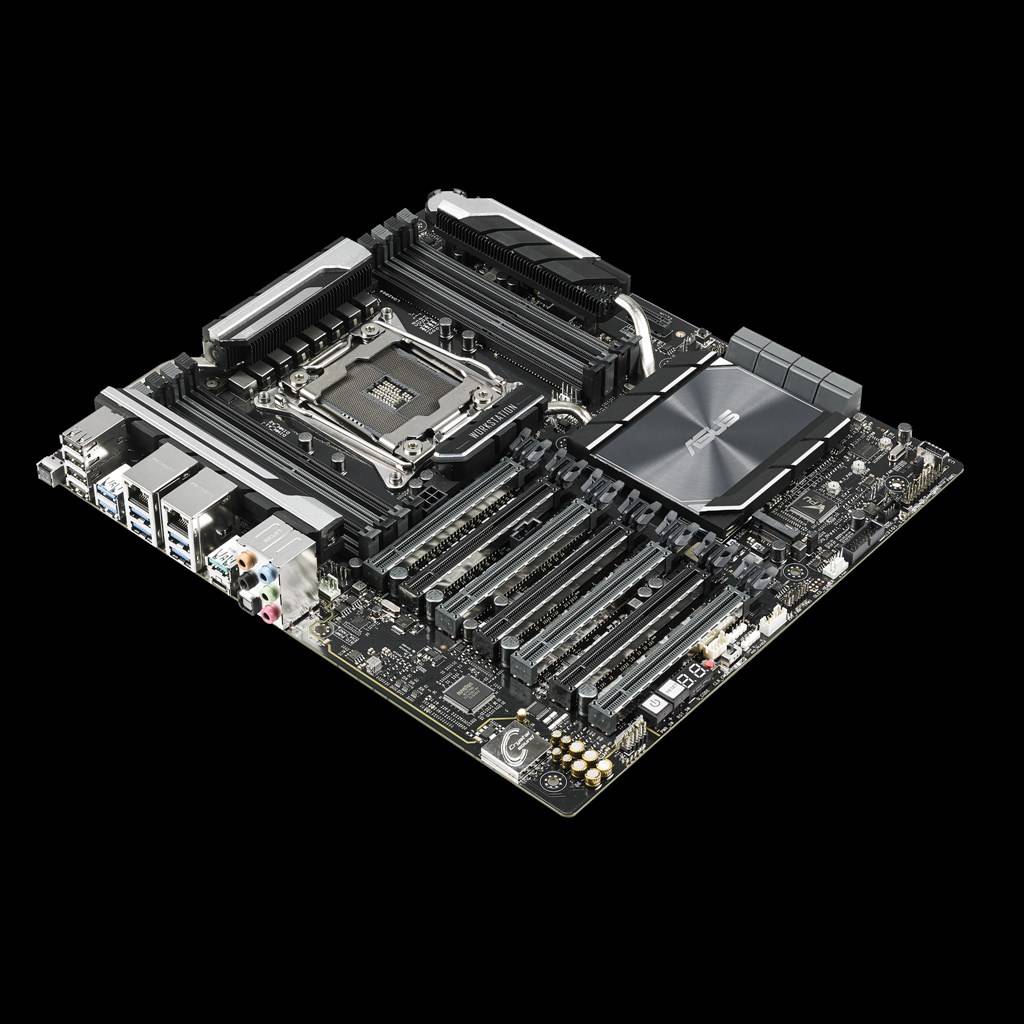

Asus Server X299 SAGE LGA2066 DDR4 M.2 U.2 X299 CEB Motherboard

ASUS WS X299 SAGE LGA2066 DDR4 M.2 U.2 X299 CEB Motherboard for Intel® Core™ X-Series Processors with quad-GPU support, DDR4 4200MHz, dual M.2 & U.2 support Designed for 7th generation LGA2066 socket Intel® Core™ X-Series processors with dual M.2, front panel USB 3.1 Gen2, Dual Gigabit Intel® LAN, support for Thunderbolt 3, Intel® VROC and Intel®Optane™Memory compatibility OC Design featuring ASUS ProClock and T-Topology Technology extends CPU and Memory overclocking margins while providing the flexibility to extract every ounce of performance for memory speeds of DDR4-4133 MHz and beyond 5-Way Optimization featuring Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles for maximum OC performance while headers for thermal sensors, AIO pump, and watercooling provide dynamic system cooling Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 3-Way NVIDIA®SLI® or AMD® CrossfireX™ Industry-leading 7.1-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring Crystal Sound 3, DTS Headphone:X and driven by Japanese capacitors for warm, immersive sound Complete IT Infrastructure Management with In-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching. AURA Sync RGB lighting via Addressable RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products

• CPU
  Intel® Socket 2066 Core™ X-Series Processors
  Supports Intel® Virtual RAID on CPU (VROC)
  * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® X299
• Memory
  Intel® Core™ X-series Processors (6-core above)
  8 x DIMM, Max. 128GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Intel® Core™ X-series Processors (4-core)
  4 x DIMM, Max. 64GB, DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
• Multi-GPU Support
  Supports NVIDIA® 4-Way SLI™ Technology
  Supports AMD 4-Way CrossFireX Technology
• Expansion Slots
  7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)
• Storage
  Intel® X299 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  8 x SATA 6Gb/s port(s)
  2 x U.2 connector*¹
  Support Raid 0, 1, 5, 10
  Support Intel^® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
  Supports Intel® Smart Response Technology
  Intel® Rapid Storage Technology 15 support
  Intel® Optane™ Memory Ready
  Intel® Virtual RAID (VROC) support for CPU RAID
• LAN
  Intel® I210-AT, 1 x Gigabit LAN Controller(s)
  Intel® I219-LM , 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC
  - Impedance sense for front and rear headphone outputs
  - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
  Audio Feature :
  - DTS Connect
  - DTS Headphone:X
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  Separate layer for left and right track, ensuring both sound deliver equal quality
• USB Ports
  Intel® X299 Chipset :
  8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board)
  Intel® X299 Chipset :
  4 x USB 2.0 port(s) (4 at back panel, )
  ASMedia® USB 3.1 Gen 2 controller :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C^TM)
  ASMedia® USB 3.1 Gen 2 controller :
  1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
• Special Features
  OC Design - ASUS PRO Clock II Technology
  5-Way Optimization by Dual Intelligent Processors 5
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
  TPU

  Fan Xpert4
  - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  ASUS EPU :
  - EPU
  ASUS Digital Power Design :
  - Industry leading Digital 8 Phase CPU Power Design
  - Industry leading Digital 2 Phase DRAM Power Design
  AURA :
  - Aura RGB Strip Headers
  - Aura Addressable Strip Header(s)
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger+
  - Crystal Sound 3
  ASUS EZ DIY :
  - ASUS CrashFree BIOS
  - ASUS EZ Flash
  - ASUS USB BIOS Flashback
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
  Asus Control Center (ACC) IT management software supported
• Operating System Support
  Windows® 10 64-bit
• Back I/O Ports
  2 x LAN (RJ45) port(s)
  1 x USB 3.1 Gen 2 (teal blue)Type-A
  1 x USB 3.1 Gen 2 (black)USB Type-C^TM
  6 x USB 3.1 Gen 1 (blue)
  4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
  1 x Optical S/PDIF out
  1 x USB BIOS Flashback Button(s)
  1 x 8-channel Audio I/O
• Internal I/O Ports
  1 x Aura Addressable Strip Header(s)
  2 x U.2 port
  1 x AAFP connector
  1 x Aura RGB Strip Header
  1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x TPM header
  1 x COM port(s) connector(s)
  8 x SATA 6Gb/s connector(s)
  1 x VROC_HW_Key
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 6-pin ATX Power connector
  2 x 8-pin ATX 12V Power connector(s)
  1 x EZ XMP switch
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x Clear CMOS button(s)
  1 x Water Pump header (4-pin)
  1 x System panel connector
  1 x Thermal sensor connector
  1 x USB 3.1 Gen 2 front panel connector
  1 x CPU_OV jumper
  1 x MemOK! Button
  1 x M.2 Fan Header
• Accessories
  User's manual
  ASUS Q-Shield
  1 x Vertical M.2 bracket set
  1 x COM port cable(s)
  8 x SATA 6Gb/s cable(s)
  1 x M.2 screws
  1 x Supporting DVD
  1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
  1 x 3-Way SLI bridge(s)
  1 x 4-Way SLI bridge(s)
  1 x SLI HB BRIDGE(2-WAY-M)
  1 x Q-Connector
• Form Factor
  CEB Form Factor
  12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
• Weight
  Color Box(3-in-1)
  Net Weight: 5.55kg
  Gross Weight: 8.06kg

  Bulk Pack(5-in-1)
  Net Weight: 6.99kg
  Gross Weight: 9.37kg



• Environment
  Operation temperature: 10℃ ~ 35℃
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
• Note
  *Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed. PCIEX16_1 to PCIEx16_3 & PCIEX16_4 to PCIEx16_7 support Intel® VROC separately.

  *1. The U.2 connectors are only supported on 44-Lane CPUs.
