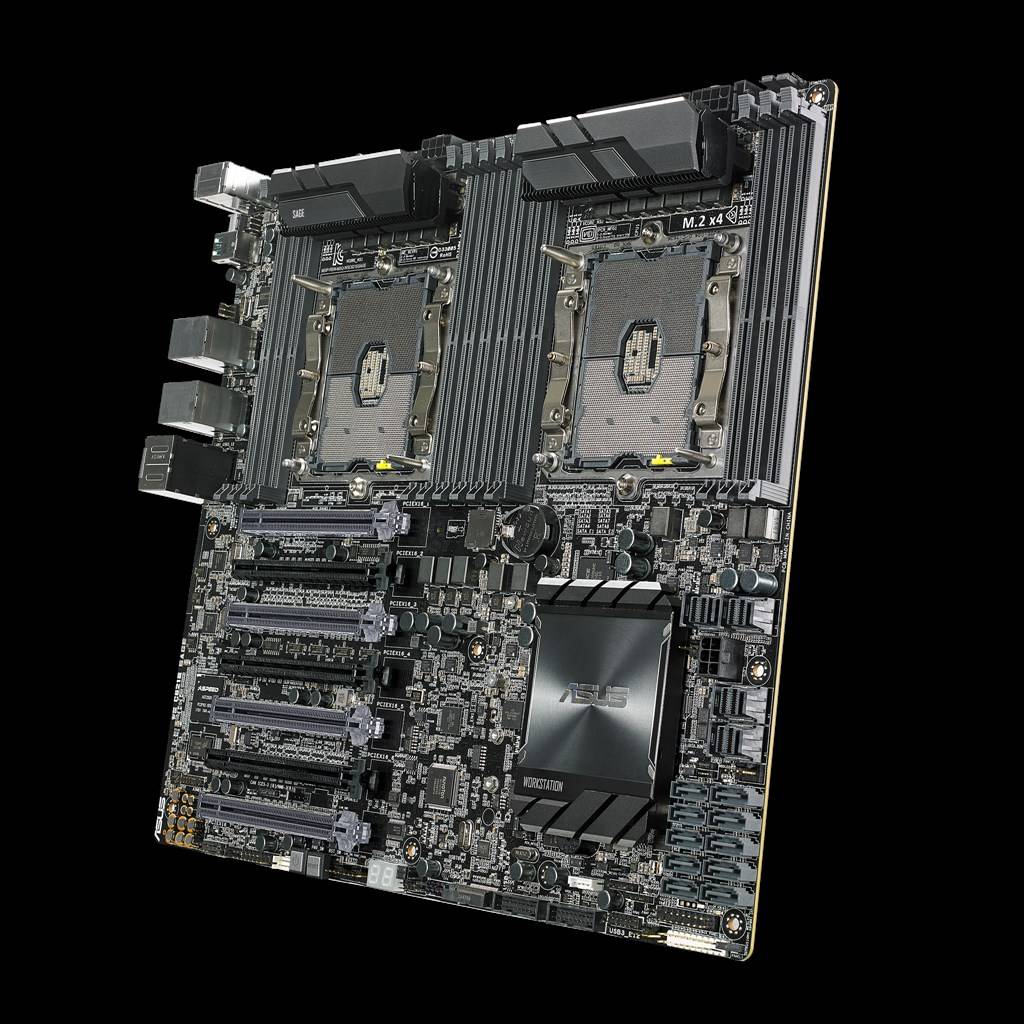

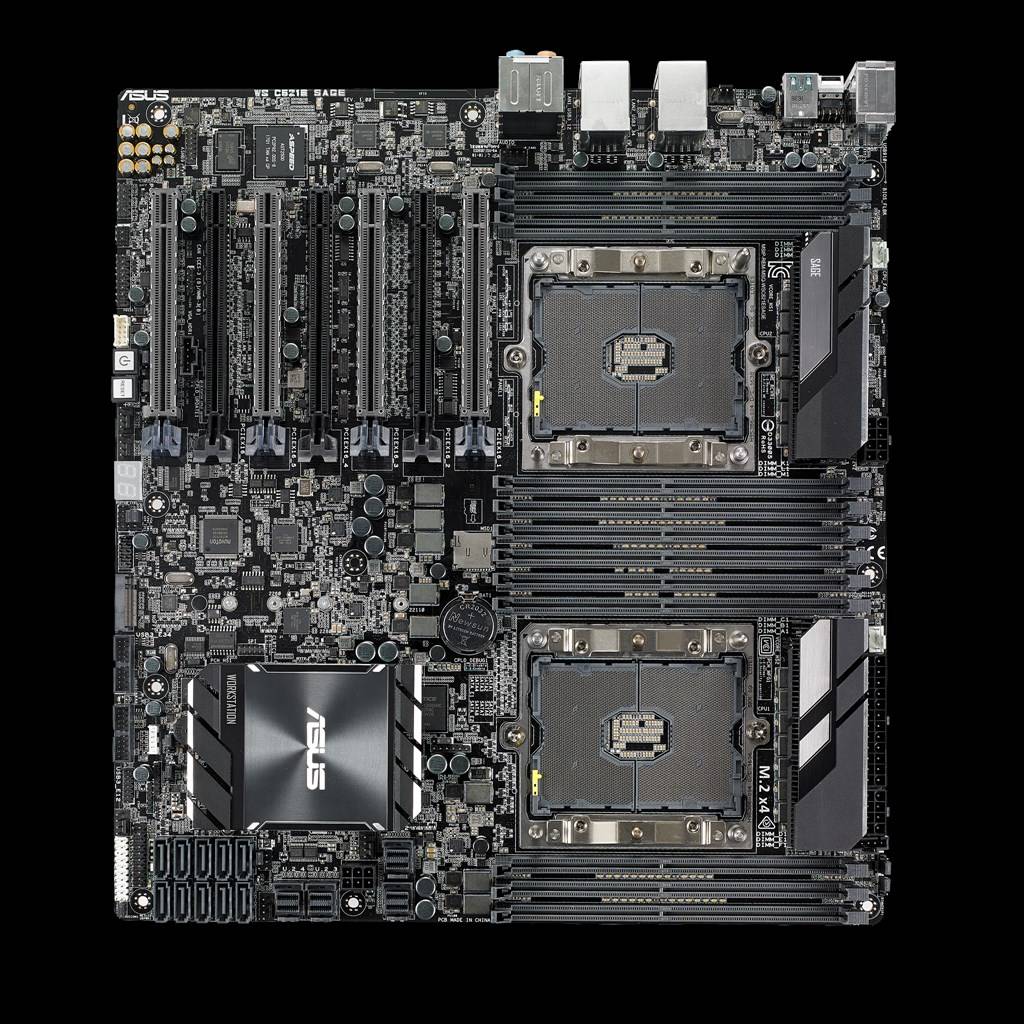

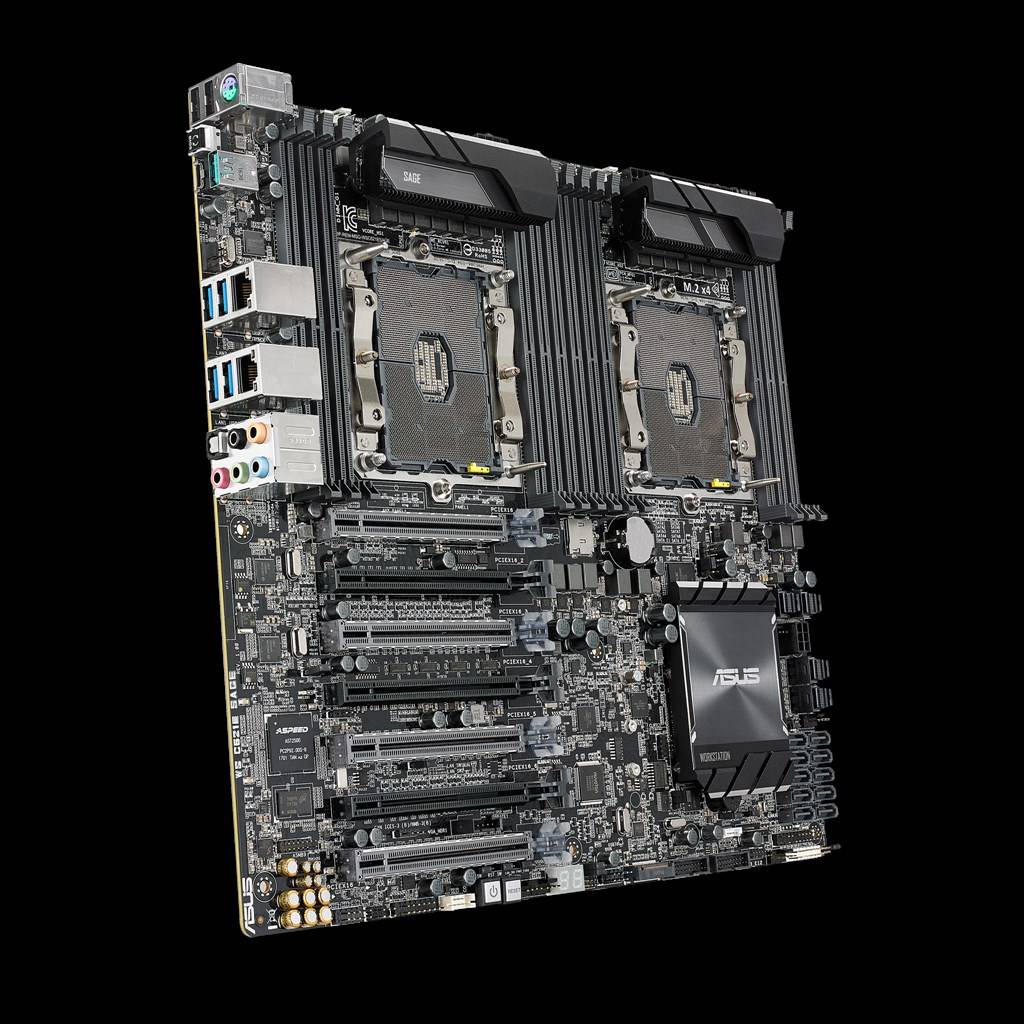

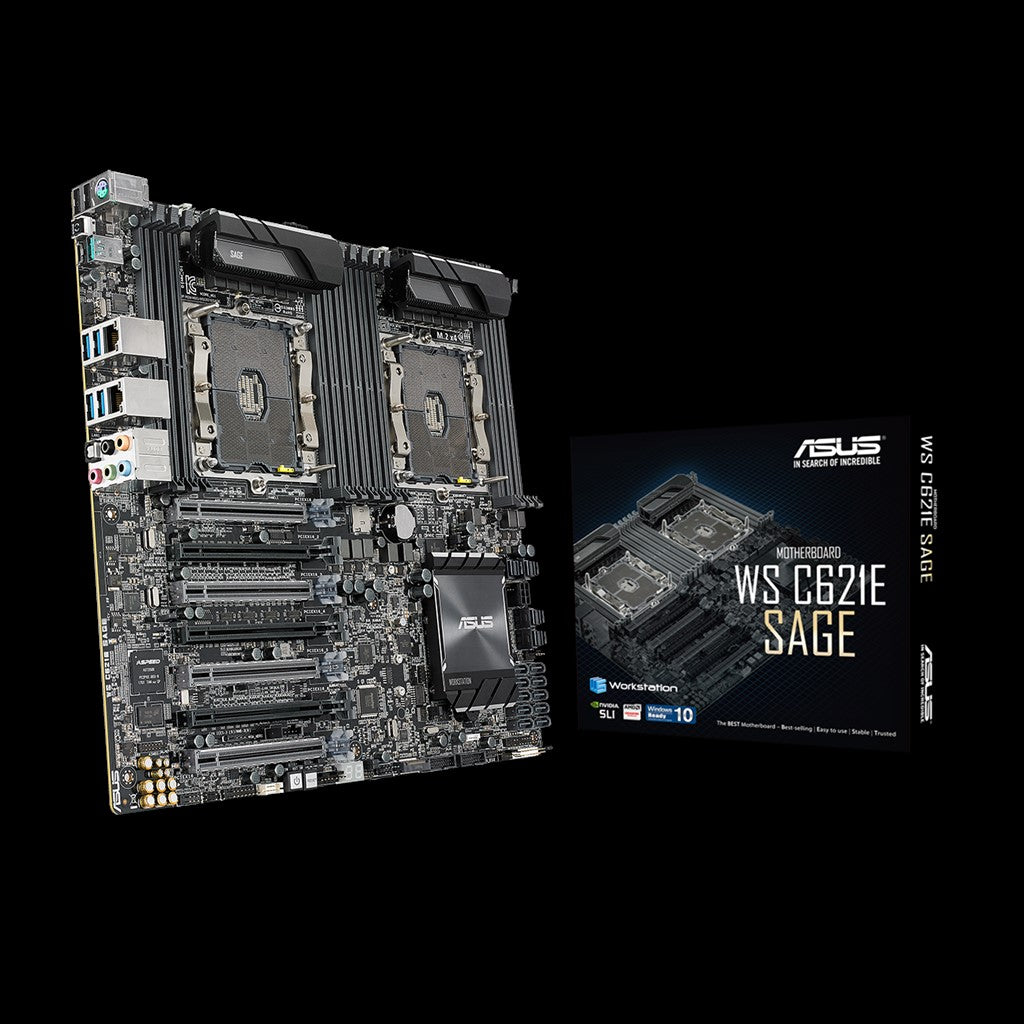

Asus Server WS C621E SAGE Motherboard
Asus Server WS C621E SAGE Motherboard
- Up to 4-Way NVIDIA® SLI® and AMD® Crossfire X™ on demand
- Two-way Xeon® CPU OC tuning for extreme performance
- Superb scalability and connectivity with onboard U.2, M.2, and USB 3.1 Type-C and Type-A
- Built with premium components for excellent power efficiency
- Easy Management and maintenance with ASUS Control Center (ACC) management software and USB BIOS Flashback
|CPU||Dual Intel® Socket P (LGA 3647) for Intel® 1st and 2nd Xeon® Scalable Processors Family (205W)|
|Chipset||Build in Intel® C621|
12 x DIMM, Max. 1536GB, DDR4 2933/2666/2400 MHz RDIMM, LR-DIMM Memory
* Please refer to ASUS AVL for the latest update.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Supports NVIDIA® 4-Way SLI™ Technology *1
Supports AMD 4-Way CrossFireX Technology *1
3 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
2 x PCIe 3.0 x16 (x8 mode)
Intel® C621 Chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
ASMedia® SATA 6Gb/s controller :
2 x SATA 6Gb/s port(s),
4 x U.2 connector,
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
|LAN||Intel® I210-AT, 2 x Gigabit LAN Controller(s)|
Realtek® S1220A 7.1-Channel High Definition Audio CODEC *2
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
ASMedia® USB 3.1 Gen 2 controller :
2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM)
Intel® C621 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel® C621 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
|Back I/O Ports||
1 x PS/2 keyboard/mouse combo port(s)
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 *4
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback® Button(s)
1 x 8-channel Audio I/O
|Internal I/O Ports||
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x TPM header
1 x COM port(s) connector(s)
10 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
2 x CPU Fan connector(s) (2 x 4 -pin)
7 x Chassis Fan connector(s) *5
2 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x VGA connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x AUX panel header(s)
1 x SMBus header(s)
1 x 6-pin EATX 12V_3 Power connector
1 x System panel connector
4 x U.2 Connector (support U.2 NVMe device)
EEB Form Factor
12 inch x 13 inch ( 30.5 cm x 33 cm )
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
- DIGI+ VRM
ASUS Digital Power Design :
- Industry leading Digital 7 + 1 Phase CPU Power Design
- Industry leading Digital 2 Phase DRAM Power Design
ASUS Exclusive Features :
- Front Panel USB 3.0 Support
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-DIMM
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
ProCool Power Connector
USB BIOS Flashback®
ASUS PIKE SAS upgrade kit*3
Integrated Graphics Processor
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
Aspeed AST2500 with 64 MB VRAM
