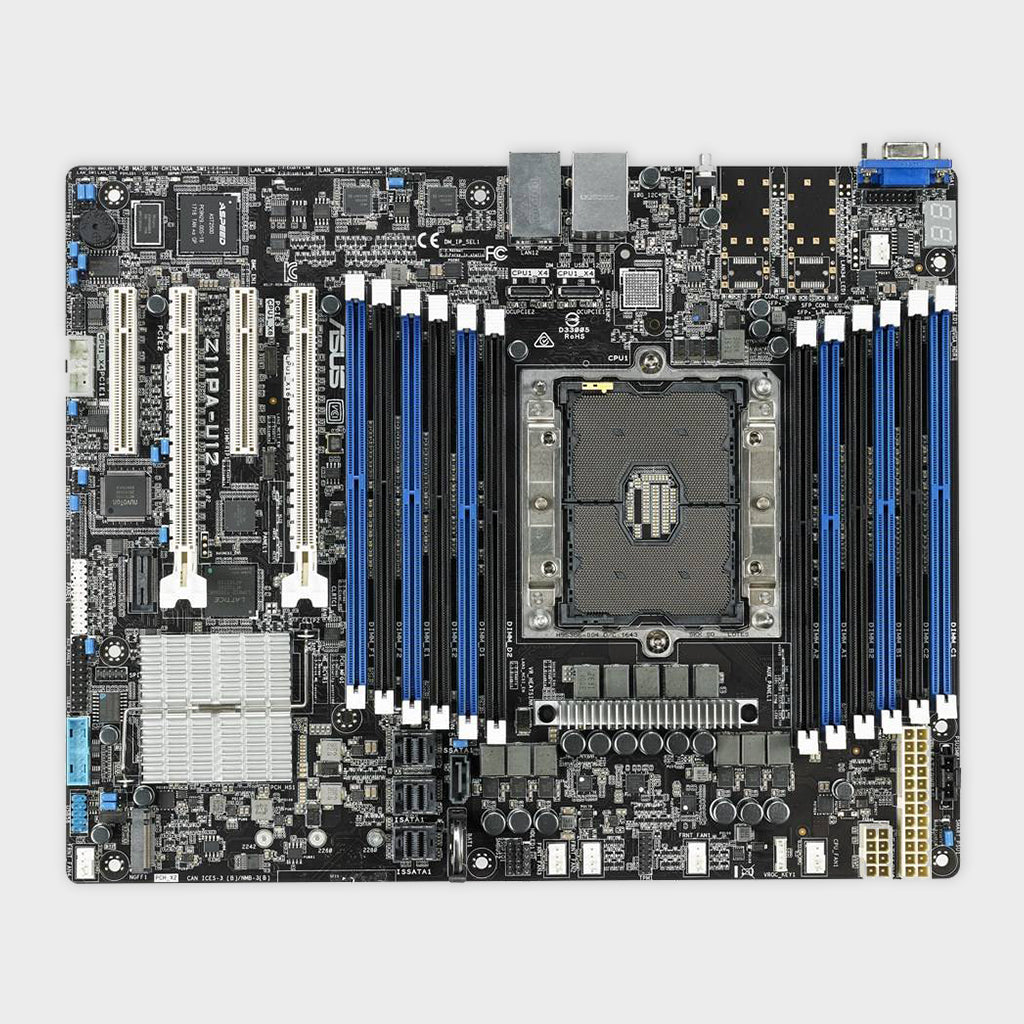

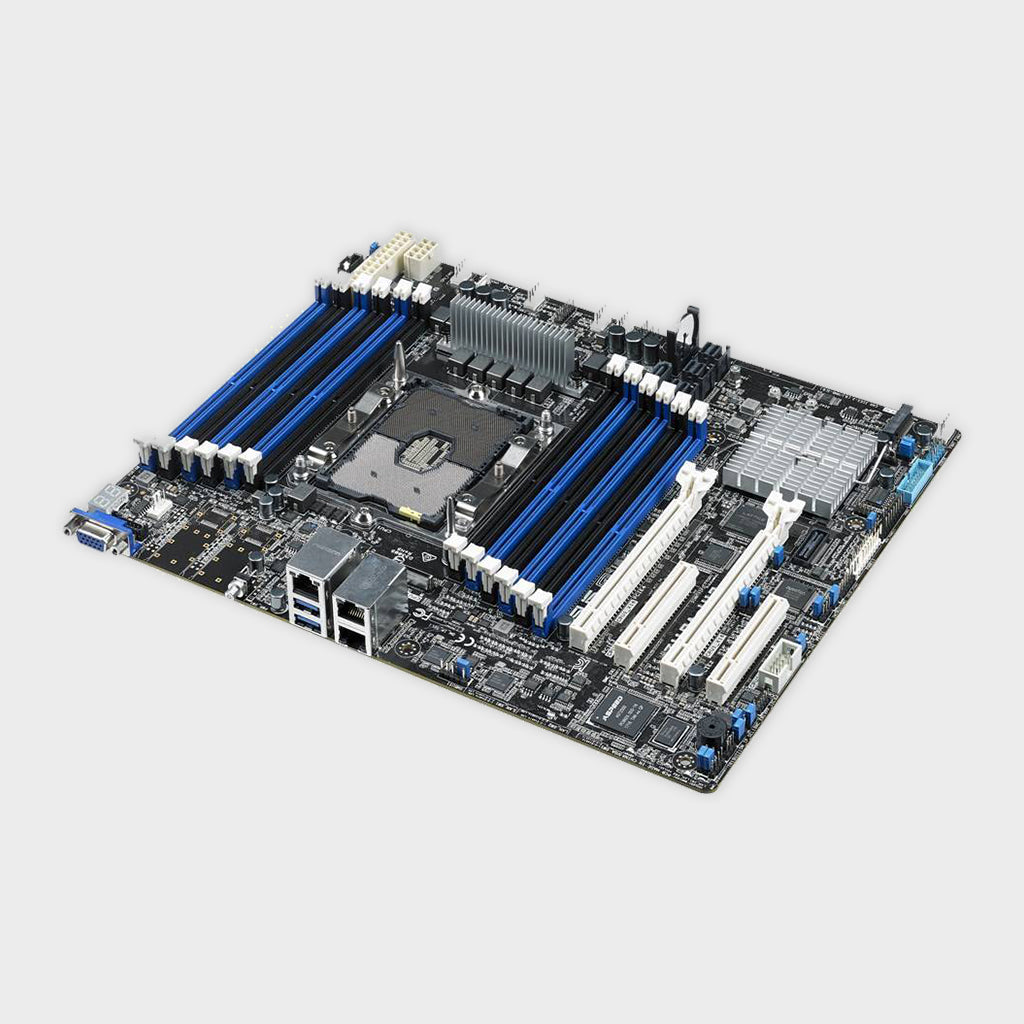

Asus Server with 12 DIMM slots Z11PA-U12 Motherboard
Asus Server with 12 DIMM slots Z11PA-U12 Motherboard
Couldn't load pickup availability
Description
Description
- Powerful performance with Intel® Xeon® Scalable processor and ECC memory
- Unmatched memory expandability with 12 DIMM slots
- Dual OCuLink for efficient connections to NVMe devices
- Connect up to 13 SATA 6Gb/s storage devices
- Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC)
- Quick initialization guidance for faster BIOS tracking enhancement
-
Processor / System Bus
1 x Socket P (LGA 3647)
Intel® Xeon® Scalable Processors Family
*Refer to support page for more information
UPI (10.4 GT/s) -
Core Logic
Intel® Lewisburg PCH C621
-
Memory
Total Slots : 12(6 – channel per CPU, 12 DIMM per CPU)
Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS
Memory Type :
Single Channel DDR4 2666/2400 LR-DIMM 3DS
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. -
Expansion Slots
Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied -
Form Factor
ATX (12"x9.6", 305mm x 244mm)
-
ASUS Features
ASUS Fan Speed control technology
ASUS Control Center (ASWM Enterprise 2.0) -
Storage
SATA Controller :
Intel® C621
13 x SATA3 6Gb/s ports (12 by 3 mini-SAS Connector)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel® VROC (for Windows only; Support software RAID 0, 1, 10 & 5)
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card -
Networking
2 x Intel® I210AT + 1 x Mgmt LAN
-
Graphic
Aspeed AST2500 with 64MB VRAM
-
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
6 x Fan Header , 4pin (3pin/4pin fan dual support)
1 x Serial Port Header
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x VROC Key Header
1 x Q-Code/Port 80 LED -

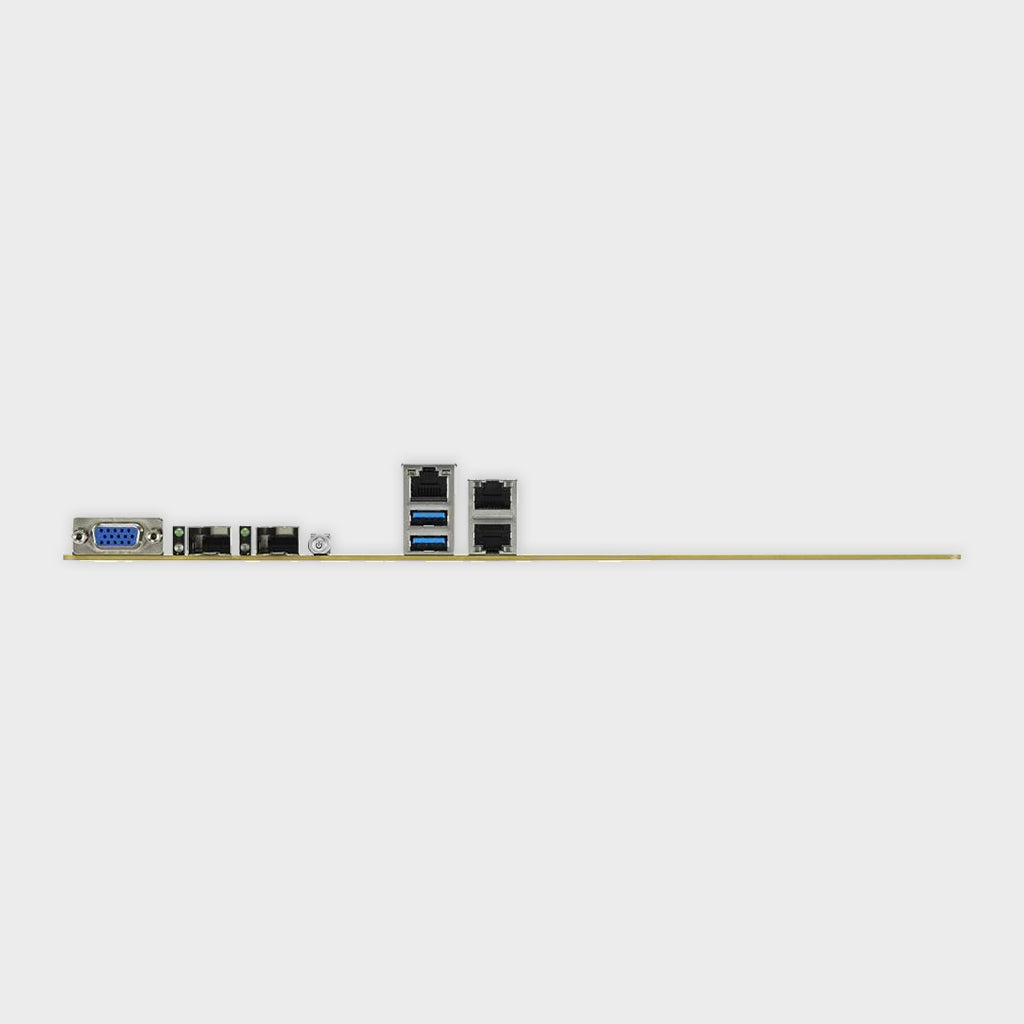

Back I/O Ports
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port
Rear Switch/LED:
1 x Power switch
1 x Message LED
1 x HDD LED
1 x Location LED
1 x BMC LED
1 x P5V LED -
Management Solution
ASMB9-iKVM for KVM-over-Internet
ACC(ASUS Control Center) -
Weight
Gift Box (1-in-1)
Net Weight : 0.97 KG
Gross Weight : 1.625 KG
Bulk Pack (10-in-1)
Net Weight : 9.7 KG
Gross Weight : 13.015 KG -
Environment
Operation temperature: 10°C ~ 35°C
Non operation temperature: -40°C ~ 70°C
Non operation humidity: 20% ~ 90% (Non condensing) -
Accessories
I/O Shield
1 x SATA 6Gb/s cable
1 x Supporting DVD
1 x LGA3647 carrier -
Monitoring
CPU Temperature
Fan RPM -
Note
* Please refer to www.asus.com for latest momory AVL update
* EEB Mounting Hole Locations
