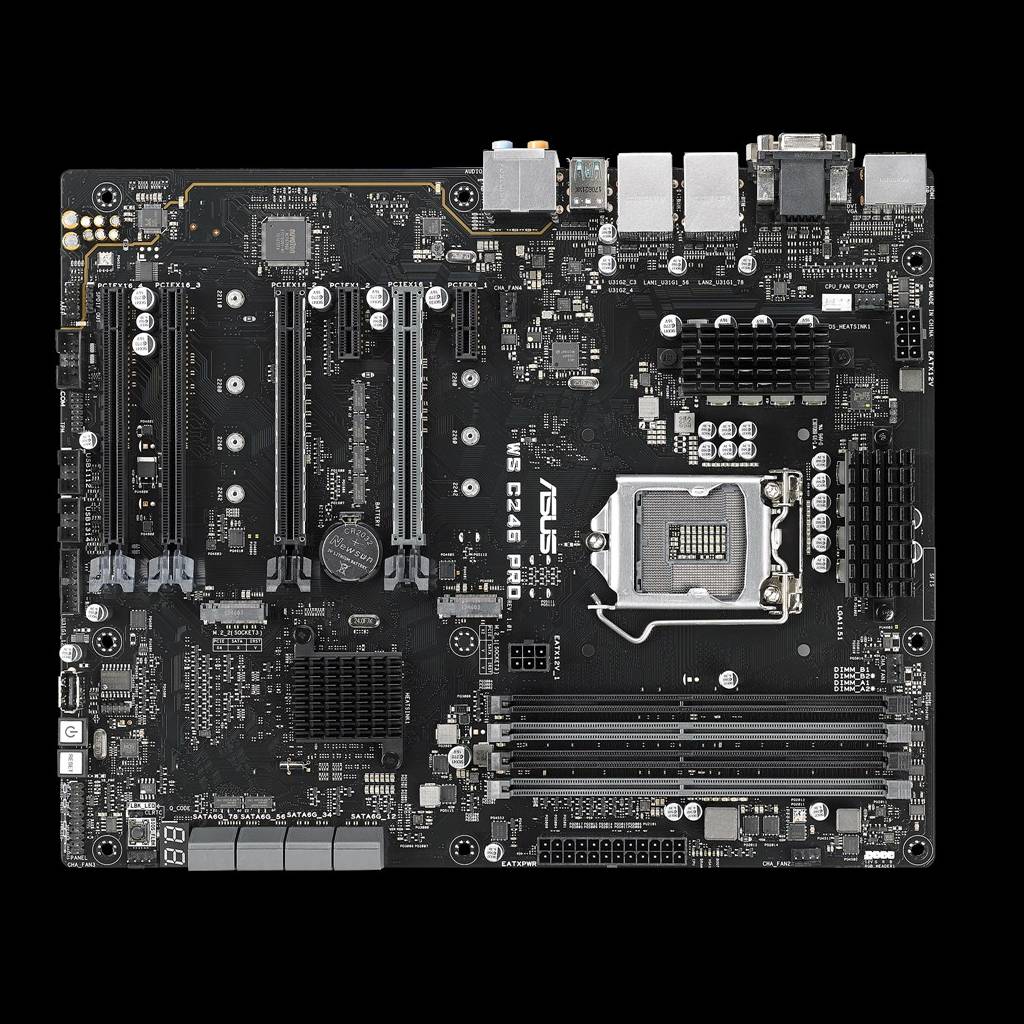

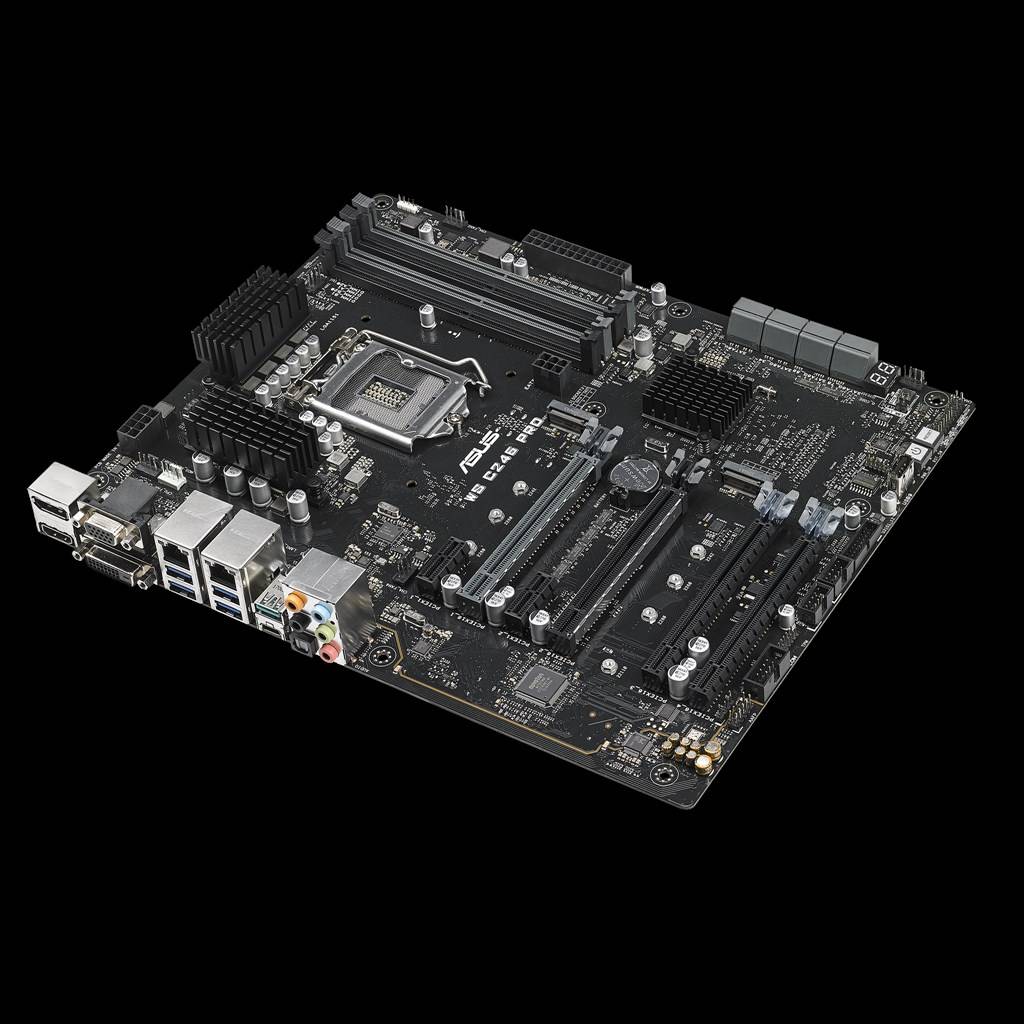

Asus Server LGA1151 WS C246 PRO Motherboard

Intel® LGA1151 ATX motherboard with four PCIe 3.0 x16 slots, dual M.2 and USB 3.1 Gen2 connectors Four PCIe 3.0 x16 slots for flexible expandability with graphics, RAID and LAN add-on cards Powerful performance with Intel®Xeon®E processor and ECC memory Supports up to three independent displays simultaneously via HDMI, DisplayPort, DVI-D and VGA Next-gen transfer speeds with up to 32Gbps M.2 and 10Gbps USB 3.1 Type-A and Type-C Dual Intel® Gigabit LAN with teaming support SafeSlot PCIe x16 to protect your graphics card investment ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses

• Processor / System Bus
  1 x Socket LGA1151
  Intel^® Xeon^® processor E-2100 family
  Intel^® Pentium™ processors
  Intel^® Celeron™ processors
  Intel^® Core™ i7/i5/i3 processors
• Core Logic
  Intel® C246 Chipset
• Memory
  Total Slots : 4 (2-channel)
  Capacity : Maximum up to 64GB UDIMM/Maximum up to 64GB UDIMM
  Memory Type :
  Dual Channel DDR4 2666/2400 /2133
  Memory Size :
  16GB, 8GB
  * Refer to support page for more information
• Expansion Slots
  Total Slot : 6
  Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
  Slot Location 2 : PCI-E x16 (Gen3 X16 + X8 Link)
  Slot Location 3 : PCI-E x16 (Gen3 X8 Link)
  Slot Location 4 : PCI-E x1 (Gen2 X1 Link)
  Slot Location 5 : PCI-E x16 (Gen3 X4 Link)
  Slot Location 6 : PCI-E x4 (Gen1 X4 Link)
• Form Factor
  ATX (12"x9.6", 305mm x 244mm)
• Storage
  SATA Controller :
  Intel® C246 Chipset
  8 x SATA3 6Gb/s ports

  SAS Controller :
• Networking
  1 x Intel® I210AT
  1 x i219-LM
• On Board I/O
  2 x USB 2.0 pin header
  1 x USB 3.0 pin header
  1 x M.2 Connector , NGFF Type : 2280/2260/2242
  1 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
  1 x TPM header
  1 x PSU Power Connector (24-pin ATX power connector)
  1 x COM port
  1 x USB BIOS Flashback Button
  1 x S/PDIF Out (Optical)
  1 x COM port

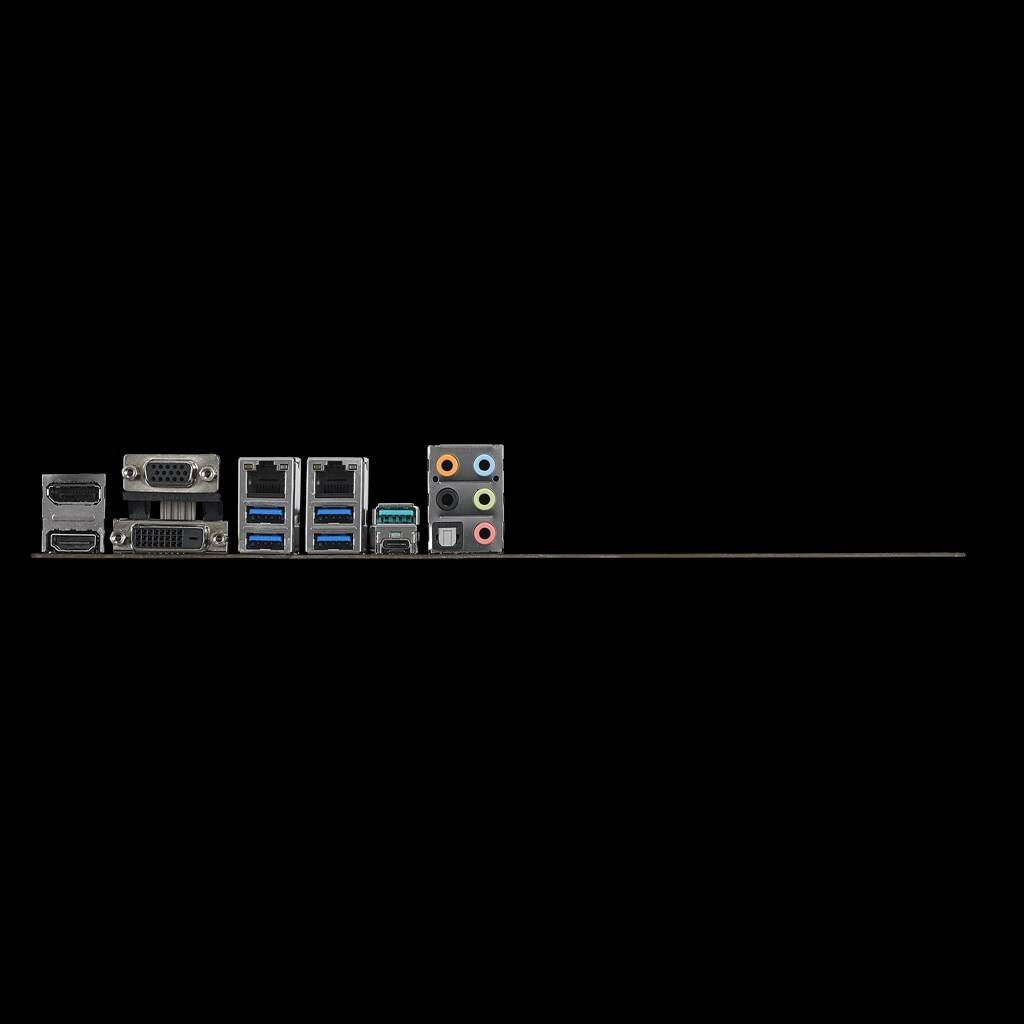

• Back I/O Ports
  2 x USB 3.1 ports (1 port at Type A, 1 port at Type C)
  4 x USB 3.0 ports
  1 x HDMI
  1 x DisplayPort
  1 x DVI-D
  1 x VGA
  2 x RJ-45 ports
  8-channel Audio I/O ports (5+1 Audio jacks)
• Management Solution
  WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
• Accessories
  Gift Box (1-in-1)
  1 x Support CD
  1 x I/O shield
  8 x SATA 6G cables
  1 x Com port cable
  1 x User manual
  1 x Quick start guide
  2 x M.2 screw

  Bulk Pack (10-in-1)
  1 x Support CD
  10 x I/O shield
  80 x SATA 6G cables
  10 x Com port cable
  1 x User manual
  1 x Quick start guide
  20 x M.2 screw
• Monitoring
  CPU Temperature
  Fan RPM
