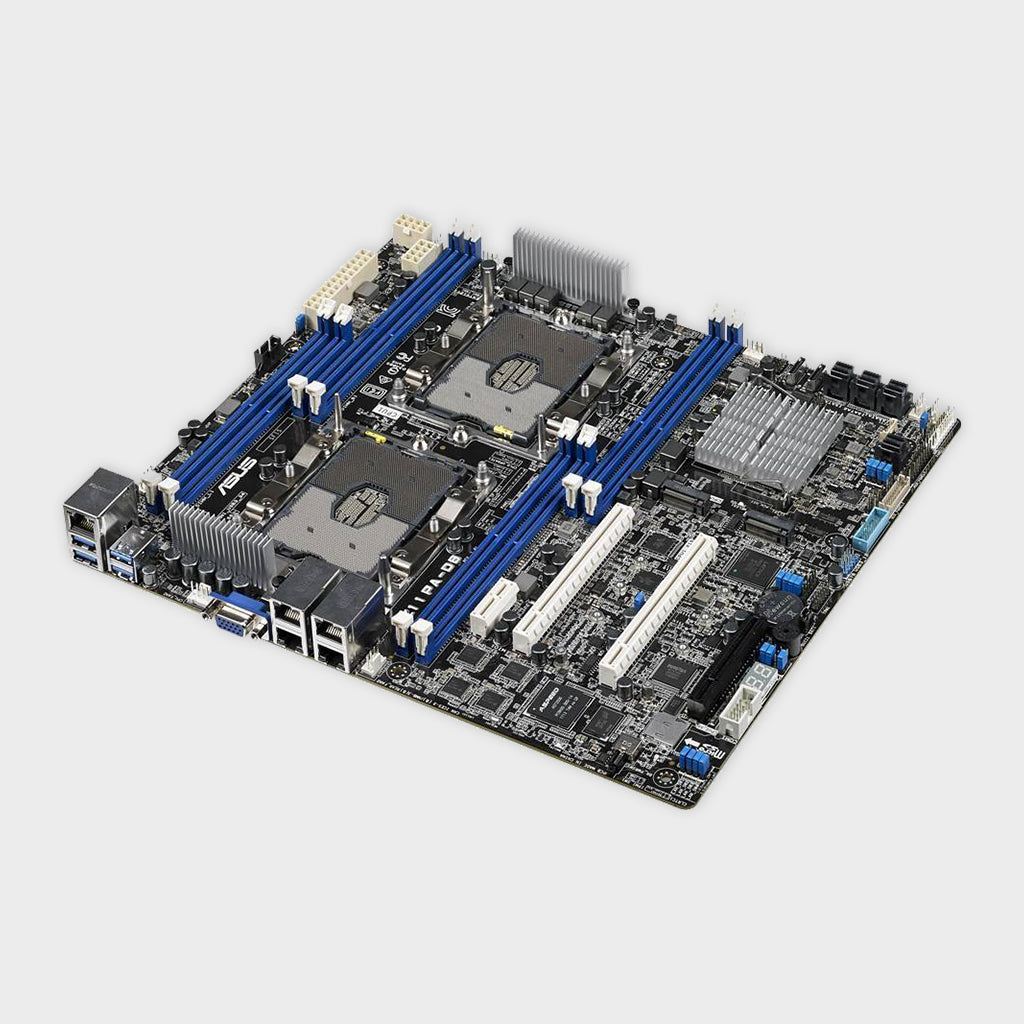

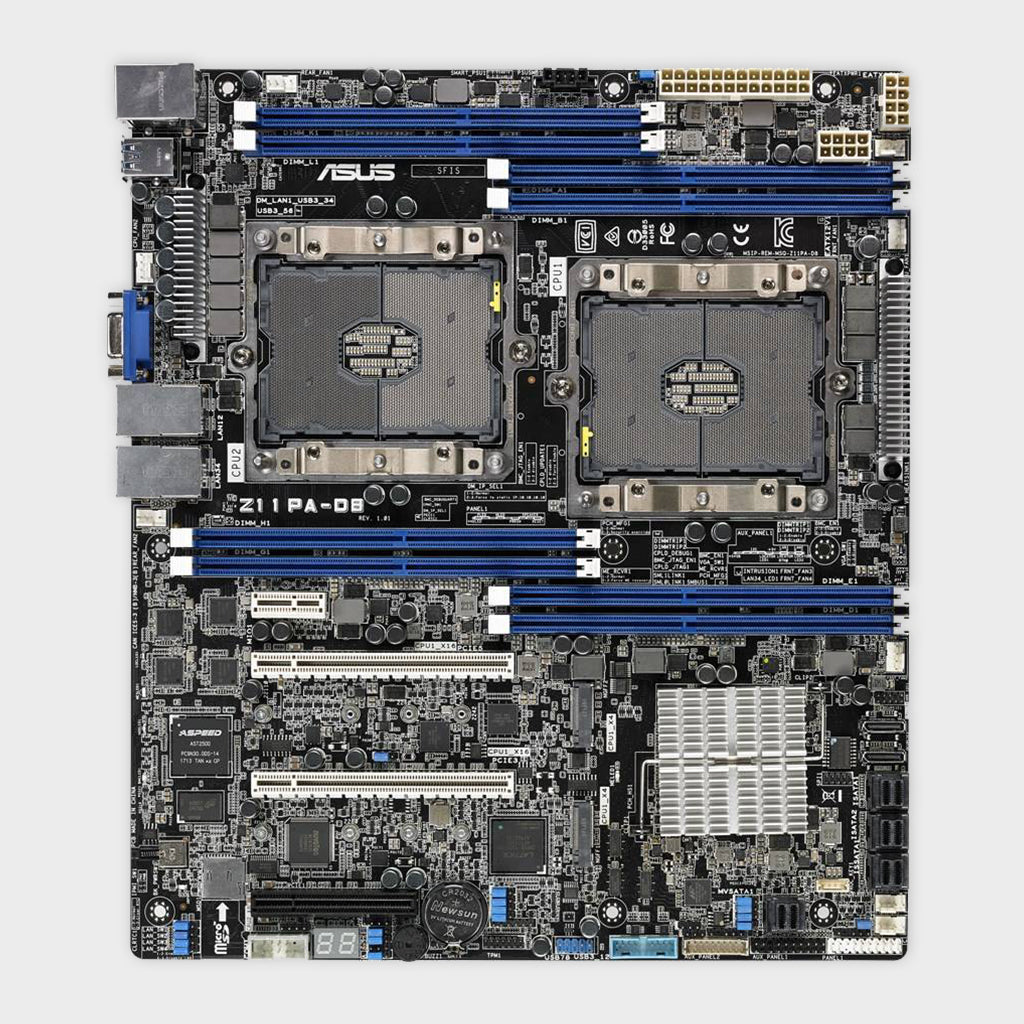

Asus Server Intel Xeon with 8 DIMM slots Z11PA-D8 Motherboard

• Powerful performance with Intel^® Xeon^® Scalable processor and ECC memory
• Increased performance or data redundancy with dual M.2 SSDs in RAID mode
• High-speed storage interface support with dual OCuLink for NVMe
• Connect up to 16 SATA 6Gb/s storage devices
• Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC)
• More flexible storage capability with SD card support
• Quick initialization guidance for faster BIOS tracking enhancement

• Processor / System Bus
  2 x Socket P (LGA 3647)
  Intel® Xeon® Scalable Processors Family (165W)
  *Refer to support page for more information
  UPI (10.4 GT/s)
• Core Logic
  Intel® Lewisburg PCH C621
• Memory
  Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU)
  Capacity : Maximum up to 256GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 1024GB LR-DIMM 3DS
  Memory Type :
  2666/2400
  Memory Size :
  32GB, 16GB, 8GB, 4GB RDIMM
  64GB, 32GB LRDIMM
  128GB, 64GB LR-DIMM 3DS
  * Refer to support page for more information
  * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
• Expansion Slots
  Total Slot : 3
  Slot Location 1 : PCI-E x8
  Slot Location 3 : PCI-E x16
  Slot Location 5 : PCI-E x16
  Slot Location 6 : MIO Slot for Audio card
• Form Factor
  CEB (12"x10.5", 305mm x 267mm)
• ASUS Features
  ASUS Fan Speed control technology
  ASUS Control Center
• Storage
  SATA Controller :
  Intel® C621
  12 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
  Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
  (Support Software RAID 0, 1, 5, 10 )
  4 SATA3 6Gb/s port by 1miniSAS connector (Marvell 88SE9230)
  Intel^®VROC (For Linux/Windows)
  (Support Software RAID )
  SAS Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
• Networking
  4 x Intel® I210AT + 1 x Mgmt LAN
• Graphic
  Aspeed AST2500 with 64MB VRAM
• On Board I/O
  1 x TPM header
  1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)
  1 x USB 3.0 pin header , Up to 2 Devices
  1 x USB 2.0 pin header , Up to 2 Devices
  8 x Fan Header , 4pin (3pin/4pin fan dual support)
  1 x Serial Port Header
  1 x SMBus
  1 x Chassis Intruder
  4 x Front LAN LED
  2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
  1 x VROC Key Header
  1 x Q-Code/Port 80 LED

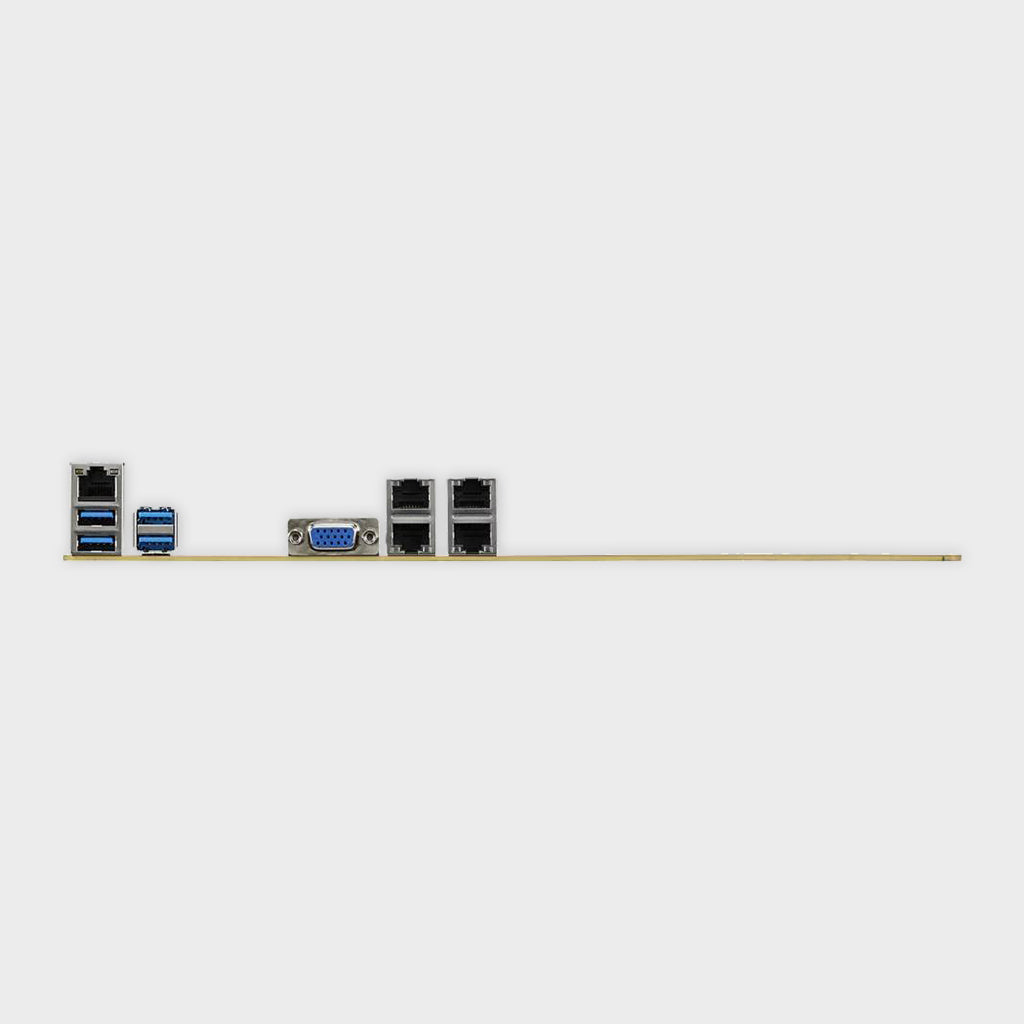

• Back I/O Ports
  4 x USB 3.0 ports
  1 x VGA port
  4 x RJ-45 GbE LAN ports
  1 x RJ-45 Mgmt LAN port

  Rear Switch/LED:
  1 x Power switch
  1 x Message LED
  1 x HDD LED
  1 x Location LED
  1 x BMC LED
  1 x P5V LED
• Management Solution
  ACC(ASUS Control Center)
  Onboard ASMB9-iKVM for KVM-over-Internet
• Environment
  Operation temperature: 10°C ~ 35°C
  Non operation temperature: -40°C ~ 70°C
  Non operation humidity: 20% ~ 90% (Non condensing)
• Weight
  Gift Box (1-in-1)
  Net Weight : 1.24 KG
  Gross Weight : 2.32 KG

  Bulk Pack (10-in-1)
  Net Weight : 1.24 KG
  Gross Weight : 16.26 KG
• Accessories
  I/O Shield
  1 x Supporting DVD
  2 x LGA3647 carrier
• Monitoring
  CPU Temperature
  Fan RPM
