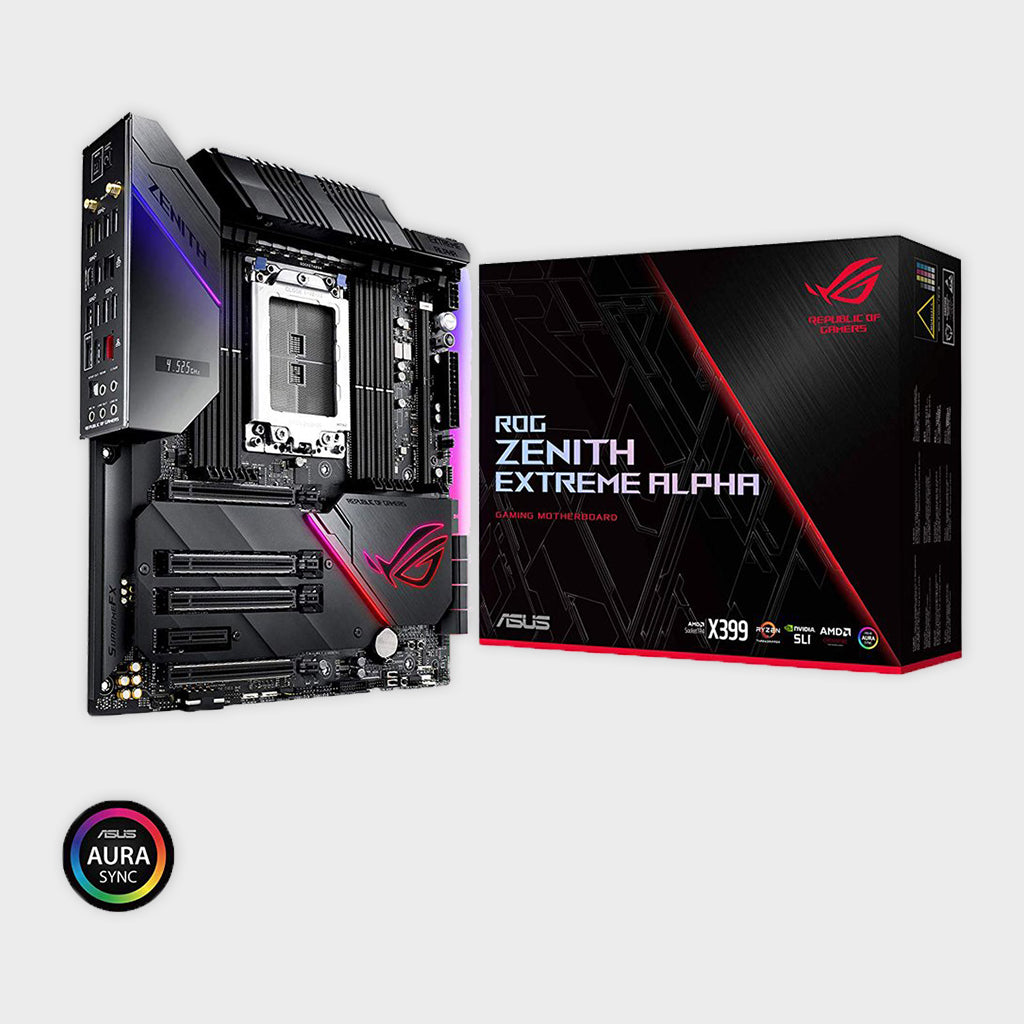

ASUS ROG-ZENITH-EXTREME-ALPHA (WI-FI) MOTHERBOARD
ASUS ROG-ZENITH-EXTREME-ALPHA (WI-FI) MOTHERBOARD
Description
Description
Features:-
- AMD TR4 socket: Ready for 1st and 2nd Gen AMD Ryzen™ Threadripper™ processor series to maximise connectivity and speed with up to three M.2 drives and USB 3.1 Gen 2.
- Comprehensive thermal design: Active heatsink with integrated VRM fan, PCIe-zone M.2 aluminium heatsink and dual backplates.
- High-performance networking: Onboard Aquantia® 10Gbps LAN, 802.11ac Wi-Fi with MU-MIMO support, and Intel gigabit LAN with ASUS LANGuard and GameFirst V technologies.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- SafeSlot technology: Firmly-anchored PCIe slots fortified with metal to support heavyweight graphics cards.
- Unmatched personalization: LiveDash OLED and ASUS-exclusive Aura Sync RGB lighting, including two RGB headers and addressable headers.
- Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9018Q2C for enthusiast-grade audio performance driven by Japanese capacitors.
CPU | AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen™ Threadripper™ Processors Supports CPU up to 32 cores |
Chipset | AMD X399 |
Memory |
AMD Ryzen™ Threadripper™ Processors 2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1 |
Multi-GPU Support | AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors Supports NVIDIA® 3-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
Expansion Slots | AMD Ryzen™ Threadripper™ Processors 4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) AMD X399 chipset 1 x PCIe 3.0 x4 |
Storage | AMD Ryzen™ Threadripper™ Processors : 2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2 AMD X399 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
LAN | Aquantia AQC-107 10G Intel® I211-AT Anti-surge LANGuard ROG GameFirst Technology |
Wireless Data Network | Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
Bluetooth | Bluetooth® 5.0 |
Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output 113 dB SNR recording input - ESS®SABRE9018Q2C DAC/AMP - Supports up to 32-Bit/192kHz playback *4 Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
USB Ports | AMD Ryzen™ Threadripper™ Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, blue) AMD X399 chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) AMD X399 chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X399 chipset : 4 x USB 2.0 port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) |
ROG Exclusive Features | ReTry Button Start Button LN2 Mode Extreme Engine Digi+ : - IR3555 PoweIRstage® - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ProbeIt ROG Exclusive Software - Mem Tweakit - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover |
Special Features | 5-Way Optimization by Dual Intelligent Processors 5 - 5-way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power control, Fan Xpert 4, and Turbo app LiveDash OLED AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BUPDATER - Clear CMOS Button - Reset Button ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector |
Back I/O Ports | 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (black)TypeC™ 3 x USB 3.1 Gen 2 (red)Type-A 8 x USB 3.1 Gen 1 (blue) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback® Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port |
Internal I/O Ports | 1 x WB_SENSOR 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 2 x 8-pin EATX 8 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 7 x ProbeIt Measurement Points 2 x Thermal sensor connector(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Reset button(s) 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x 14-1 pin TPM connector 1 x Slow Mode jumper(s) 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x USB 3.1 Gen 2 front panel connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 1 x 4-Pin HS fan connector |
Accessories | User's manual 6 x SATA 6Gb/s cable(s) 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x M.2 screw kit (long screw and mount) 2 x M.2 screw kit (short screw and mount) 1 x DIMM.2 extension card with 2 x M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x ROG Logo Sticker(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x USB drive with utilities and drivers 1 x ROG coaster(s) 1 x ROG weave SATA 6G cable 1 x ROG Thank you card |
BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1 |
Manageability | WOL , PXE |
Operating System | Windows® 10 64-bit |
Form Factor | Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) |
Warranty | 3 Years |
