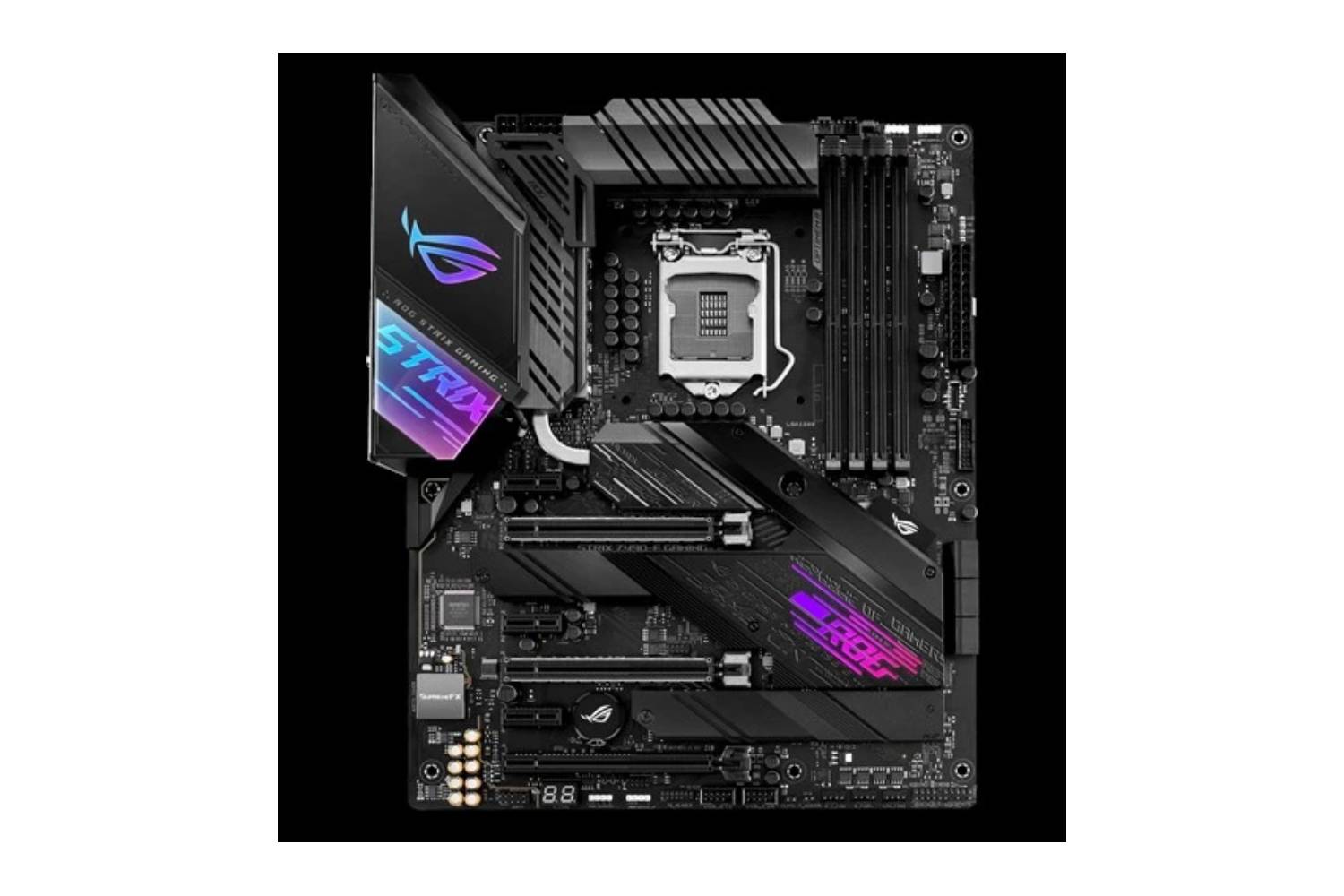

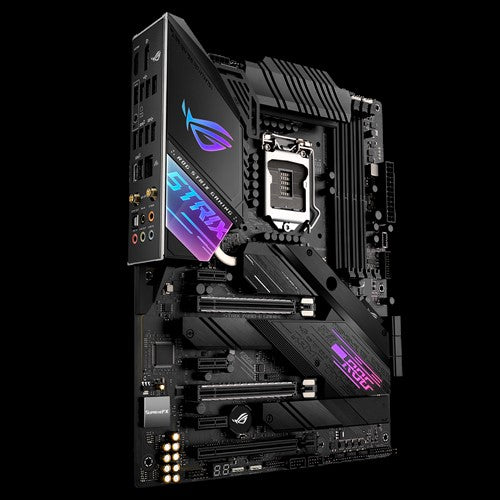

Asus ROG Strix Z490-E Gaming

Asus ROG Strix Z490-E Gaming

Regular price ₹ 28,118.00
Regular price Sale price ₹ 28,118.00
Sale Sold out
Tax included.

Description

The ROG Strix Z490-E Gaming motherboard is designed to cope with the demands of 10th Generation Intel® Core™ processors, with boosted power delivery and an optimized cooling design providing more surface area for heat dissipation. ROG Strix Z490-E Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily. Performance aside, ROG Strix Z490-E Gaming catches the eye, sporting cyberpunk inspired aesthetics including a mirrored stainless steel finish.
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® Z490
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    OptiMem II
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 *
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports NVIDIA 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    Intel® Z490 Chipset
    1 x PCIe 3.0 x4 (x4 mode)
    3 x PCIe 3.0 x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I225-V 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless Data Network
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports up to 2.4Gbps max data rate
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Supports CNVI interface
  • Bluetooth
    Bluetooth v5.1*
    *BT 5.1 function will be ready in Windows 10 build 19041 or later.
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual OP Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Gold-plated jacks
    - Optical S/PDIF in port(s) at back panel
    - LED-lit Audio Shielding
    - Premium Japanese audio capacitors
    - Audio Cover
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    Rear USB Port ( Total 10 )
    4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)
    Front USB Port ( Total 7 )
    1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)
    2 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
  • Special Features
    AURA :
    - Aura RGB Strip Headers
    - Addressable Gen 2 Header
    ASUS EZ DIY :
    - ASUS USB BIOS FlashBack™
    ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    DIY Friendly Design
    - ProCool II
    - SafeSlot
  • Software Features
    ROG Exclusive Software
    - RAMCache III
    - ROG CPU-Z
    - GameFirst VI
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - Sonic Radar III
    - DTS® Sound Unbound
    - Overwolf
    - Anti-virus software
    ASUS Exclusive Software Features
    Armoury Crate
    - Aura Creator
    - Aura Sync
    AI Suite 3:
    - 5-way Optimization with AI Optimization.
    TPU
    EPU
    DIGI+ VRM
    Fan Xpert 4
    Turbo APP
    - EZ update
    WinRAR
    UEFI BIOS
    AI Optimization Guide
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    FlexKey

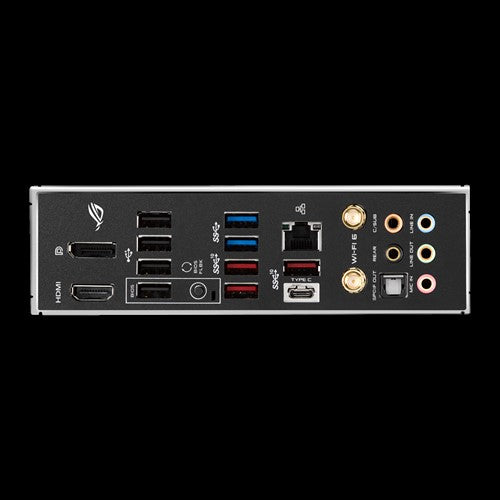

  • Back I/O Ports
    1 x Intel® I225-V 2.5Gb Ethernet
    1 x DisplayPort
    1 x HDMI
    4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
    2 x USB 3.2 Gen 1
    4 x USB 2.0
    1 x Optical S/PDIF out
    1 x USB BIOS FlashBack™ Button(s)
    5 x Gold-plated audio jacks
    ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
  • Internal I/O Ports
    1 x M.2_FAN connector
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x W_PUMP+ connector
    2 x Addressable RGB header
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
    1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x CPU_OV jumper
    1 x Q-Code
    1 x VRM_HS_FAN Header

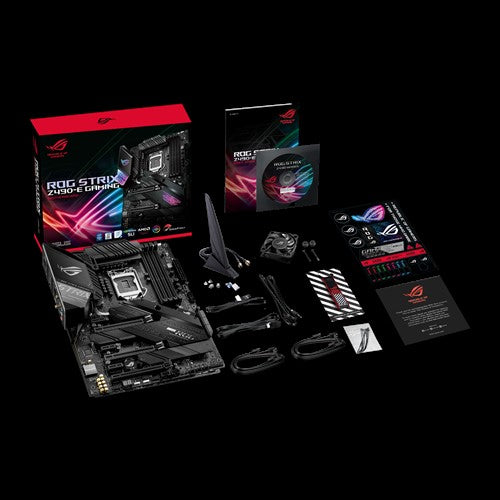

  • Accessories
    User's manual
    1 x ASUS Fan Holder
    4 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
    1 x ROG Strix stickers
    1 x Cable ties pack(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x Thermistor cable(s)
    1 x ROG Thank you card
    1 x 2-in-1 Rubber pad
    1 x Wi-Fi moving antenna
    1 M.2 SSD screw package(s)
    1 ROG key chain
  • BIOS
    192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
    ** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated SATA6G_56 will be disabled.
