Asus ROG Strix X570-F Gaming Motherboard
Asus ROG Strix X570-F Gaming Motherboard
Asus ROG Strix X570-F Gaming Motherboard
Rs. 0.00 Regular price Rs. 24,077.00

Price included with Tax, no additional charges.

In Stock
Cash on delivery (COD) available.
Free Shipping Across India.
EMI available on credit card.
Cardless EMI Available by Zest Money with all order over 3000.00, ZestMoney: 0% Interest availableCardless EMI Available by Zest Money with all order over 3000.00, ZestMoney: 0% Interest available
ASUS

Asus ROG Strix X570-F Gaming Motherboard

  • AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
  • Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
  • Optimal Power Solution: 12+2 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
  • Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
  • Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual...

SKU: ROG STRIX X570 F GAMING

  • AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
  • Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
  • Optimal Power Solution: 12+2 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
  • Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
  • Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
  • Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
  • Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
  • Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience
  • CPU
    AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD X570
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory *
    2nd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory *
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
  • Multi-GPU Support
    3rd and 2nd Gen AMD Ryzen™ Processors
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Supports AMD 2-Way CrossFireX™ Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    2 x PCIe 4.0 x16 (x16 or dual x8)
    2nd Gen AMD Ryzen™ Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0 x16 (x8 mode)
    AMD X570 chipset
    1 x PCIe 4.0 x16 (max at x4 mode) *1
    2 x PCIe 4.0 x1
  • Storage
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    AMD X570 chipset :
    1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Intel® I211-AT, 1 x Gigabit LAN Controller(s)
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual OP Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback *2
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III + Sonic Studio Link
  • USB Ports
    3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
    AMD X570 chipset :
    1 x USB 3.2 Gen 2 front panel connector port(s)
    AMD X570 chipset :
    4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
    AMD X570 chipset :
    2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
    AMD X570 chipset :
    4 x USB 2.0 port(s) (4 at mid-board)
  • ROG Exclusive Features
    ROG Exclusive Software
    - RAMCache III
    - CPU-Z
    - GameFirst V
    - Sonic Studio III + Sonic Studio Link
    - Sonic Radar III
    - Overwolf
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    TPU
    - Auto Tuning, TurboV, GPU Boost
    Gamer's Guardian:
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    - ESD Guards on LAN, Audio,and USB ports
    ASUS EPU :
    - EPU
    AURA :
    - Aura Lighting Control
    - Addressable Gen 2 Header
    ASUS Exclusive Features :
    - USB BIOS Flashback®
    - AI Suite 3
    - Ai Charger
    - ASUS NODE : hardware control interface
    - BIOS Flashback® Button
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - AURA-RGB Lighting

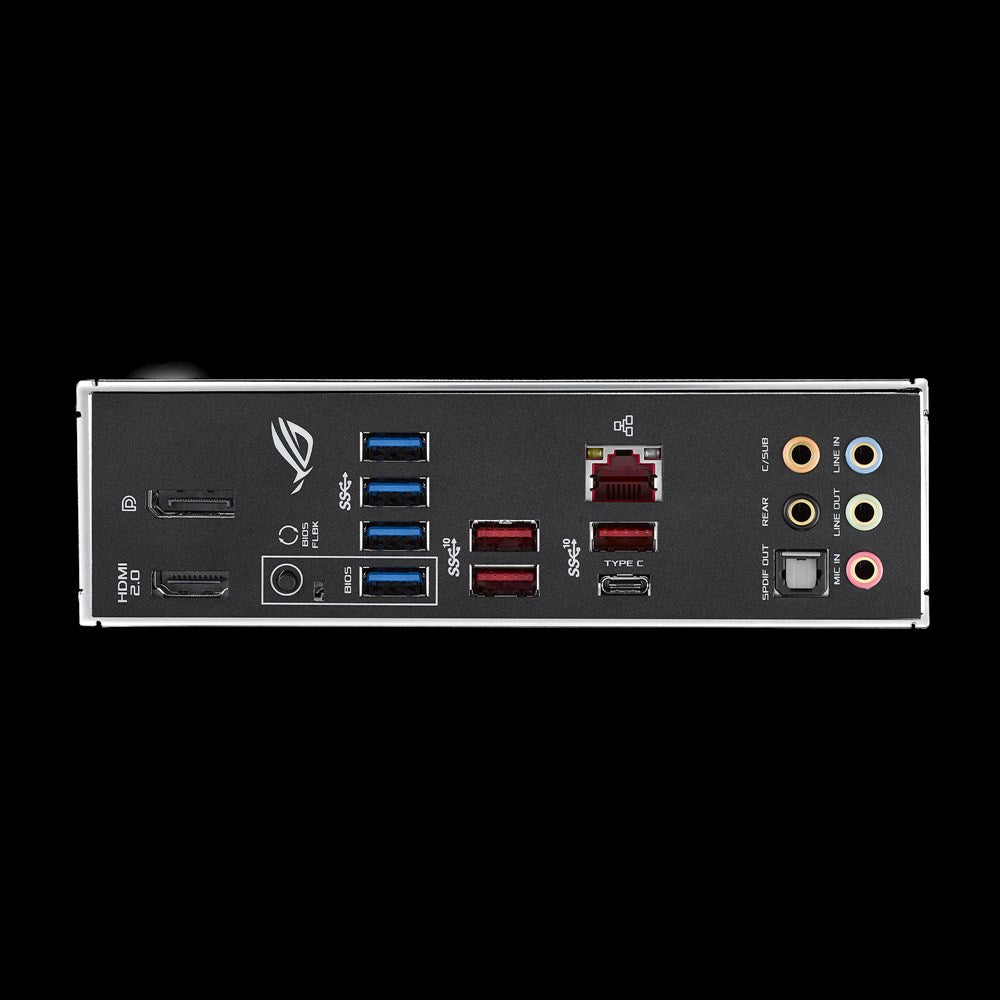

  • Back I/O Ports
    1 x DisplayPort
    1 x HDMI
    5 x USB 3.1 Gen 1 Type-A
    8 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x USB BIOS Flashback® Button(s)
    4 x USB 3.2 Gen 1 (up to 5Gbps) ports
    3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
    1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
    Anti-surge LAN (RJ45) port
  • Internal I/O Ports
    1 x PCH_FAN
    1 x AAFP connector
    2 x Aura RGB Strip Header(s)
    2 x Addressable Gen 2 header(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
    1 x SPI TPM header
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x W_PUMP+ connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x Node Connector(s)
    1 x System panel connector
    1 x T_Sensor Connector
    1 x M.2 Fan Header
    1 x USB 3.2 Gen 2 (up to 10Gbps) connector
    1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
  • Accessories
    User's manual
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x Strix door hanger
    1 x ROG Strix stickers
    1 x Cable ties pack(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x Thermistor cable(s)
    1 x ROG Thank you card
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
  • Manageability
    WOL, PXE
  • Support Disc
    Overwolf
    Anti-virus software (OEM version)
    WinRAR
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
    *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
