ASUS ROG STRIX X470 F GAMING MOTHERBOARD

ASUS ROG STRIX X470 F GAMING MOTHERBOARD

No reviews
Regular price ₹ 19,648.00
Regular price ₹ 27,000.00 Sale price ₹ 19,648.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

FEATURES:

  • Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, front-panel USB 3.1 Gen2 and Gigabit LAN
  • 5-Way Optimization with Auto-Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

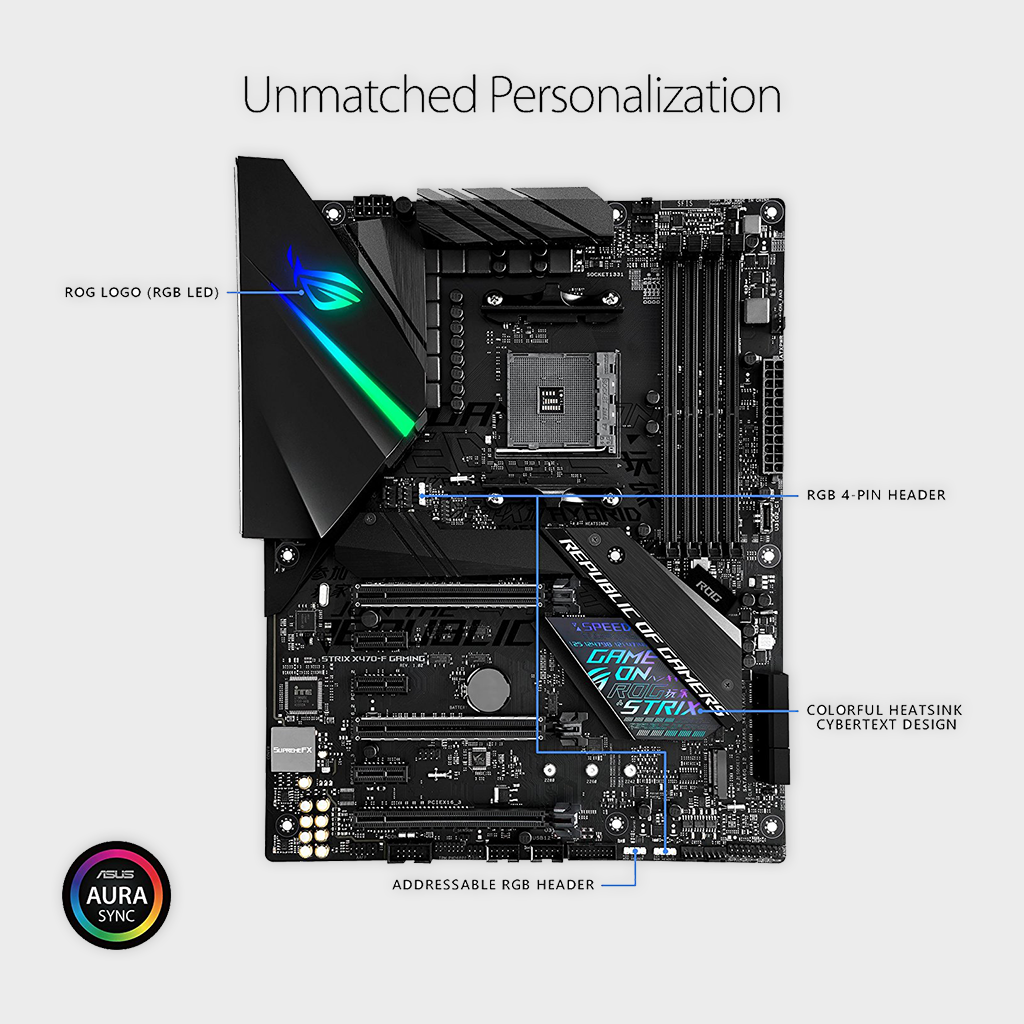

  • Unmatched personalization with ASUS exclusive Aura Sync RGB lighting, two RGB headers and one addressable RGB header
  • Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality. ROG RAMCache II. 256 Mb Flash ROM. Operating System-Windows 10 64-bit
  • Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design

    CPU

    AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors

    Supports CPU up to 8 cores

    Chipset

    AMD X470

    Memory

    AMD Ryzen™ 2nd Generation Processors

    4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *

    AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors

    4 x DIMM, Max. 64GB, DDR4 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *

    AMD 7th Generation A-Series/Athlon X4 Processors

    4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory

    Dual Channel Memory Architecture

    Graphic

    Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU

    Multi-VGA output support : HDMI/DisplayPort ports

    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

    - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

    Maximum shared memory of 2048 MB (for iGPU exclusively)

    Multi-GPU Support

    Supports NVIDIA® 2-Way SLI™ Technology

    Supports AMD 3-Way CrossFireX™ Technology

    Expansion Slots

    AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors

    2 x PCIe 3.0 x16 (x16 or dual x8)

    AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors

    1 x PCIe 3.0 x16 (x8 mode)

    AMD X470 chipset

    1 x PCIe 2.0 x16 (max at x4 mode) *1

    3 x PCIe 2.0 x1

    Storage

    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

    AMD 7th Generation A-series/Athlon™ Processors :

    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

    AMD X470 chipset :

    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2

    6 x SATA 6Gb/s port(s),

    Support Raid 0, 1, 10

    LAN

    Intel® I211-AT, 1 x Gigabit LAN Controller(s)

    Anti-surge LANGuard

    ROG GameFirst Technology

    Audio

    SupremeFX 8-Channel High Definition Audio CODEC S1220A

    - Dual OP Amplifiers

    - Impedance sense for front and rear headphone outputs

    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

    - SupremeFX Shielding Technology

    - Supports up to 32-Bit/192kHz playback *3

    Audio Feature :

    - Optical S/PDIF out port(s) at back panel

    - Sonic Radar III

    - Sonic Studio III + Sonic Studio Link

    USB Ports

    AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :

    4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

    AMD X470 chipset :

    1 x USB 3.1 Gen 2 front panel connector port(s)

    AMD X470 chipset :

    4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)

    AMD X470 chipset :

    4 x USB 2.0 port(s) (4 at mid-board)

    ASMedia® USB 3.1 Gen 2 controller :

    2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A)

    ROG Exclusive Features

    ROG RAMCache II

    ROG CPU-Z

    Overwolf

    GameFirst IV

    Special Features

    5-Way Optimization by Dual Intelligent Processors 5

    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

    TPU

    - Auto Tuning, TurboV, GPU Boost

    Gamer's Guardian:

    - DRAM Overcurrent Protection

    - Stainless Steel Back I/O

    - Highly Durable Components

    - DIGI+ VRM

    - SafeSlot

    - ESD Guards on LAN, Audio,and USB ports

    ASUS EPU :

    - EPU

    AURA :

    - Aura Lighting Control

    ASUS Exclusive Features :

    - AI Suite 3

    - Ai Charger

    ASUS EZ DIY :

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    ASUS Q-Design :

    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

    - ASUS Q-Slot

    - ASUS Q-DIMM

    Gaming Aesthetics :

    - AURA-RGB Lighting

    Back I/O Ports

    1 x PS/2 keyboard/mouse combo port(s)

    1 x DisplayPort

    1 x HDMI

    5 x USB 3.1 Gen 1 Type-A,

    1 x Optical S/PDIF out

    5 x Audio jack(s)

    2 x USB 3.1 Gen 2 (red)Type-A

    1 x USB 3.1 (black)USB Type-CTM

    Anti-surge LAN (RJ45) port`

    Internal I/O Ports

    1 x Aura Addressable Strip Header(s)

    2 x RGB Header(s)

    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

    1 x TPM connector(s)

    6 x SATA 6Gb/s connector(s)

    1 x CPU Fan connector(s)

    1 x CPU OPT Fan connector(s)

    3 x Chassis Fan connector(s)

    1 x AIO_PUMP connector

    1 x W_PUMP+ connector

    1 x 24-pin EATX Power connector(s)

    1 x 8-pin ATX 12V Power connector(s)

    1 x Front panel audio connector(s) (AAFP)

    1 x Thermal sensor connector(s)

    1 x Clear CMOS jumper(s)

    1 x System panel connector

    1 x COM port header

    1 x USB 3.1 Gen 2 front panel connector

    1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

    Accessories

    User's manual

    4 x SATA 6Gb/s cable(s)

    1 x M.2 Screw Package

    1 x Supporting DVD

    1 x Strix door hanger

    1 x SLI HB BRIDGE(2-WAY-M)

    1 x ROG Strix stickers

    1 x Cable ties pack(s)

    1 x Extension Cable for RGB strips (80 cm)

    1 x Extension cable for Addressable LED

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,

    ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,

    F12 PrintScreen, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search, and ASUS DRAM SPD (Serial Presence Detect) memory information.

    Manageability

    WOL, WOR, PXE

    Support Disc

    Drivers

    ASUS Utilities

    Anti-virus software (OEM version)

    Operating System

    Windows® 10 64-bit

    Form Factor

    ATX Form Factor

    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

    Warranty

    3 Years
