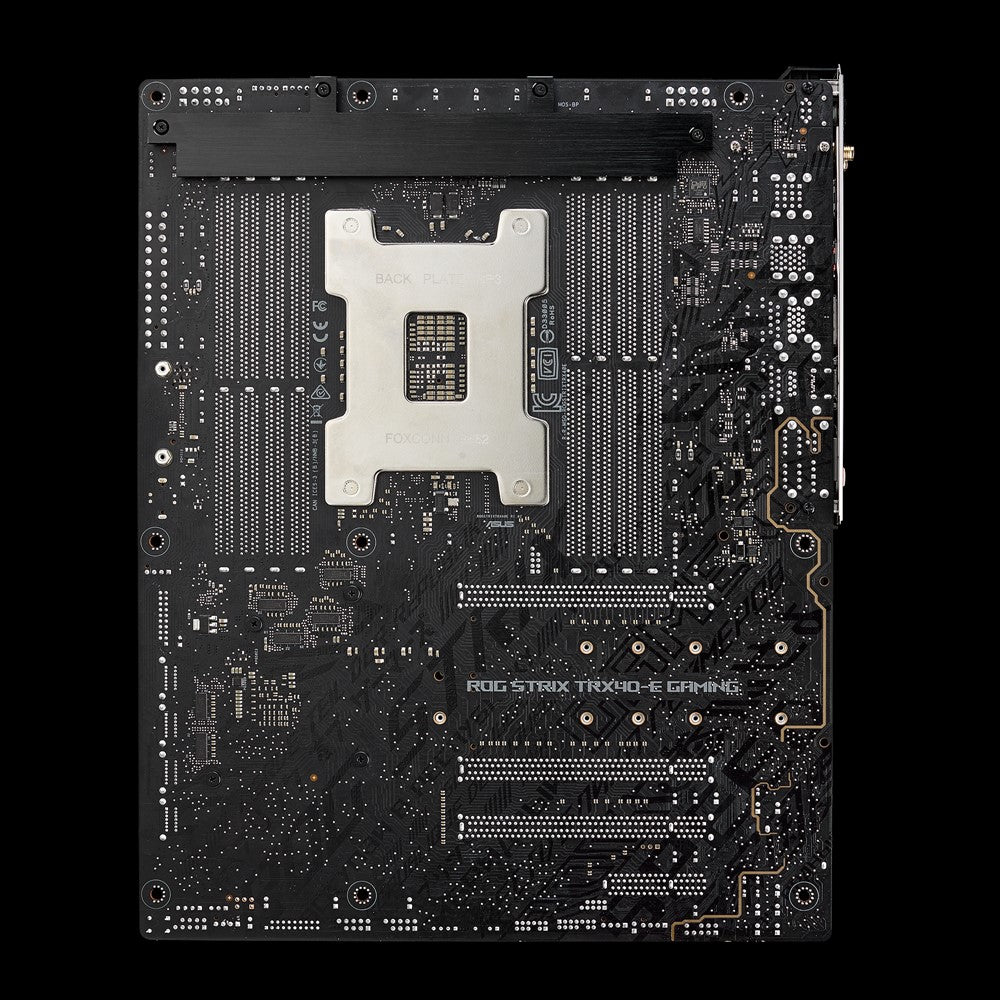

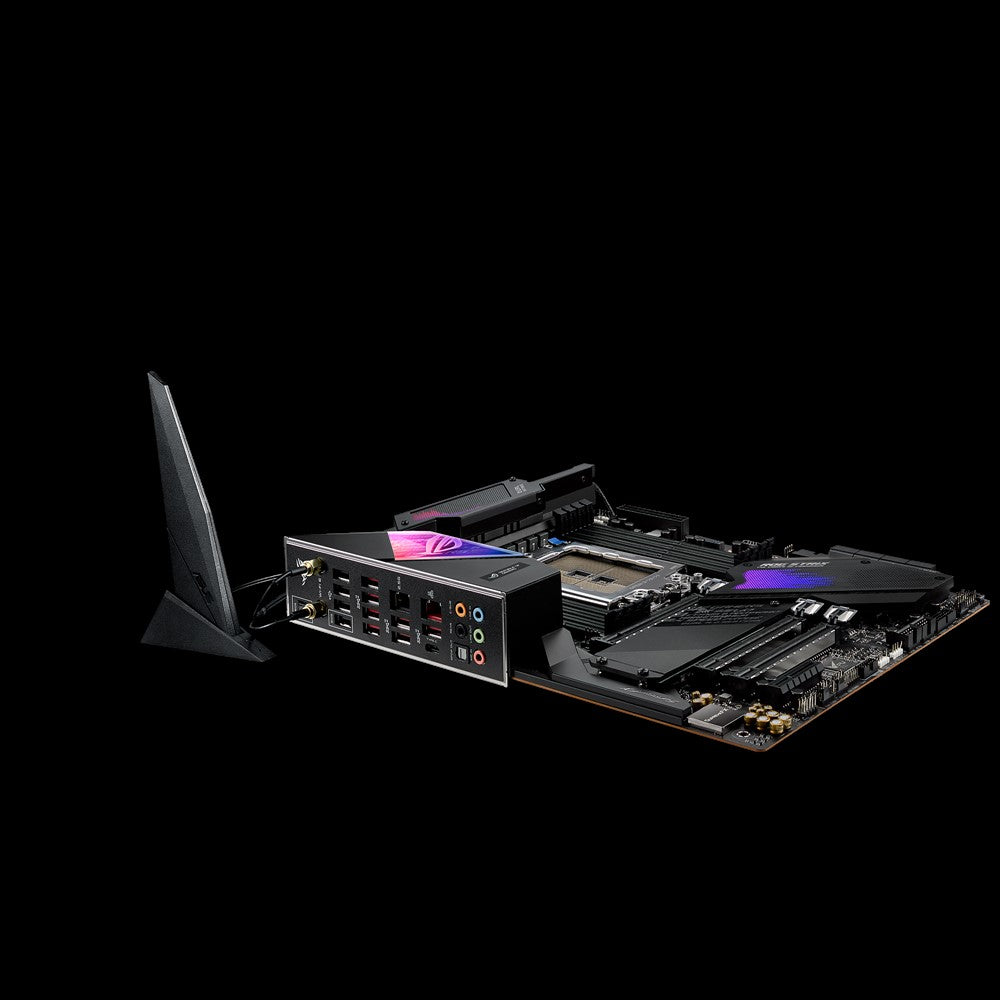

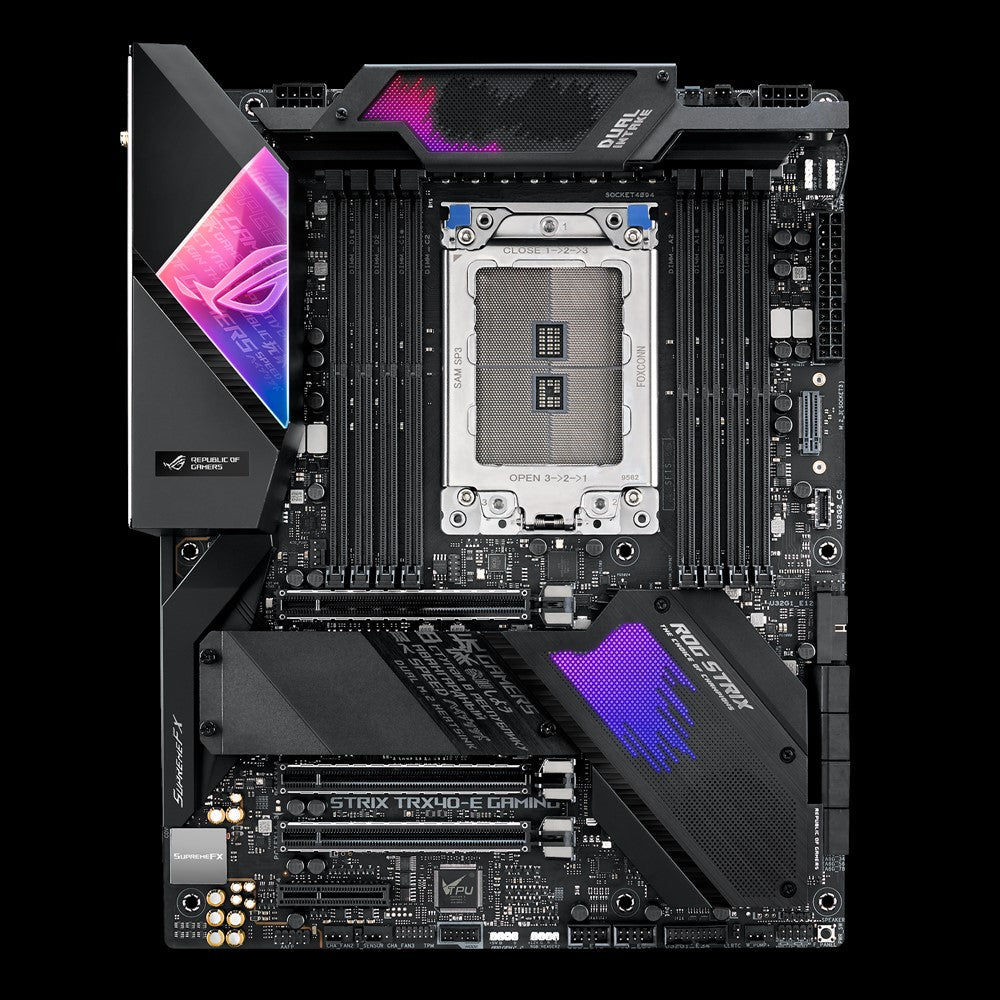

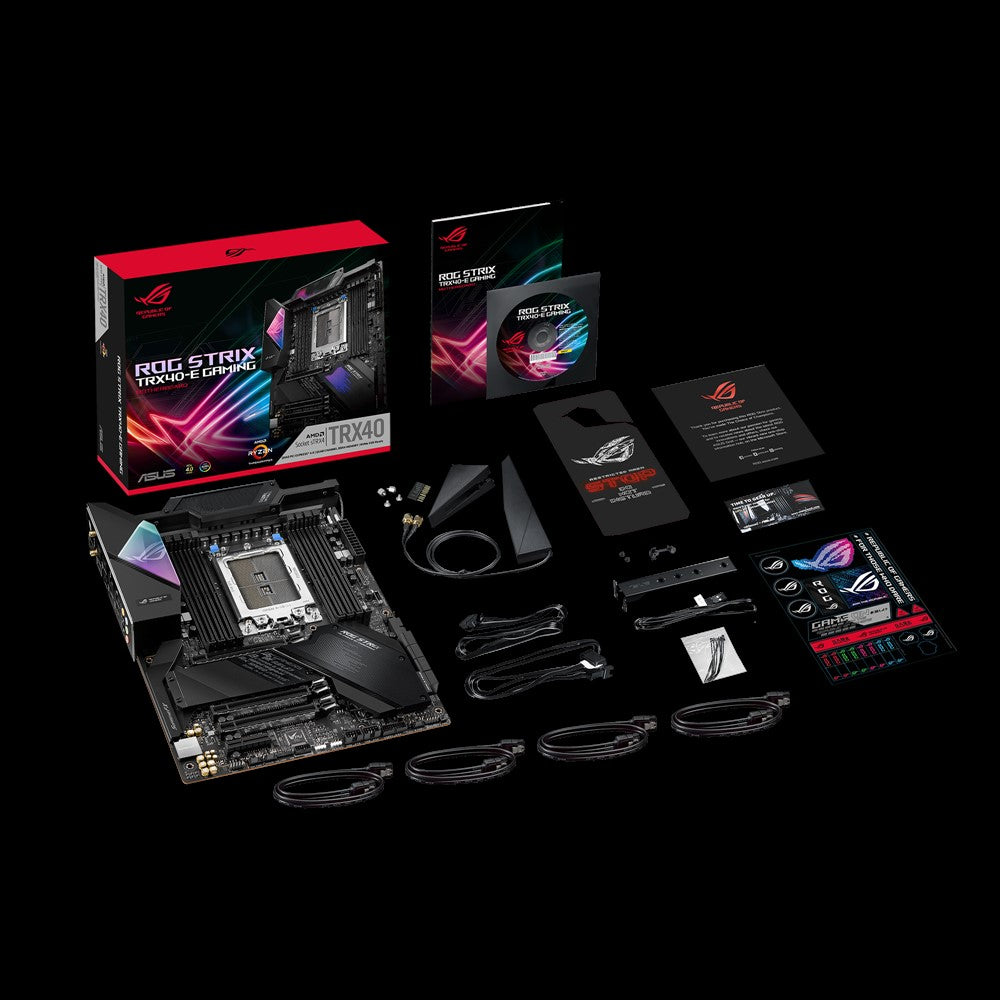

Asus ROG Strix TRX40-E Gaming Motherboard

Asus ROG Strix TRX40-E Gaming Motherboard

No reviews
Regular price ₹ 44,854.00
Regular price Sale price ₹ 44,854.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2.
  • Unmatched personalization: OLED and Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
  • Optimal Power Solution: 16 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors
  • Comprehensive cooling: Active cooling VRM and Chipset heatsink, stacked-fin heatsink, with on-board dual M.2 heatsinks and a water pump+ header
  • Gaming connectivity: Three M.2, USB 3.2 Gen 2 Type-C port and Type-C front panel connector
  • Gaming networking: 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
  • Gaming audio: High fidelity audio with SupremeFX S1220, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
  • Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience
  • CPU
    Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD TRX40
  • Memory
    3rd Gen AMD Ryzen Threadripper Series Desktop processors
    8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
    Quad Channel Memory Architecture
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    3rd Gen AMD Ryzen Threadripper Series Desktop processors
    3 x PCIe 4.0 x16 (x16/x16/x16)
    1 x PCIe 4.0 x4
  • Storage
    3rd Gen AMD Ryzen Threadripper Series Desktop processors :
    2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
    AMD TRX40 chipset :
    1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    AMD TRX40 chipset :
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek® RTL8125-CG 2.5G LAN
    Intel® I211-AT, 1 x Gigabit LAN Controller(s)
    Anti-surge LANGuard
    ROG GameFirst V Technology
  • Wireless Data Network
    Intel® Wi-Fi 6 AX200
    Wi-Fi 802.11 ax, Bluetooth® 5.0
    Supports dual band frequency 2.4/5 GHz
    Supports 2x2 MU-MIMO
    Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth
    Bluetooth® 5.0
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
    - Dual OP Amplifiers
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 120 dB SNR stereo playback output 108 dB SNR recording input
    - Supports up to 32-Bit/192kHz playback
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - DTS® Sound Unbound
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
  • USB Ports
    3rd Gen AMD Ryzen™ Threadripper™ Processors :
    4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
    AMD TRX40 chipset :
    1 x USB 3.2 Gen 2 front panel connector port(s)
    AMD TRX40 chipset :
    4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C)
    AMD TRX40 chipset :
    8 x USB 2.0 port(s)
    ASMedia® USB 3.2 Gen 1 controller :
    4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
  • ROG Exclusive Features
    ROG Exclusive Software
    - RAMCache III
    - CPU-Z
    - GameFirst V
    - Sonic Studio III + Sonic Studio Link
    - Sonic Radar III
    - Overwolf
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    Gamer's Guardian:
    - DRAM Overcurrent Protection
    - Highly Durable Components
    - DIGI+ VRM
    - SafeSlot
    - ESD Guards on LAN, Audio,and USB ports
    LiveDash OLED 1.3 ”
    AURA :
    - Aura Lighting Control
    - Addressable Gen 2 Header
    ASUS Exclusive Features :
    - USB BIOS FlashBack
    - AI Suite 3
    - Ai Charger
    - Pre-mounted I/O Shield
    - ASUS NODE: hardware control interface
    - BIOS FlashBack Button
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
  • Back I/O Ports
    1 x LAN (RJ45) port(s)
    8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C)
    4 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x Anti-surge 2.5G LAN (RJ45) port
    1 x USB BIOS FlashBack Button(s)
  • Internal I/O Ports
    2 x Aura RGB Strip Header
    2 x Addressable Gen 2 header(s)
    2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
    1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    1 x TPM header
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x W_PUMP+ connector
    1 x 24-pin EATX Power connector(s)
    2 x 8-pin ATX 12V Power connector(s)
    0 x Front panel audio connector(s) (AAFP)
    1 x Thermal sensor connector(s)
    1 x Power-on button(s)
    1 x Clear CMOS jumper(s)
    1 x Node Connector(s)
    1 x USB BIOS FlashBack button(s)
    1 x System panel connector
    1 x USB 3.2 Gen 2 front panel connector
    1 x Speaker connector
    1 x Chipset Fan Header
    1 x VRM_HS_FAN Header
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
