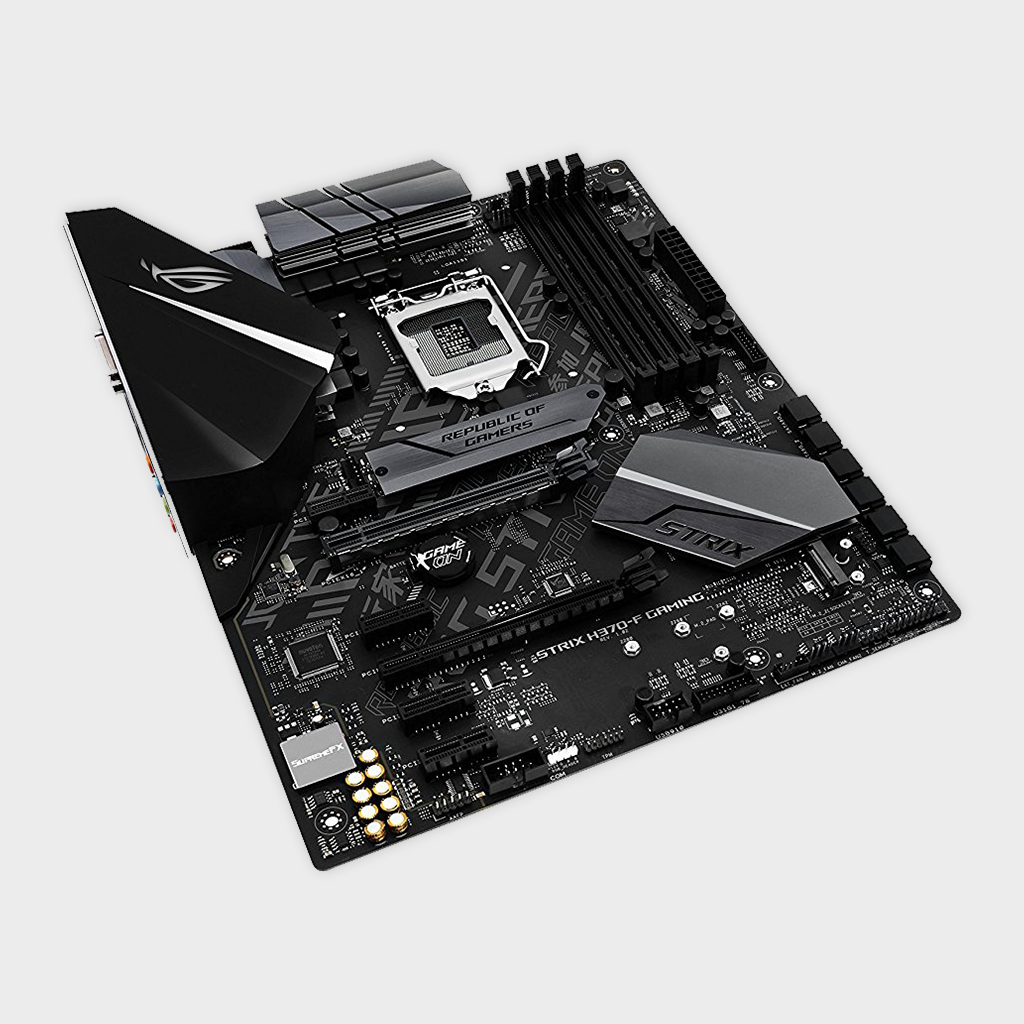

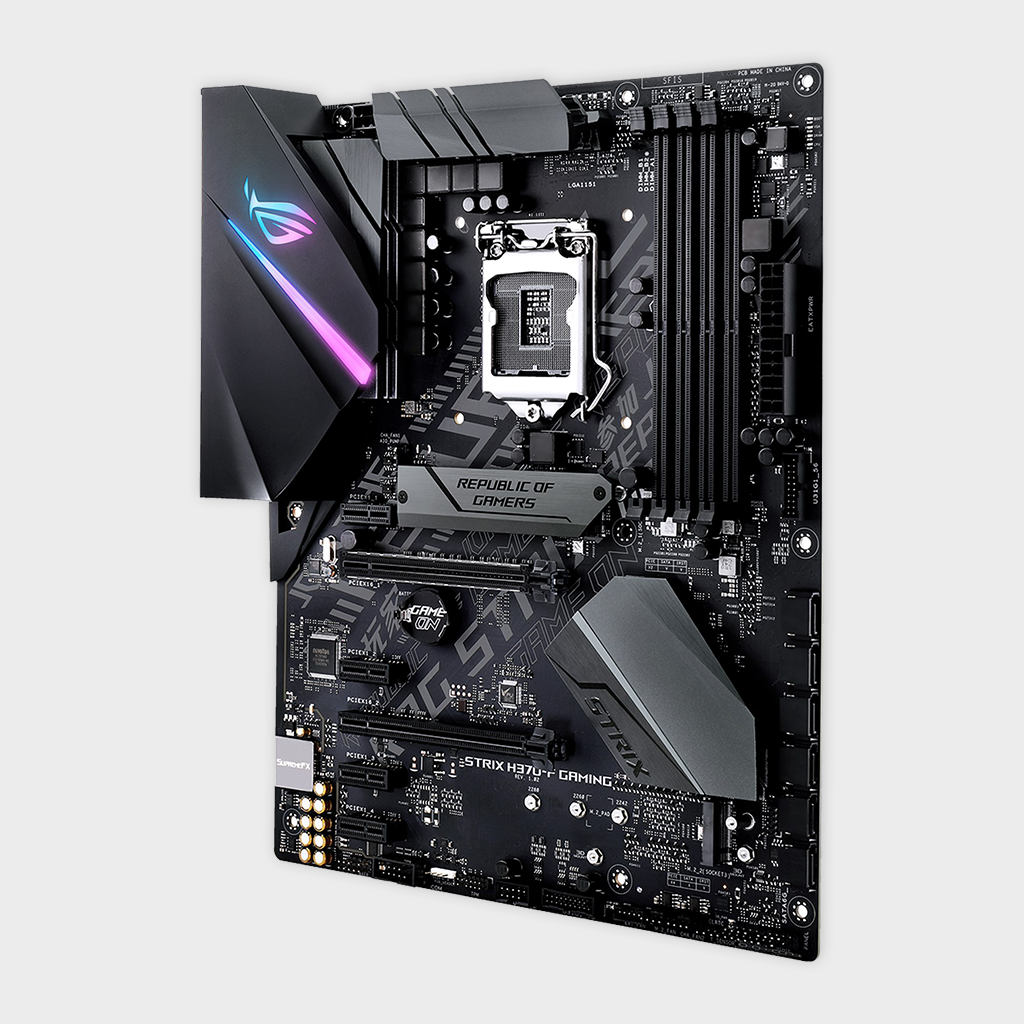

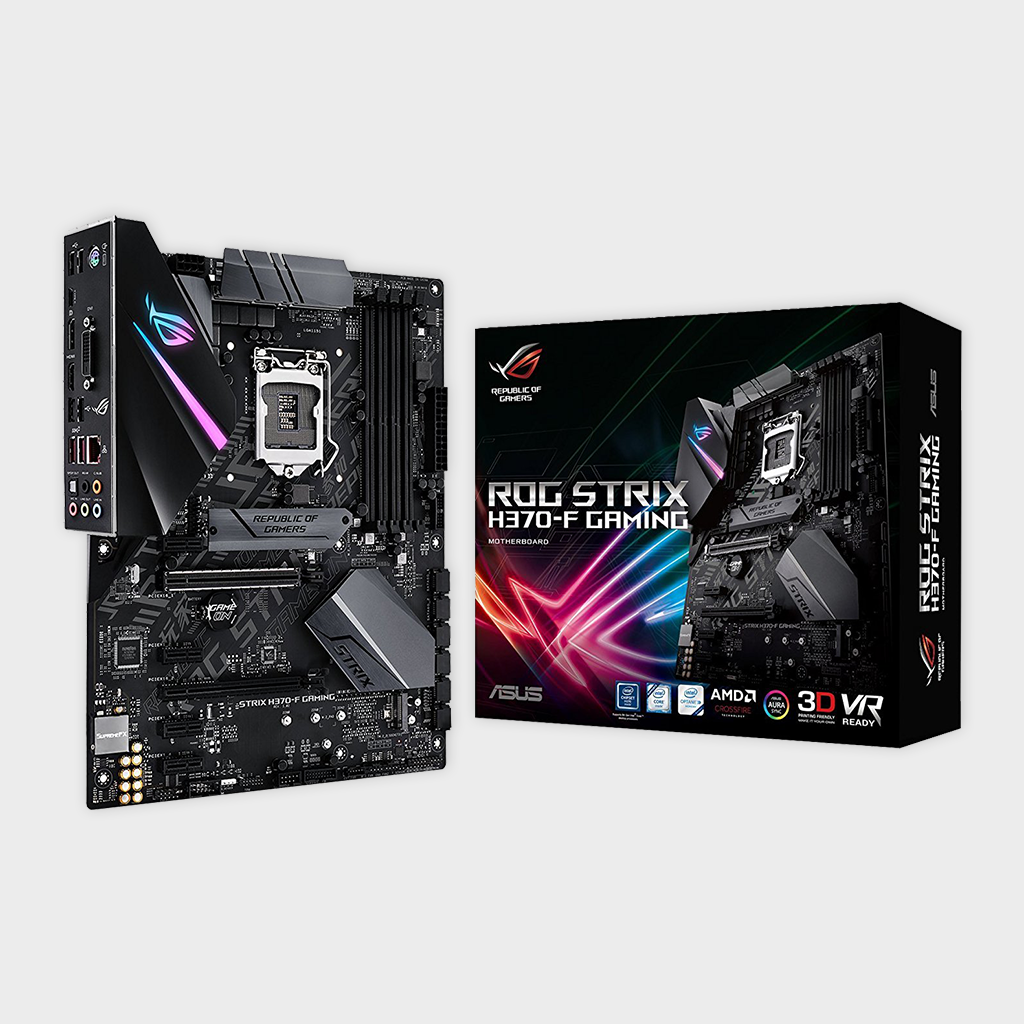

ASUS- ROG STRIX H370-F GAMING MOTHERBOARD

CPU

Intel® Socket 1151 for 8th Generation Core™ Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® H370

Memory

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/DisplayPort ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

8th Generation Intel® Core™ Processor

1 x PCIe 3.0/2.0 x16 (x16 mode)

Intel® H370 Chipset

1 x PCIe 3.0/2.0 x16 (x4 mode)

4 x PCIe 3.0/2.0 x1

Storage

Intel® H370 Chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready *3

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

Anti-surge LANGuard

ROG GameFirst Technology

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

- Dual Headphone Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- SupremeFX Shielding Technology

- Supports up to 32-Bit/192kHz playback *4

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- Sonic Radar III

- Sonic Studio III + Sonic Studio Link

USB Ports

Intel® H370 Chipset :

1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-CTM, Support 3A power output)

Intel® H370 Chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A, Support 3A power output)

Intel® H370 Chipset :

4 x USB 3.1 Gen 1 port(s) (4 at mid-board)

Intel® H370 Chipset :

6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)

ROG Exclusive Features

ROG RAMCache II

ROG CPU-Z

ROG CloneDrive

Pre-mounted I/O Shield

Overwolf

GameFirst IV

ROG Aura

- Aura Lighting Control

- Aura RGB Strip Headers

Special Features

Fan Xpert4

- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control

Gamer's Guardian:

- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports

- DRAM Overcurrent Protection

- Stainless Steel Back I/O

- Highly Durable Components

- SafeSlot

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design :

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

Gaming Aesthetics :

- 3D printing friendly

- AURA-RGB Lighting

Digi+VRM

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

1 x USB 3.1 Gen 2 (black)USB Type-CTM,

2 x USB 3.1 Gen 2 (red)Type-A

4 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

Internal I/O Ports

1 x AAFP connector

1 x RGB Header(s)

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x M.2_FAN connector

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x System panel(s)

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

1 x 14-1 pin TPM connector

1 x COM port header

2 x 3D Mount screw port(s)

Accessories

User's manual

4 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x CABLE TIE BLACK

1 x ROG Strix stickers

1 x ROG Door Hanger(s)

1 x Extension Cable for RGB strips (80 cm)

1 x 3D printing mount package

BIOS

1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, , F4 AURA ON/OFF and F9 Search

Manageability

WOL, WOR, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty

3 Years
