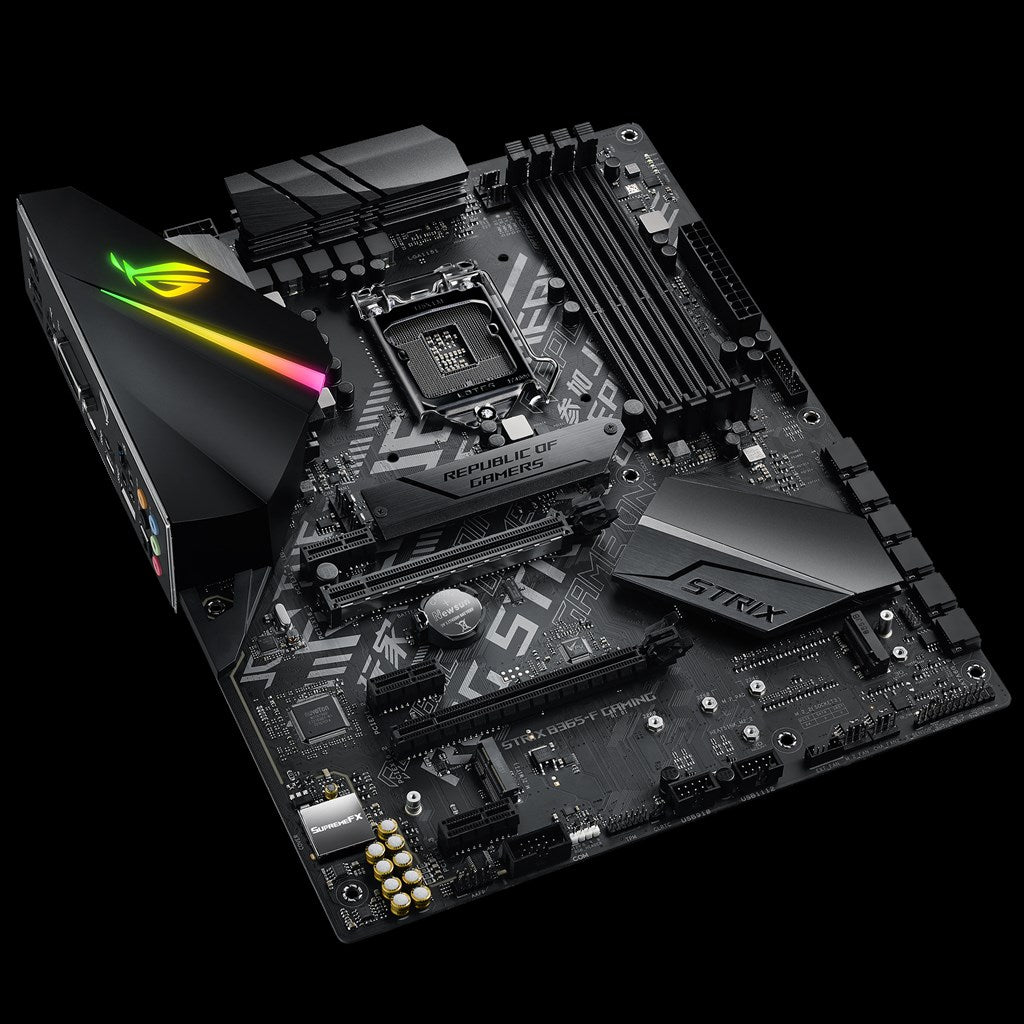

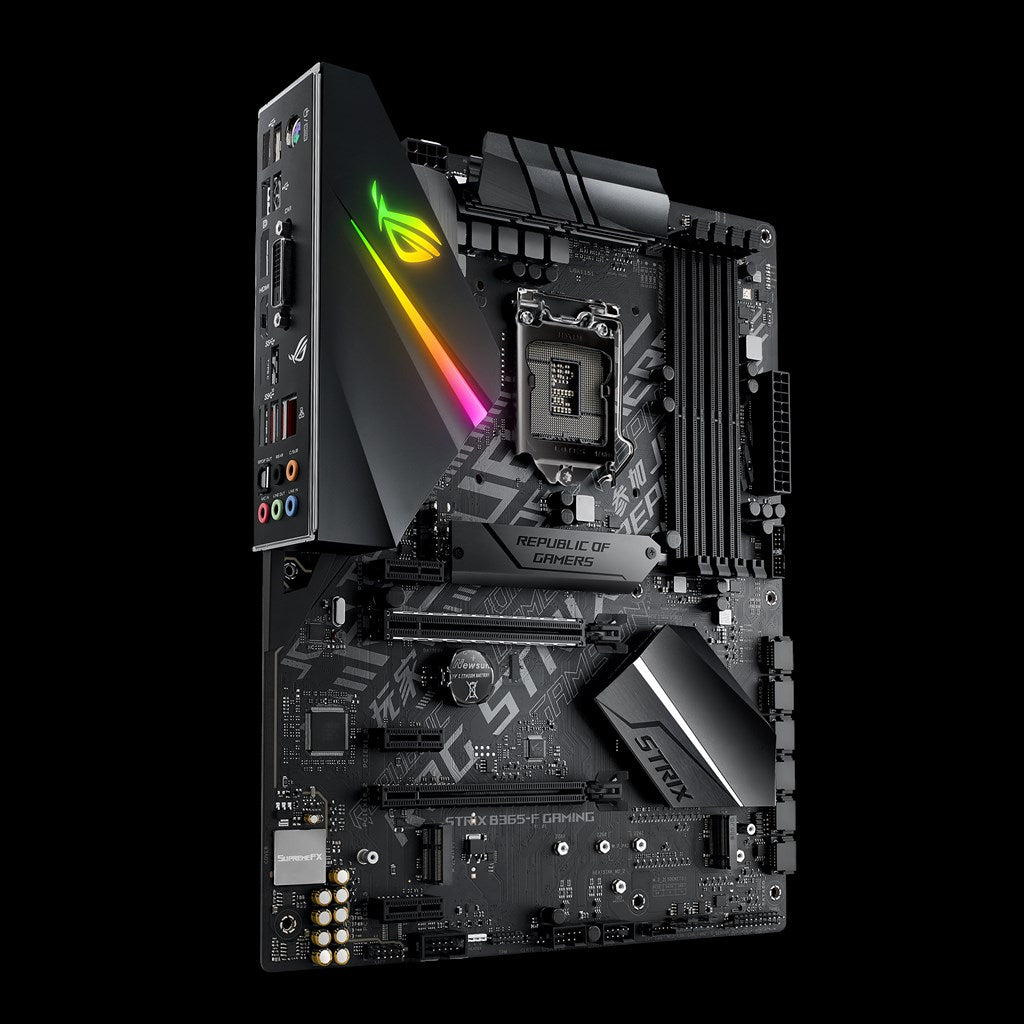

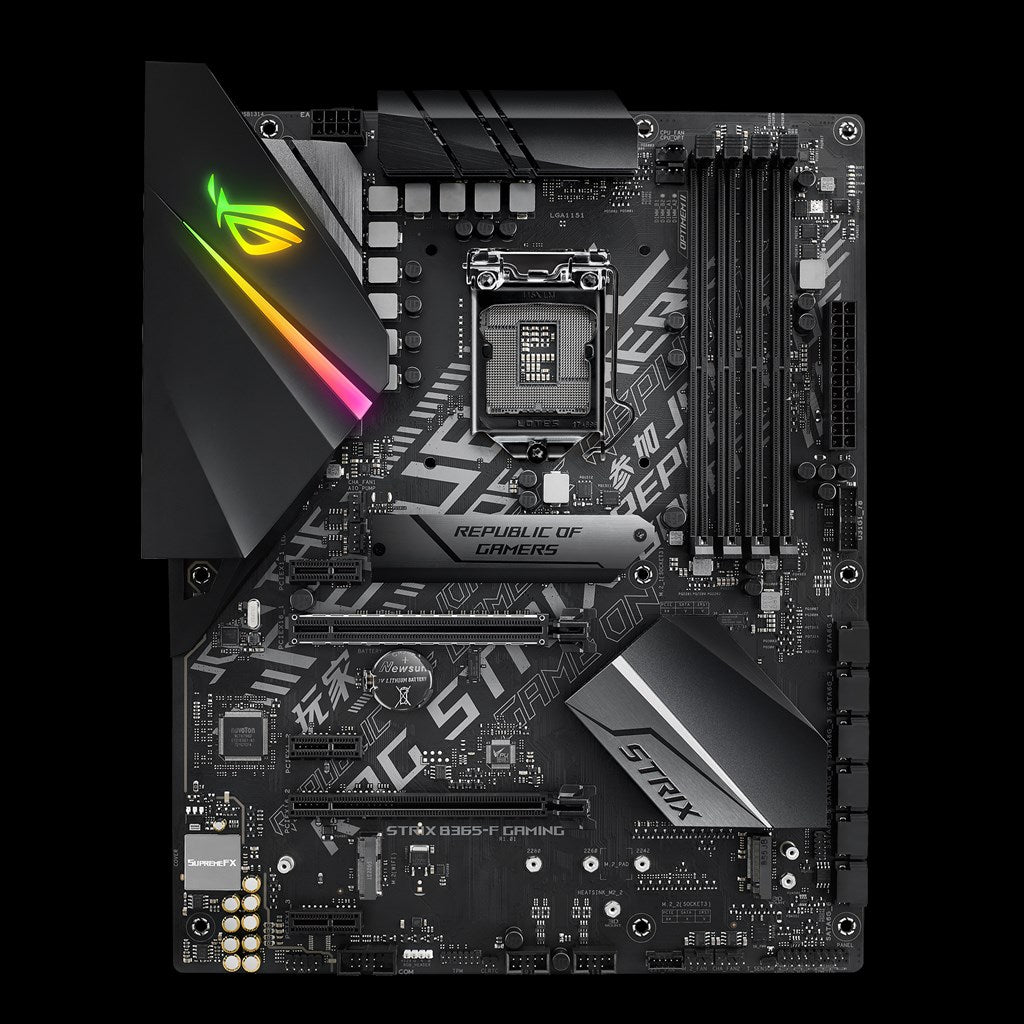

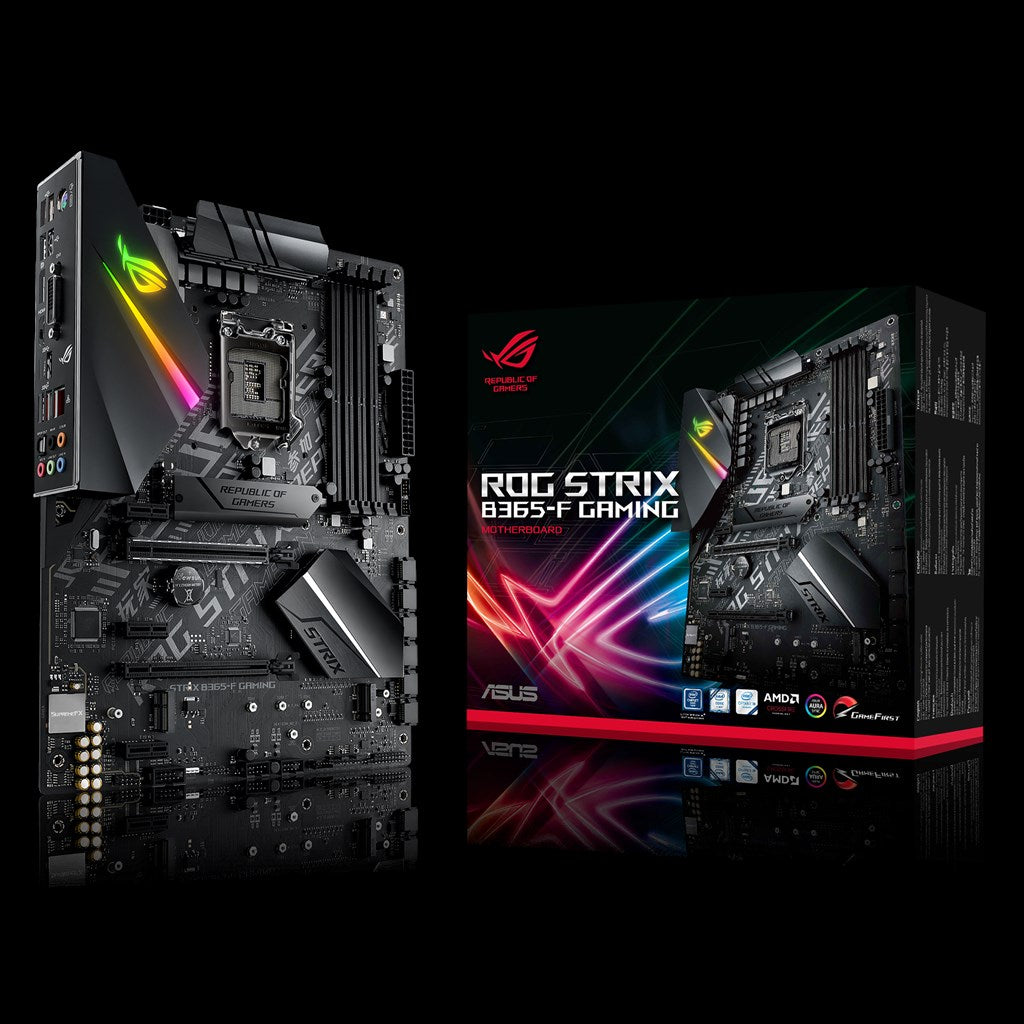

ASUS ROG STRIX B365-F GAMING Intel LGA-1151 B365 ATX gaming motherboard

• LGA1151 socket: Ready for 9th/8th Gen Intel® Core™ desktop processors.
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.
• Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.
• On-board M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.
• Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
• Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
• Gaming connectivity: Dual M.2, USB 3.1 Gen 2 Type-A connectors, DisplayPort, HDMI and DVI.
• Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.

• CPU
  Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
  Supports Intel® 14 nm CPU
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® B365
• Memory
  4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *¹
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  1 x PCIe 3.0/2.0 x16 (x4 mode) *²
  3 x PCIe 3.0/2.0 x1 *³
• Storage
  Intel® B365 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*⁴
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s)
  Anti-surge LANGuard
  ROG GameFirst Technology
• Audio
  ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  - Dual Headphone Amplifiers
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - SupremeFX Shielding Technology
  - Supports up to 32-Bit/192kHz playback *⁶
  Audio Feature :
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar III
  - Sonic Studio III + Sonic Studio Link
• USB Ports
  Intel® B365 Chipset :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
  Intel® B365 Chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 1 x Type-A+1 x Type-C)
  Intel® B365 Chipset :
  8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
• ROG Exclusive Features
  ROG CPU-Z
  Pre-mounted I/O Shield
  Overwolf
  ROG Aura
  - Aura Lighting Control
  - Aura RGB Strip Headers
  ROG Exclusive Software
  - RAMCache III
  - GameFirst V
• Special Features
  Fan Xpert4
  - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
  Gamer's Guardian:
  - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
  - DRAM Overcurrent Protection
  - Stainless Steel Back I/O
  - Highly Durable Components
  - SafeSlot
  AURA :
  - Aura Lighting Control
  - Aura RGB Strip Headers
  - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  ASUS Exclusive Features :
  - AI Suite 3
  - Armoury Crate
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  ASUS Q-Design :
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Gaming Aesthetics :
  - 3D printing friendly
  - AURA-RGB Lighting
  Digi+VRM
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 2 (red)Type-A,
  2 x USB 3.1 Gen 1 (black) Type-A + USB Type-C^TM
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
• Internal I/O Ports
  1 x AAFP connector
  1 x Aura RGB Strip Header(s)
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2 with E key for Wi-Fi module
  6 x SATA 6Gb/s connector(s)
  1 x M.2_FAN connector
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x System panel(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x Thermal sensor connector(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
  1 x COM port header
• Accessories
  User's manual
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x Strix door hanger
  1 x CABLE TIE BLACK
  1 x ROG Strix stickers
  1 x Extension Cable for RGB strips (80 cm)
• BIOS
  1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1,
  ACPI 6.1
• Manageability
  WOL,PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
  *2 The PCIEX16_2 slot shares bandwidth with PCIEX1_1 and PCIEX1_2 slots. When PCIEX1_1 and PCIEX1_2 slots are occupied, PCIEX16_2 slot runs at x2 mode.
  *3 The M.2_1 socket shares bandwidth with PCIEX1_4
  *4 The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only). The M.2_1 socket shares bandwidth with PCIEX1_4
  *5 The M.2_2 socket supports Intel® Optane™ Technology. Intel® Optane™ Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
  *6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
