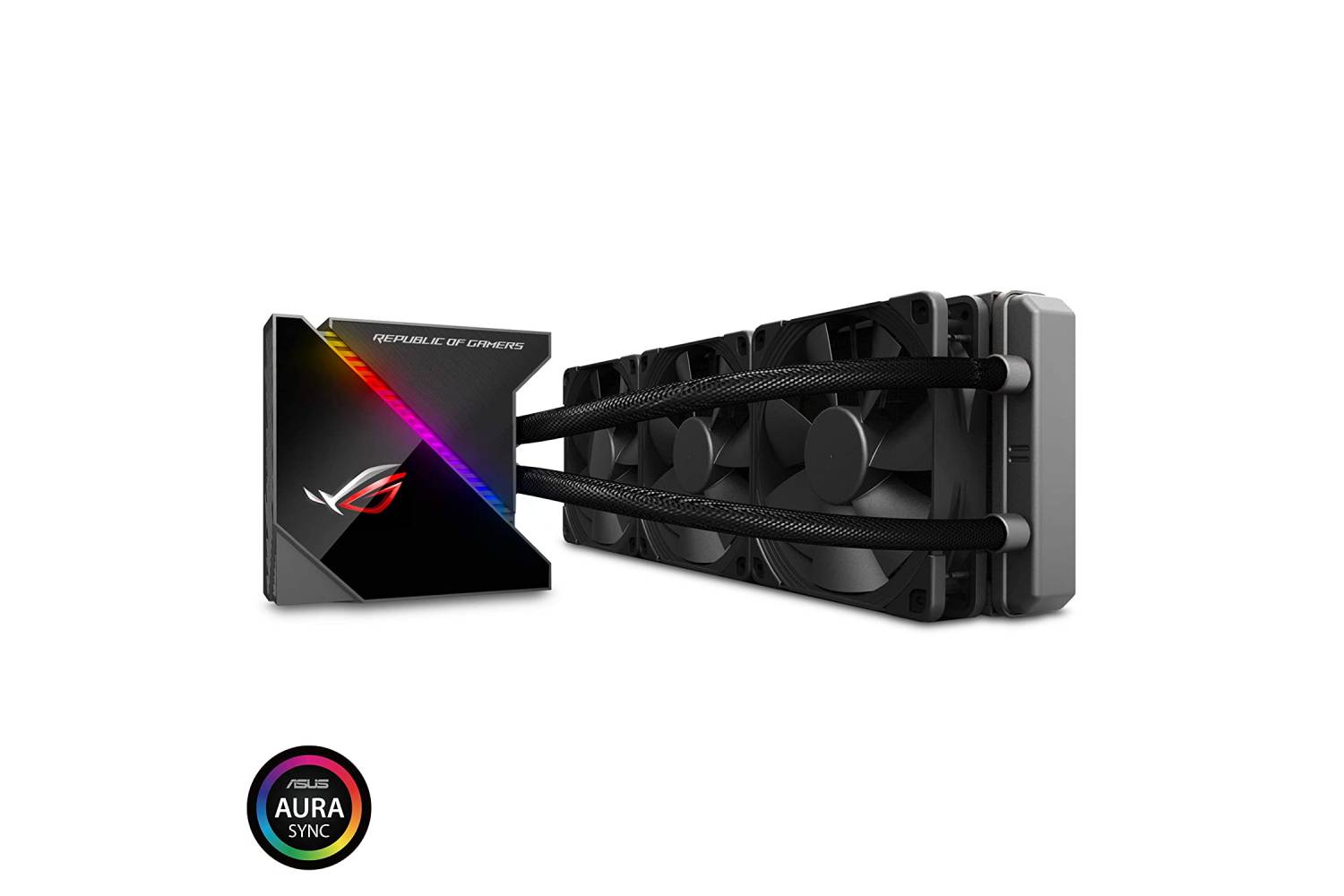

Asus ROG Ryujin 360 all-in-one liquid CPU cooler with LiveDash color OLED, Aura Sync RGB and 3x Noctua iPPC 2000 PWM 120mm radiator fans

1.77” color OLED for real-time system stats and personalized logos or animations
Embedded microfan helps to cool VRM and M.2 area by up to 20°C
Quality Noctua Industrial PPC PWM fans deliver high airflow and minimal noise
LiveDash one-stop control center for lighting and OLED display

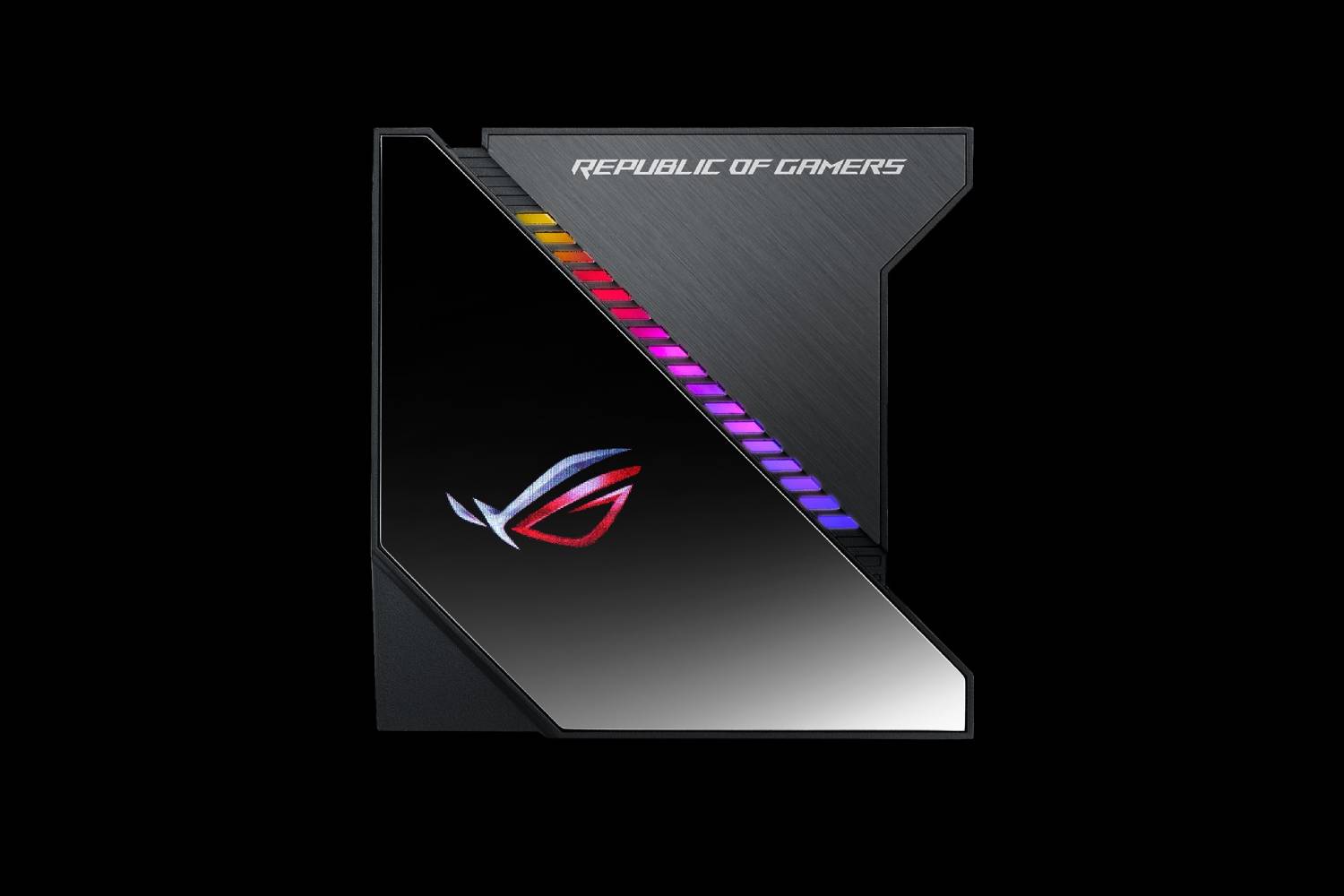

Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics
Styled to complement ROG motherboards, at the center stage of your build
Reinforced, sleeved tubing for increased durability

SKU:ROG RYUJIN 360

1.77” color OLED for real-time system stats and personalized logos or animations
Embedded microfan helps to cool VRM and M.2 area by up to 20°C
Quality Noctua Industrial PPC PWM fans deliver high airflow and minimal noise
LiveDash one-stop control center for lighting and OLED display
Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics
Styled to complement ROG motherboards, at the center stage of your build
Reinforced, sleeved tubing for increased durability

Water Block
Water Block Dimension: 100 x 100 x 70 mm
Block Material (CPU plate): Copper
CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066；AMD: AM4, TR4*
Radiator
Radiator Dimension: 394 x 121 x 27 mm
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Tube Length: 380 mm
Fan

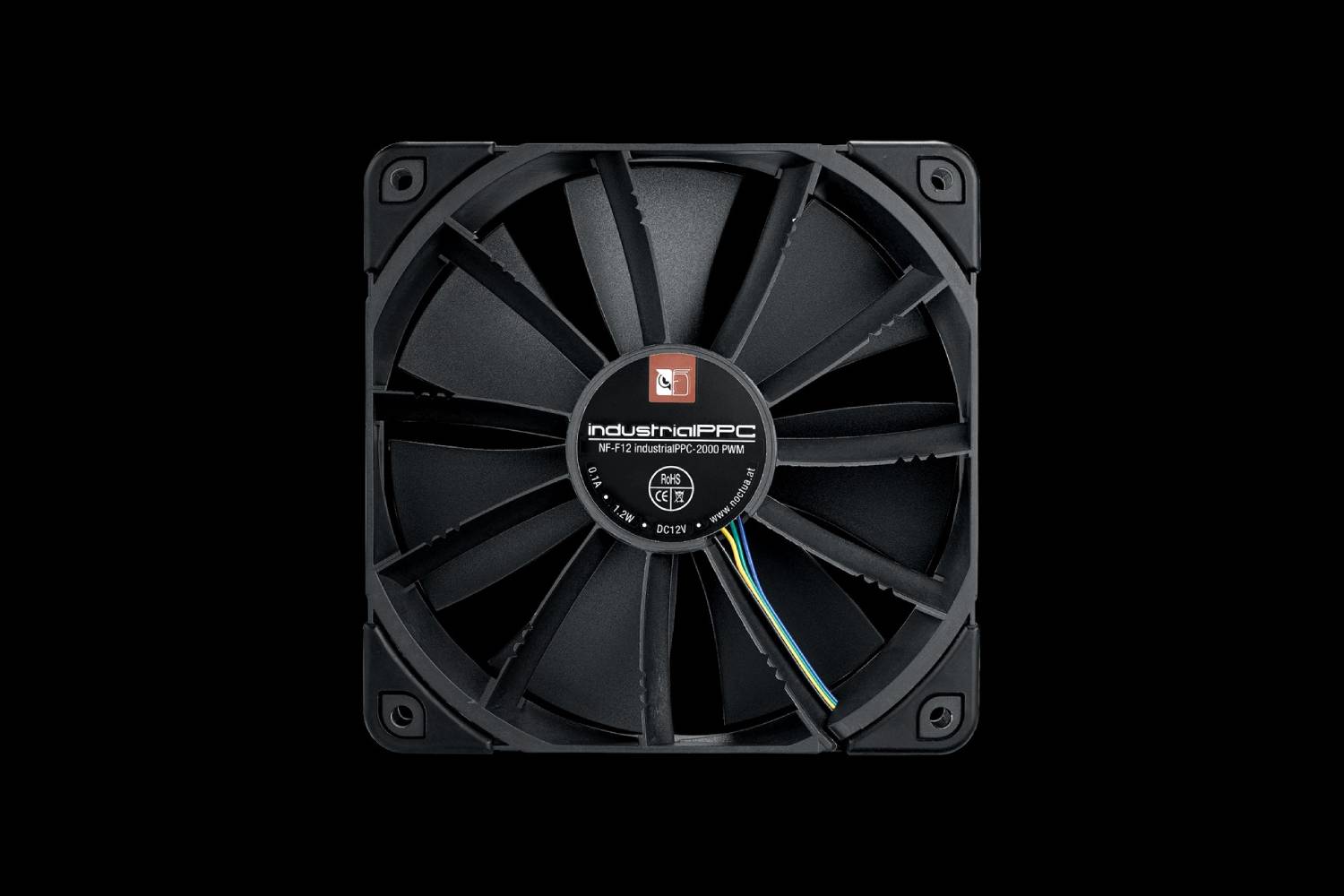

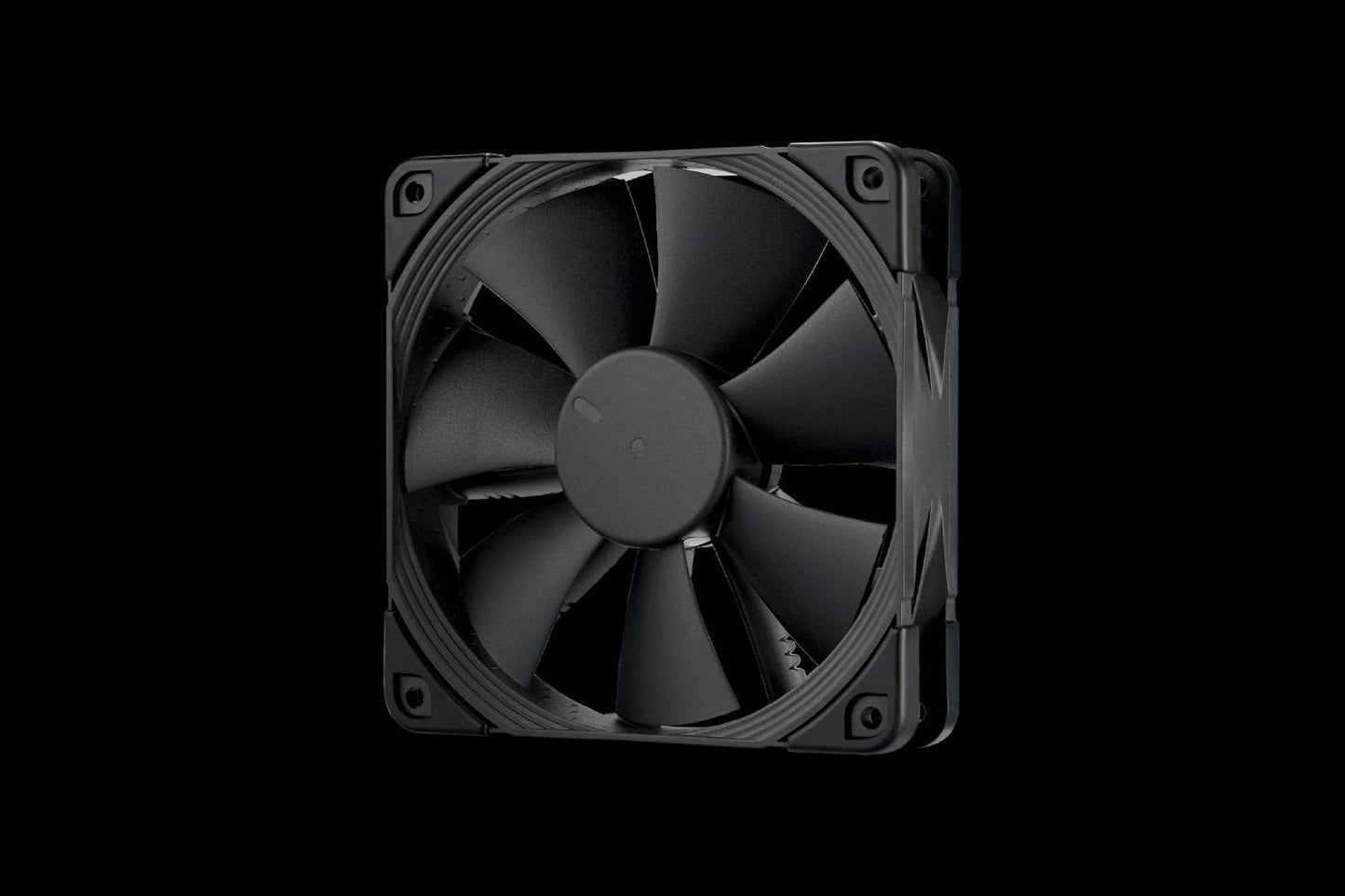

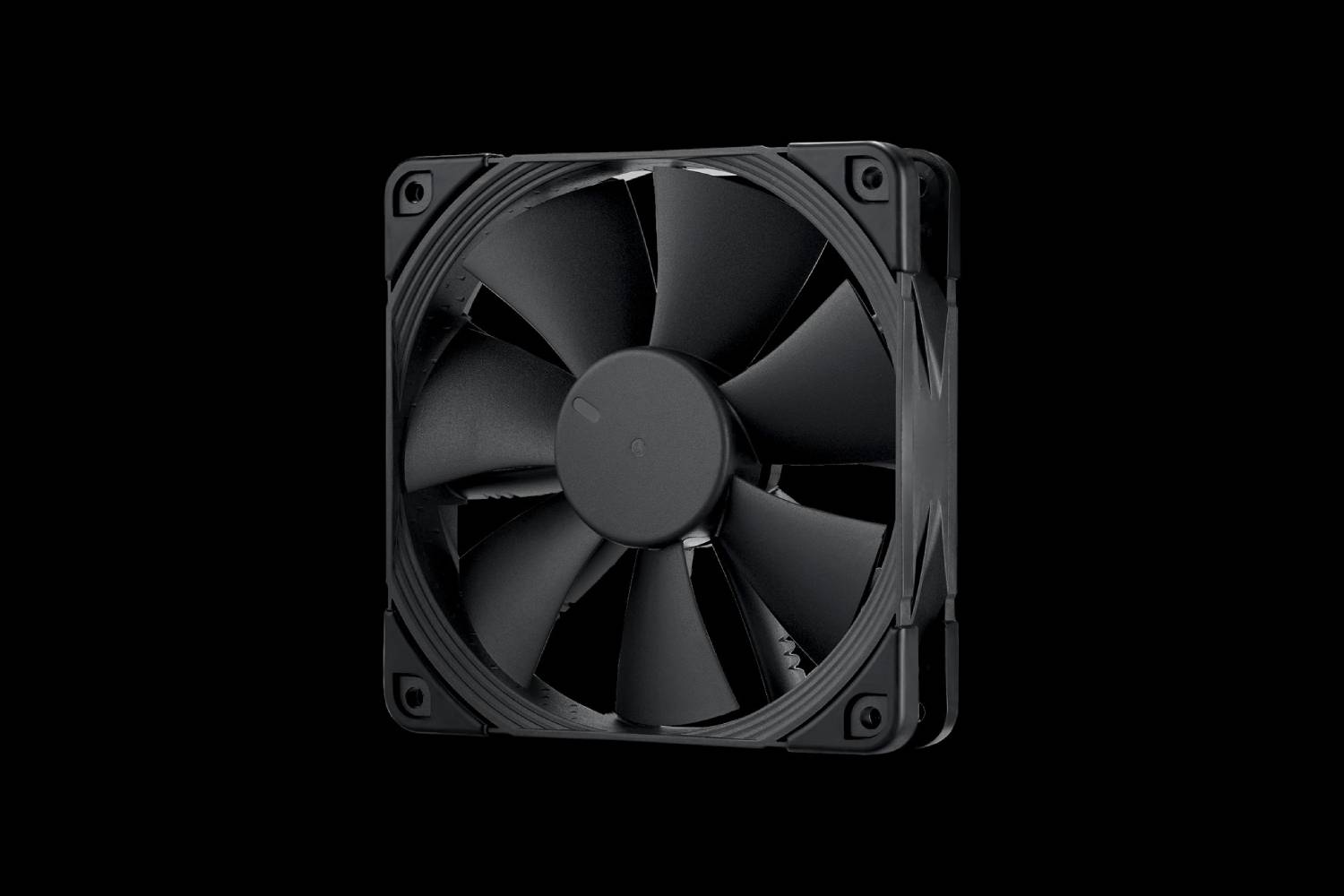

Fan: 3 x Noctua NF-F12 industrialPPC 2000 PWM
Fan size: 3 Fan Slots (120mm)
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 450 ~ 2000 RPM +/- 10 %
Fan Static Pressure: 3.94 mmH2O
Fan Air Flow: 71.6 CFM / 121.8 m3h
Fan Noise: 29.7 dB(A)
Control Mode: PWM
Special Features
OLED Display: 1.77 " Full Color OLED
AURA Sync Support: Yes
Embedded FAN: Y
Embedded Fan Speed: 4800 RPM +/- 10 %
Embedded Fan Air Pressure: 3.23 mmH2O
Embedded Fan Air Flow: 19.41 CFM
Embedded Fan Noise: 31 dB(A)
Compatibility
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4*

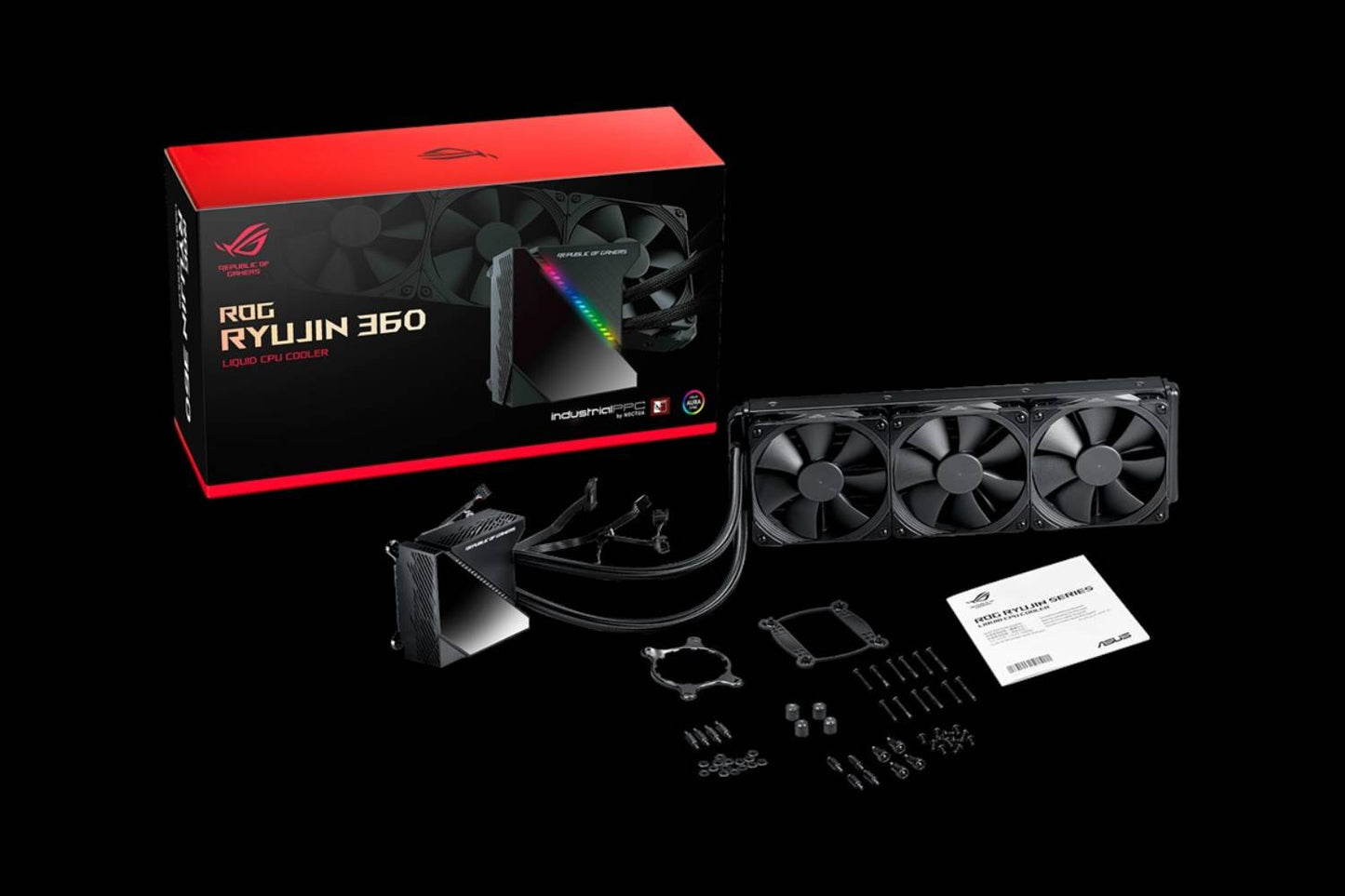

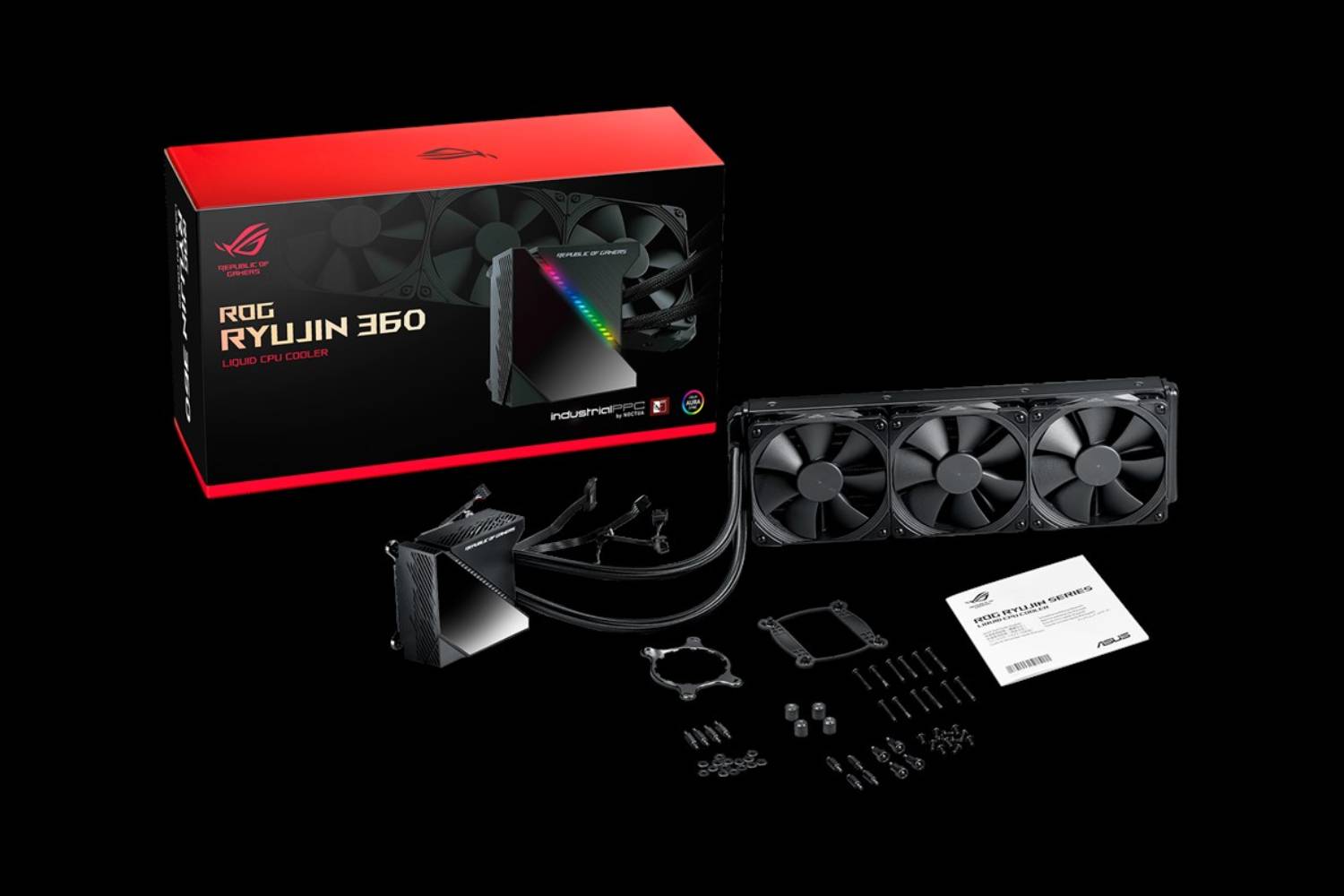

Package Content
ROG RYUJIN 360 Liquid Cooler
Accesory Pack of Scews and brackets
3 x 120mm Noctua NF-F12 iPPC 2000 PWM Fan
Thermal compound (pre-applied)
Quick Start Guide
Warranty
Warranty: 3 years
Note
*The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN's package
** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
*** Hardware monitor and fan control is optimized for ASUS motherboards
**** for control radiator FAN from the Y-Cable and embedded fan on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler
