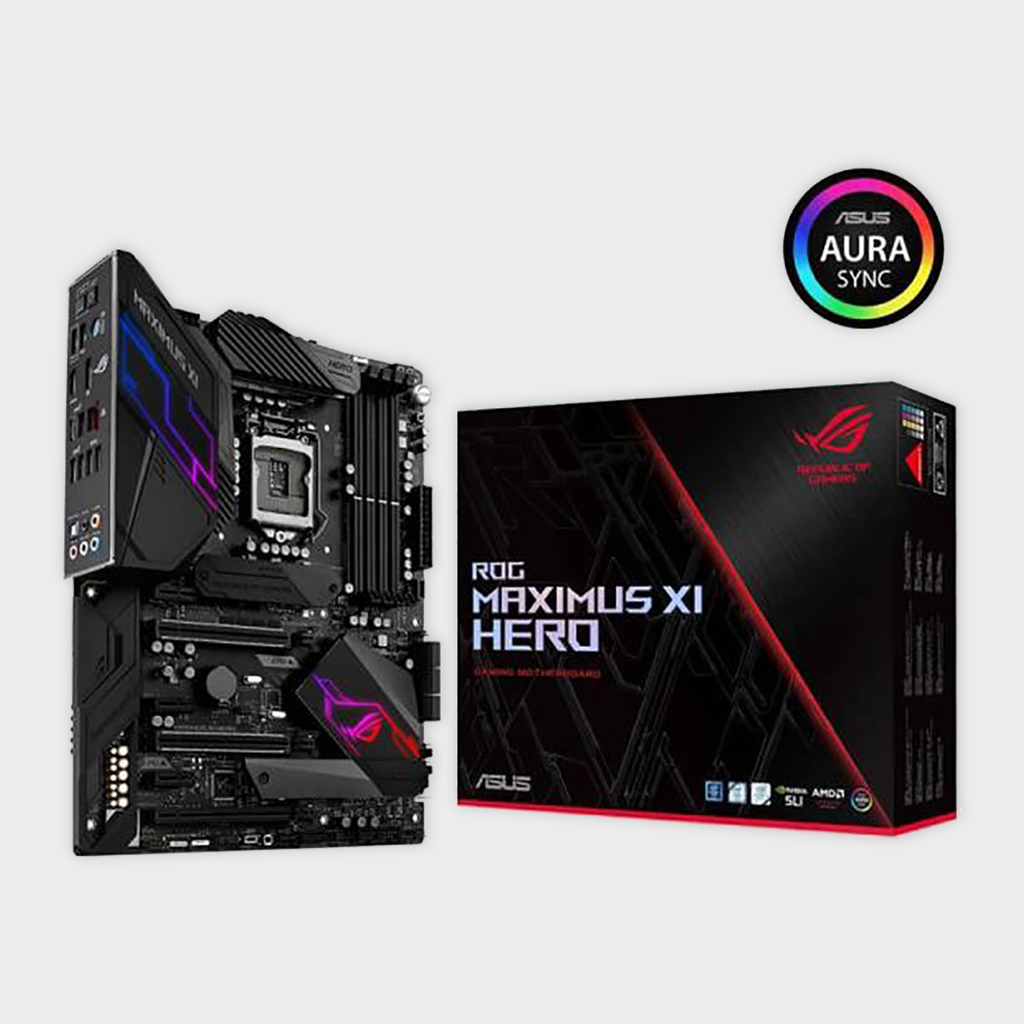

ASUS ROG Maximus XI Hero Motherboard
ASUS ROG Maximus XI Hero Motherboard
Description
Description
- LGA1151 socket for 9th/8th -gen Intel® Core™ desktop processors
- Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips and Philips Hue
- Perfected cooling with dedicatedwater cooling zones, M.2 heatsink and various fan controls
- Gaming connectivity: Intel Gigabit Ethernet , LANGaurd, dual M.2, USB 3.1 Gen 2, and 802.11AC Wi-Fi
- 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles tailor-made for your rig
- Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
CPU | Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
Chipset |
Intel® Z390
|
Memory |
4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/ 4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3333(O.C.)/3300(O.C.)/3200(O.C.)/ 3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
Graphic |
Integrated Graphics Processor- Intel® UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz |
Multi-GPU Support | Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
Expansion Slots |
Intel® Z390 Chipset 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) 1 x PCIe 3.0 x16 (x4 mode) *1 3 x PCIe 3.0 x1 |
Storage |
Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
LAN | Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology |
Audio |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *3 Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
USB Ports |
Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, ) Intel® Z390 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Intel® Z390 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) |
ROG Exclusive Features | ReTry Button Start Button Reset Button Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors Mem TweakIt Extreme Tweaker ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III |
Special Features |
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback - MemOK! II - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BUPDATER - BIOS Flashback Button - Clear CMOS Button - Reset Button ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 (red) () 2 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 5 x Gold-plated audio jacks |
Internal I/O Ports | 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x ReTry button 1 x System panel connector 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x USB 3.1 Gen 2 front panel connector |
Accessories | User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) |
BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 |
Operating System | Windows® 10 64-bit |
Form Factor | ATX Form Factor 30.5 cm x 24.4 cm (12 x 9.6 ) |
Warranty | 3 Years |
