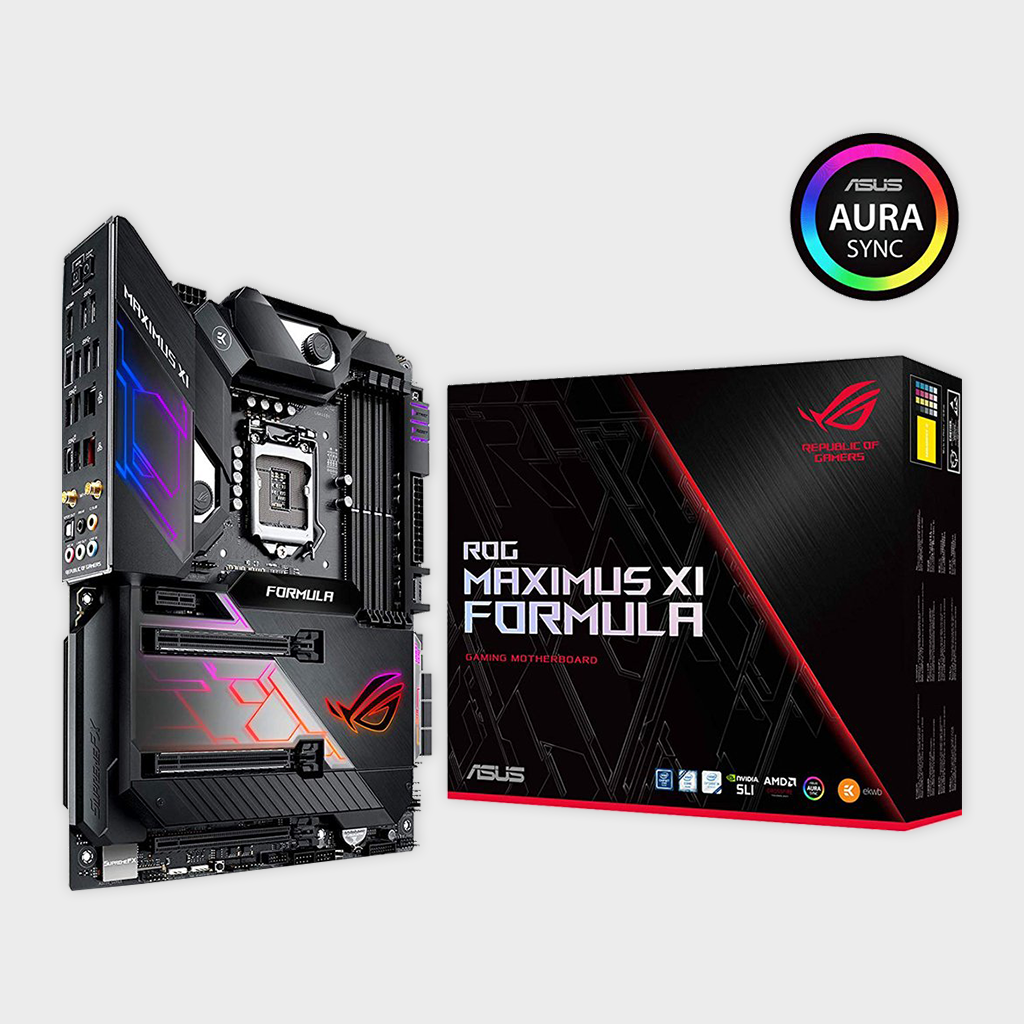

ASUS ROG MAXIMUS XI FORMULA Motherboard

Regular price ₹ 36,011.00
Regular price ₹ 46,000.00 Sale price ₹ 36,011.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Cashback OFFER : Get Flat Rs. 25 cashback on Amazon Pay Wallet, valid once per user. Minimum paymnet Rs 100.00

  • LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors
  • Crosschill EK III and Water Cooling Zone: Keep your system cool when the action heats up
  • ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips
  • Gaming connectivity: Aquantia 5G LAN and Intel Gigabit Ethernet onboard, dual M.2, USB 3.1 Gen 2, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Build in Intel® Z390
Memory 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Graphic Integrated Graphics ProcessorIntel® UHD Graphics support
VGA output support : HDMI port
Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
Multi-GPU Support Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)
Intel® Z390 Chipset
1 x PCIe 3.0 x16 (max at x4 mode) *
1 x PCIe 3.0 x16
Storage Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready
LAN Aquantia AQC111C 5G LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst V Technology
Wireless Data Network Intel® Wireless-AC 9560
Wi-Fi 802.11 b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth Bluetooth® 5.0
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
Impedance sense for front and rear headphone outputs
Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
SupremeFX Shielding Technology
ESS® ES9023P
Supports up to 32-Bit/192kHz playback *3
Audio Feature :
Optical S/PDIF out port(s) at back panel
USB Ports Intel® Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel® Z390 Chipset :
4 x USB 3.1 Gen 2 port(s)
Intel® Z390 Chipset :
8 x USB 3.1 Gen 1 port(s)
Intel® Z390 Chipset :
4 x USB 2.0 port(s)
ASMedia® USB 3.1 Gen 1 controller :
2 x USB 3.1 Gen 1 port(s)
ROG Exclusive Features
ROG RGB Armor
ReTry Button
Start Button

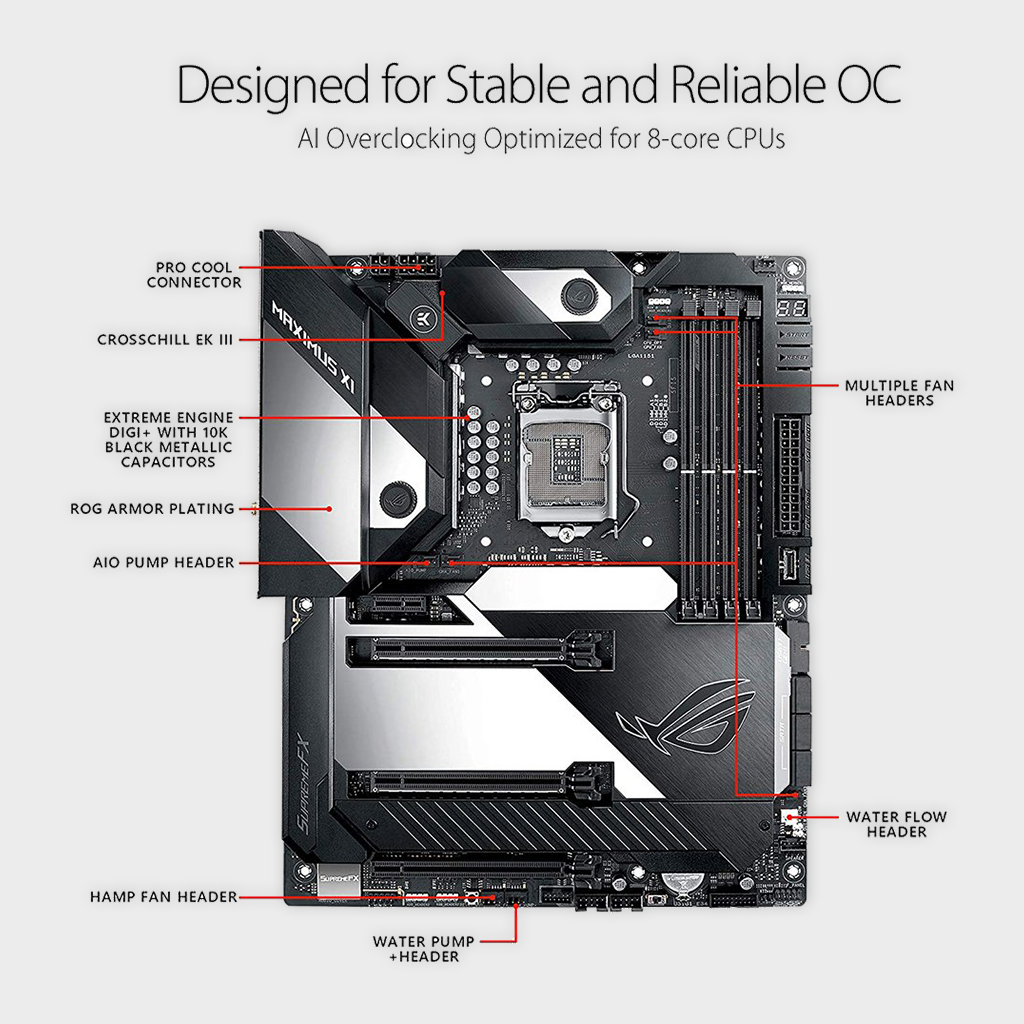

Extreme Engine Digi+ :
MicroFine Alloy Chokes
OptiMOS Power Stage
10K Black Metallic Capacitors
Extreme Tweaker
Crosschill EK III
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
Mem Tweakit
RAMCache III
RAMDisk
CPU-Z
GameFirst V
Sonic Studio III + Sonic Studio Link
Sonic Radar III
Special Features
5-Way Optimization by Dual Intelligent Processors 5
5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app
2 ” LiveDash

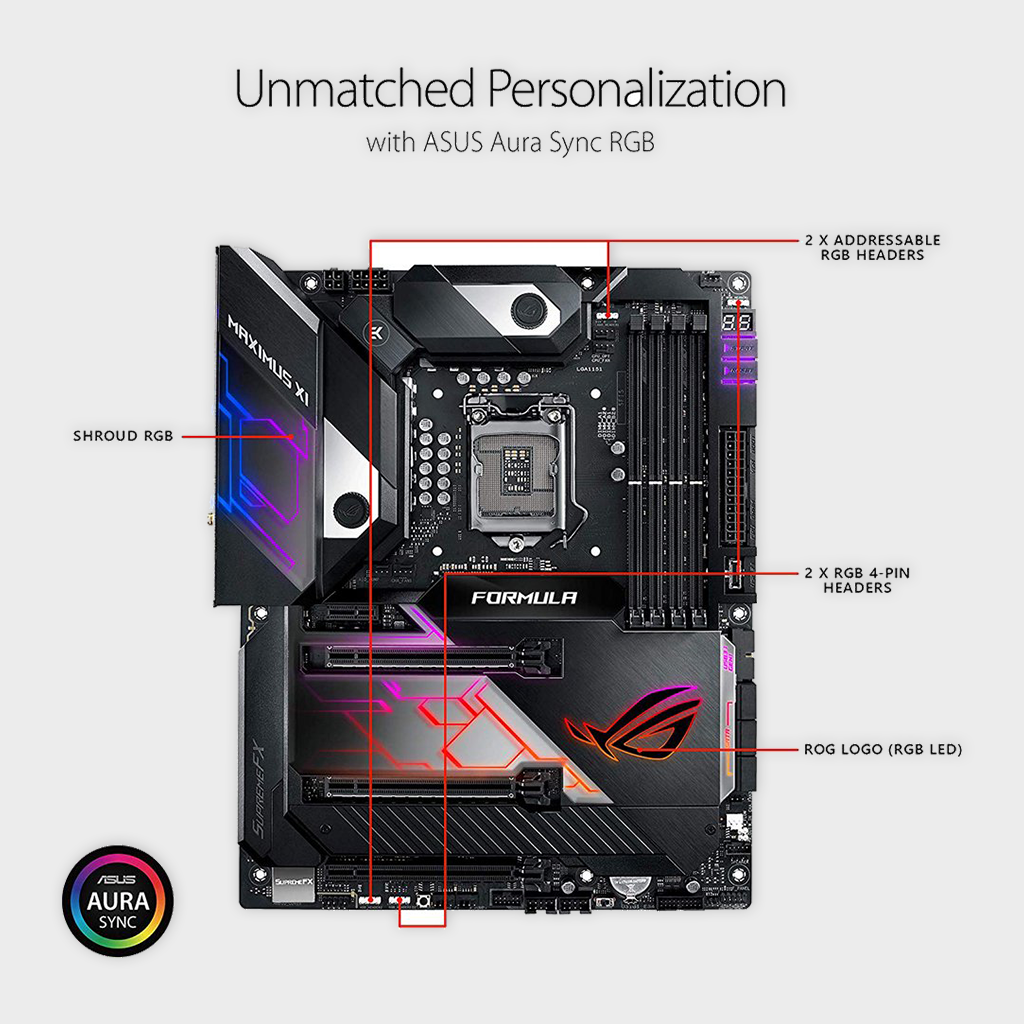

AURA :
Aura Lighting Control
Aura RGB Strip Headers
Aura Lighting Effects Synchronization with compatible ASUS ROG devices
Aura Addressable Strip Header(s)
ASUS Exclusive Features :
USB BIOS Flashback
MemOK! II
AI Suite 3
Ai Charger
ASUS CrashFree BIOS 3
Armoury Crate
Pre-mounted I/O Shield
ASUS NODE: hardware control interface
OptiMem II
ASUS EZ Flash 3
ASUS C.P.R.(CPU Parameter Recall)
BUPDATER
BIOS Flashback Button
Clear CMOS Button
Reset Button
ASUS Q-Design :
ASUS Q-Code
ASUS Q-LED (CPU, VGA, Boot Device LED)
ASUS Q-DIMM
ASUS Q-Connector
Back I/O Ports 1 x HDMI
4 x USB 3.1 Gen 2
6 x USB 3.1 Gen 1 ,
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Anti-surge LAN (RJ45) port
1 x AQC-111C 5G LAN port
Internal I/O Ports 2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
1 x Chassis Fan connector(s)
1 x Optional Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x Node Connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 Gen 2 front panel connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Start button
1 x Reset button
1 x Q-Code
Accessories User’s manual
1 x ROG logo plate sticker
1 x 2-Way SLI bridge(s)
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG coaster(s)
1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable
1 x ROG weave SATA 6G cable
1 x ROG Thank you card
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
Manageability WOL , PXE
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
