- LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors

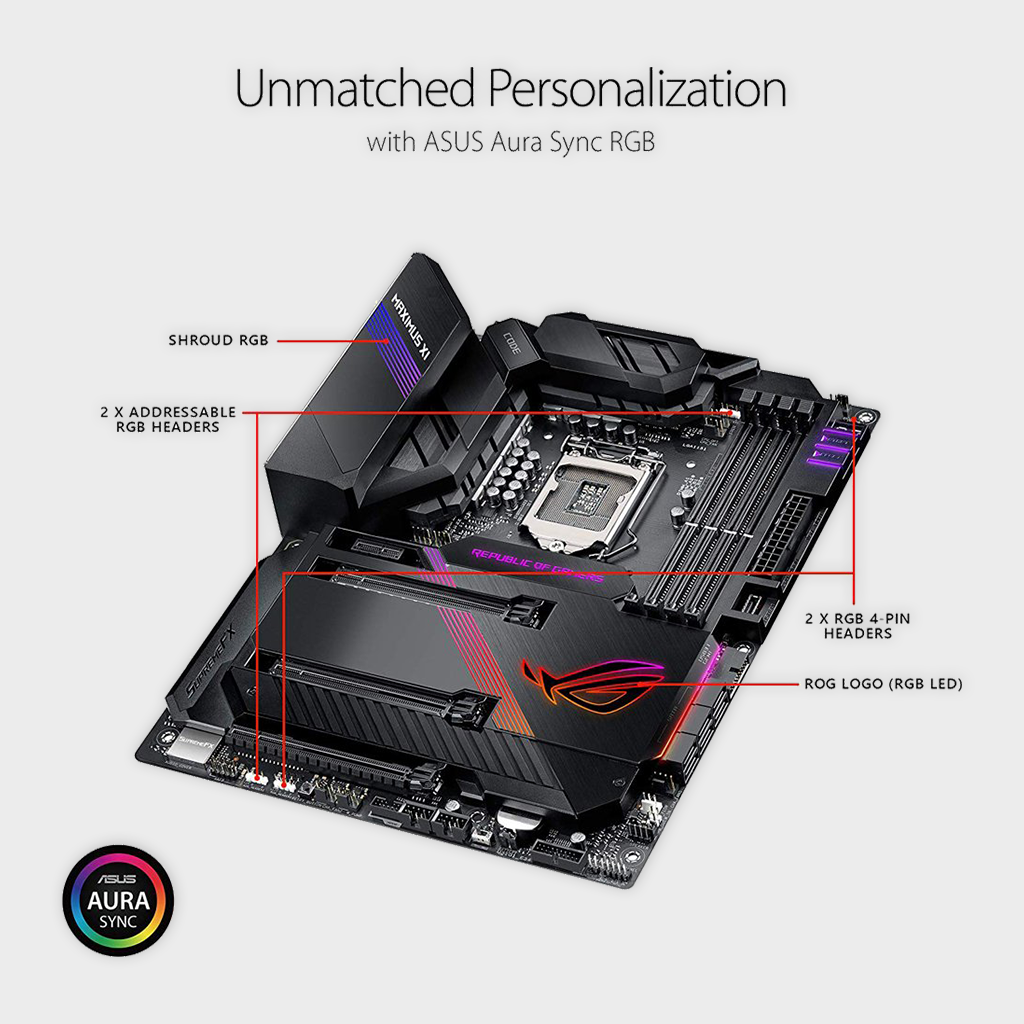

- ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips

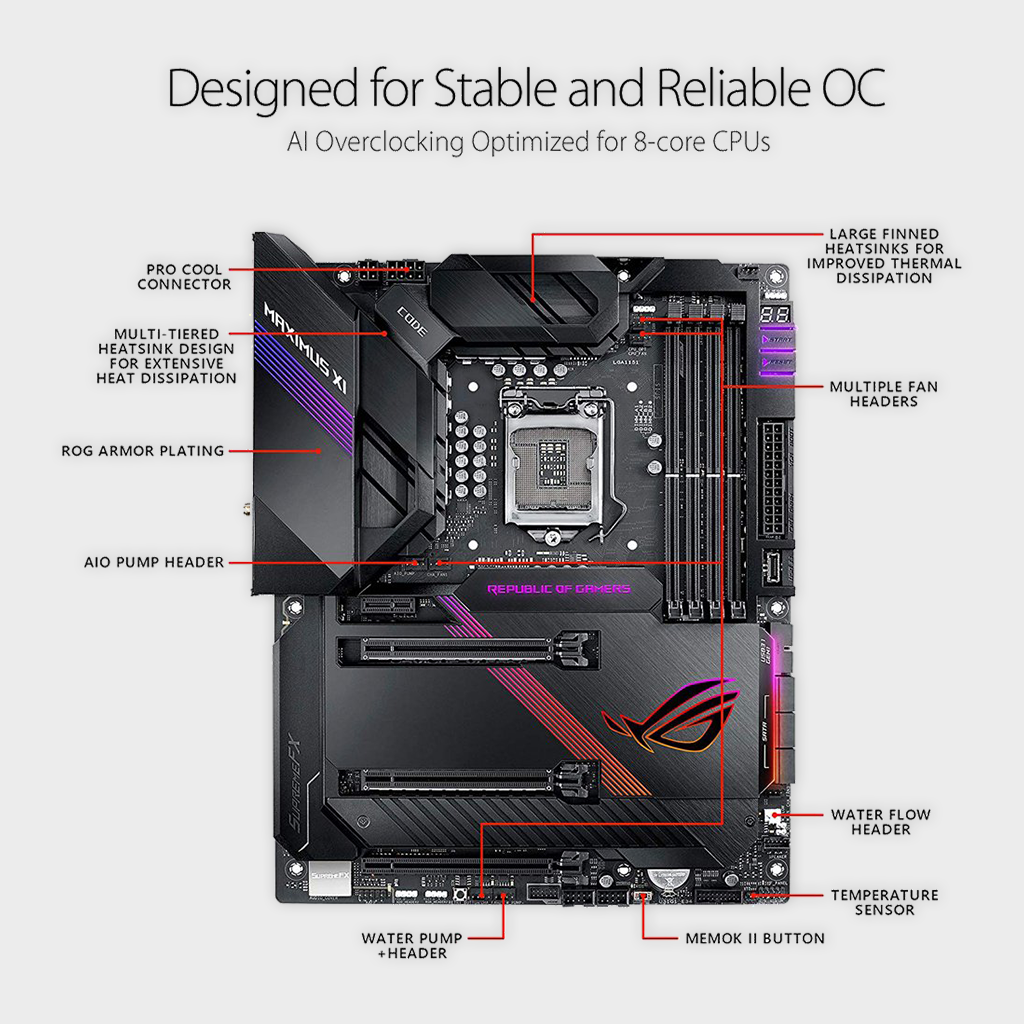

- Perfected cooling with dedicated water cooling zones, M.2 heatsink and various fan control
- Gaming connectivity: Intel Gigabit Ethernet, dual M.2, USB 3.1 Gen 2, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
- 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles tailor-made for your rig
- Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
- Gaming durability: ROG RGB Armor, ROG patented pre-mounted I/O shield, ASUS SafeSlot, and premium components for maximum durability
| CPU |
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Build in Intel® Z390 |
| Memory |
4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory |
| Graphic |
Integrated Graphics Processor- Intel® UHD Graphics support VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz |
| Multi-GPU Support |
Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots |
Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors 2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4) Intel® Z390 Chipset 1 x PCIe 3.0 x16 (max at x4 mode) * 1 x PCIe 3.0 x16 |
| Storage |
Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Intel® Optane™ Memory Ready |
| LAN |
Intel® I219V Anti-surge LANGuard ROG GameFirst V Technology |
| Wireless Data Network |
Intel® Wireless-AC 9560 Wi-Fi 802.11 b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Bluetooth | Bluetooth® 5.0 |
| Audio |
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *3 Audio Feature : - Optical S/PDIF out port(s) at back panel |
| USB Ports |
Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) Intel® Z390 Chipset : 4 x USB 2.0 port(s) ASMedia® USB 3.1 Gen 1 controller : 2 x USB 3.1 Gen 1 port(s) |
| ROG Exclusive Features |
ROG RGB Armor ReTry Button Start Button Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors Extreme Tweaker ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III |
| Special Features |
5-Way Optimization by Dual Intelligent Processors 5 - 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback® - MemOK! II - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BUPDATER - BIOS Flashback® Button - Clear CMOS Button - Reset Button ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector |
| Back I/O Ports |
1 x HDMI 4 x USB 3.1 Gen 2 6 x USB 3.1 Gen 1 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback® Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks Anti-surge LAN (RJ45) port |
| Internal I/O Ports |
2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 1 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x Node Connector(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x USB 3.1 Gen 2 front panel connector 2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x Start button 1 x Reset button 1 x Q-Code |
| Accessories |
User's manual 1 x ROG logo plate sticker 1 x 2-Way SLI bridge(s) 6 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable 1 x ROG Thank you card |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 |
| Manageability | WOL , PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
