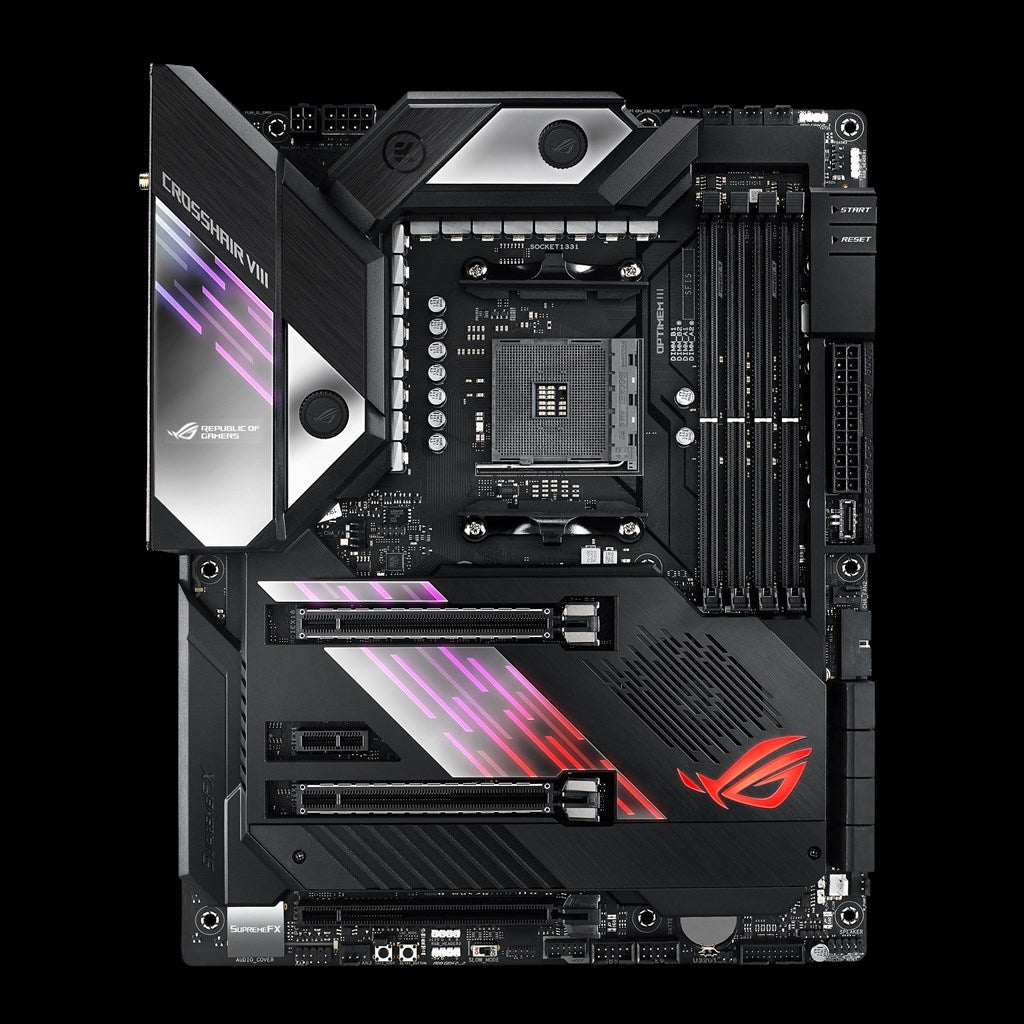

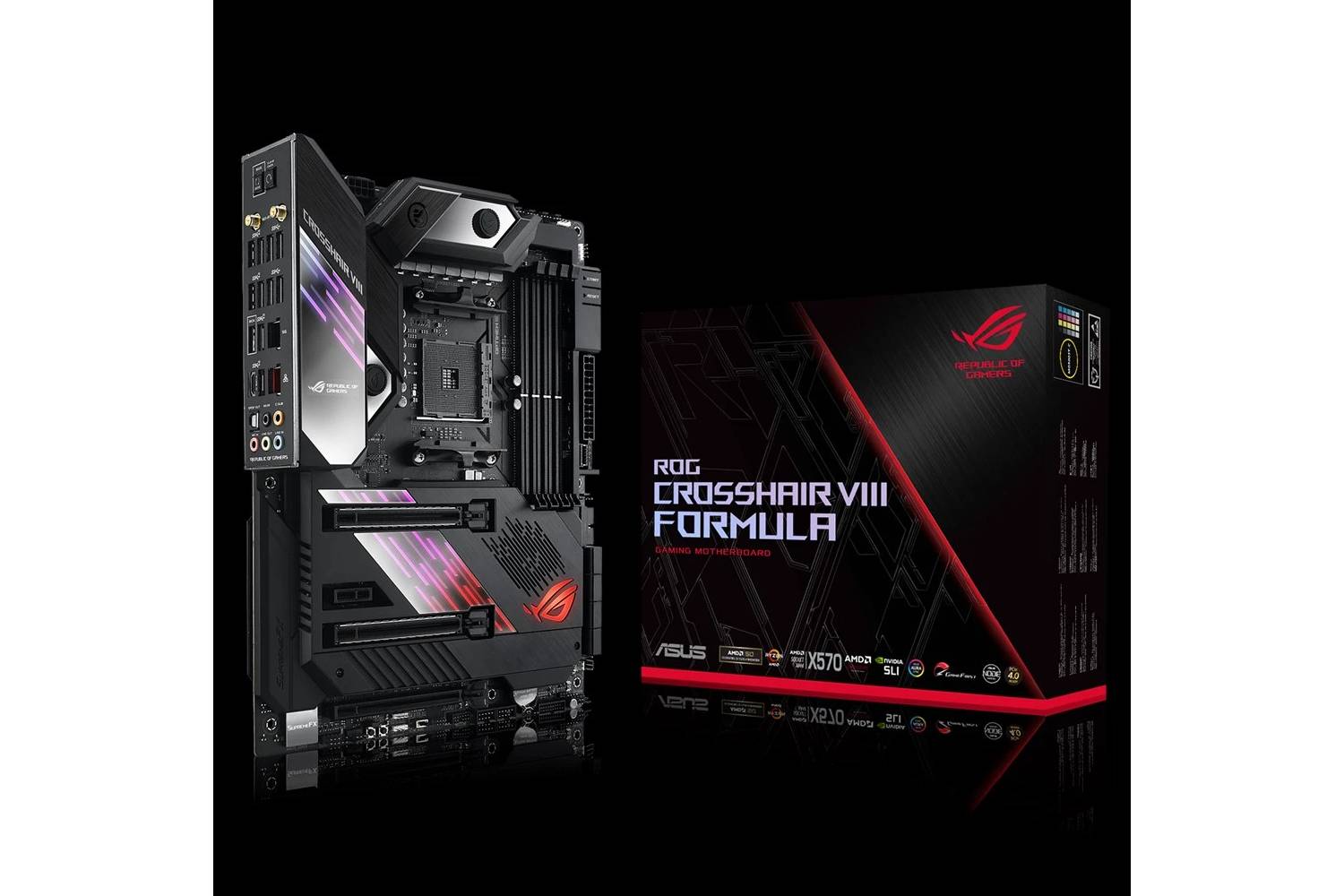

ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard

Free shipping

• AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
• Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
• Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
• 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
• DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
• CPU
  AMD AM4 Socket 3rd and 2nd AMD Ryzejn™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• Chipset
  AMD X570
• Memory
  3rd Gen AMD Ryzen™ Processors
  4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory
  2nd Gen AMD Ryzen™ Processors
  4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
• Multi-GPU Support
  3rd and 2nd Gen AMD Ryzen™ Processors
  Supports NVIDIA® 2-Way SLI® Technology
  Supports AMD 3-Way CrossFireX™ Technology
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  Supports AMD 2-Way CrossFireX™ Technology
• Expansion Slots
  3rd Gen AMD Ryzen™ Processors
  2 x PCIe 4.0 x16 (x16 or dual x8)
  2nd Gen AMD Ryzen™ Processors
  2 x PCIe 3.0 x16 (x16 or dual x8)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD X570 chipset
  1 x PCIe 4.0 x16 (x4 mode)
  1 x PCIe 4.0 x1
• Storage
  3rd Gen AMD Ryzen™ Processors :
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
  2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
  1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  AMD X570 chipset :
  1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
  8 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
• LAN
  Intel® I211-AT
  Aquantia AQC111C 5G LAN
  ASUS LAN Guard
  ROG GameFirst V Technology
• Wireless Data Network
  Intel® Wi-Fi 6 AX200
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
  Up to 2.4Gbps transfer speed
• Bluetooth
  Bluetooth® 5.0
• Audio
  ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
  - Supports : Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - SupremeFX Shielding Technology
  - ESS® ES9023P
  - Supports up to 32-Bit/192kHz playback *
  Audio Feature :
  - Gold-plated jacks
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar III
  - Sonic Studio III + Sonic Studio Link
  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  3rd Gen AMD RyzenTM Processors :
  4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A)
  2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
  4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A)
  AMD X570 chipset :
  1 x USB 3.2 Gen 2 front panel connector port(s)
  AMD X570 chipset :
  4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C)
  AMD X570 chipset :
  8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
  AMD X570 chipset :
  4 x USB 2.0 port(s)
• ROG Exclusive Features
  ROG RGB Armor
  Start Button
  Reset Button
  ROG Aura
  - Aura Lighting Control
  - Aura RGB Strip Headers
  Extreme Engine Digi+ :
  - IR3555 PoweIRstage®
  - MicroFine Alloy Chokes
  - 10K Black Metallic Capacitors
  ROG Extreme OC kit :
  - Safe Boot button
  - Slow Mode
  - LN2 Mode
  UEFI BIOS features :
  - Tweakers' Paradise
• Special Features
  ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
  Gamer's Guardian:
  - DRAM Overcurrent Protection
  - 10K Black Metallic Capacitors
  - ESD Guards on LAN, Audio,and USB ports
  ASUS SafeSlot - Protect your graphics card Investment
  LiveDash OLED
  AURA :
  - Aura Lighting Control
  - Aura RGB Strip Headers
  - Addressable Gen 2 Header
  ASUS Exclusive Features :
  - USB BIOS Flashback^®
  - AI Suite 3
  - Ai Charger
  - ASUS CrashFree BIOS 3
  - Armoury Crate
  - Pre-mounted I/O Shield
  - ASUS NODE: hardware control interface
  - BIOS Flashback^® Button
  - Clear CMOS Button
  ASUS Q-Design :
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-DIMM
  - ASUS Q-Connector

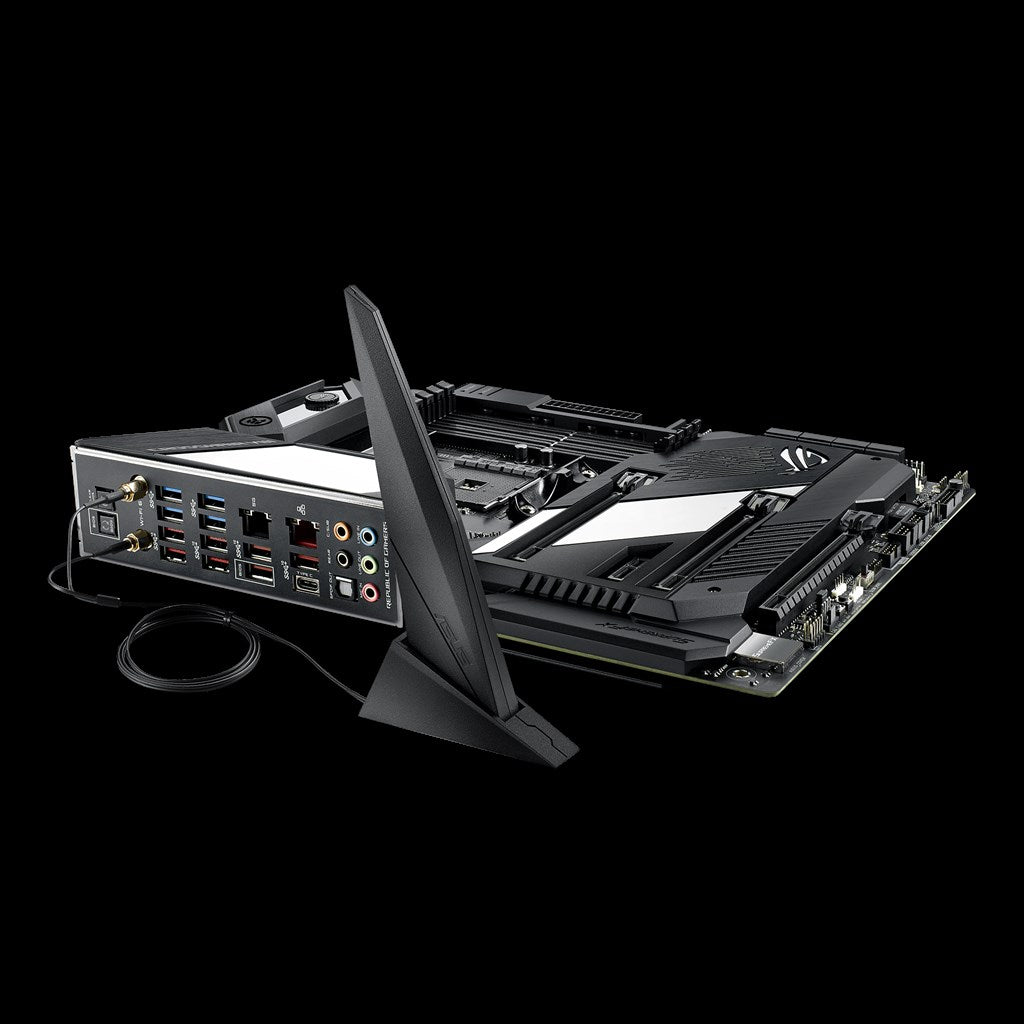

• Back I/O Ports
  1 x Optical S/PDIF out
  1 x Clear CMOS button(s)
  1 x USB BIOS Flashback^® Button(s)
  1 x ASUS Wi-Fi Module
  1 x Gold-plated audio jacks
  4 x USB 3.2 Gen 1 (up to 5Gbps) ports
  8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
  Anti-surge LAN (RJ45) port
  1 x AQC-111C 5G LAN port
• Accessories
• User's manual
  1 x ROG logo plate sticker
  4 x SATA power cable
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x ROG big sticker
  1 x Q-Connector
  1 x Wi-Fi Antenna(s)
  1 x Extension Cable for RGB strips (80 cm)
  1 x Extension cable for Addressable LED
  1 x ROG coaster(s)
  2 x ROG weave SATA 6G cable
  1 x ROG Thank you card
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
• Manageability
  WOL, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
