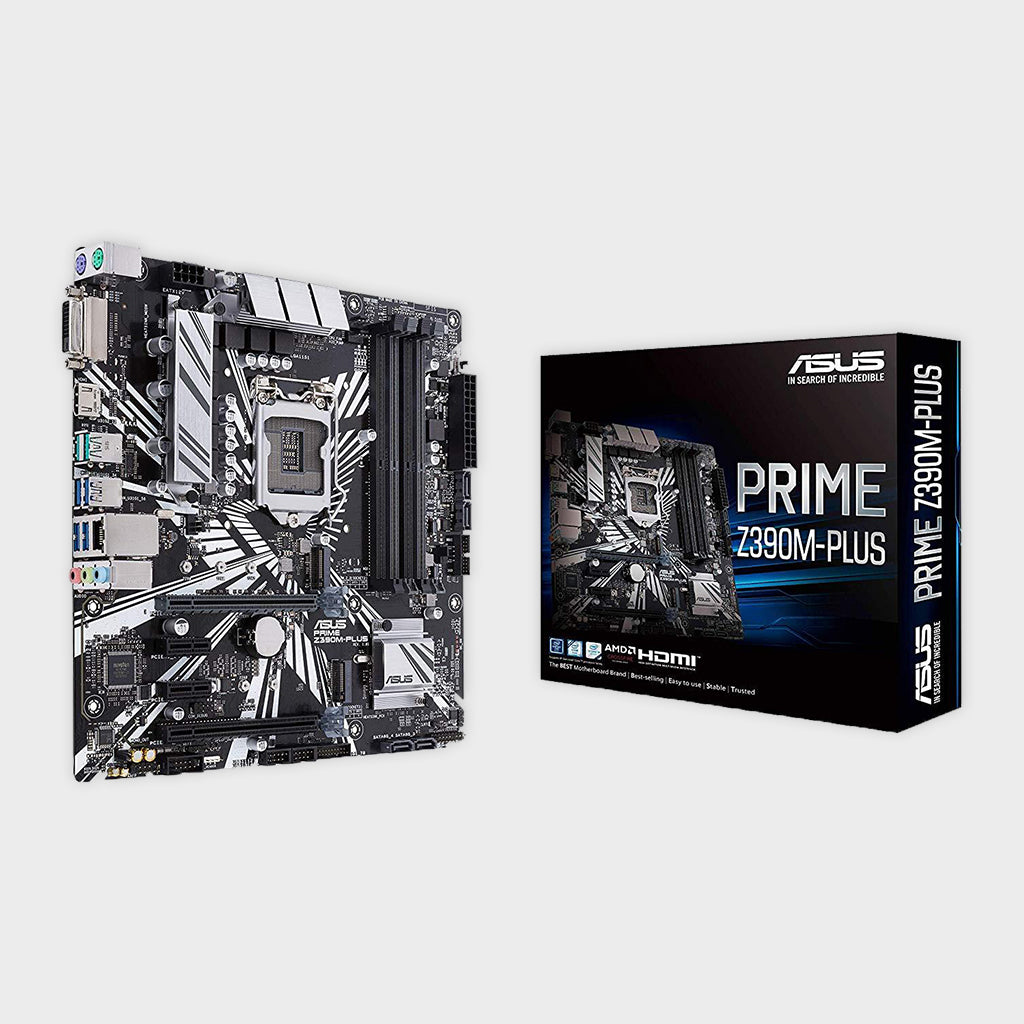

ASUS PRIME Z390M-PLUS Motherboard

• OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Enhanced power solution: Premium components provide better power efficiency
• UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
• Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
• Ultrafast connectivity: Dual native M.2 and NVMe PCIe RAID support for lightning-fast storage speeds
• 5X Protection III: Multiple hardware safeguards for all-round protection

CPU	Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors  Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® Z390
Memory	4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/ 2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture  Supports Intel® Extreme Memory Profile (XMP) * The maximum memory frequency supported varies by processor.
Graphic	Integrated Graphics Processor- Intel® HD Graphics support  Multi-VGA output support : HDMI/DVI-D ports  - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support	Supports AMD CrossFireX™ Technology
Expansion Slots	1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode)  2 x PCIe 3.0/2.0 x1
Storage	Intel® Z390 Chipset :  1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready  Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
LAN	Intel® I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC  - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports	Intel® Z390 Chipset :  2 x USB 3.1 Gen 2 port(s)  Intel® Z390 Chipset :  8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset :  4 x USB 2.0 port(s) (4 at mid-board)
Special Features	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS Optimem II： - Improved DDR4 Stability ASUS EPU : - EPU  ASUS Exclusive Features : - MemOK! II - AI Suite 3 - Ai Charger  ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink  - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3  - ASUS EZ Flash 3  - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A,  4 x USB 3.1 Gen 1 Type-A  3 x Audio jack(s)
Internal I/O Ports	2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SCD (by region)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS EZ Update  Anti-virus software (OEM version)
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty	3 Years
