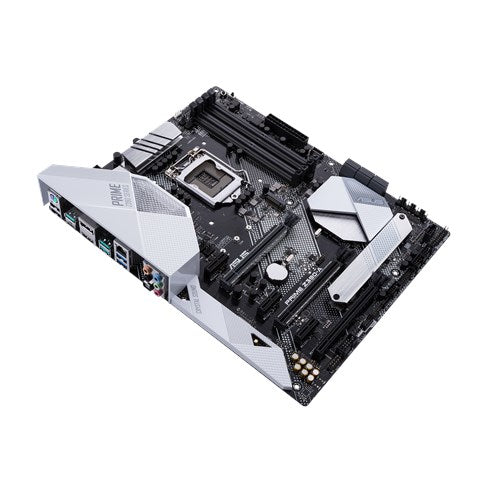

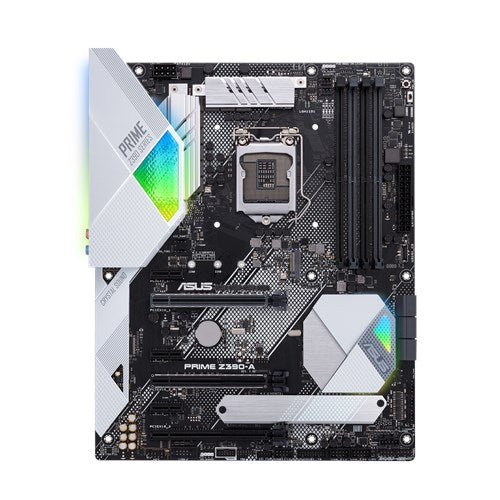

ASUS PRIME Z390-A Motherboard

• AI overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts.
• OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Enhanced power solution: Premium components provide better power efficiency
• UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
• Industry-leading cooling options: Comprehensive controls for fans and AIO pimp, via Fan Xpert 4 or the acclaimed UEFI
• M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled transfer speeds and enhanced reliability
• Next-gen connectivity: Supreme flexibility with Intel Optane memory ready, Intel® RST support, Thunderbolt 3 header and dual M.2 support
• ASUS Aura Sync: Controllable onboard RGB lighting easily syncs with an ever-growing portfolio of Aura-capable hardware

CPU	Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors  Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® Z390
Memory	4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/ 3866(O.C.)/3733(O.C.)/3600(O.C.)/ 3466(O.C.)/3400(O.C.)/3333(O.C.)/ 3300(O.C.)/3200(O.C.)/3000(O.C.)/ 2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory  Dual Channel Memory Architecture  Supports Intel® Extreme Memory Profile (XMP) * The maximum memory frequency supported varies by processor.
Graphic	Integrated Graphics Processor- Intel® HD Graphics support  Multi-VGA output support : HDMI/DVI-D ports  - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support	Supports NVIDIA® 2-Way SLI™ Technology  Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) *1 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *4 3 x PCIe 3.0/2.0 x1  * For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings. ** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
Storage	Intel® Z390 Chipset :  1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*5 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready  Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
LAN	Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility ASUS LAN Guard
Audio	Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback *6 Audio Feature : - DTS Headphone:X  - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports	Intel® Z390 Chipset :  4 x USB 3.1 Gen 2 port(s)  Intel® Z390 Chipset :  5 x USB 3.1 Gen 1 port(s) (3 at mid-board) Intel® Z390 Chipset :  2 x USB 2.0 port(s) (2 at back panel, ) GL852G USB Hub :  4 x USB 2.0 port(s) (4 at mid-board)
Special Features	5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App - Procool Power connector design TPU - Auto Tuning, TPU, GPU Boost Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS Optimem II： - Improved DDR4 Stability ASUS EPU : - EPU  ASUS Exclusive Features : - MemOK! II - AI Suite 3 - Ai Charger  ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink  - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3  - ASUS EZ Flash 3  - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM  - ASUS Q-Connector AURA: RGB Lighting Control Turbo APP - featuring system performance tuning for selected applications M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

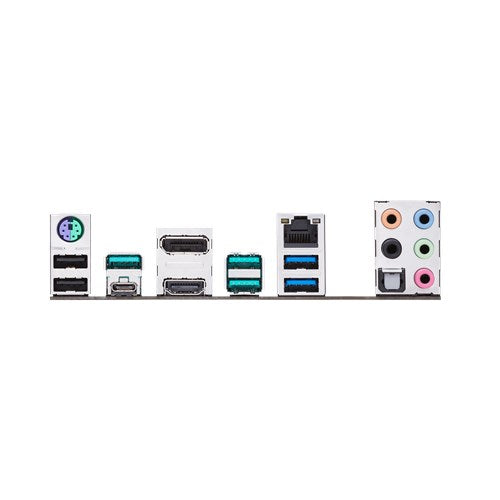

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 3 x USB 3.1 Gen 2 (teal blue)Type-A,  1 x USB 3.1 Gen 2 Type-C 2 x USB 3.1 Gen 1 (blue) Type-A  2 x USB 2.0  1 x Optical S/PDIF out 5 x Audio jack(s)
Internal I/O Ports	2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1 front panel TypeC™ connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector  1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! II switch(es) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x EXT_Fan header 1 x Thermal sensor connector 1 x M.2 Fan Header
Accessories	User's manual ASUS Q-Shield 3 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x SCD  1 x CPU Fan Holder
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Support Disc	Drivers ASUS Utilities ASUS EZ Update  Anti-virus software (OEM version)
Operating System	Windows® 10 64-bit
Form Factor	ATX Form Factor  12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Management Solution	WOL by PME, PXE
Waranty	3 Years
