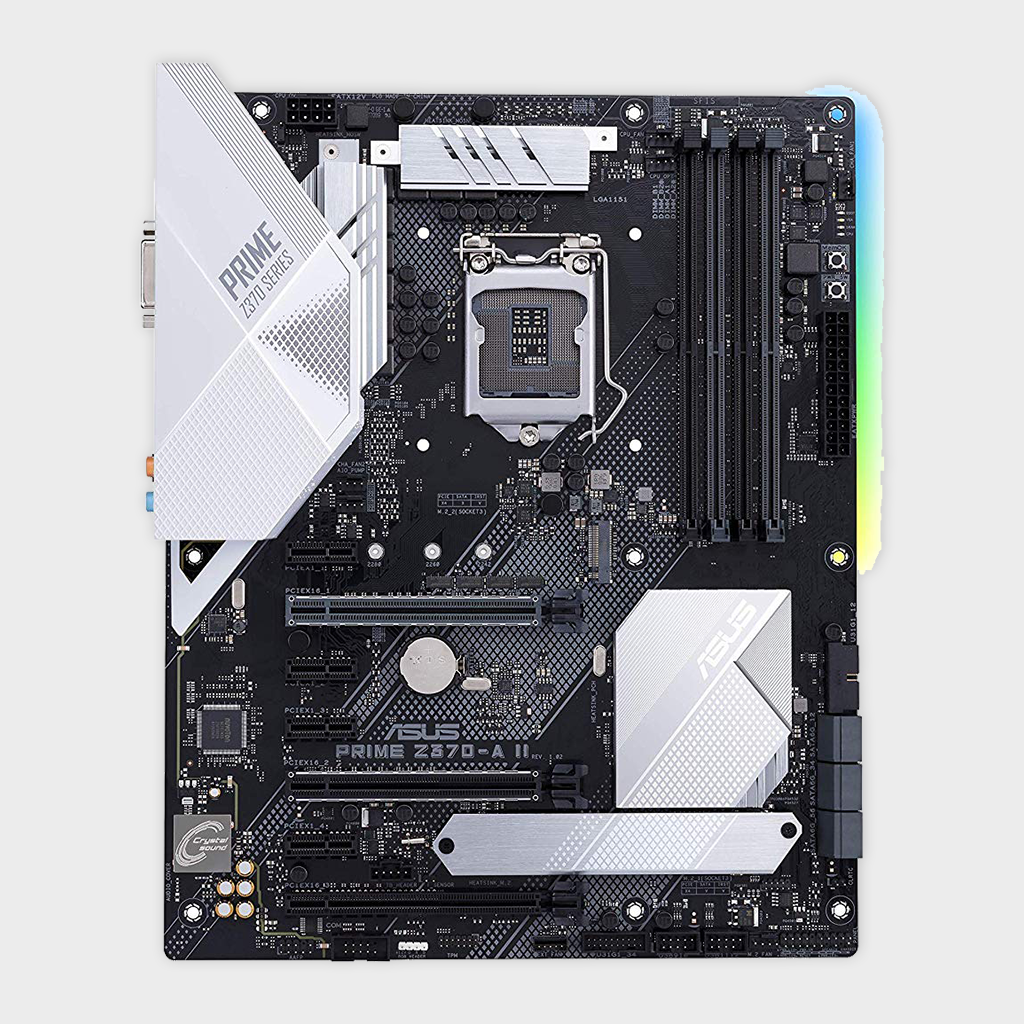

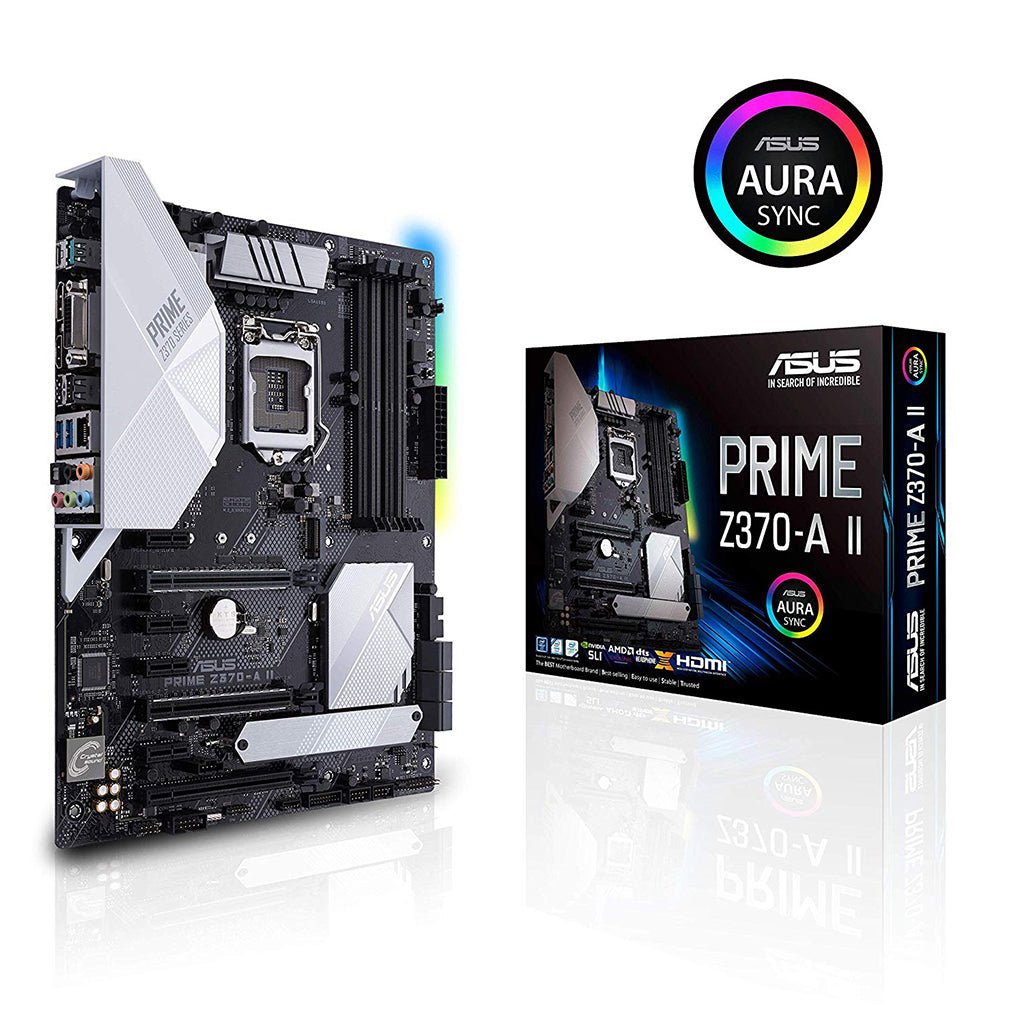

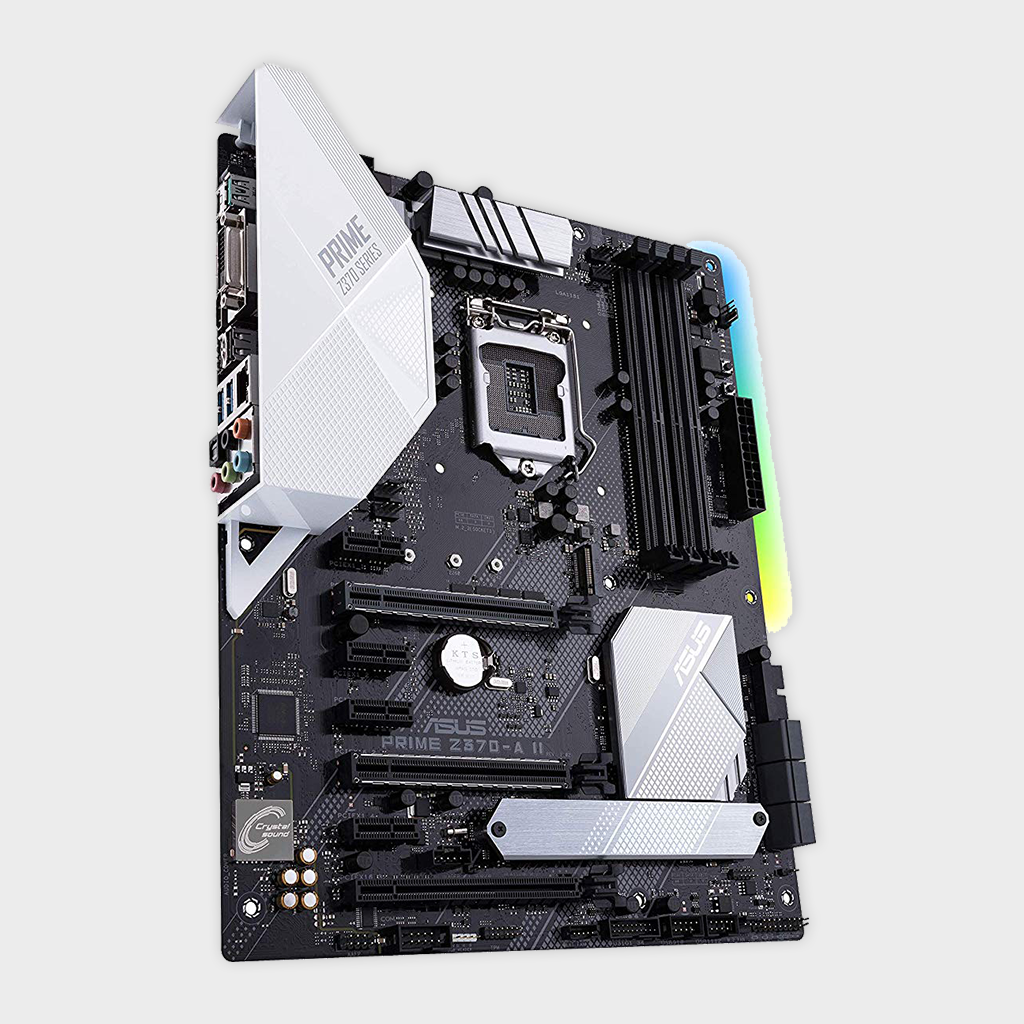

ASUS PRIME Z370-A II MOTHERBOARD

• Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Enhanced power solution: Premium components provide better power efficiency
• 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
• Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
• Next-gen connectivity: Supreme flexibility with Intel Optane memory ready, Thunderbolt 3 and dual M.2 support
• M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled transfer speeds and enhanced reliability
• ASUS Aura Sync: Controllable onboard RGB lighting that can be easily synced with an ever-growing portfolio of Aura-capable hardware

Brand	Asus
CPU	Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron®Processors  Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® Z370
Memory	4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory  Dual Channel Memory Architecture  Supports Intel® Extreme Memory Profile (XMP) * The maximum memory frequency supported varies by processor.
Graphic	Integrated Graphics Processor- Intel® HD Graphics support  Multi-VGA output support : HDMI/DVI-D/DisplayPort ports  - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz  Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support	Supports NVIDIA® 2-Way SLI™ Technology  Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode)  4 x PCIe 3.0/2.0 x1  * For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings. ** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
Storage	1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
LAN	Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility ASUS LAN Guard
Audio	Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) - Supports up to 32-Bit/192kHz playback *3 Audio Feature : - DTS Headphone:X  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - Power pre-regulator: Reduces power input noise to ensure consistent performance
USB Ports	ASMedia® USB 3.1 Gen 2 controller :  1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output) ASMedia® USB 3.1 Gen 2 controller :  1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-CTM, Support 3A power output) Intel® Z370 Chipset :  6 x USB 3.1 Gen 1 port(s) (2 at back panel, , 4 at mid-board) Intel® Z370 Chipset :  6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features	OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention  - ASUS ESD Guards - Enhanced ESD protection ASUS TPU : - Auto Tuning - GPU Boost  ASUS EPU : - EPU  AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - MemOK! - AI Suite 3 - Ai Charger  - Turbo LAN - Crystal Sound 3 - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS O.C. Profile - ASUS CrashFree BIOS 3  - ASUS EZ Flash 3  - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM  - ASUS Q-Connector
Back I/O Ports	1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 Type-A,  1 x USB 3.1 Gen 2 USB Type-CTM 2 x USB 3.1 Gen 1  2 x USB 2.0  1 x Optical S/PDIF out 5 x Audio jack(s)
Internal I/O Ports	1 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector 1 x AIO PUMP Header 1 x M.2 Fan Header
Accessories	User's manual ASUS Q-Shield 1 x ASUS Fan Holder 3 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-connector(s) (1 in 1)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS,  ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,  F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability	WfM 2.0, DMI 3.1, WOL by PME, PXE
Operating System	Windows® 10 64-bit
Form Factor	ATX Form Factor  12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
