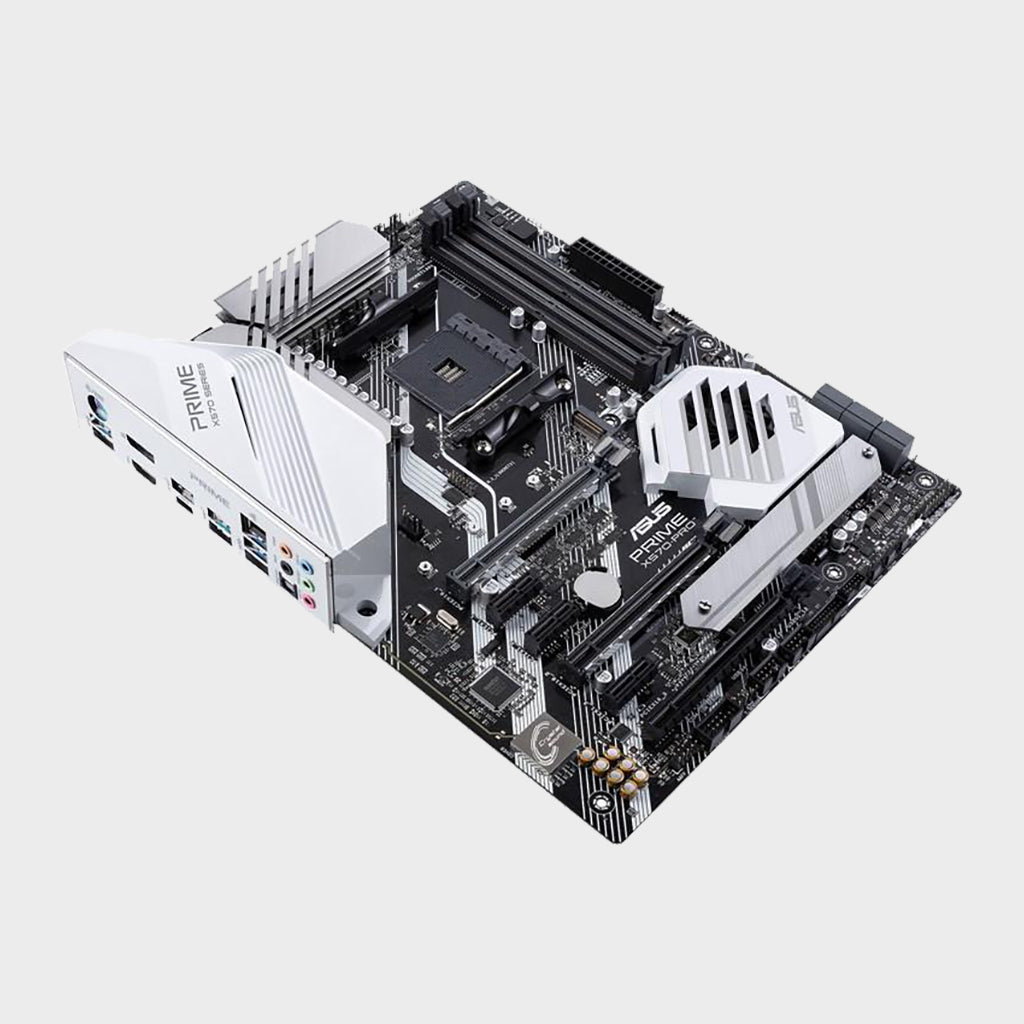

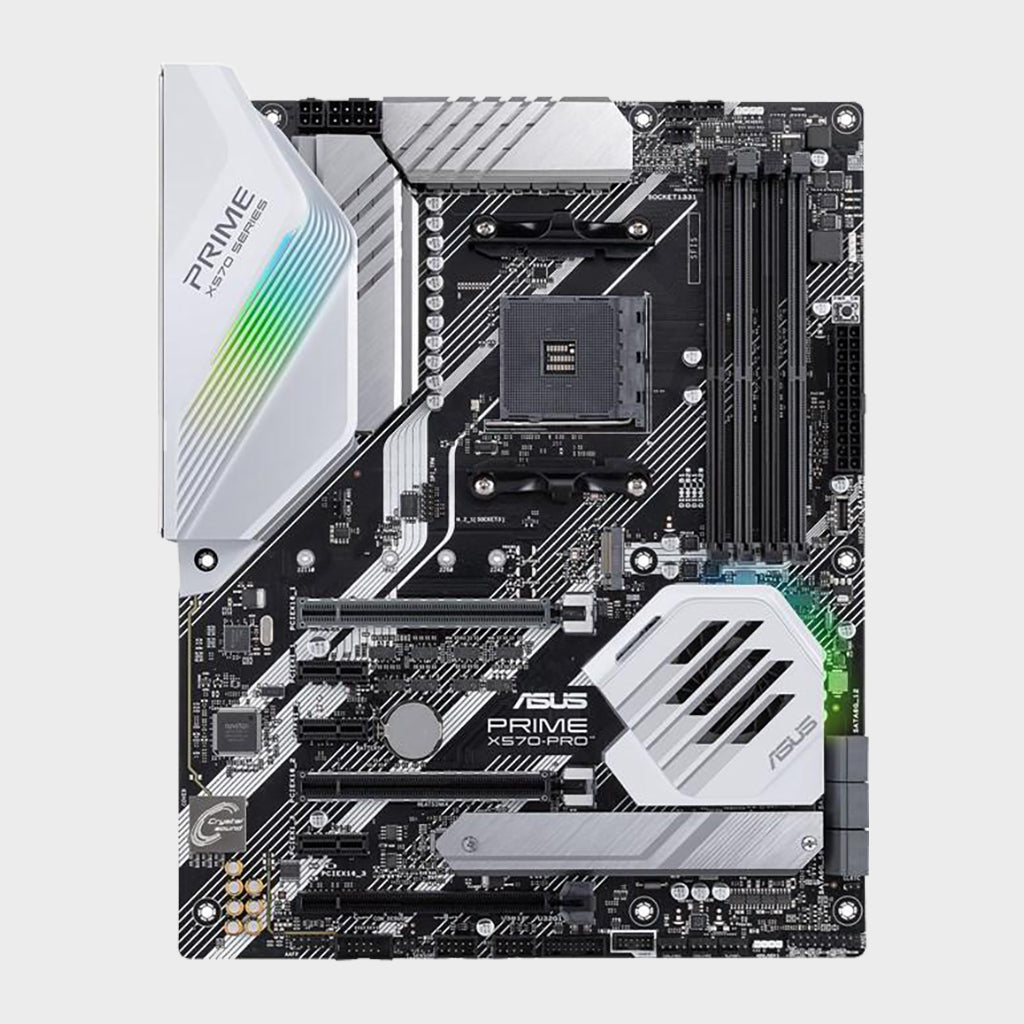

Asus PRIME X570-PRO Motherboard

Asus PRIME X570-PRO Motherboard
Asus PRIME X570-PRO Motherboard
Asus PRIME X570-PRO Motherboard
ASUS

Asus PRIME X570-PRO Motherboard

SKU: PRIME-X570-PRO/CSM

22% OFF
Sale price ₹ 28,500.00 Regular price ₹ 22,246.00

Click here to be notified by email when Asus PRIME X570-PRO Motherboard becomes available.

EMI available on credit card.
Cardless EMI Available by Zest Money with all order over 3000.00, ZestMoney: 0% Interest available Cardless EMI Available by Zest Money.
  • AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen™ processors
  • Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
  • Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips
  • CPU
    AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    * Refer to www.asus.com for CPU support list
    * Due to CPU limitation, CPU cores supported varies by processors.
  • Chipset
    AMD X570
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
    2nd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory capacity supported vary depending on the CPU you installed.
  • Graphic
    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
  • Multi-GPU Support
    3rd and 2nd Gen AMD Ryzen™ Processors
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Supports AMD 2-Way CrossFireX™ Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    2 x PCIe 4.0 x16 (x16 or dual x8)
    2nd Gen AMD Ryzen™ Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0 x16 (x8 mode)
    AMD X570 chipset
    1 x PCIe 4.0 x16 (max at x4 mode)
    3 x PCIe 4.0 x1
  • Storage
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    AMD X570 chipset :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
  • LAN
    Intel® I211-AT
    ASUS LAN Guard
  • Audio
    Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    - Front panel audio connector (AAFP)
    - Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - EMI protection cover to prevent electrical noise to affect the amplifier quality
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A)
    AMD X570 chipset :
    1 x USB 3.2 Gen 2 front panel connector port(s)
    AMD X570 chipset :
    4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C)
    AMD X570 chipset :
    2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
    AMD X570 chipset :
    4 x USB 2.0 port(s) (4 at mid-board)
  • Special Features
    5-Way Optimization by Dual Intelligent Processors 5
    - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
    DIGI+ VRM: Digital power design with Dr. MOS
    EPU Guidance
    TPU Insight
    Fan Xpert4
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
    Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM - Digital power design with Dr. MOS
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    ASUS SafeSlot - Protect your graphics card Investment
    ASUS OptiMem:
    - Improved DDR4 Stability
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Addressable Gen 2 Header
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - Turbo LAN
    - Armoury Crate
    - Pre-mounted I/O Shield
    ASUS Quiet Thermal Solution :
    - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
    - ASUS Fan Xpert 4
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

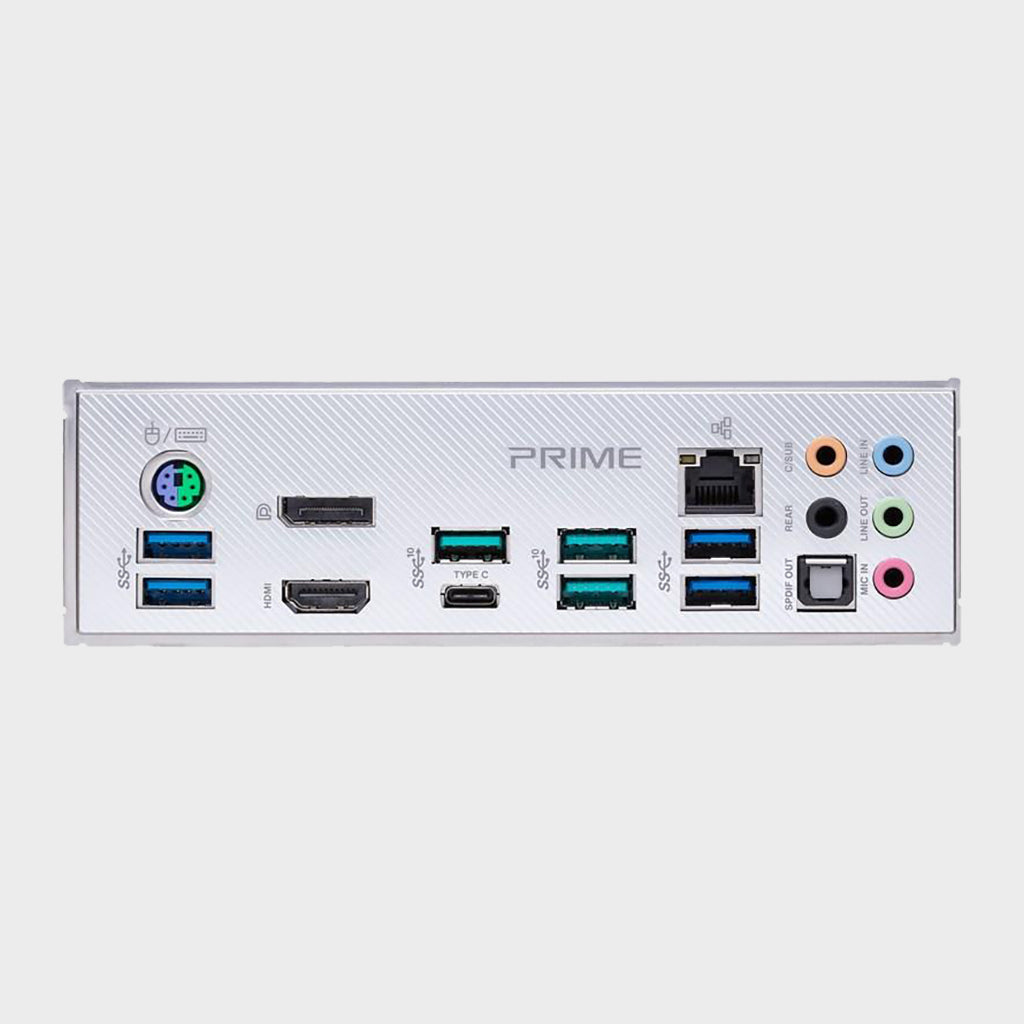

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
    3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
    1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
  • Accessories
    User's manual
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x Q-connector(s) (1 in 1)
    1 x Extension cable for Addressable LED
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
