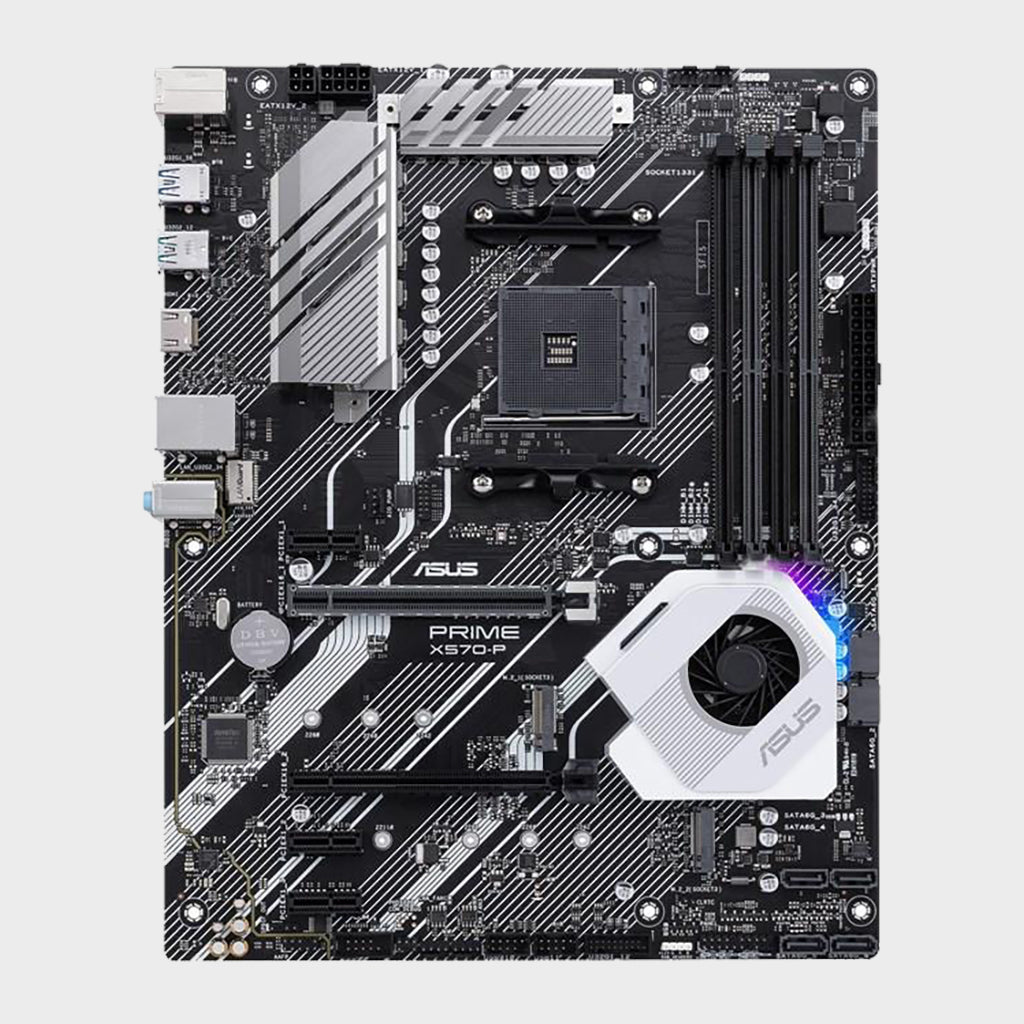

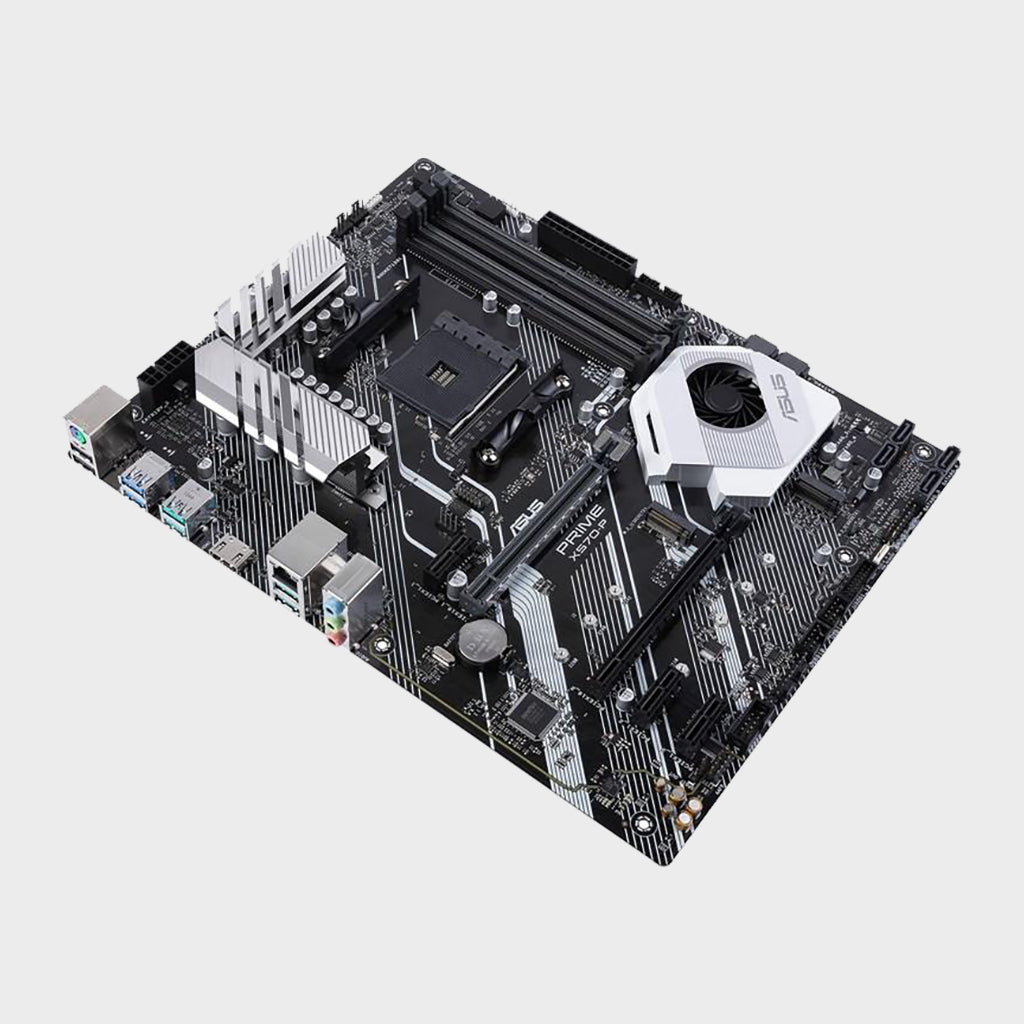

Asus PRIME X570-P Motherboard

• CPU
  AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  * Refer to www.asus.com for CPU support list
  * Due to CPU limitation, CPU cores supported varies by processors.
• Chipset
  AMD X570
• Memory
  3rd Gen AMD Ryzen™ Processors
  4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
  2nd Gen AMD Ryzen™ Processors
  4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory capacity supported vary depending on the CPU you installed.
• Graphic
  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  VGA output support : HDMI port
  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
• Multi-GPU Support
  3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  Supports AMD 2-Way CrossFireX™ Technology
• Expansion Slots
  3rd Gen AMD Ryzen™ Processors
  1 x PCIe 4.0 x16 (x16 mode)
  2nd Gen AMD Ryzen™ Processors
  1 x PCIe 3.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD X570 chipset
  1 x PCIe 4.0 x16 (max at x4 mode)
  3 x PCIe 4.0 x1
• Storage
  3rd Gen AMD Ryzen™ Processors :
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
  2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  AMD X570 chipset :
  1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 10
• LAN
  Realtek® RTL8111H
  ASUS LAN Guard
• Audio
  Realtek® S1200A 8-Channel High Definition Audio CODEC *
  - Supports : Jack-detection, Front Panel Jack-retasking
  - Front panel audio connector (AAFP)
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
  2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)
  3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
  2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)
  AMD X570 chipset :
  2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
  AMD X570 chipset :
  4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
  AMD X570 chipset :
  5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
  * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors
• Special Features
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM - Digital power design with Dr. MOS
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  ASUS SafeSlot - Protect your graphics card Investment
  ASUS OptiMem：
  - Improved DDR4 Stability
  ASUS EPU :
  - EPU
  AURA :
  - Aura RGB Strip Headers
  - Aura Control
  - Addressable Gen 2 Header
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - Armoury Crate
  ASUS Quiet Thermal Solution :
  - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
  - ASUS Fan Xpert 4
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM

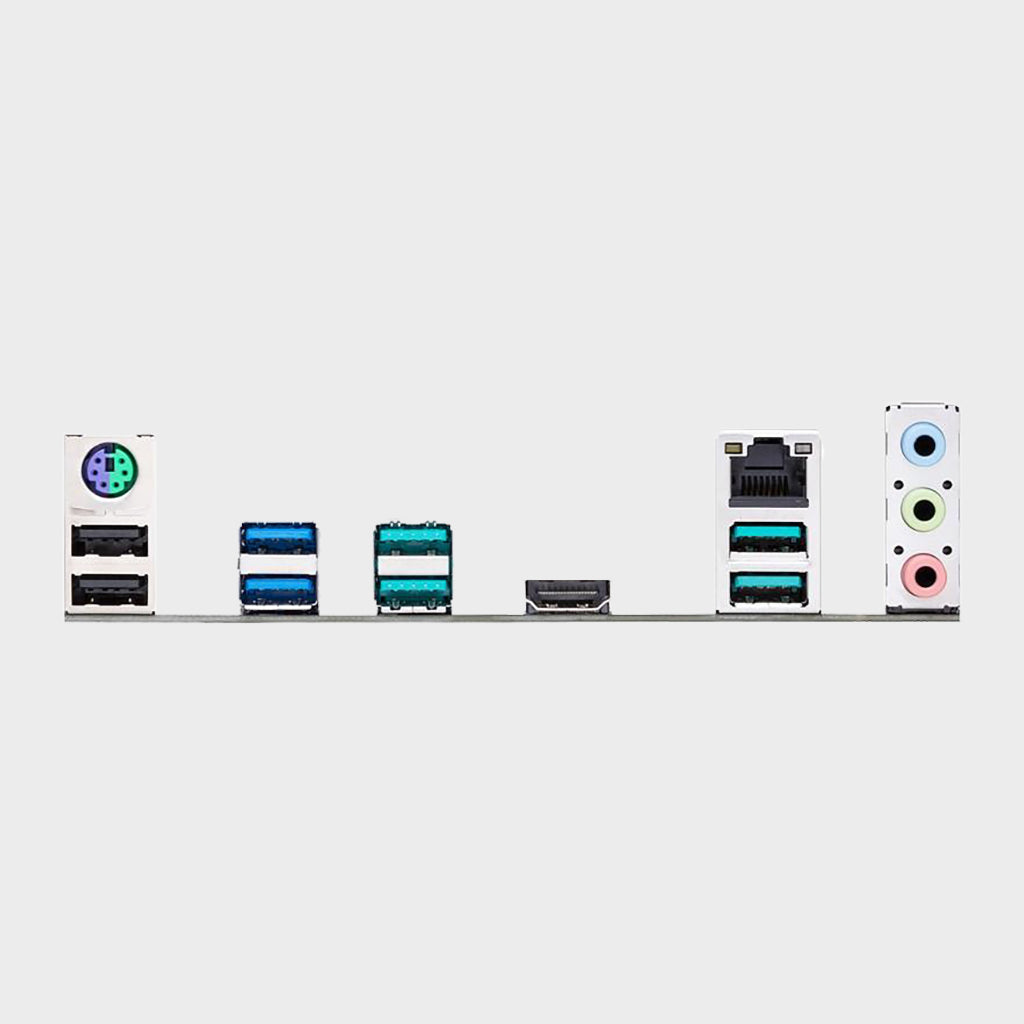

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 2.0
  3 x Audio jack(s)
  2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
  4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *)
  * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x Extension cable for Addressable LED
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WOL by PME, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
