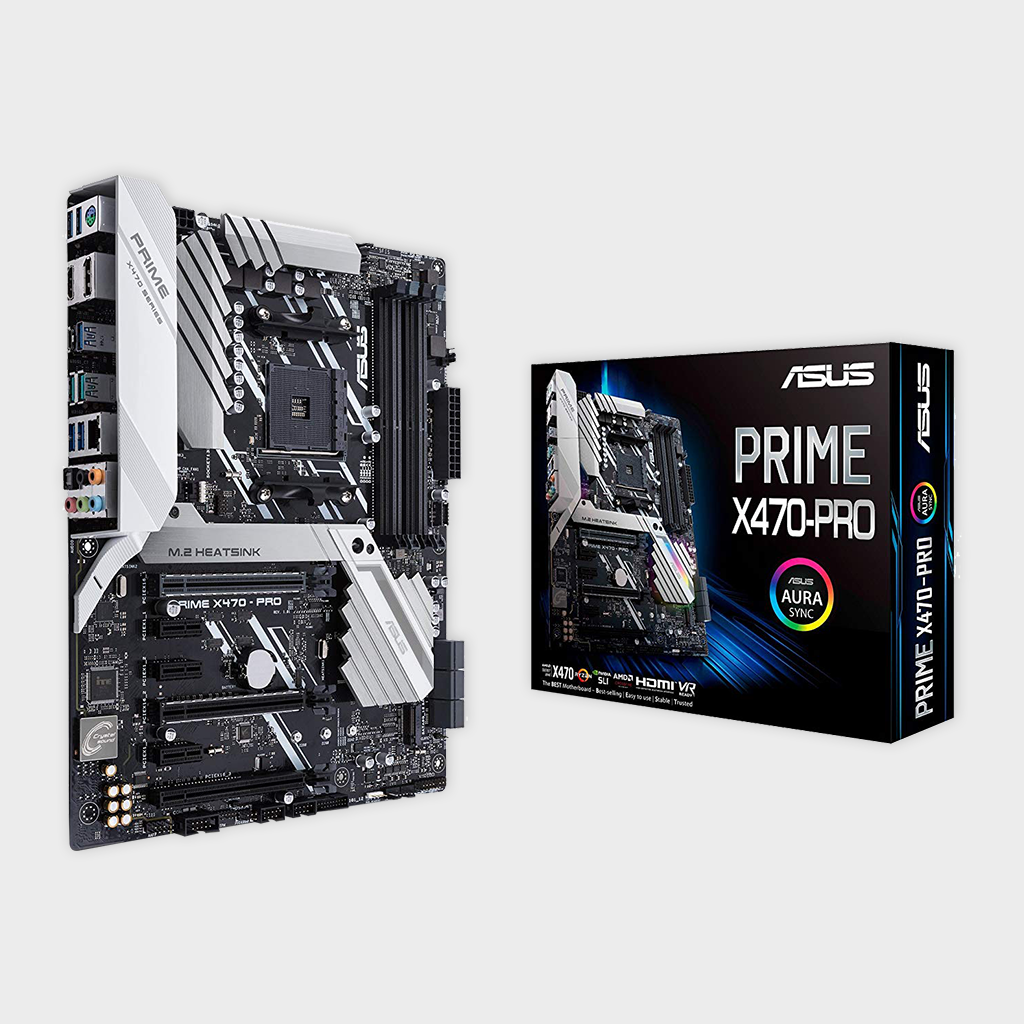

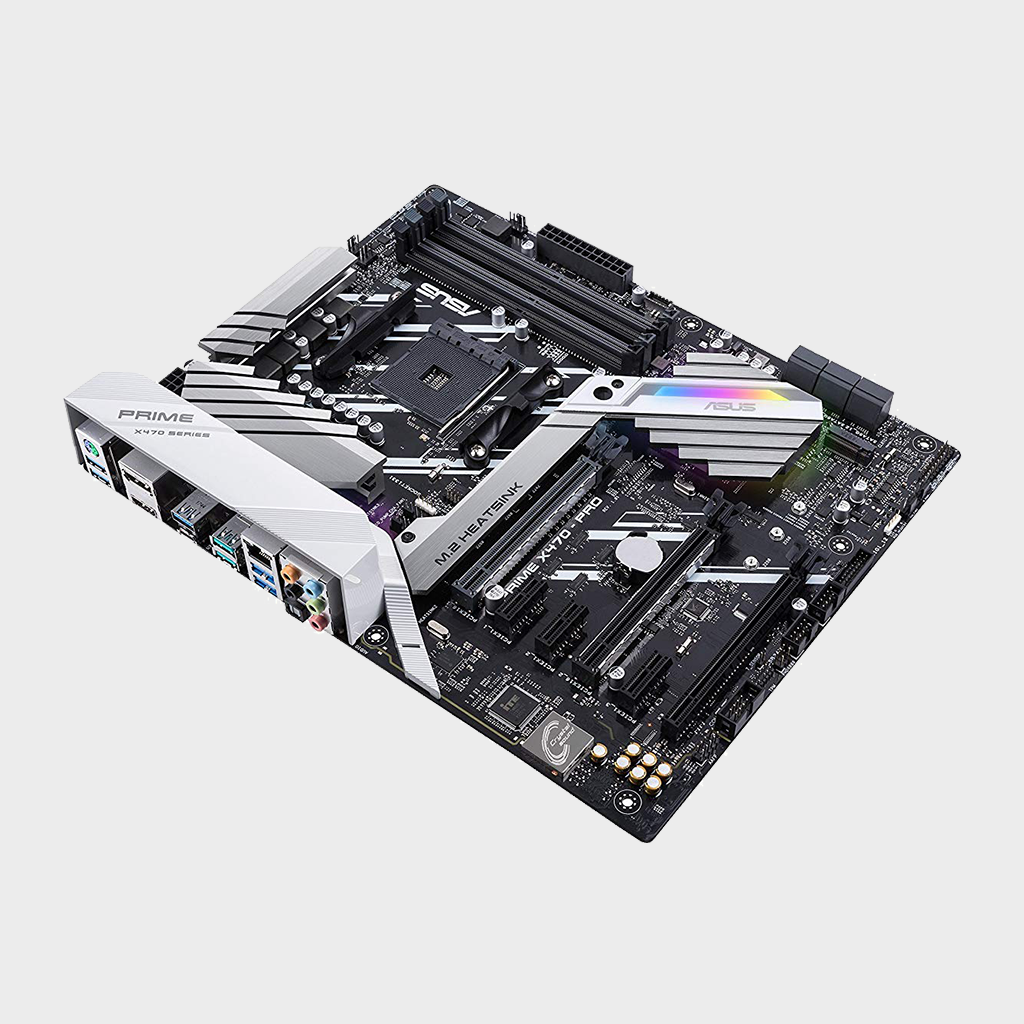

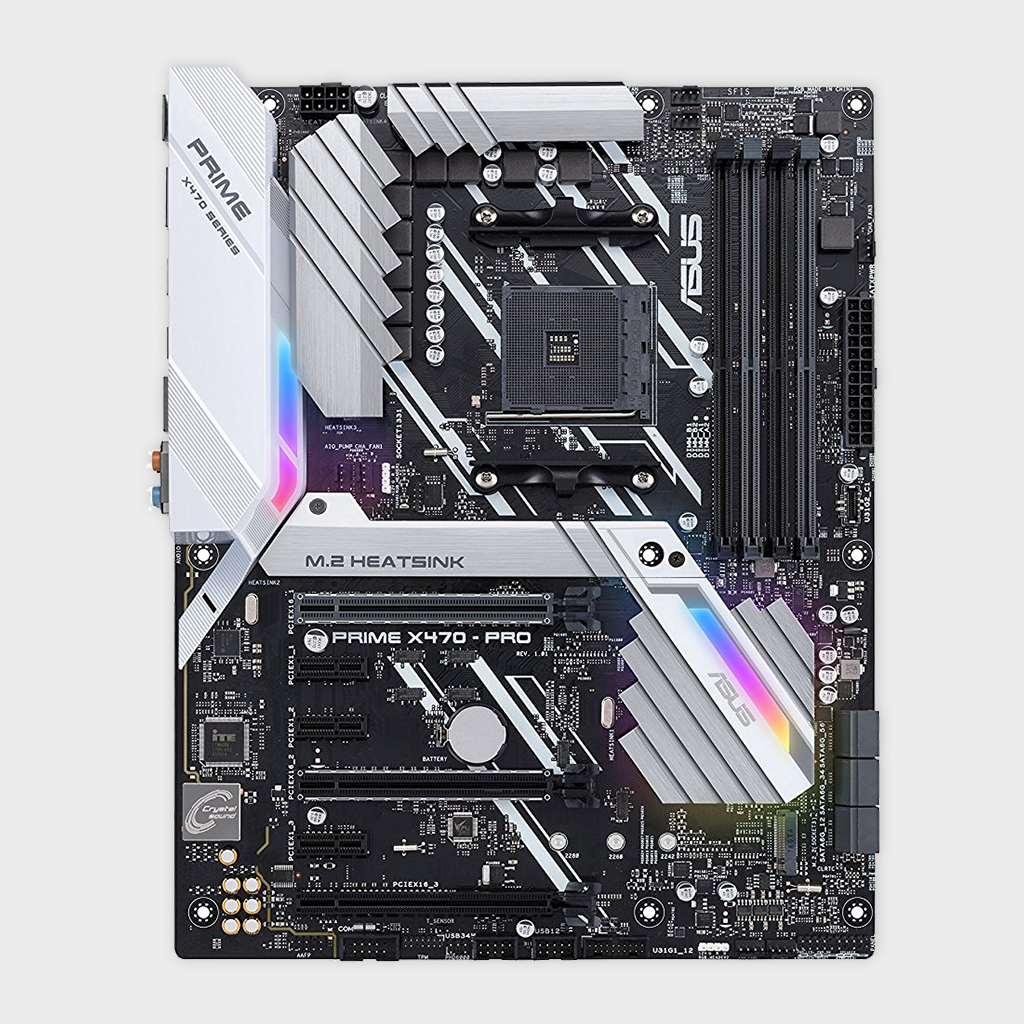

ASUS PRIME-X470-PRO MOTHERBOARD

CPU

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors

Chipset

AMD X470

Memory

AMD Ryzen™ 2nd Generation Processors

4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *

AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors

4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

AMD 7th Generation A-Series/Athlon X4 Processors

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

Graphic

Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU

Multi-VGA output support : HDMI/DisplayPort ports

- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Maximum shared memory of 2048 MB (for iGPU exclusively)

Multi-GPU Support

AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD CrossFireX™ Technology

AMD Ryzen™ with Radeon™ Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors

Supports AMD CrossFireX™ Technology

Expansion Slots

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors

2 x PCIe 3.0 x16 (x16 or dual x8)

AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors

1 x PCIe 3.0 x16 (x8 mode)

AMD X470 chipset

1 x PCIe 2.0 x16 (max at x4 mode) *1

3 x PCIe 2.0 x1

Storage

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

AMD 7th Generation A-Series/Athlon X4 Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

AMD X470 chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*3

6 x SATA 3Gb/s port(s)

Support Raid 0, 1, 10

LAN

Intel® I211-AT

Audio

Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Front panel audio connector (AAFP)

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- EMI protection cover to prevent electrical noise to affect the amplifier quality

USB Ports

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A)

AMD X470 chipset :

1 x USB 3.1 Gen 2 front panel connector port(s)

AMD X470 chipset :

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A + USB Type-CTM, 2 at mid-board)

AMD X470 chipset :

4 x USB 2.0 port(s) (4 at mid-board)

ASMedia® USB 3.1 Gen 2 controller :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

Special Features

5-Way Optimization by Dual Intelligent Processors 5

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

Fan Xpert4

- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control

ASUS 5X Protection III :

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: 10 Phase digital power design

- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention

- ASUS ESD Guards - Enhanced ESD protection

ASUS TPU :

- Auto Tuning

ASUS EPU :

- EPU

AURA :

- Aura Lighting Control

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- Turbo LAN

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 4

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design :

- ASUS Q-Shield

- ASUS Q-Slot

- ASUS Q-DIMM

- ASUS Q-Connector

Turbo APP

- featuring system performance tuning for selected applications

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (teal blue)Type-A,

1 x USB 3.1 Gen 1 USB Type-CTM,

5 x USB 3.1 Gen 1

1 x Optical S/PDIF out

5 x Audio jack(s)

Internal I/O Ports

2 x Aura RGB Strip Headers

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (2 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x W_PUMP+ connector (1 x 4 -pin)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

1 x 14-1 pin TPM connector

1 x COM port header

1 x T_Sensor Connector

1 x USB 3.1 Gen 2 front panel connector

Accessories

User's manual

ASUS Q-Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x SLI HB BRIDGE(2-WAY-M)

1 x Q-connector(s) (1 in 1)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect)memory information

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty

3 Years
