- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit to make customization faster and more efficient
| Brand | Asus |
| Form Factor | micro_atx |
| Item Height | 20.3 Centimeters |
| Item Width | 10.2 Centimeters |
| Item Weight | 499 g |
| Product Dimensions | 5.1 x 10.2 x 20.3 cm |

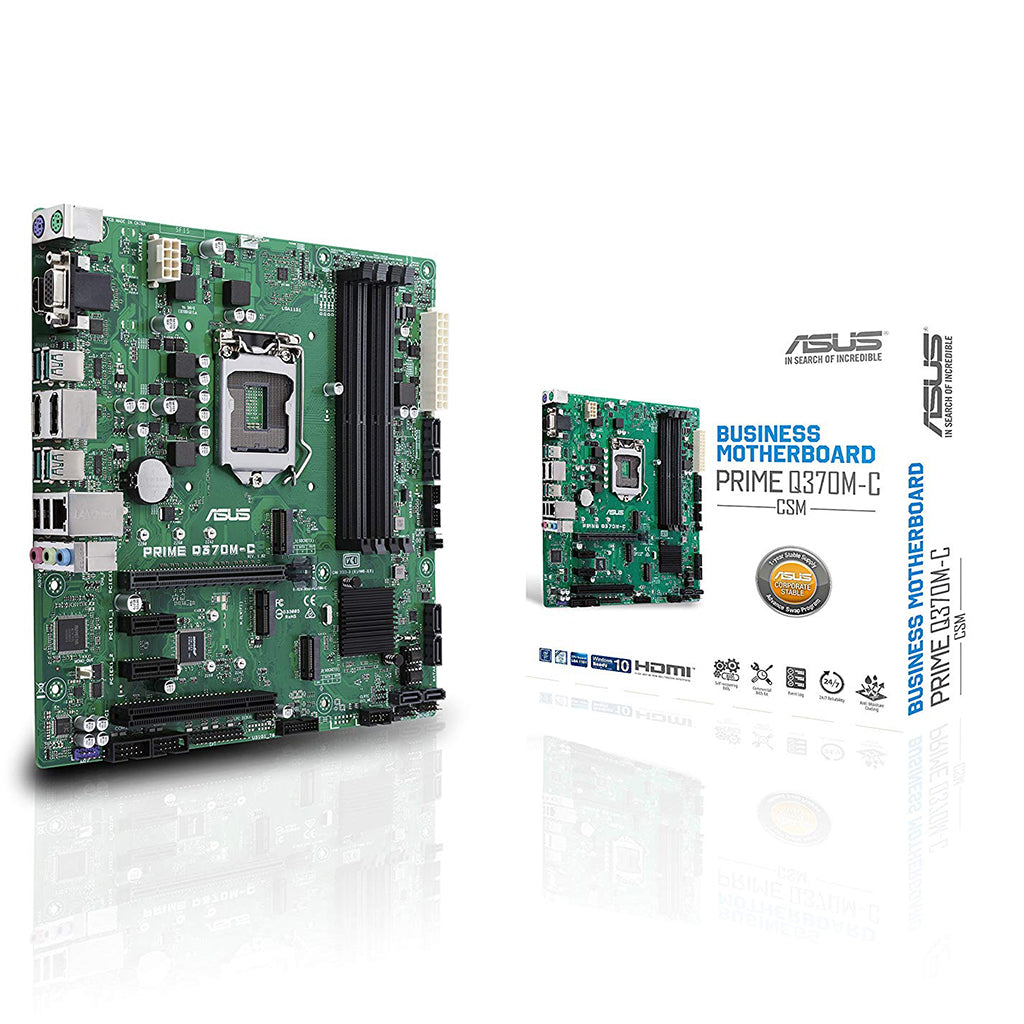

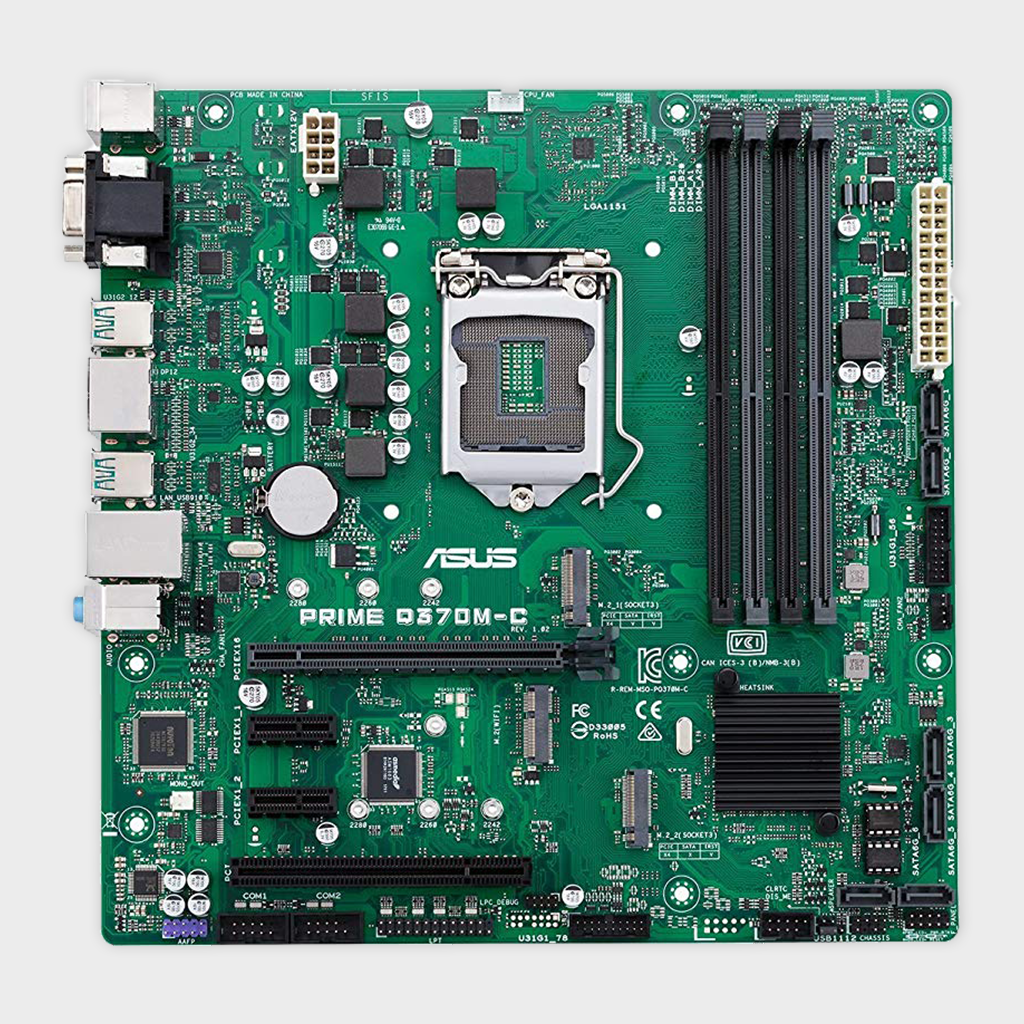

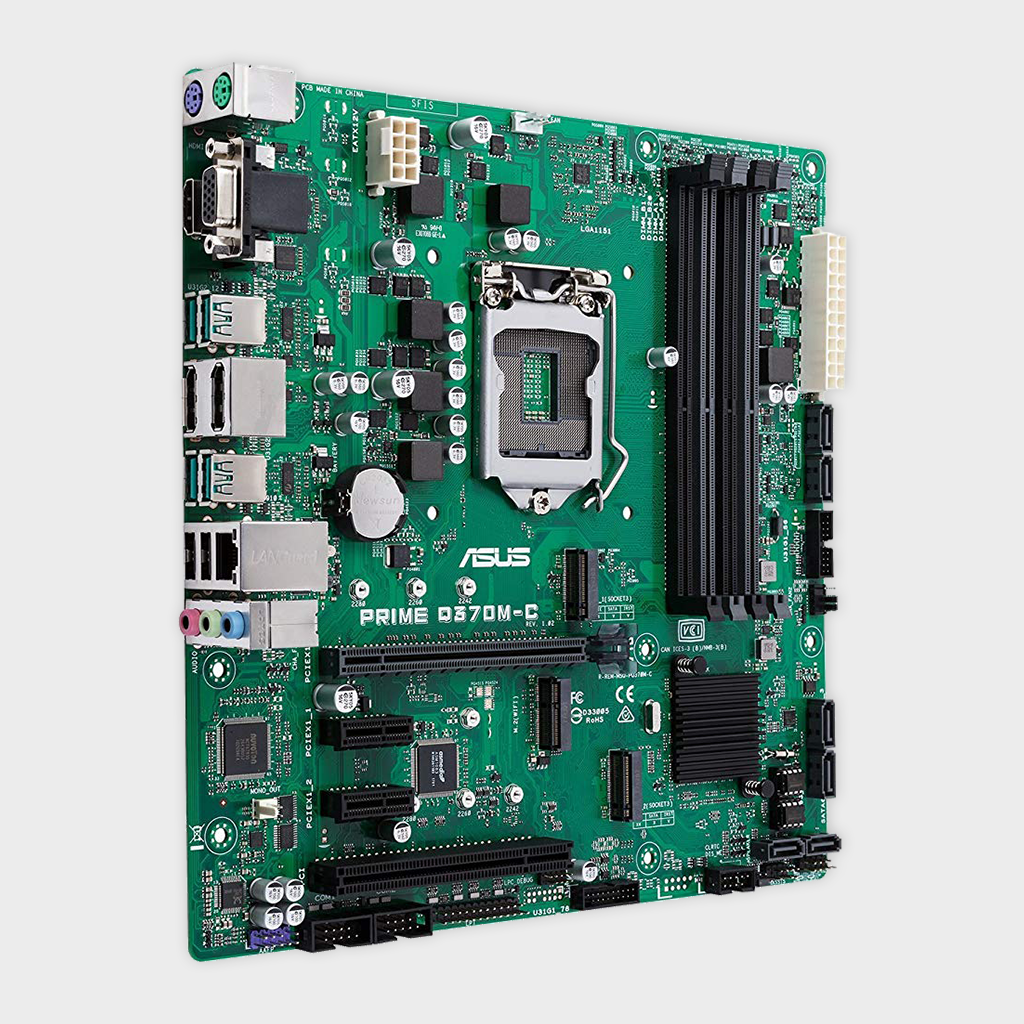

| Item model number | PRIME Q370M-C/CSM |
| Processor Socket | LGA 1151 |
| RAM Size | 6 GB |
| Memory Technology | DDR4 |
| Computer Memory Type | DDR4 SDRAM |
| CPU |
Intel® for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Graphic |
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/RGB/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously |
| Storage |
Intel® Q370 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready |
| USB Ports |
Intel® Q370 Chipset : 4 x USB 3.1 Gen 2 port(s) (4 at back panel, , Type-A, 0 at mid-board) Intel® Q370 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at mid-board) Intel® Q370 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , Type-A, 2 at mid-board) |
| Special Features |
TPM IC Onboard Bespoke Motherboard Design & Business Focused Features : - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi+VRM |
