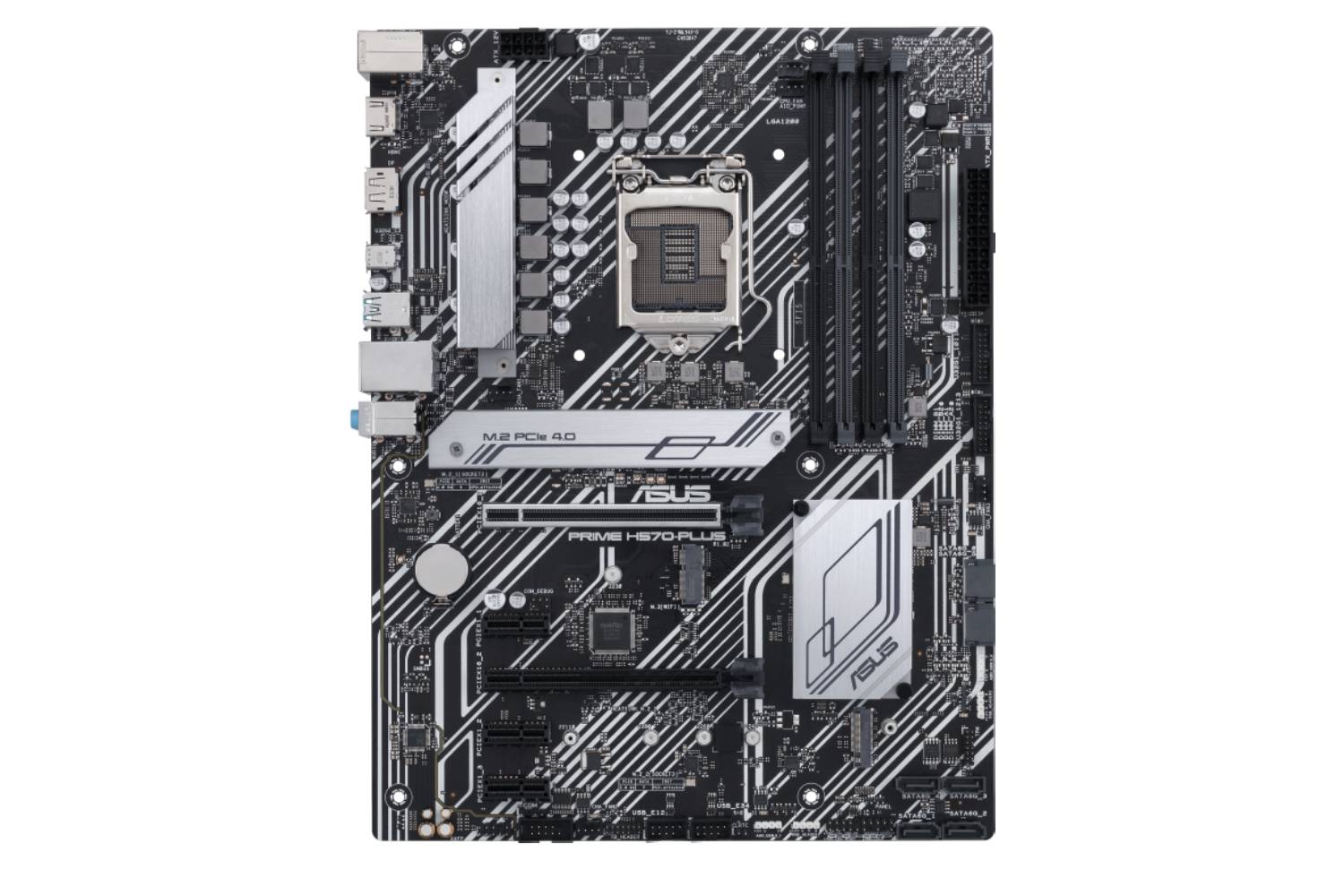

Asus PRIME H570-PLUS Intel 11th Gen Motherboard
Asus PRIME H570-PLUS Intel 11th Gen Motherboard
Description
Description
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
- Chipset
- Intel® H570 Chipset
- Max Memory Size:128GB
- 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP)
- ASUS OptiMem
- * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
- * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
- Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
- 1 x HDMI 1.4
- *Graphics specifications may vary between CPU types.
- ** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
- ***Only Intel® 11thprocessors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
- Expansion Slots
- 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
- Intel® 11th &10th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot*
- - Intel® 11th processors support PCIe 4.0 x16
- - Intel®10th processors support PCIe 3.0 x16
- Intel® H570 Chipset
- 1 x PCIe 3.0 x16 slot (max. at x4 mode)*
- 3 x PCIe 3.0 x1 slots
- Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
- Intel® 11th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110
- -Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
- Intel® H570 Chipset
- - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)*
- - 6 x SATA 6Gb/s ports
- Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
- To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
- *When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
- 1 x Intel® I219-V 1Gb Ethernet
- ASUS LANGuard
- Wireless & Bluetooth
- M.2 slot only (Key E, CNVi & PCIe)
- Rear USB:Total 7 ports
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1x USB 3.2 Gen 2 port (1 x USB Type-C®)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB:Total 8 ports
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- ALC887/897
- Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback"
- - Audio Shielding
- - Premium Japanese audio capacitors
- - Dedicated audio PCB layers
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
- **A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

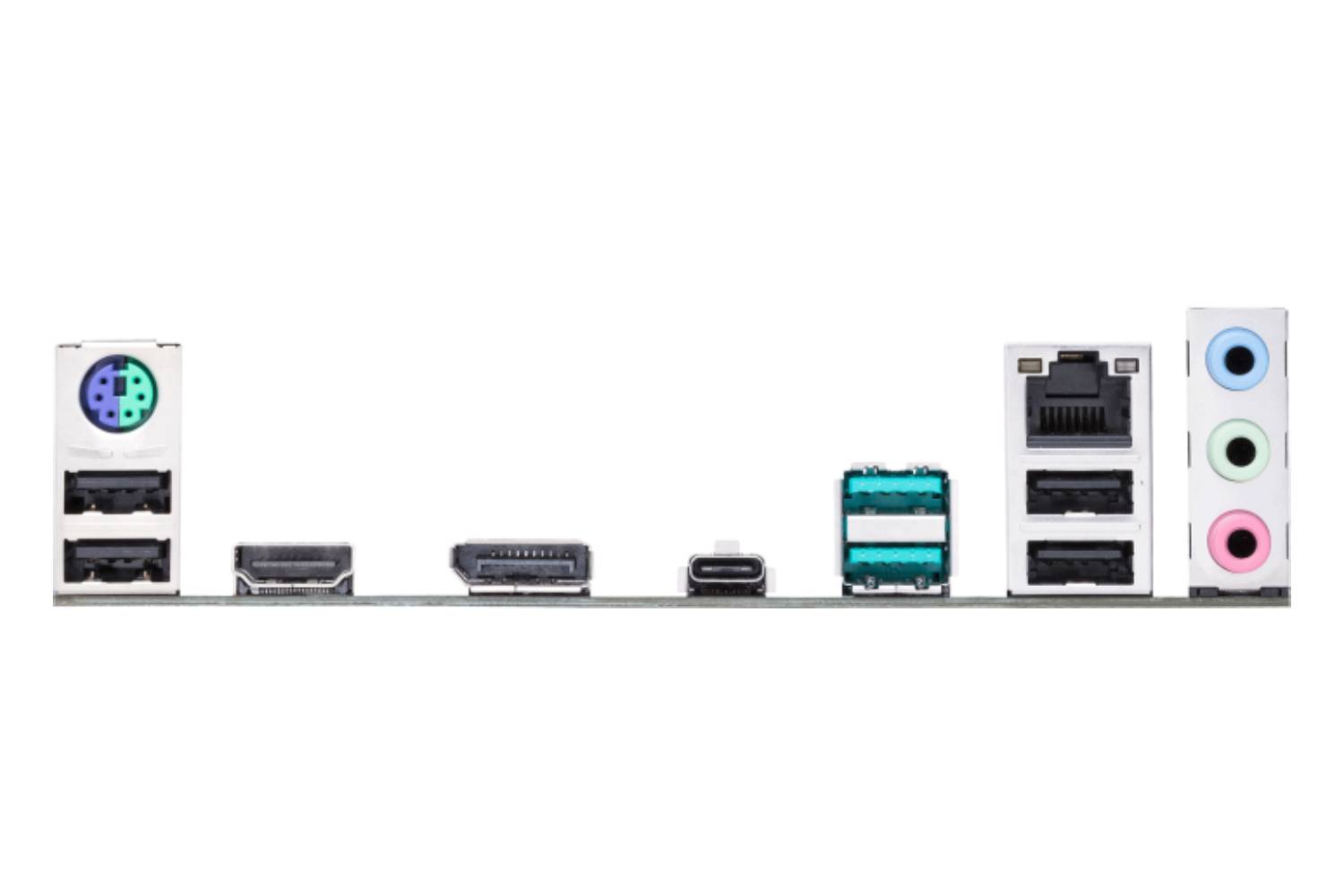

- 1 x DP port
- 1 x HDMI port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
- 1 x Intel® I219-V port
- 4 x USB 2.0 ports (4 x Type-A)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1x USB 3.2 Gen 2 port (1 x USB Type-C®)
- Intrernal I/O Connectors
- Fan and cooling-related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin AIO Pump header
- 3 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF out header
- 1 x 20-3pin System Panel header with Chassis intrude function
- 1 x 14-1 pin SPI TPM header
- 1X M.2 slot (Key E)
- 1 x Thunderbolt 4 header
