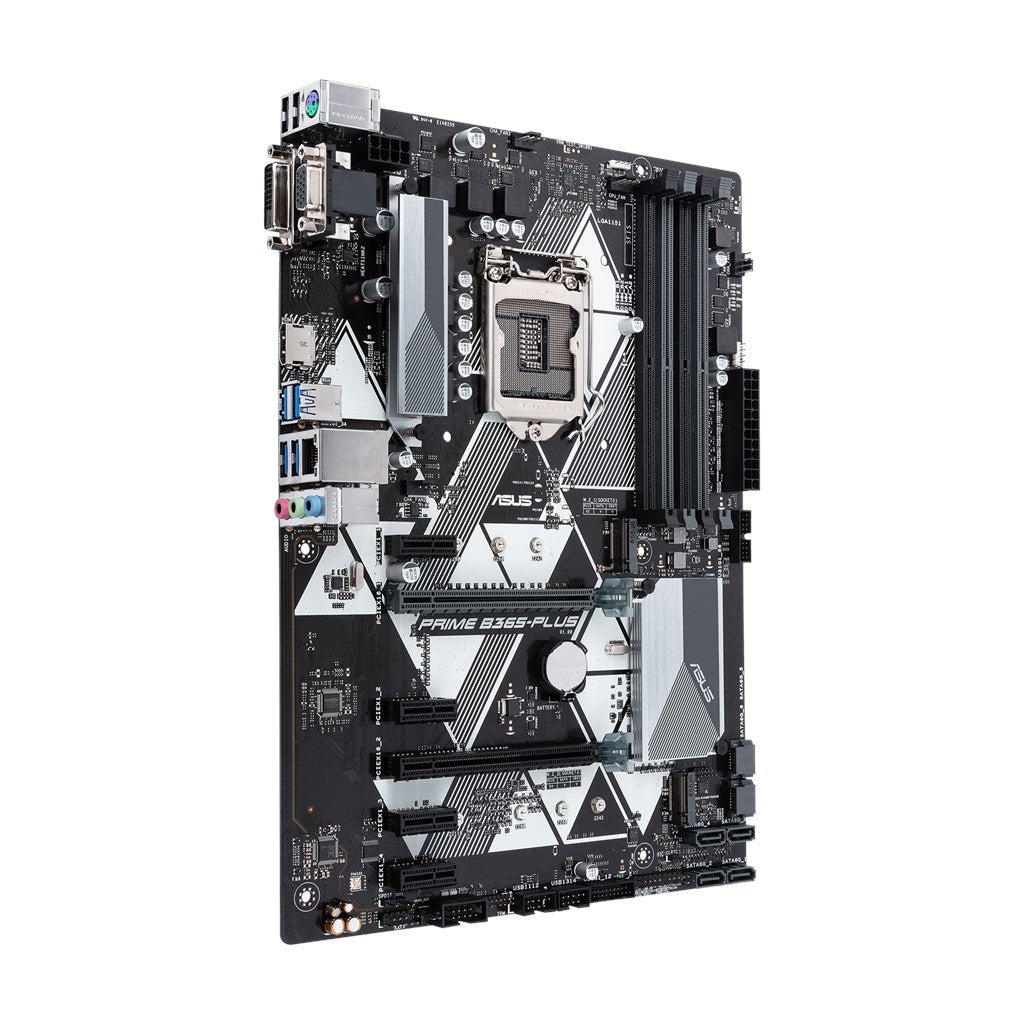

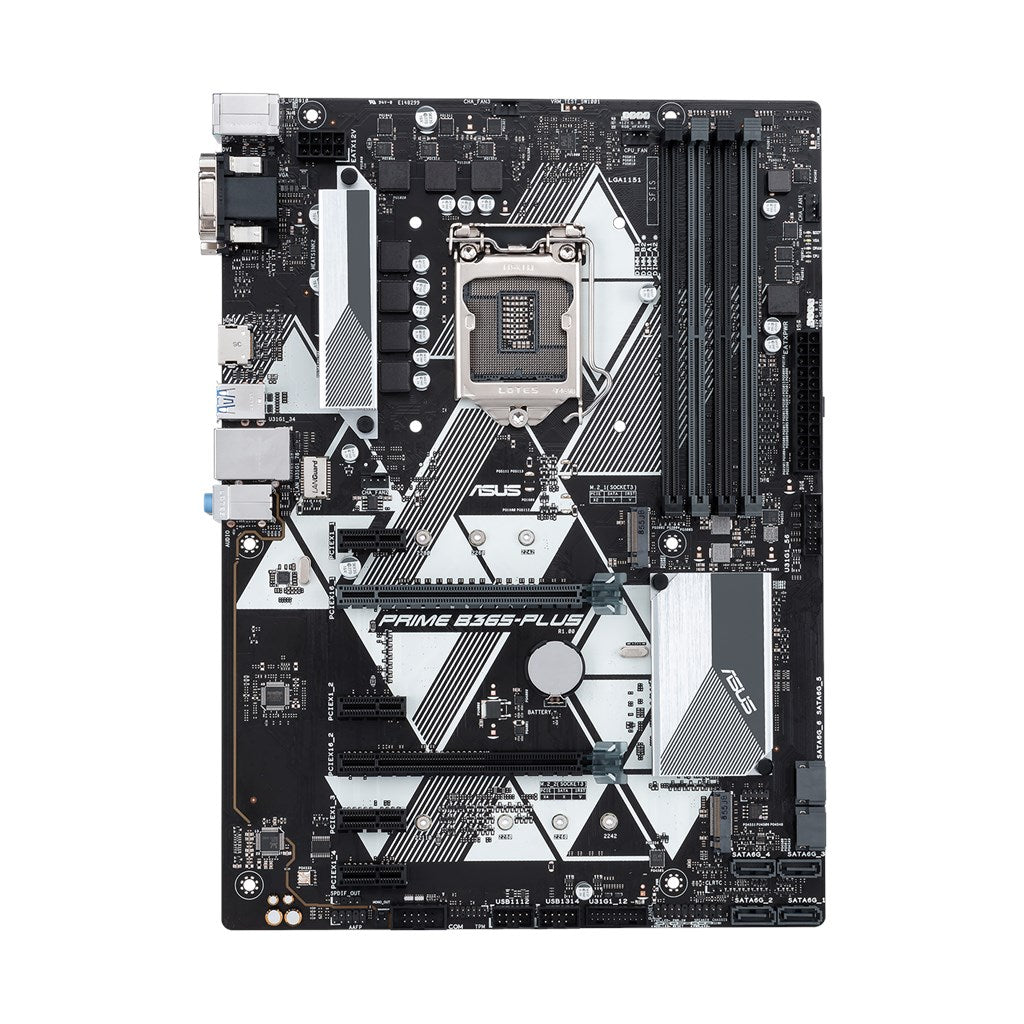

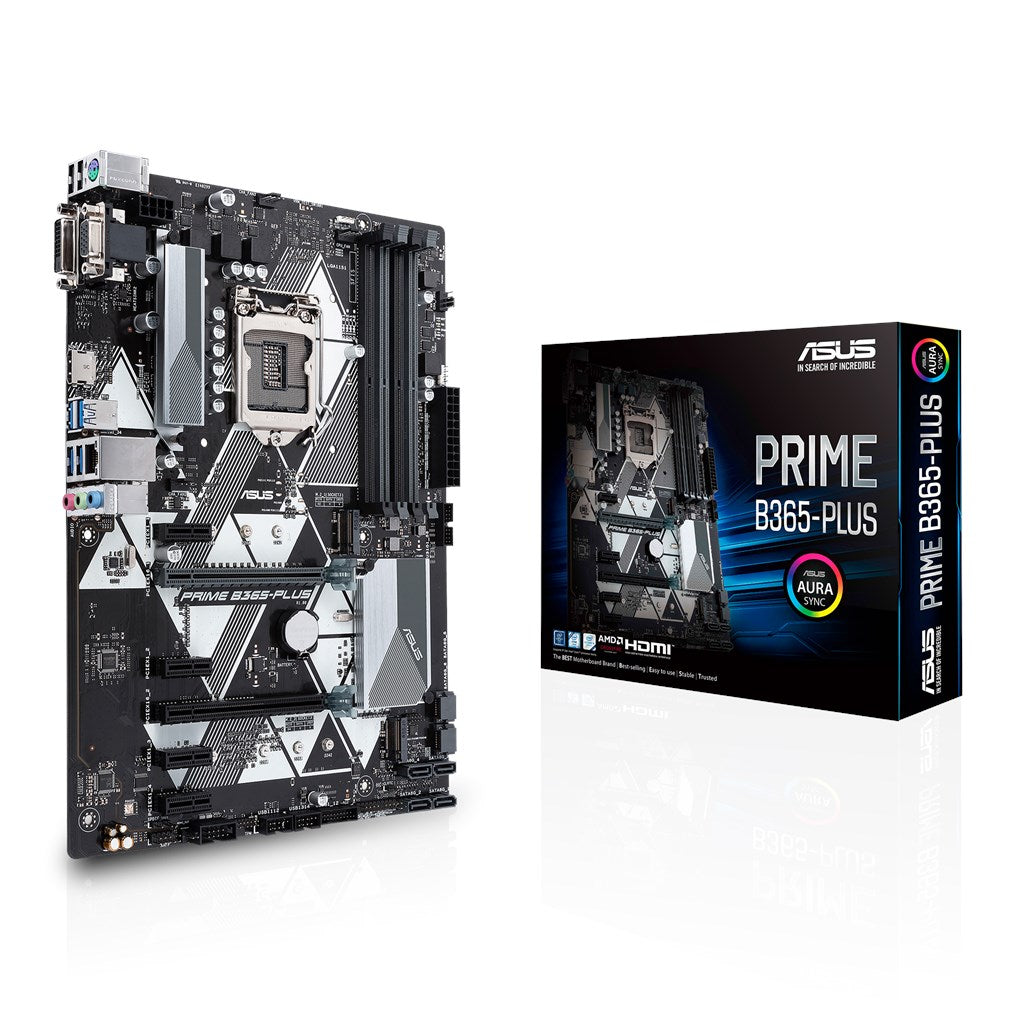

ASUS PRIME B365-PLUS Intel LGA-1151 ATX motherboard

• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
• Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
• 5X Protection III: Multiple hardware safeguards for all-round protection.
• ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware.
• Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds

• CPU
  Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Build in Intel® B365
• Memory
  4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
• Graphic
  Integrated Graphics Processor- Intel® UHD Graphics support
  Multi-VGA output support : HDMI/DVI-D/D-Sub ports
  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  4 x PCIe 3.0/2.0 x1
• Storage
  Intel® B365 Chipset :
  1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*¹
  1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Intel® Optane™ Memory Ready
  Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  ASUS LAN Guard
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel® B365 Chipset :
  8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
  Intel® B365 Chipset :
  6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
• Special Features
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: Premium components provide better power efficiency
  - ASUS ESD Guards - Enhanced ESD protection
  ASUS EPU :
  - EPU
  AURA :
  - Aura RGB Strip Headers
  - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.1 Gen 1 (blue) up to 5Gbps
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  2 x Aura RGB Strip Header(s)
  2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x TPM header
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s) (Chassis intrusion header is inbuilt)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Mono Out header
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x SCD (by region)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12.0 inch x 8.7 inch ( 30.5 cm x 22.1 cm )
• Note
  * When the M.2_1 is operating in SATA mode, SATA_2 port 2 will be disabled.
