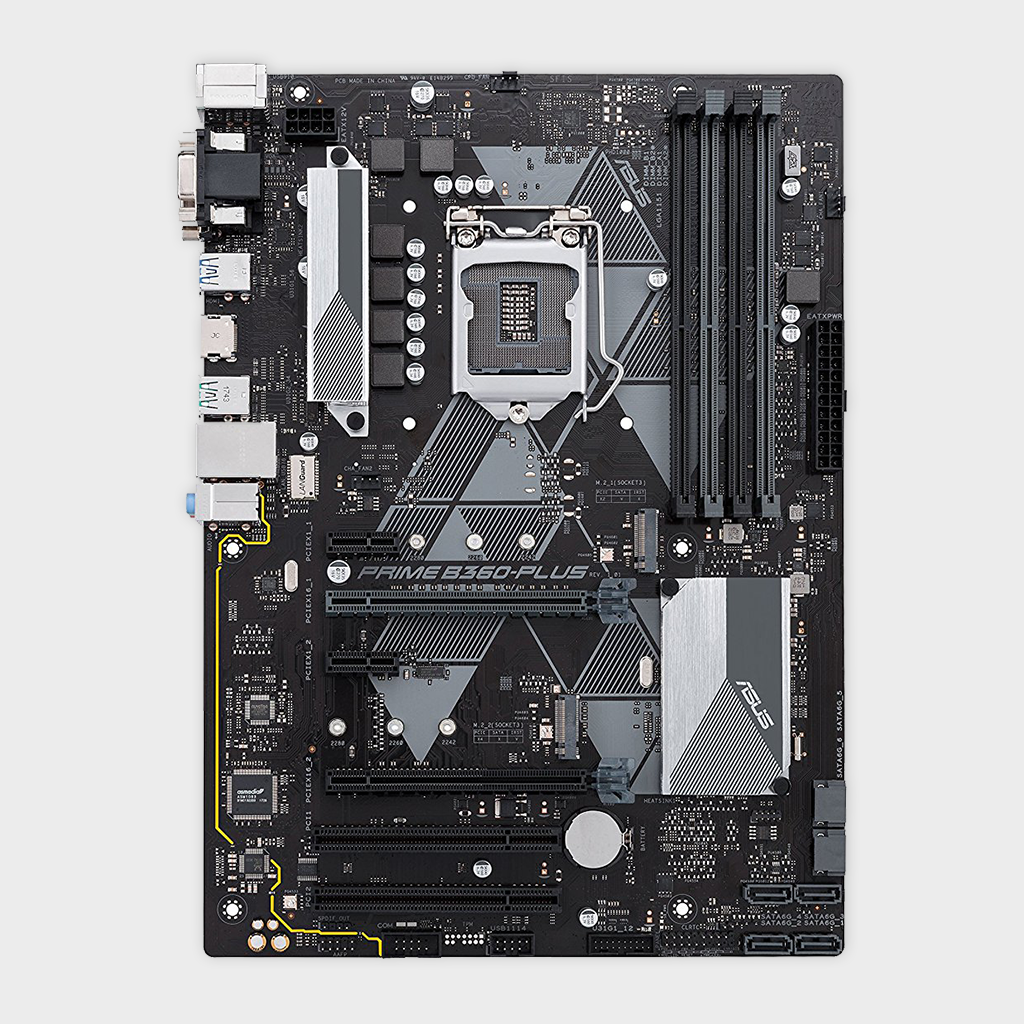

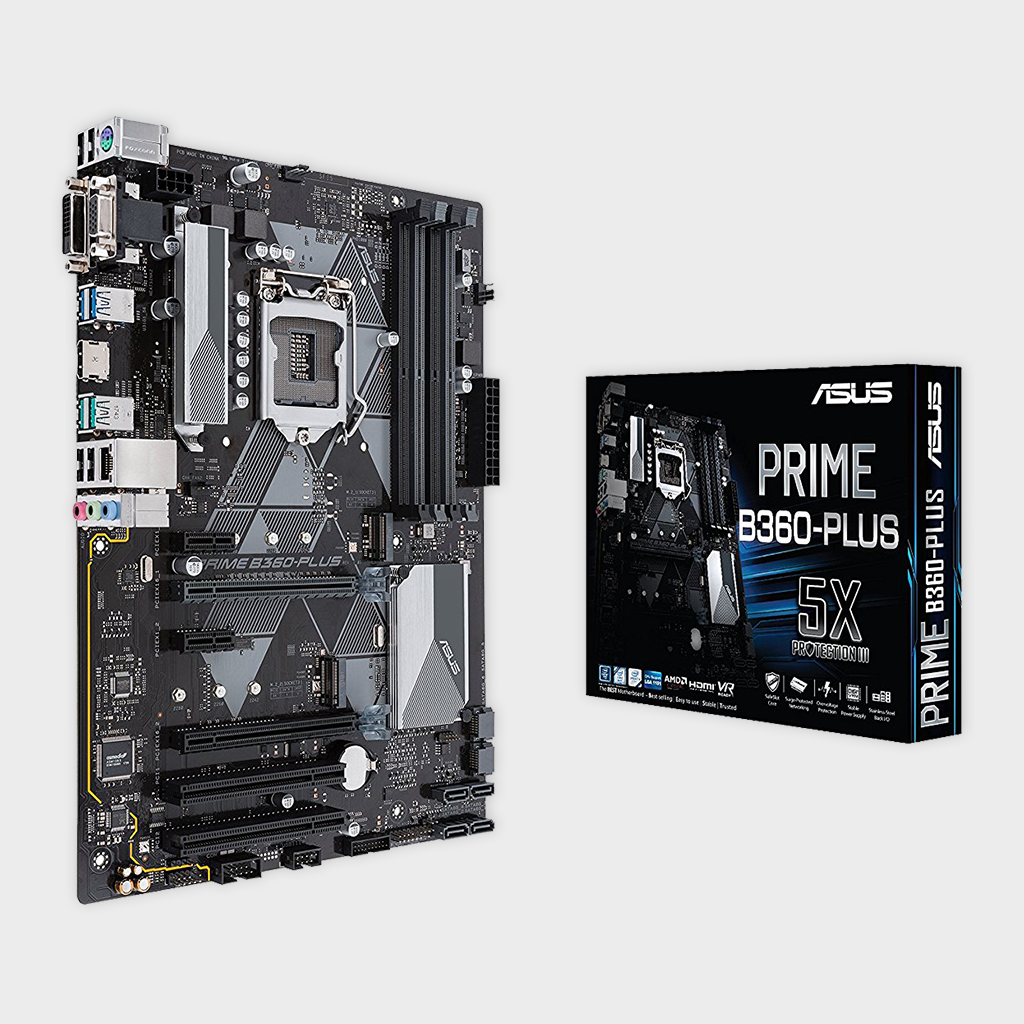

ASUS- PRIME B360-PLUS (300 SERIES) MOTHERBOARD

• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
• Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
• 5X Protection III: Multiple hardware safeguards for all-round protection.
• Supreme flexibility with USB 3.1 Gen 2, Intel Optane memory ready and dual native M.2 support for lightning-fast storage speeds

CPU	Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors  Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® B360
Memory	4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture  Supports Intel® Extreme Memory Profile (XMP) * The maximum memory frequency supported varies by processor. ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic	Integrated Graphics Processor- Intel® HD Graphics support  Multi-VGA output support : HDMI/DVI-D/D-Sub ports  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously
Multi-GPU Support	Supports AMD CrossFireX™ Technology
Expansion Slots	1 x PCIe 3.0/2.0 x16 (x16 mode)  1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 2 x PCIe 3.0/2.0 x1  2 x PCI
Storage	Intel® B360 Chipset :  1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*2 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Intel® Optane™ Memory Ready *3
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC  - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports	Intel® B360 Chipset :  2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A) Intel® B360 Chipset :  4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® B360 Chipset :  6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Special Features	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU  ASUS Exclusive Features : - AI Suite 3 - Ai Charger  - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink  - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3  - ASUS EZ Flash 3  - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

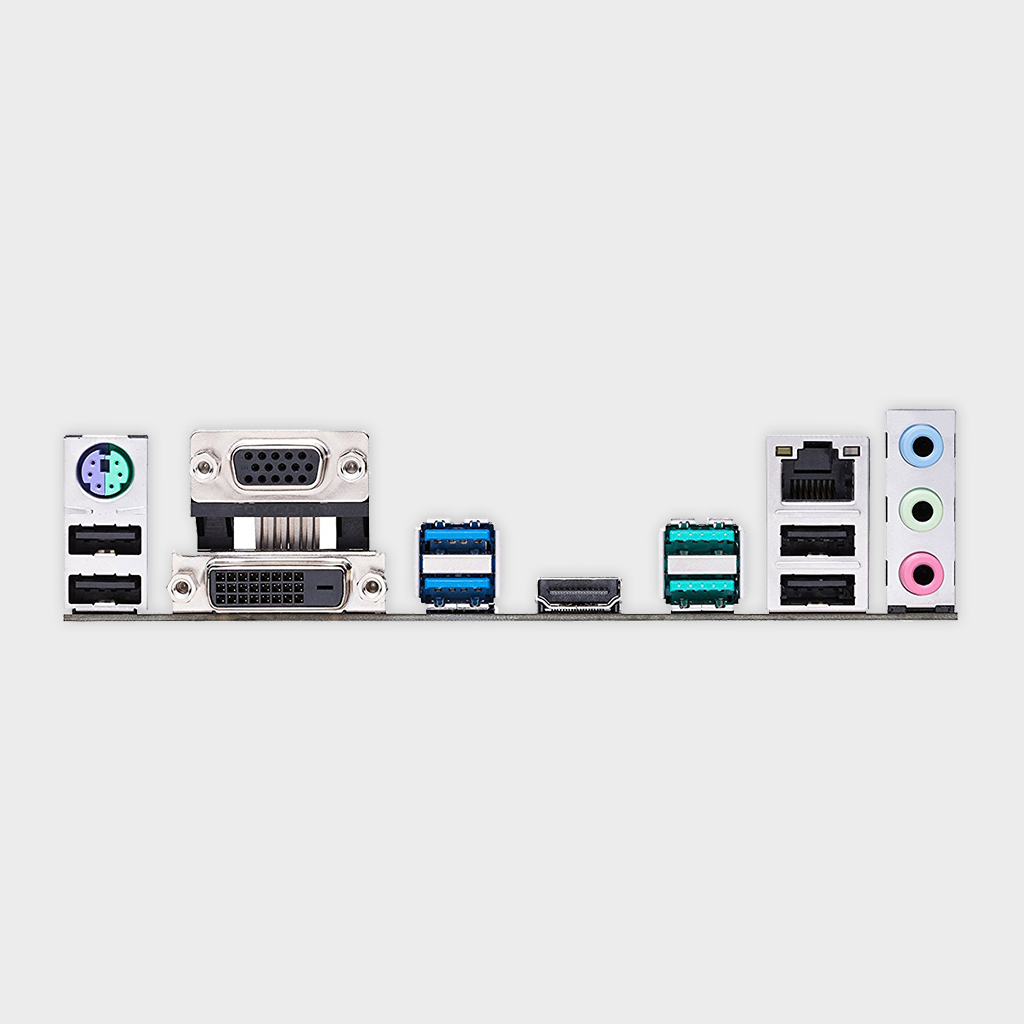

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps 2 x USB 3.1 Gen 1 (blue) up to 5Gbps,  4 x USB 2.0  3 x Audio jack(s)
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s)  1 x Clear CMOS jumper(s) 1 x COM port header
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 screws 1 x SCD (by region)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WOL by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS EZ Update  Anti-virus software (OEM version)
Operating System	Windows® 10 64-bit
Form Factor	ATX Form Factor  30.5 cm x 22.1 cm (12.0 x 8.7 )
Warranty	3 Years
