About this product
- 5X Protection III: Multiple hardware safeguards for all-round protection
- LED illumination: Lighting control for audio trace paths
- Native M.2: Lightning-fast storage speeds
- One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
| CPU | AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors |
| Supports CPU up to 8 cores | |
| Chipset | AMD B350 |
| Memory | AMD Ryzen™ Processors |
| 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *1 | |
| AMD 7th Generation A-series/Athlon™ Processors | |
| 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| * Hyper DIMM support is subject to the physical characteristics of individual CPUs. | |
| Graphic | Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *2 |
| Multi-VGA output support : DVI-D/RGB ports | |
| – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | |
| – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz | |
| Maximum shared memory of 2048 MB | |
| Expansion Slots | AMD Ryzen™ Processors |
| 1 x PCIe 3.0/2.0 x16 (x16 mode) | |
| AMD 7th Generation A-series/Athlon™ Processors | |
| 1 x PCIe 3.0/2.0 x16 (x8 mode) | |
| AMD B350 chipset | |
| 2 x PCIe 2.0 x1 | |
| Storage | AMD B350 chipset : |
| 4 x SATA 6Gb/s port(s), gray, | |
| Support Raid 0, 1, 10 | |
| AMD Ryzen™ Processors : | |
| 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| AMD 7th Generation A-series/Athlon™ Processors : | |
| 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) | |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| USB Ports | AMD Ryzen™/7th Generation A-series/Athlon™ Processors : |
| 4 x USB 3.0 port(s) (4 at back panel, blue) | |
| AMD B350 chipset : | |
| 2 x USB 3.0 port(s) (2 at mid-board) | |
| AMD B350 chipset : | |
| 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) | |
| Special Features | ASUS 5X Protection III : |
| – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage | |
| – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| – ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| – ASUS DIGI+ VRM: 6 Phase digital power design | |
| ASUS Exclusive Features : | |
| – AI Suite 3 | |
| – Ai Charger | |
| ASUS Quiet Thermal Solution : | |
| – Stylish Fanless Design Heat-sink solution | |
| – ASUS Fan Xpert | |
| ASUS EZ DIY : | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| – Multi-language BIOS | |
| ASUS Q-Design : | |
| – ASUS Q-Slot | |
| – ASUS Q-DIMM | |
| Operating System Support | Windows® 10 , 64bit |

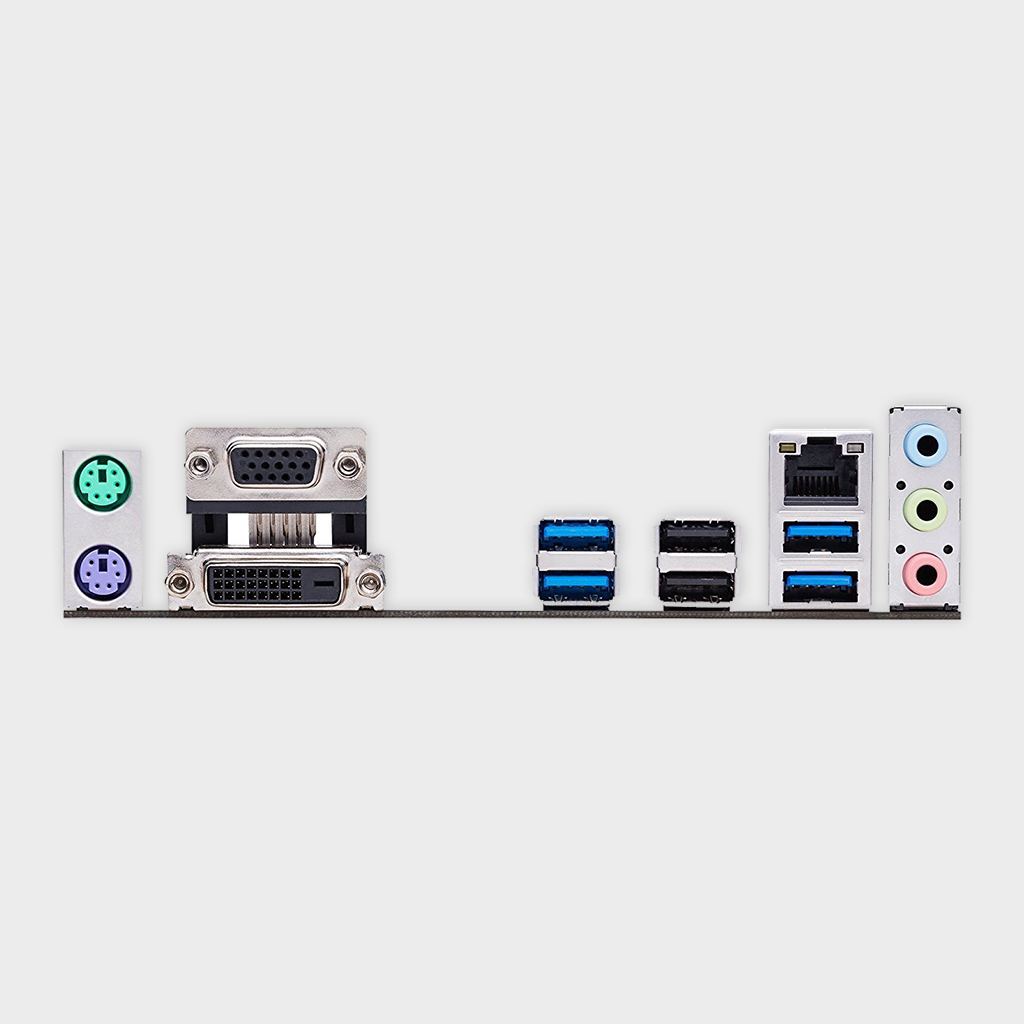

| Back I/O Ports | 1 x PS/2 keyboard (purple) |
| 1 x PS/2 mouse (green) | |
| 1 x DVI-D | |
| 1 x D-Sub | |
| 1 x LAN (RJ45) port(s) | |
| 4 x USB 3.0 (blue) | |
| 2 x USB 2.0 | |
| 3 x Audio jack(s) | |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 1 x COM port(s) connector(s) | |
| 4 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) (1 x 4 -pin) | |
| 1 x Chassis Fan connector(s) (1 x 4 -pin) | |
| 1 x S/PDIF out header(s) | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x Speaker connector | |
| Accessories | User’s manual |
| I/O Shield | |
| 2 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
| 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) | |
| WARRANTY | 3 YEARS |
