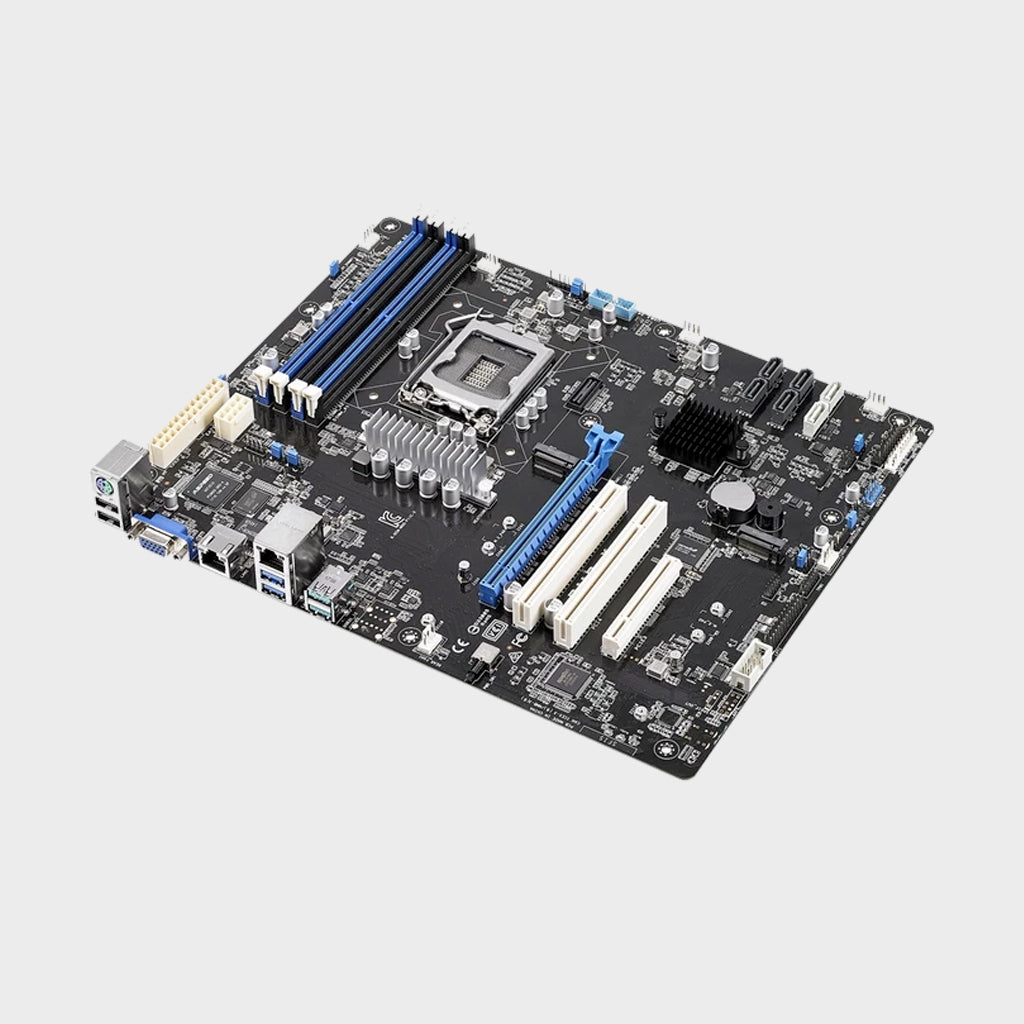

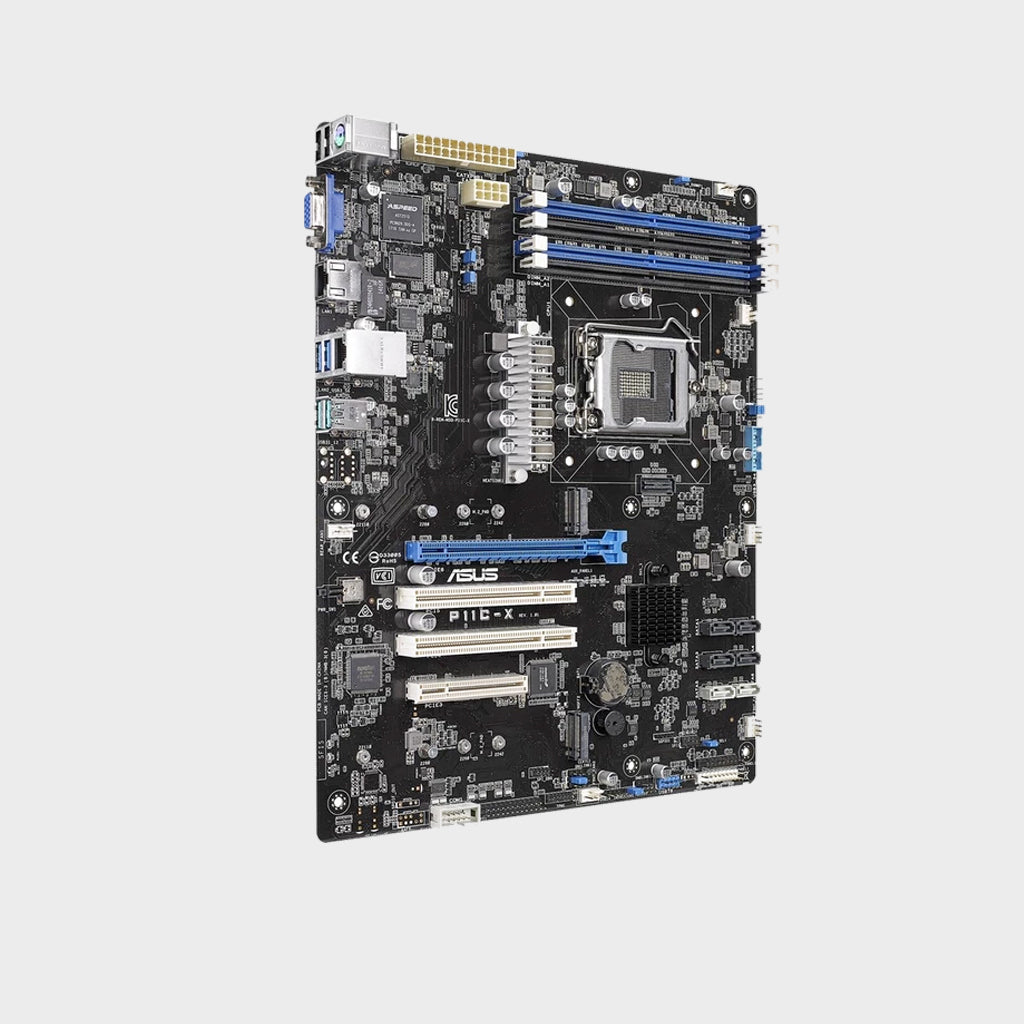

Asus P11C-X Intel Xeon E ATX server motherboard

Asus P11C-X Intel Xeon E ATX server motherboard

No reviews
Regular price ₹ 16,988.00
Regular price ₹ 19,500.00 Sale price ₹ 16,988.00
Sale Sold out
Tax included. Shipping calculated at checkout.


  • Powered by the Intel® Xeon® E platform
  • 95W CPU and up to 128GB memory support (4 DIMMs)
  • Rack-optimized design maximizes cooling for excellent thermal efficiency
  • Flexible expandability with 6 native SATA 6G ports , two PCIe Gen3 slots and two PCI legacy slots
  • Dual Intel® Gigabit Ethernet with teaming support
  • Dual M.2 for independent OS drives with RAID 0/1
  • Supports the latest 10Gb/s USB 3.1 onboard for high transfer speed
  • TPM 2.0 Ready secures store keys, digital certificates, passwords and data
  • Complete server management with ASUS Control Center
Processor / System Bus 1 x Socket LGA1151
Intel® Xeon® processor E-2100 family(95W)
Intel® Xeon® processor E-2200 family(95W)
The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
Core Logic Intel® C242 Chipset
Memory Total Slots : 4 (2-channel)
Capacity : Maximum up to 128GB UDIMM
Memory Type :
DDR4 2666/2400 UDIMM non ECC and with ECC
Memory Size :
32GB, 16GB, 8GB, 4GB
* Refer to support page for more information
Expansion Slots Total Slot : 4
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI 32bit/33MHz
Slot Location 5 : PCI 32bit/33MHz
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Follow SSI Location#
Form Factor ATX (12"x9.6", 305mm x 244mm)

Storage SATA Controller :
Intel® C242 Chipset
6 x SATA 6Gb/s ports + 2 x M.2 connector *1
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking 1 x Intel® I210AT
1 x i219-LM
Graphic Aspeed AST2510 with 64MB VRAM

On Board I/O 1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
2 x USB 2.0 pin header , Up to 3 Devices
6 x Fan Header , 4pin
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x LPT
2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
Back I/O Ports 1 x PS/2 Keyboard/ Mouse Port
2 x USB 3.1
2 x USB 3.0
2 x USB 2.0
1 x VGA Port (onboard Aspeed AST2510)
2 x RJ45 LAN Ports
Management Solution ASUS Control Center
Accessories Gift Box (1-in-1)
1 x Support DVD
1 x I/O shield
6 x SATA 6G cables
1 x Plate for LGA1151
1 x ASUS Control Center Quick Guide

Bulk Pack (10-in-1)
1 x Support DVD
1 x I/O shield
1 x Plate for LGA1151
1 x ASUS Control Center Quick Guide
