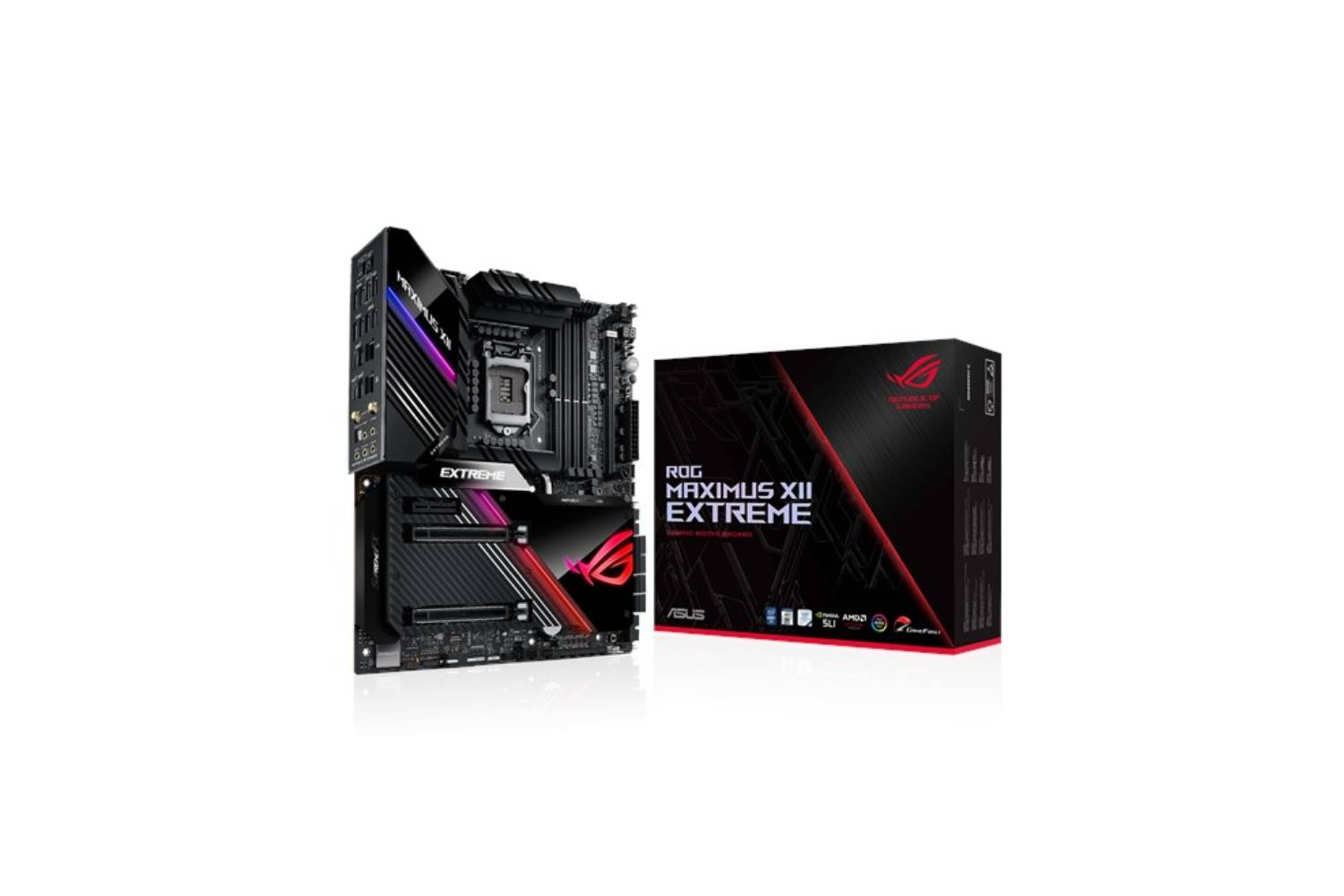

Asus MAXIMUS-XII-E Motherboard

Asus MAXIMUS-XII-E Motherboard

Regular price ₹ 69,277.00
Regular price Sale price ₹ 69,277.00
Sale Sold out
Tax included.

Description

  • Socket : LGA 1200
  • Maximum memory support : 128 GB
  • Chipset : Z490
  • Memory socket : DDR4
  • PCIe x16/x4/ x1-mini /PCI : 2/0/3/0
  • Warranty : 3 Years
  • Audio : SFX
  • https://www.asus.com/in/support/warranty-status-inquiry/
  • Find nearest Asus service centre https://www.asus.com/in/support/service-center/india
  • CPU
    Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Intel® Z490
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem III
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    Supports NVIDIA 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    Intel® Z490 Chipset
    1 x PCIe 3.0 x4 *1
  • Storage
    Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
    Intel® 10th Gen Processors :
    1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
    Intel® Z490 Chipset :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*3
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    8 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I225-V 2.5Gb Ethernet
    Marvell® AQtion AQC107 10Gb Ethernet
    ASUS LANGuard
  • Wireless Data Network
    Intel® Wi-Fi 6 AX201
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports up to 2.4Gbps max data rate
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Supports CNVI interface
  • Bluetooth
    Bluetooth v5.1*
    *BT 5.1 function will be ready in Windows 10 build 19041 or later.
  • Audio
    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220
    - Impedance sense for front and rear headphone outputs
    - Supports : Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - ESS™ ES9023 DAC + RC4580 OP AMP
    - Supports up to 32-Bit/192kHz playback
    LED-illuminated audio jacks
    Audio Feature :
    - SupremeFX Shielding™ Technology
    - Optical S/PDIF out port(s) at back panel
    - Premium Japanese audio capacitors
    - Audio Cover
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    Rear USB Port ( Total 12 )
    1 x USB 3.2 Gen 2x2 port(s)
    3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM)
    6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 10 )
    2 x USB 3.2 Gen 2 front panel connector port(s)
    4 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
  • Software Features
    ROG Exclusive Software
    - Mem Tweakit
    - RAMCache III
    - ROG CPU-Z
    - GameFirst VI
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - Sonic Radar III
    - DTS® Sound Unbound
    - Overwolf
    - BullGuard Internet Security (1-year full version)
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - OLED Display
    AI Suite 3:
    - 5-Way Optimization with AI Overclocking
    TPU
    EPU
    Digi+ Power Control
    Fan Xpert 4
    Turbo app
    - EZ update
    AI Charger
    WinRAR
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    FlexKey
  • ASUS Special Features
    ROG Extreme OC kit
    - EZ PLUG
    - FlexKey button
    - LN2 Mode
    - Probelt
    - ReTry button
    - Safe boot button
    - Start button
    - Slow Mode
    Extreme Engine Digi+
    - 10K Black Metallic Capacitors
    - Infineon TDA21490 Power Stage
    - MicroFine Alloy Choke
    ASUS Q-Design
    - ASUS Q-Code
    - ASUS Q-Connector
    - ASUS Q-DIMM
    - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum M.2 heatsink cover
    - Steel backplate
    ASUS EZ DIY
    - BIOS Flashback™ button
    - Clear CMOS button
    - Procool II
    - Pre-mounted I/O shield
    - SafeSlot
    AURA Sync
    - ROG Aura sync backplate
    - Standard RGB header(s)
    - Addressable Gen 2 RGB header(s)
    LiveDash OLED 2"
  • Back I/O Ports
    1 x LAN (2.5G) port(s)
    1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
    3 x USB 3.2 Gen 2
    6 x USB 3.2 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS FlashBack™ Button(s)
    1 x ASUS Wi-Fi Module
    5 x LED-illuminated audio jacks
    1 x Aquantia AQC-107 10G LAN port
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    2 x W_PUMP+ connector
    1 x WB_SENSOR
    8 x Radiator Fan Headers
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x Node Connector(s)
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
    2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
    8 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    2 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin EZ_PLUG Power connector(s)
    1 x Slow Mode switch(es)
    8 x ProbeIt Measurement Points
    1 x Thermal sensor connector(s)
    1 x BIOS Switch button(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x System panel connector
    2 x USB 3.2 Gen 2 front panel connector
    1 x Speaker connector
    1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
    2 x RSVD Switch
    1 x Start button
    1 x FlexKey button
  • Accessories
    User's manual
    1 x ROG logo plate sticker
    3 x M.2 Screw Package
    1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
    1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
    1 x Fan Extension Card II power cable
    1 x Fan Extension Card II NODE connector cable
    1 x Fan Extension Card II screw package
    2 x mini DisplayPort Cable
    1 x ROG big sticker
    1 x Q-Connector
    1 x Wi-Fi Antenna(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    3 x Thermistor cable(s)
    1 x USB drive with utilities and drivers
    8 x ROG weave SATA 6G cable
    1 x ROG DIMM.2 with heatsink
    2 x M.2 Pad for ROG DIMM.2
    1 x 2-in-1 Rubber pad
    1 x ROG Multi-Bit screwdriver
    1 x THUNDERBOLTEX 3-TR Card
    1 x ASUS TB header cable
    1 x USB2.0 Cable
    ROG key chain
  • BIOS
    2 x 256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Form Factor
    Extended ATX Form Factor
    12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
  • Note
    *1 PCIEx4 slot shares bandwidth with SATA6G_56 and PCIEx4 slot is default set at x2 mode. Please adjust BIOS settings to enable Thunderbolt card.
    *2 The DIMM.2 Slots are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots.
    *3 When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled.
    *4 USB 3.2 Gen 2x2 works at PCIe 3.0 x2 speeds
