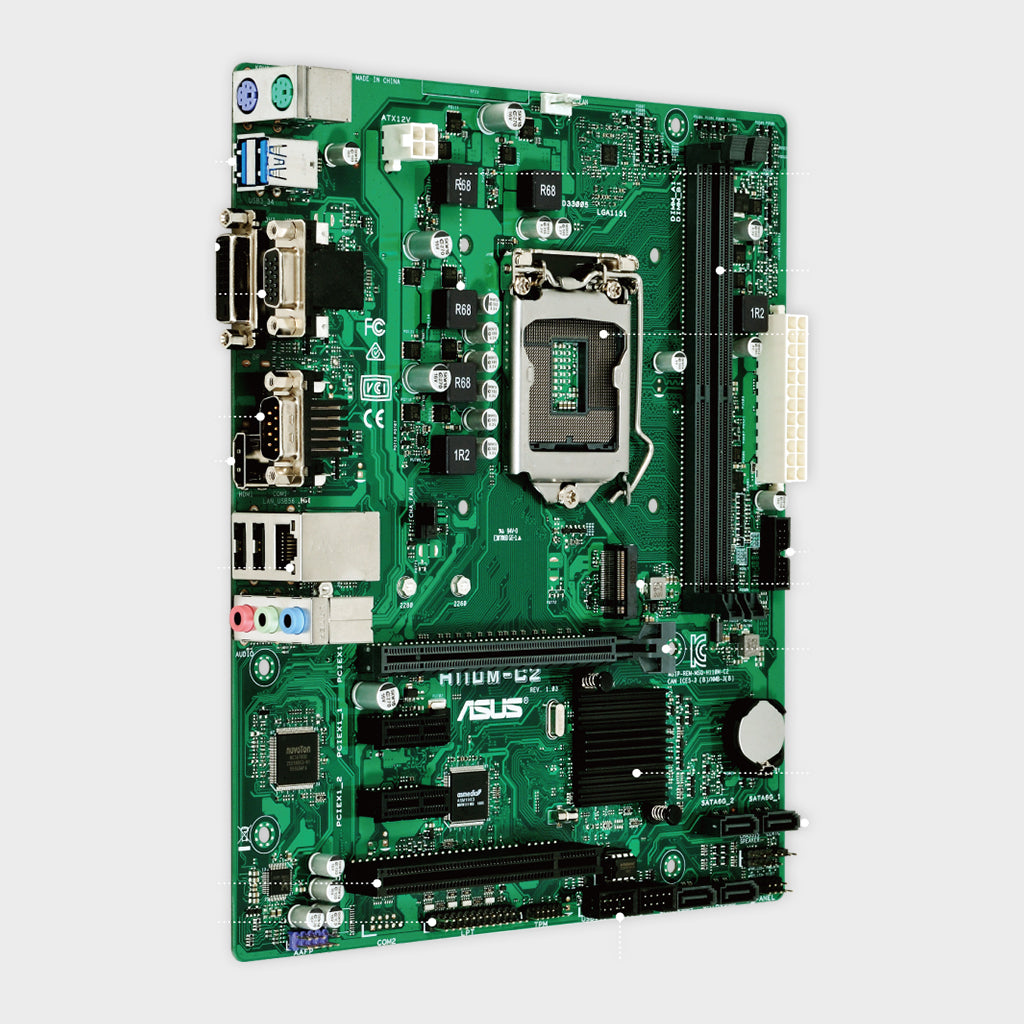

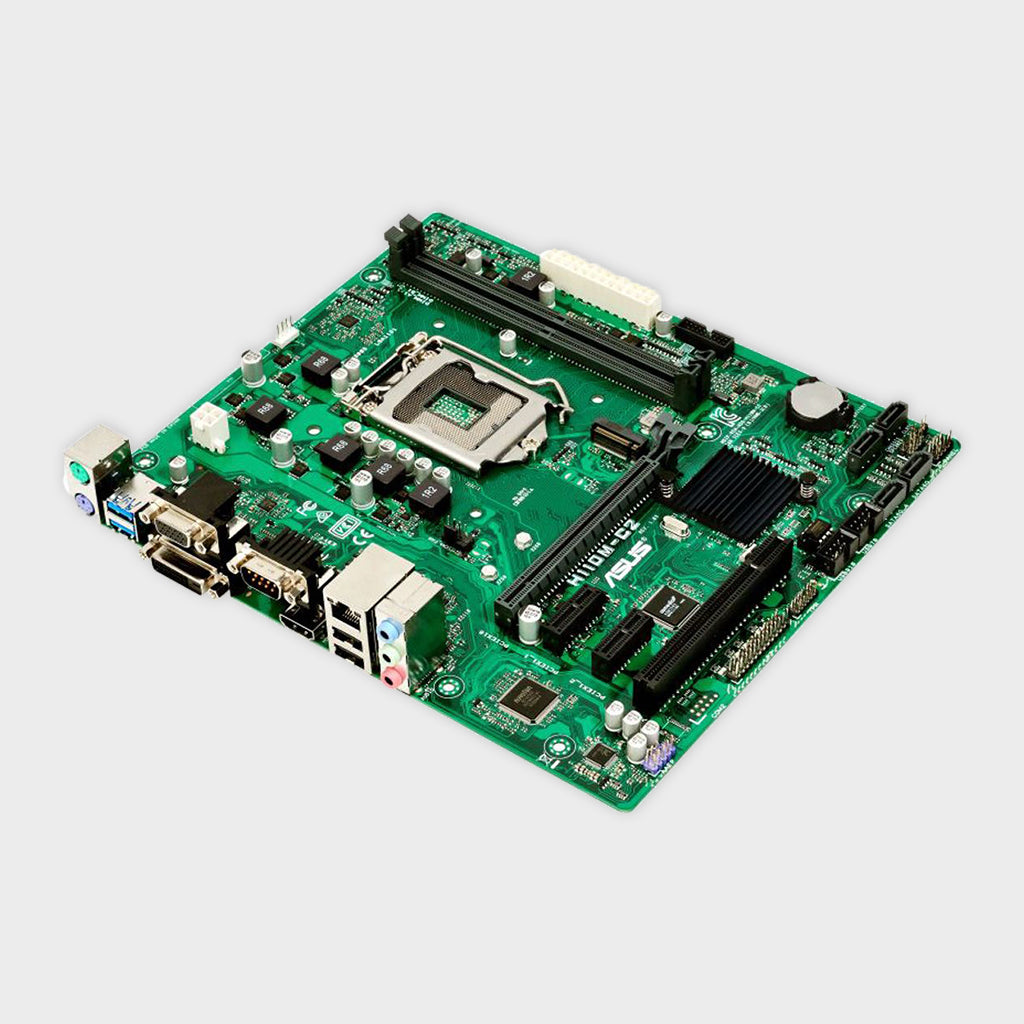

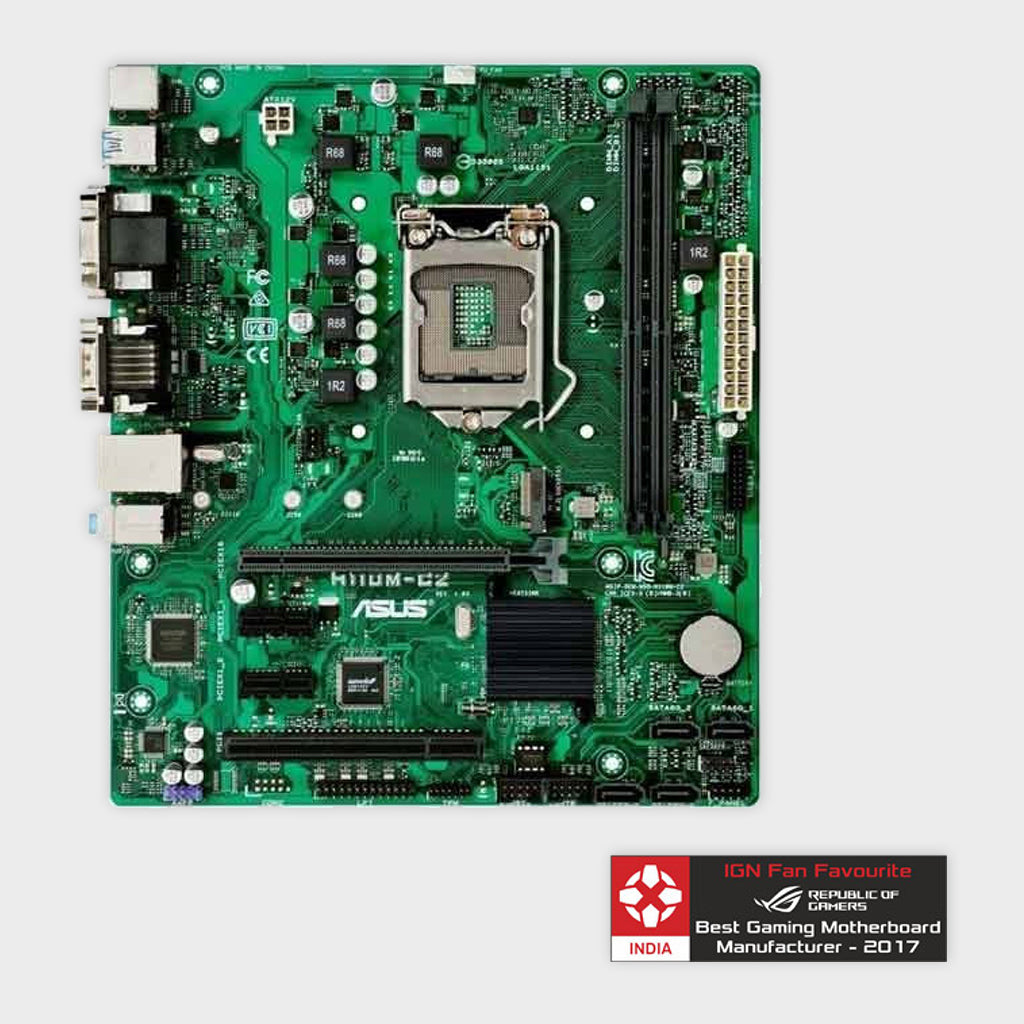

ASUS H110M-C2/CSM INTEL MOTHERBOARD
ASUS H110M-C2/CSM INTEL MOTHERBOARD
Description
Description
- 5X Protection II – Advanced hardware safeguards for all-round protection
- DDR4 memory support
- Anti-moisture Coating - 100% protection against moisture and corrosion
- Easy PC DIY with safe motherboard-mounting design
- Fan Xpert dedicated CPU and case fan controls for ultimate cooling and silent performance
CPU | Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
Chipset | Intel® H110 |
Memory |
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Memory memory modules will run at the maximum transfer rate of DDR4 2400MHz. |
Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® Quick Sync Video, Clear Video HD Technology |
Expansion Slots | 1 x PCIe 3.0/2.0 x1 2 x PCIe 2.0 x1 1 x PCI |
Storage | 4 x SATA 6Gb/s port(s), 1 x M.2 Socket 3, |
LAN | Intel® I219V, 1 x Gigabit LAN Controller(s) |
Audio | Realtek® ALC887 7.1-Channel High Definition Audio CODEC |
USB Ports | Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
Special Features | ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 5 Phase digital power design - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only) 1 x LPT header 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x Chassis intrusion header |
Accessories | User's manual 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x SCD |
Operating System | Windows® 10 Windows® 8.1 64-bit Windows® 7 32-bit Windows® 7 64-bit |
Form Factor | mATX Form Factor 24.4 cm x 21.3 cm (9.6 x 8.4 ) |
Warranty | 3 Years |
