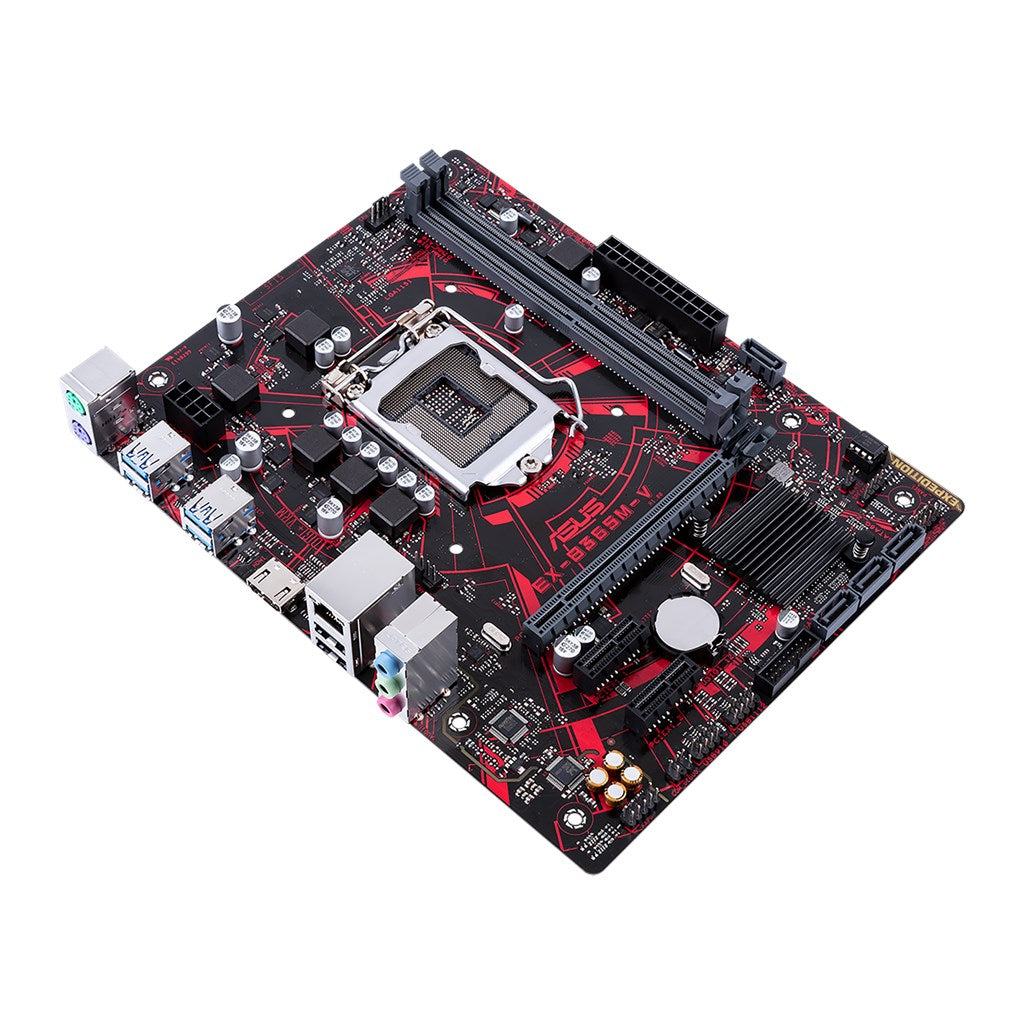

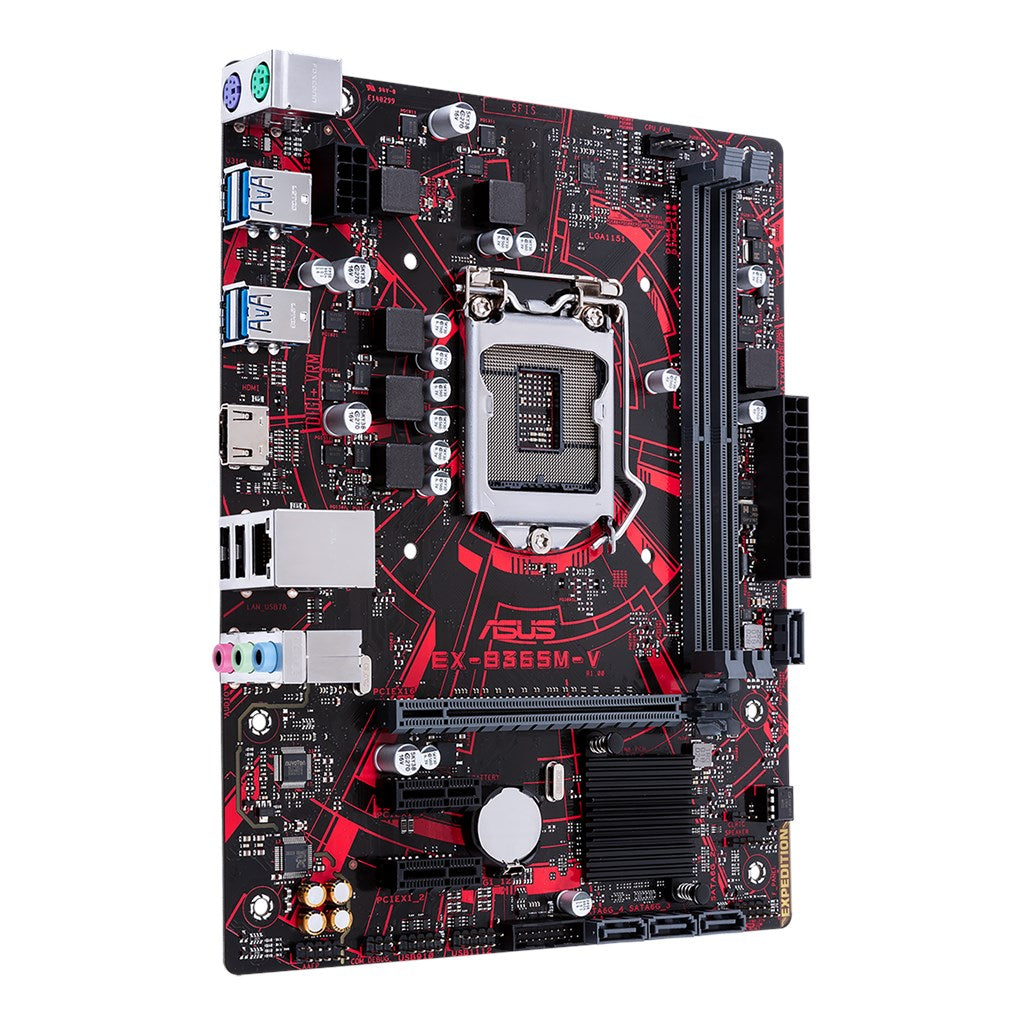

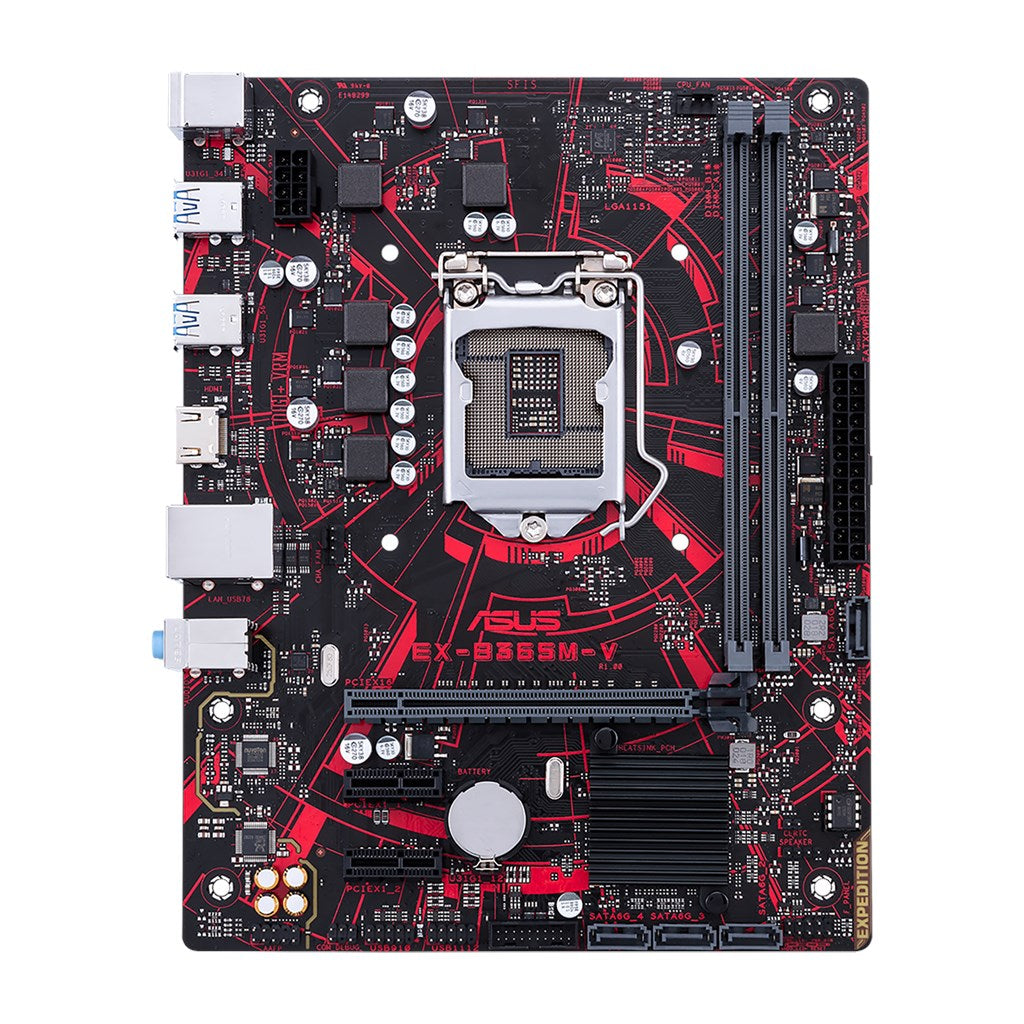

ASUS EX-B365M-V Intel B365 LGA 1151 mATX motherboard

ASUS EX-B365M-V Intel B365 LGA 1151 mATX motherboard

No reviews
Regular price ₹ 7,348.00
Regular price ₹ 8,400.00 Sale price ₹ 7,348.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
  • Non-stop durability: Unbeatable features including luminous anti-moisture coating, USBGuard, SafeSlot Core, Stainless-steel back I/O and 5X Protection III
  • Non-stop gaming: ASUS Beyond VR ready and Epic audio
  • Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
  • CPU
    Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    *Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list.
  • Chipset
    Intel® B365
  • Memory
    2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    VGA output support : HDMI port
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
  • Expansion Slots
    1 x PCIe 3.0 x16 (x16 mode)
    2 x PCIe 3.0 x1
  • Storage
    4 x SATA 6Gb/s port(s),
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    Intel® B365 Chipset :
    6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A, 2 at mid-board)
    Intel® B365 Chipset :
    6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 5 Phase digital power design
    - ASUS ESD Guards - Enhanced ESD protection
    Non-stop Durability :
    - Anti-moisture coating - Outstanding protection against moisture and corrosion
    - USBGuard- 120% higher voltage tolerance
    Non-stop Gaming :
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    Non-stop Challenger :
    - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.1 Gen 1
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x COM Debug header
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    I/O Shield
    1 x SCD (by region)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS
  • Manageability
    WOL, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )
