Asrock Z490 PG Velocita Motherboard

Asrock Z490 PG Velocita Motherboard

₹ 26,738.00
₹ 26,738.00
Sale Sold out
Tax included.

Description

  • Gaming Armor
  • Power
  • - Hi-Density Power Connectors (24 pin and 8 pin)
  • Memory
  • - 15μ Gold Contact in DIMM Slots
  • VGA Card
  • - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Internet
  • - 2.5G LAN
  • Cooling
  • - XXL Aluminum Alloy Heatsink
  • - Heat Pipe Design
  • Audio
  • - Nahimic Audio
  • Unique Feature
  • ASRock USB 3.2 Gen2
  • - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • ASRock Super Alloy
  • - XXL Aluminum Alloy Heatsink
  • - Premium 60A Power Choke
  • - 50A Dr.MOS
  • - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  • - Combo Caps (Nichicon 12K Black Caps)
  • - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  • - I/O Armor
  • - Matte Black PCB
  • - High Density Glass Fabric PCB
  • - 2oz Copper PCB
  • - ASRock Phantom Gaming 2.5G LAN
  • ASRock Steel Slots
  • ASRock Full Coverage M.2 Heatsink
  • ASRock Hyper M.2 (PCIe Gen4x4)
  • ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • ASRock Ultra USB Power
  • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  • ASRock Live Update & APP Shop
  • CPU
  • - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
  • - Digi Power design
  • - 13 Power Phase design
  • - Supports Intel® Turbo Boost Max 3.0 Technology
  • - Supports Intel® K-Series unlocked CPUs
  • - Supports ASRock BCLK Full-range Overclocking
  • - Supports ASRock Hyper BCLK Engine III
  • Chipset
  • - Intel® Z490
  • Memory
  • - Dual Channel DDR4 Memory Technology
  • - 4 x DDR4 DIMM Slots
  • - Supports DDR4 4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • - Max. capacity of system memory: 128GB***
  • - Supports Intel® Extreme Memory Profile (XMP) 2.0
  • - 15μ Gold Contact in DIMM Slots

  • *Please refer to Memory Support List on ASRock's website for more information.
  • Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

  • **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
  • - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  • - ACPI 6.0 Compliant wake up events
  • - SMBIOS 2.7 Support
  • - CPU Core/Cache, GT, DRAM, VPPM,VTTDDR, VCCSFR, VCCPLL_OC, PCH Voltage, VCCIO, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
  • Graphics
  • - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  • - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  • - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
  • - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
  • - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  • - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
  • - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  • - Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
  • - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

  • *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  • **VP9 10bit and VC-1 are for decode only.
  • VP8 and VP9 encode are not supported by Windows® OS.
  • Audio
  • - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • - Premium Blu-ray Audio support
  • - Supports Surge Protection
  • - 120dB SNR DAC with Differential Amplifier
  • - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  • - Pure Power-In
  • - Direct Drive Technology
  • - PCB Isolate Shielding
  • - Impedance Sensing on Rear Out port
  • - Individual PCB Layers for R/L Audio Channel
  • - Gold Audio Jacks
  • - 15μ Gold Audio Connector
  • - Nahimic Audio
  • LAN
  • 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
  • - Supports Phantom Gaming LAN Software
  • - Smart Auto Adjust Bandwidth Control
  • - Visual User Friendly UI
  • - Visual Network Usage Statistics
  • - Optimized Default Setting for Game, Browser, and Streaming Modes
  • - User Customized Priority Control
  • - Supports Wake-On-LAN
  • - Supports Lightning/ESD Protection
  • - Supports Energy Efficient Ethernet 802.3az
  • - Supports PXE
  • 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
  • - Supports Wake-On-LAN
  • - Supports Lightning/ESD Protection
  • - Supports Energy Efficient Ethernet 802.3az
  • - Supports PXE
  • Slots
  • - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)*
  • - 3 x PCI Express 3.0 x1 Slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
    - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug*
    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
    M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers*
    - 2 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490) (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel® Z490) (Supports ESD Protection)
    - 1 x Dr. Debug with LED
    - 1 x Power Button with LED
    - 1 x Reset Button with LED

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
    CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.

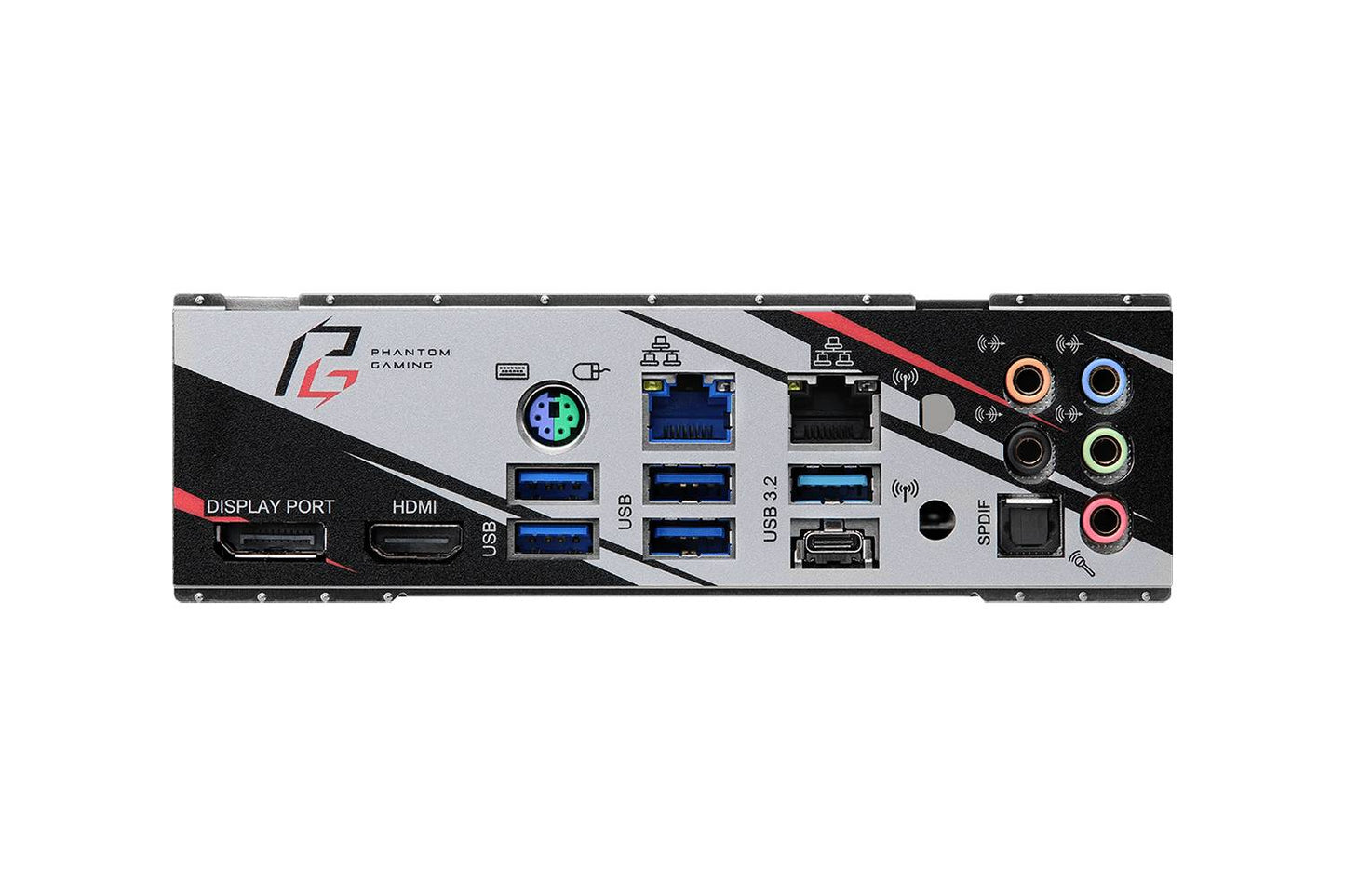

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Intel® Z490) (Supports ESD Protection)*
    - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    *Ultra USB Power is supported on USB3_34 ports.
    ACPI wake-up function is not supported on USB3_34 ports.
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC
    - ASRock Key Master*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD
    - 4 x SATA Data Cables
    - 3 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets
  • Hardware Monitor
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO, VCCPLL_OC, VCCSFR
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 2oz Copper PCB
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    •
