Asrock X570 Taichi Motherboard

Asrock X570 Taichi Motherboard

₹ 29,777.00
₹ 29,777.00
Sale Sold out
Tax included.

Description

  • Unique Feature
    ASRock USB 3.2 Gen2
    - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 60A Power Choke
    - 50A Dr.MOS
    - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
    - Combo Caps (Nichicon 12K Black Caps)
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB
    Intel® 802.11ax WiFi
    ASRock Steel Slots
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
    ASRock Ultra USB Power
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors*
    - Intersil Digital PWM
    - 14 Power Phase design
    - Capable of providing extra 300W for CPU
    - Supports ASRock Hyper BCLK Engine II

    *Please refer to CPU Support List on our website for more information.
  • Chipset
    - AMD X570
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
    - Max. capacity of system memory: 128GB**
    - Supports Extreme Memory Profile (XMP) memory modules
    - 15μ Gold Contact in DIMM Slots


    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, Voltage Multi-adjustment
  • Graphics
    - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    - DirectX 12, Pixel Shader 5.0
    - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
    - Supports HDR (High Dynamic Range) with HDMI 2.0
    - Supports HDCP 2.2 with HDMI 2.0 Port
    - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port
    - Supports Microsoft® PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - Supports Purity Sound™ 4
    - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
    - Pure Power-In
    - Direct Drive Technology
    - PCB isolate shielding
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Gold Audio Jacks
    - 15μ Gold Audio Connector
    - Supports DTS Connect
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - GigaLAN Intel® I211AT
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Wireless LAN
    - Intel® 802.11ax WiFi Module
    - Supports IEEE 802.11a/b/g/n/ax
    - Supports Dual-Band (2.4/5 GHz)
    - Supports high speed wireless connections up to 2.4Gbps
    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth 5.0 + High speed class II
    - Supports MU-MIMO
  • Slots
    AMD Ryzen series CPUs (Vermeer, Matisse)
    - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*
    AMD Ryzen series CPUs (Renoir, Pinnacle Ridge)
    - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*
    AMD Ryzen series CPUs (Picasso)
    - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*
    AMD X570 Chipset
    - 1 x PCI Express 4.0 x16 Slot (x4 (PCIE5))*

    - 2 x PCI Express 4.0 x1 Slots
    - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™**
    - Supports NVIDIA® Quad SLI™ and SLI™***
    - Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards***
    - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE5 only.
    Supports NVMe SSD as boot disks

    **3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge).

    ***NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.
    This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Renoir and Pinnacle Ridge).
  • Storage
    - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*
    - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
    - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*

    *If M2_3 is occupied, PCIE5 slot will be disabled
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
    Support RAID 0/1/10
  • Connector
    - 1 x Power LED and Speaker Header
    - 1 x AMD Fan LED Header*
    - 1 x RGB LED Header**
    - 1 x Addressable LED Header***
    - 1 x CPU Fan Connector (4-pin)****
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    - 1 x AMD LED Fan USB Header
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
    - 1 x Dr. Debug with LED
    - 1 x Power Button with LED
    - 1 x Reset Button with LED
    - 1 x Clear CMOS Button
    - 1 x SPI TPM Header*******

    *The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

    **Supports in total up to 12V/3A, 36W LED Strip

    ***Supports in total up to 5V/3A, 15W LED Strip

    ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

    *******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI

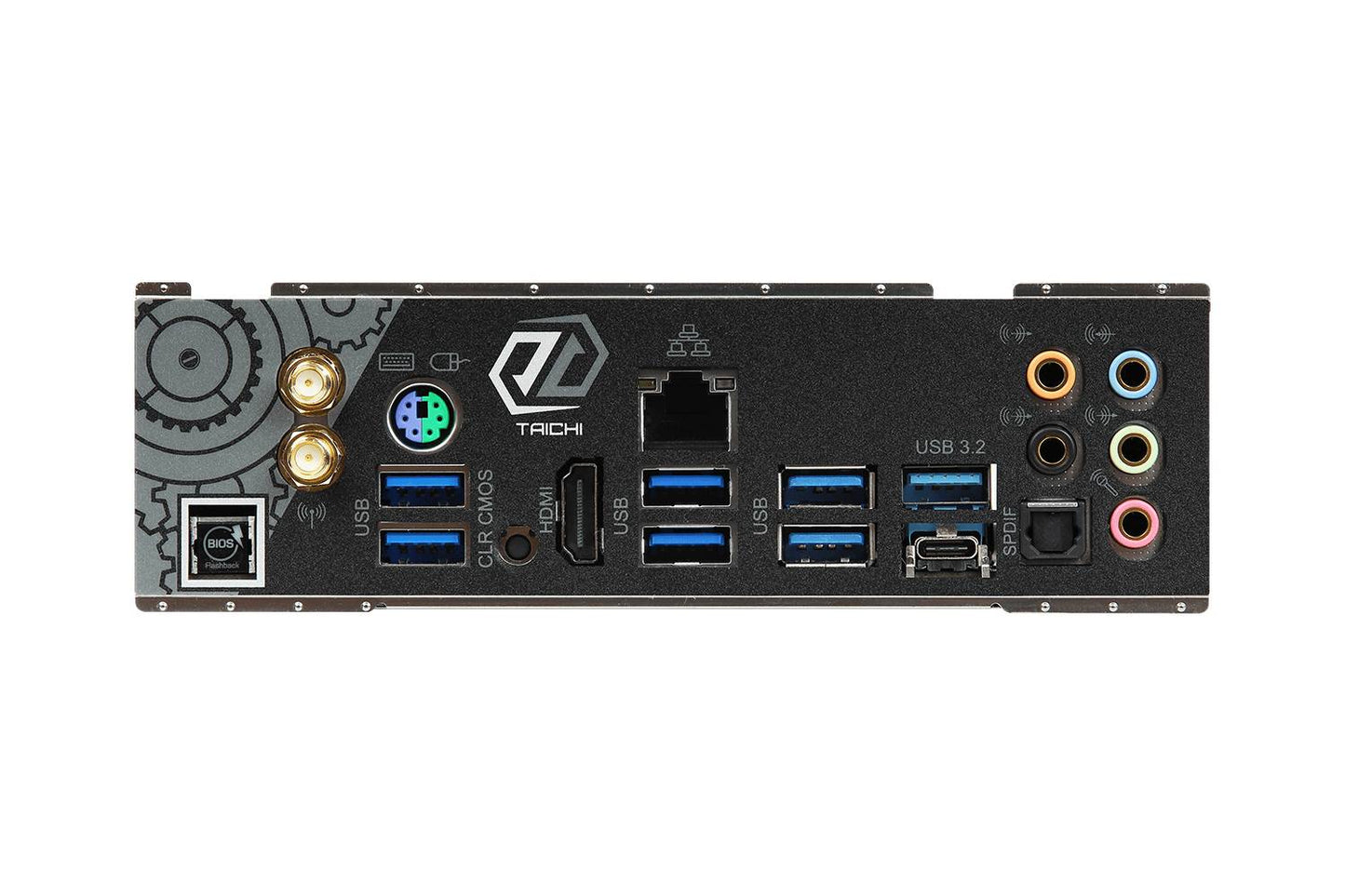

  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
    - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - 1 x Clear CMOS Button
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    *Ultra USB Power is supported on USB3_5_6 ports.
    ACPI wake-up function is not supported on USB3_5_6 ports.
  • Software and UEFI
    Software
    - ASRock A-Tuning
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD
    - 4 x SATA Data Cables
    - 1 x ASRock SLI_HB_Bridge_2S Card
    - 1 x ASRock WiFi 2.4/5 GHz Antenna
    - 1 x ASRock Screwdriver
    - 3 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets
  • Hardware Monitor
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 2oz Copper PCB
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    •
