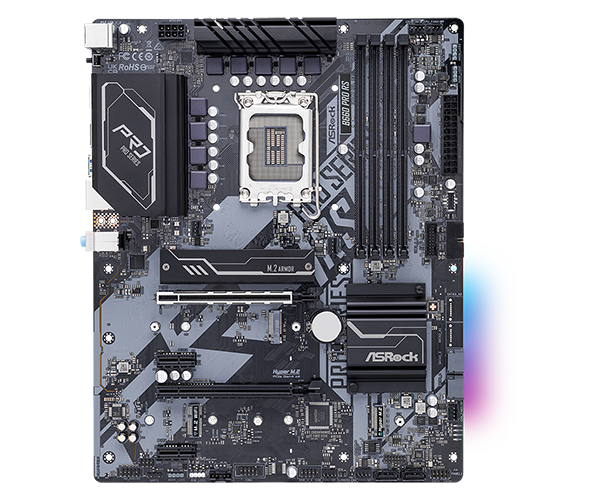

Asrock B660 Pro RS Motherboard

Asrock B660 Pro RS Motherboard

Regular price ₹ 11,741.00
Regular price Sale price ₹ 11,741.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 8 Phase Power Design
  • Supports DDR4 4800MHz (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
    1 M.2 Key-E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3
    2 Hyper M.2 (PCIe Gen4 x4)
    1 M.2 (PCIe Gen3 x2 & SATA3)
  • 9 USB 3.2 Gen1 (4 Rear, 4 Front, 1 Front Type-C)
    4 USB 2.0 (2 Rear, 2 Front)
  • Intel® Gigabit LAN
  • Unique Feature
    ASRock Super Alloy
    - Premium Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Steel Slot
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
    - Digi Power design
    - 8 Power Phase design
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® B660
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 128GB
    - Supports Intel® Extreme Memory Profile (XMP) 2.0

    *Supports DDR4 3200 natively.
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12)
    - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
    - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Supports Surge Protection
    - Nahimic Audio
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports UEFI PXE
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
    - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE4)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

    - Supports AMD CrossFire™

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors**

    *Supports Intel® Optane™ Memory H Series (M2_3 only)
    Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

    ** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
