ASRock B365 Pro4 Motherboard

• Supports 9^th and 8^th Gen Intel^® Core™ processors (Socket 1151)
• Supports DDR4 2666
• 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• AMD Quad CrossFireX™
• Graphics Output Options: HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen3 x4 & SATA3, 1 x PCIe Gen3 x4)
• 8 USB 3.1 Gen1 (2 Front, 5 Rear, 1 Type-C)
• Intel^® Gigabit LAN

• Unique Feature
  ASRock Super Alloy
  - Premium 50A Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  ASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) Technology
  ASRock Steel Slot
  ASRock Full Coverage M.2 Heatsink
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports 9^th and 8^th Gen Intel^® Core™ Processors (Socket 1151)
  - Supports CPU up to 95W
  - Digi Power design
  - 8 Power Phase design
  - Supports Intel^® Turbo Boost 2.0 Technology
• Chipset
  - Intel^® B365
• Memory
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB*
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
• Graphics
  - Supports Intel^® UHD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® UHD Graphics
  - DirectX 12
  - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
  - Three graphics output options: D-Sub, DVI-D and HDMI
  - Supports Triple Monitor
  - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
  - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port



  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
  - Premium Blu-ray Audio support
  - Supports Surge Protection
  - ELNA Audio Caps



  *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Giga PHY Intel^® I219V
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
  - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
  - Supports AMD Quad CrossFireX™ and CrossFireX™
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module



  *Supports NVMe SSD as boot disks
• Storage
  - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
  - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
  - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**



  *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

  **Supports Intel^® Optane™ Technology
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  - 1 x COM Port Header
  - 1 x TPM Header
  - 1 x Power LED and Speaker Header
  - 2 x RGB LED Headers*
  - 1 x Addressable LED Header**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x Thunderbolt™ AIC Connector (5-pin)
  - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)



  *Support in total up to 12V/3A, 36W LED Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

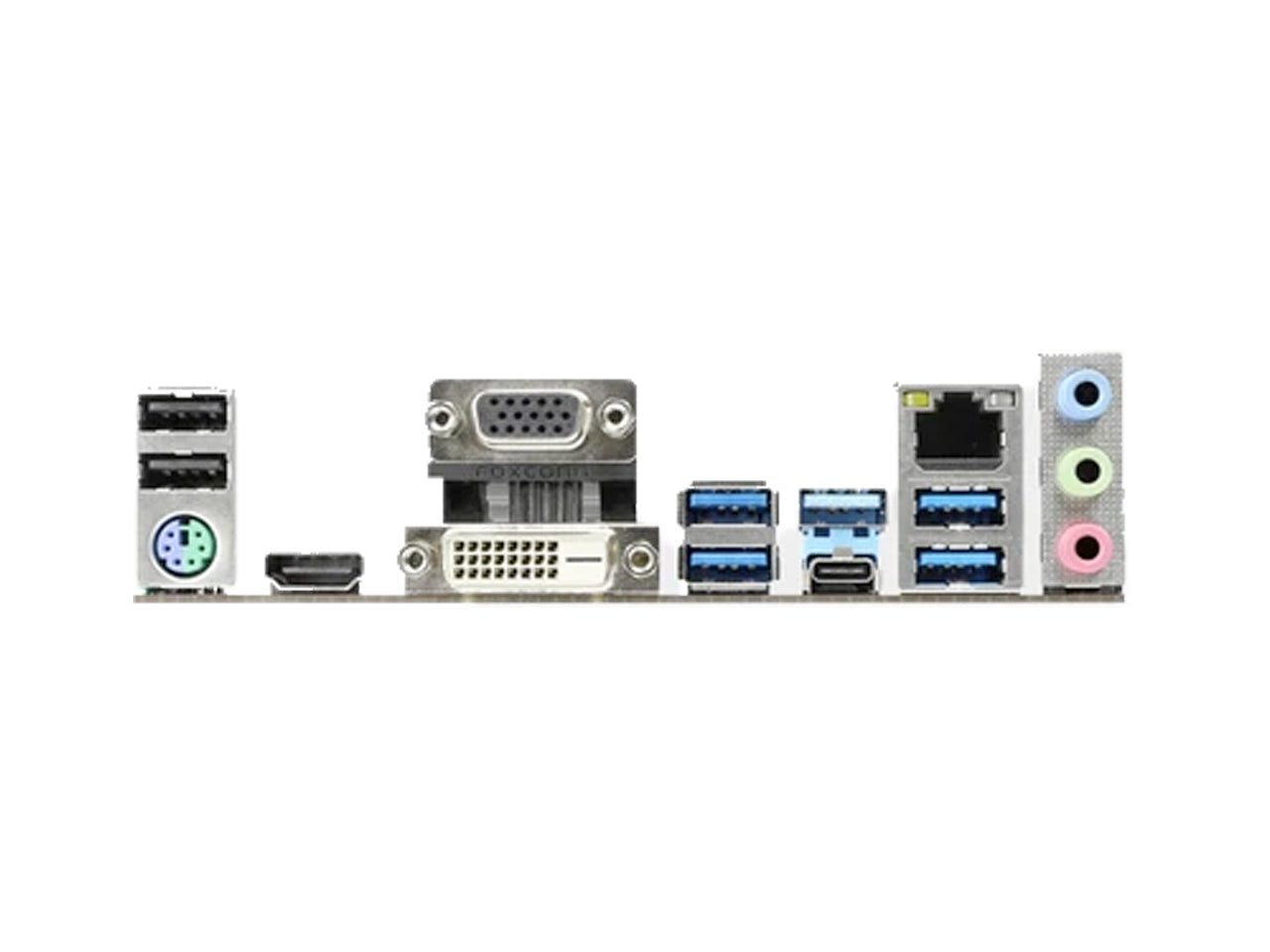

• Rear Panel I/O
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
  - 5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock A-Tuning
  - ASRock Polychrome SYNC
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 3 x Screws for M.2 Sockets
  - 1 x Standoff for M.2 Socket
• Hardware Monitor
  - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST
• Form Factor
  - ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
  - Solid Capacitor design
• OS
  - Microsoft^® Windows^® 10 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
